Product Overview

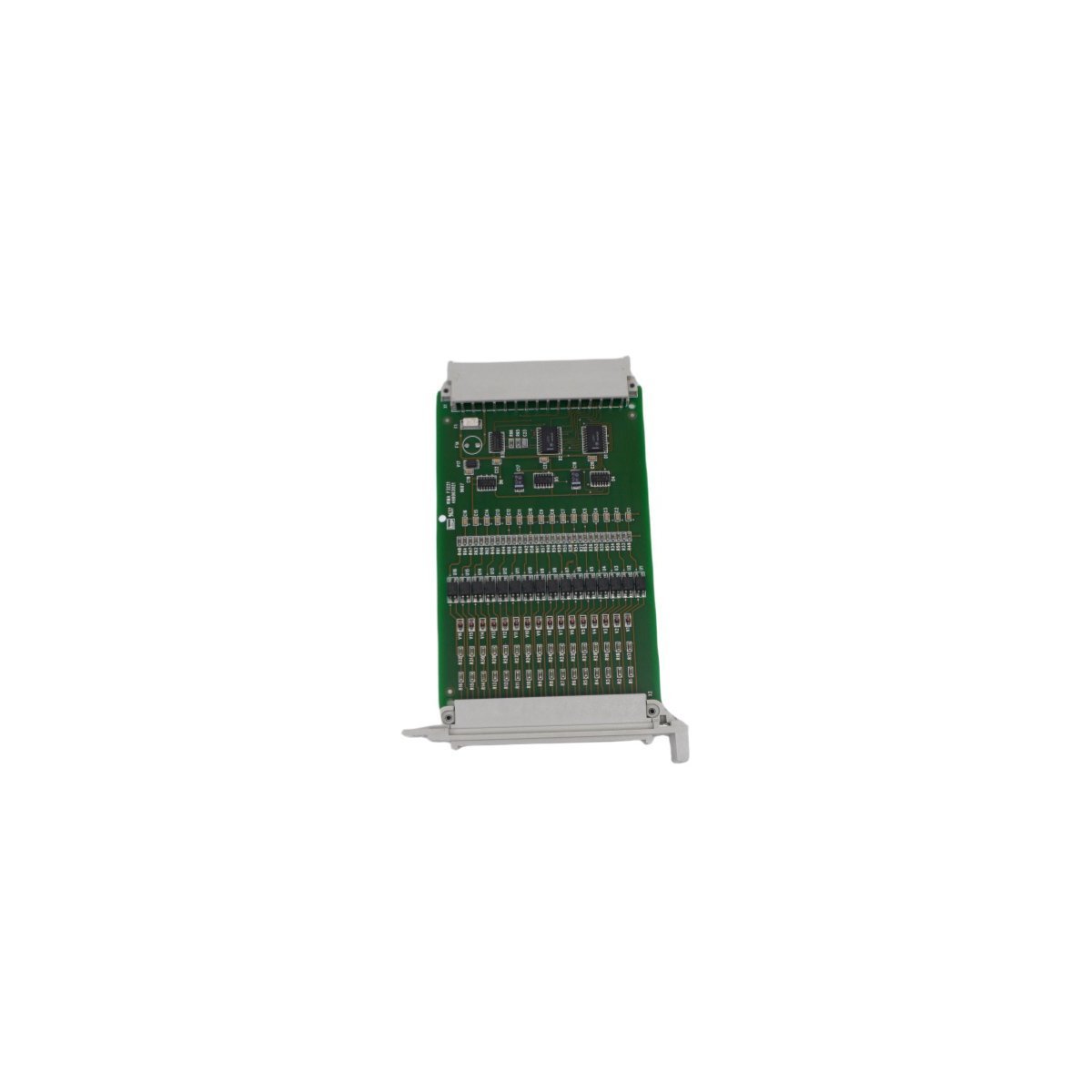

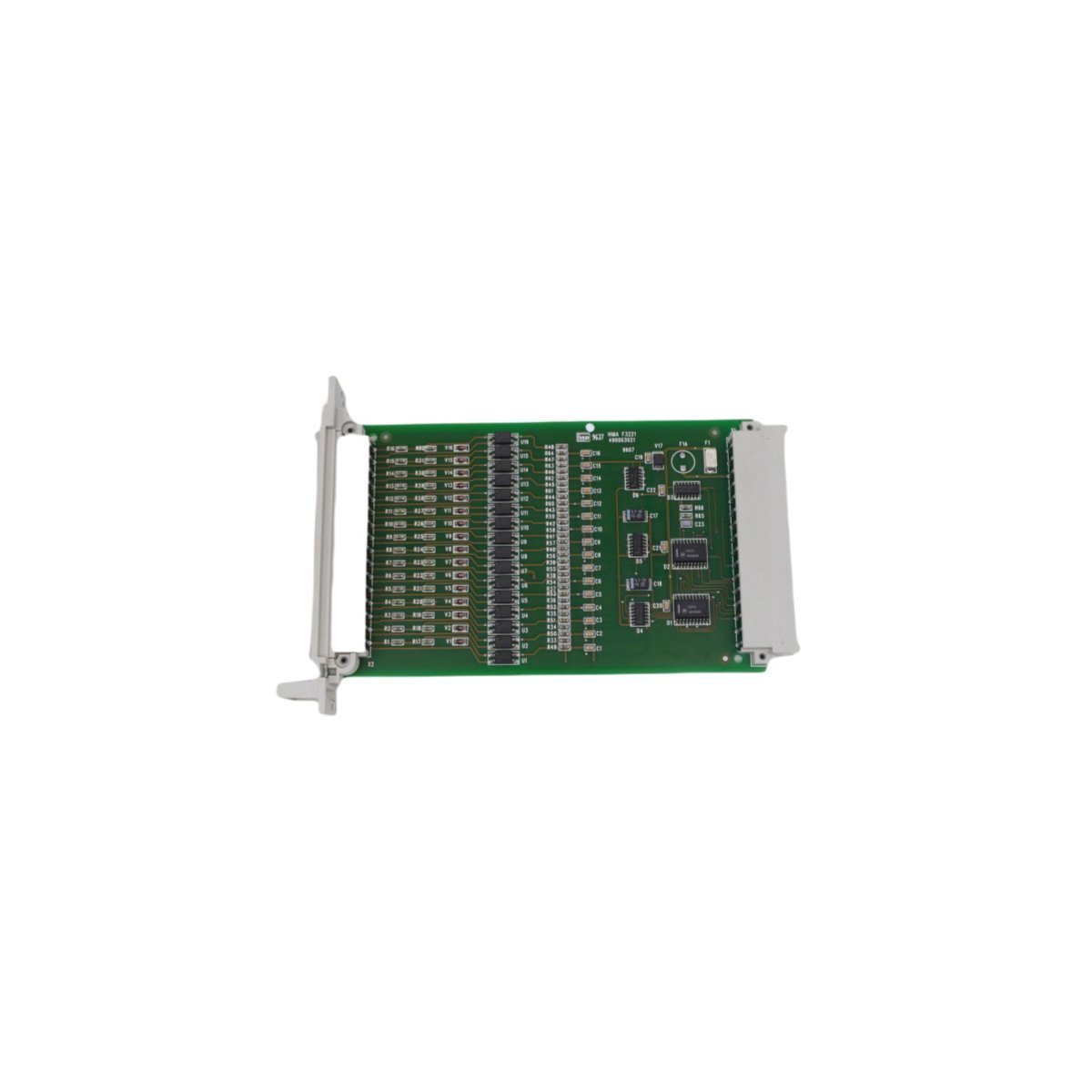

The HIMA F3221 is a high-density, 16-fold digital input module specifically engineered for the H41q and H51q safety-related automation systems. This module serves as a critical interface between field-level sensors and the central logic solver, providing safe and reliable signal acquisition for industrial processes. Designed for high-availability environments, the F3221 ensures that discrete signals—such as limit switches, valve positions, and push-buttons—are accurately captured and processed within the safety loop.

A defining characteristic of this module is its integration of Sequence of Events (SOE) recording. This allows for millisecond-precise time-stamping of input changes, which is vital for post-trip analysis and troubleshooting in complex process control systems. By offloading these tasks to the module level, the F3221 enhances overall system performance while maintaining the deterministic response required for functional safety.

Technical Characteristics

• Input Capacity: 16 independent digital input channels

• System Family: HIMA H41q and H51q Safety Systems

• Signal Support: Optimized for 24V DC field signals with internal 5V DC processing

• Data Integration: Advanced Sequence of Events (SOE) functionality for fault analysis

• Network Interface: Integrated RS-485 port for localized data exchange

• Operational Range: Functional in temperatures from -20°C to +60°C

• Safety Integrity: Designed for use in Safety Instrumented Systems (SIS) up to SIL 3

• Mechanical Format: Slim-line 4U plug-in board for standard subrack installation

• Weight: 0.12 kg

• Dimensions: 2.1 x 19.1 x 12.9 cm

• Manufacturing Origin: Germany

Engineering and Application Utility

The F3221 module is tailored for space-critical control cabinets where high I/O density is a priority. Despite its lightweight and compact 21mm width, it maintains galvanic isolation between the field inputs and the backplane bus, protecting the processor from electrical noise and voltage transients. This isolation is a cornerstone of HIMA's hardware-based safety approach, ensuring that a single-point failure at the input level does not propagate through the system.

Integration into existing DCS or PLC environments is streamlined via HIMA’s ELOP II or SILworX engineering tools. The module is widely utilized in the petrochemical, power generation, and chemical processing industries, where the ability to distinguish the exact order of rapid-fire events is necessary for plant safety. Its "Active" status and robust German construction make it a dependable replacement part or expansion module for long-term safety infrastructure maintenance.
