Product Overview

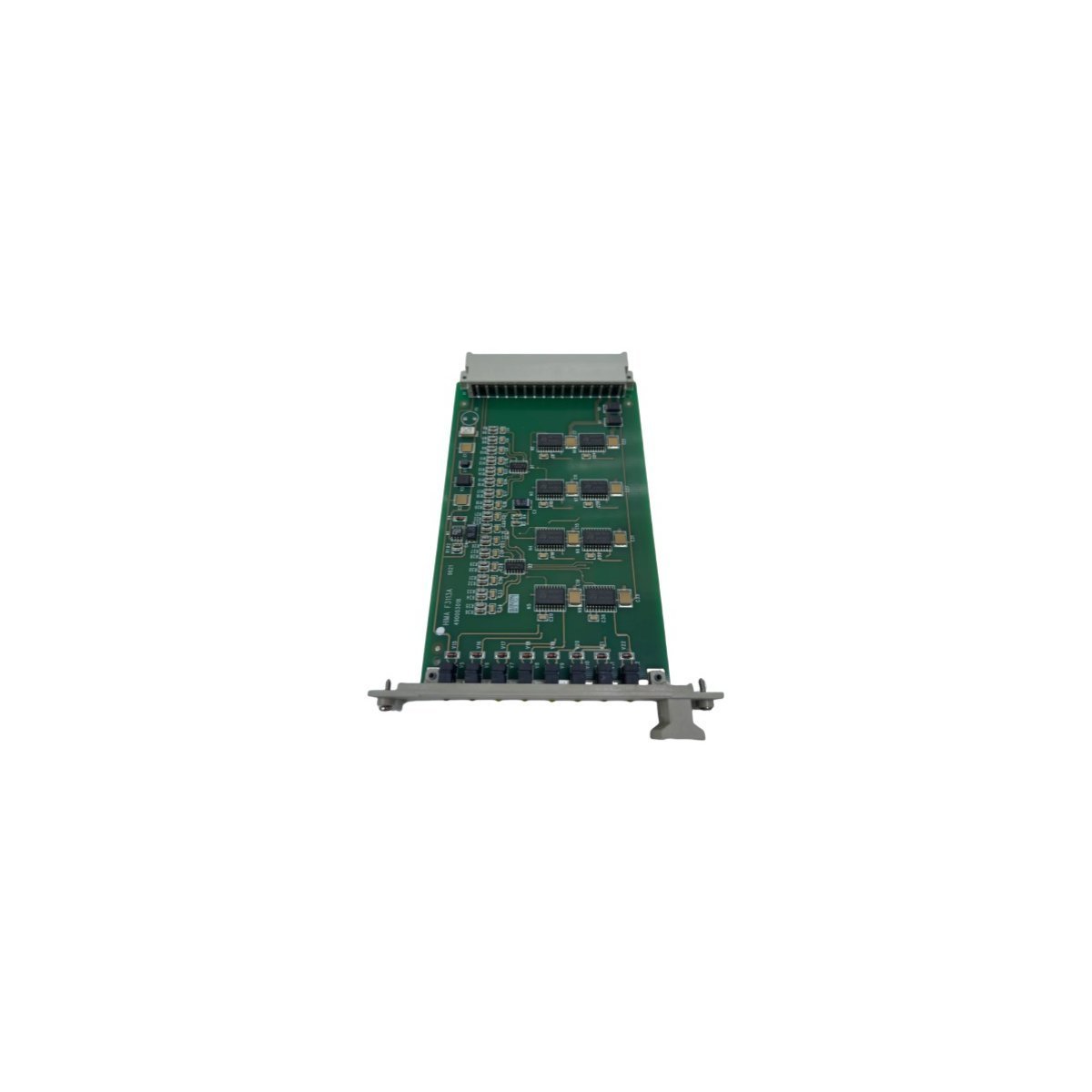

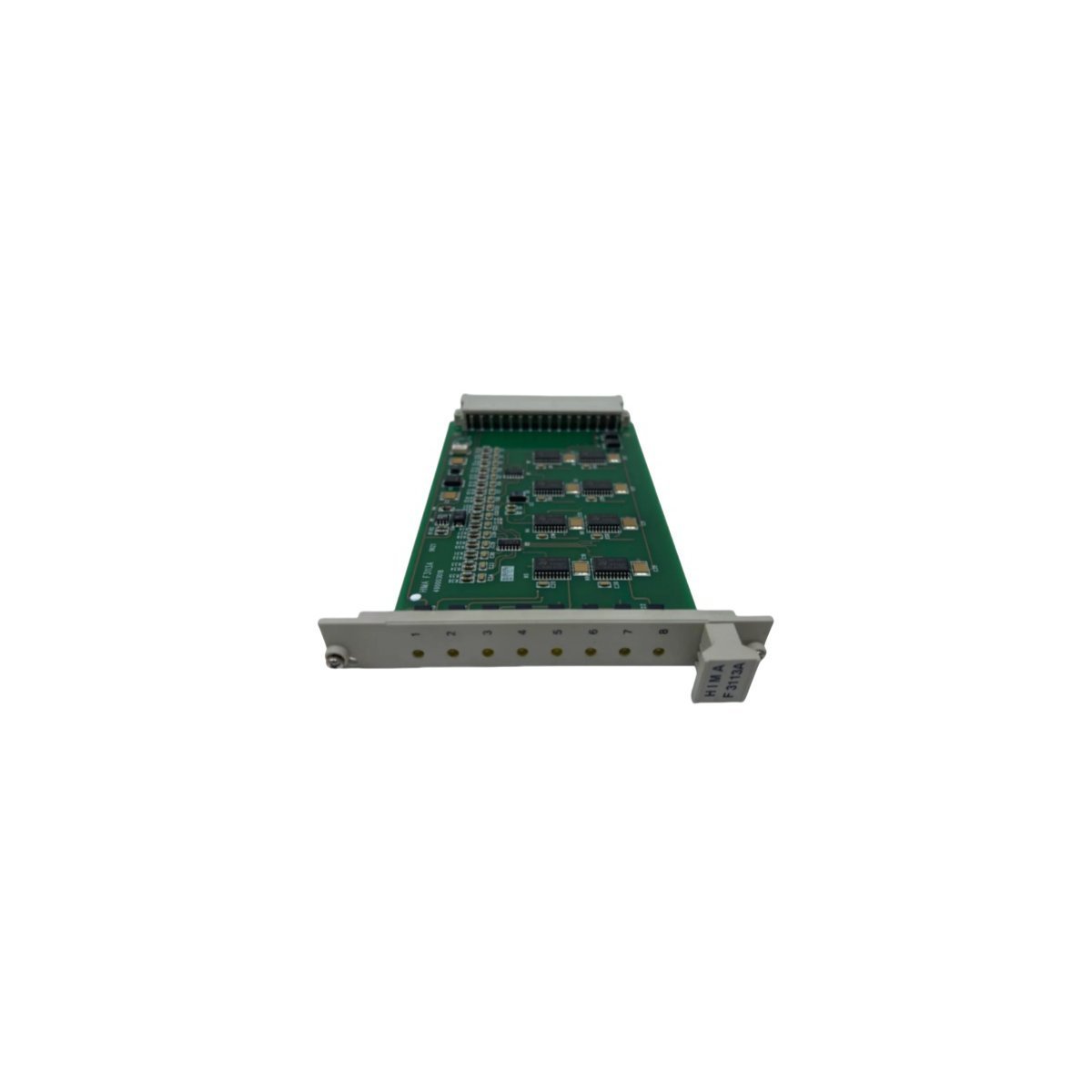

The HIMA F3113A is a high-performance output signal amplifier designed specifically for the H41q and H51q safety-related automation series. This module serves as a critical interface in Safety Instrumented Systems (SIS), providing the necessary power amplification to drive high-demand field actuators from low-level controller logic. By utilizing specialized relay technology, the F3113A ensures that control commands are executed with deterministic reliability, maintaining the safety integrity of the loop while protecting sensitive microprocessor components through galvanic isolation.

Engineered for the rigorous demands of the energy and process industries, the F3113A excels in environments where precision switching is mandatory. Its robust hardware design is optimized for Emergency Shutdown (ESD) and critical control applications, ensuring that even in the event of electromagnetic interference, the signal remains stable and accurate.

Technical Characteristics

• Amplification Type: Safety-related relay output amplifier

• System Compatibility: HIMA H41q and H51q Safety Systems

• Operating Voltage: 24V DC nominal power supply

• Output Switching Capacity: Rated for up to 10A at 250V AC

• Signal Current: Optimized 50mA internal output current for high-speed switching

• Isolation Resistance: High-grade 10MΩ insulation for maximum circuit protection

• Load Impedance: Optimized for low-impedance 100 Ohm loads to prevent signal attenuation

• Thermal Resilience: Rated for extreme industrial temperatures from -25°C to +85°C

• Mechanical Specifications: Compact 19.8 x 14.2 x 2.5 cm PCB format

• Manufacturing Standards: Engineered in Germany to meet CE and UL safety requirements

Application and Field Reliability

The F3113A Output Module Amplifier is a cornerstone for engineers managing complex automation tasks in volatile environments. Its ability to operate at temperatures as high as 85°C makes it one of the most resilient modules in the HIMA portfolio, suitable for installation in unconditioned remote instrument enclosures (RIE). The high switching capacity of the integrated relays allows the controller to manage heavy-duty solenoid valves and motor starters directly, reducing the need for intermediate hardware.

In practice, the module provides a user-friendly maintenance experience. The transparent diagnostic path and high isolation resistance allow technicians to troubleshoot field-side faults without risking damage to the central logic rack. Whether used in offshore oil platforms or onshore chemical refineries, the F3113A delivers the long-term stability and precise signal acquisition necessary to optimize system uptime and comply with global safety regulations.
