Product Overview

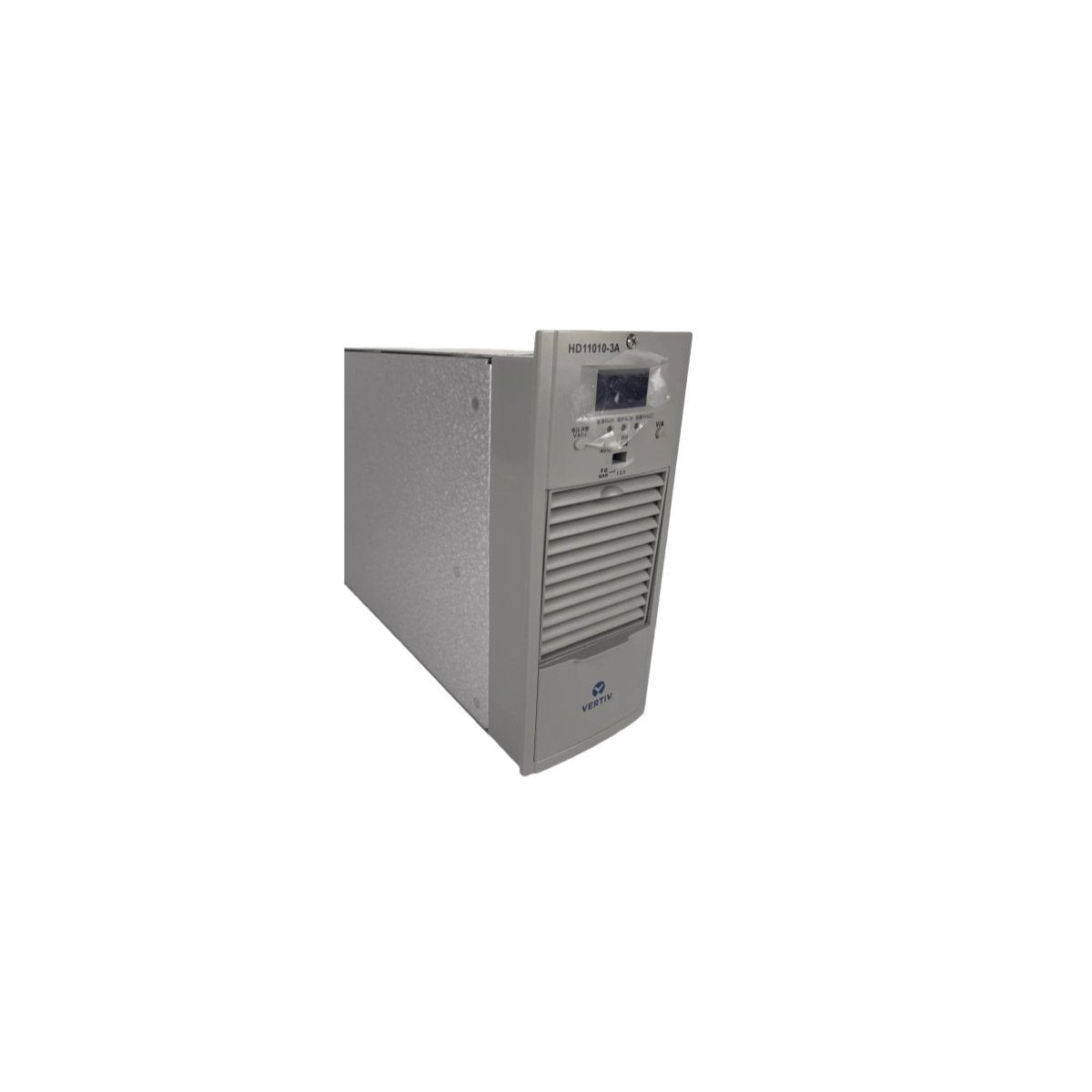

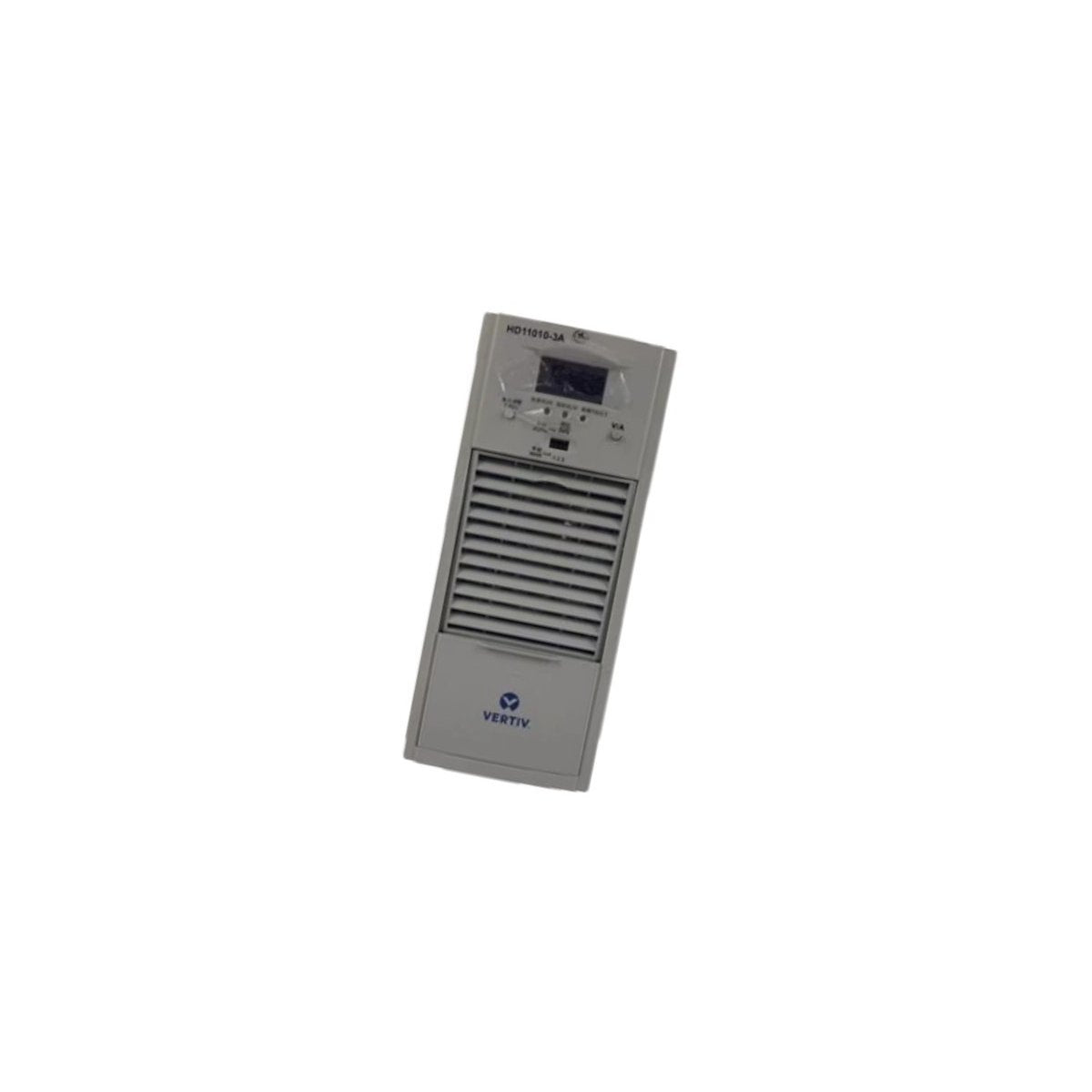

The Emerson HD11010-3A is a sophisticated high-frequency switching rectifier designed to provide stable DC power within utility-grade electrical environments. Engineered for the Ovation ecosystem and broader DC panel applications, this charging module effectively converts three-phase AC energy into a regulated 110V DC output. Its primary function is to maintain battery bank health and provide continuous power to critical control circuits in power plants and high-voltage substations. By utilizing high-density power electronics, this module offers a compact solution for ensuring the operational readiness of emergency backup systems and DC distribution networks.

Core Engineering Specifications and Performance Data

This rectifier module integrates advanced power conversion technology to ensure high efficiency and minimal heat dissipation.

• Input Voltage: Three-phase AC (380V to 400V nominal range)

• Output Rating: 110V DC constant voltage output at 10A current

• Regulation Logic: Intelligent microprocessor-controlled voltage and current limiting

• Cooling Profile: Optimized airflow design for continuous duty in enclosed panels

• Protection Circuitry: Comprehensive shielding against over-voltage, output short-circuits, and thermal runaway

• Conversion Efficiency: High-frequency switching mode ensures >90% efficiency ratings

• Integration Support: Compatible with Vertiv/Emerson monitoring units for remote status tracking

Typical Deployment and Infrastructure Use Cases

The HD11010-3A is a staple component in energy infrastructure, specifically within 110V DC power supply systems. It is commonly deployed in:

• Electrical Substations: Providing the necessary charging current for lead-acid or nickel-cadmium battery banks used in protection and control schemes.

• Power Generation Facilities: Serving as a reliable DC bus source for turbine control systems and emergency lighting circuits.

• Industrial Power Rooms: Supporting large-scale DC panels that require modular expansion and high-reliability rectifier redundancy.

Given its rugged construction and precise regulation, it is frequently specified for sites requiring "always-on" power where fluctuations in the AC grid must not affect the sensitivity of DC-powered relay logic or DCS controllers.
