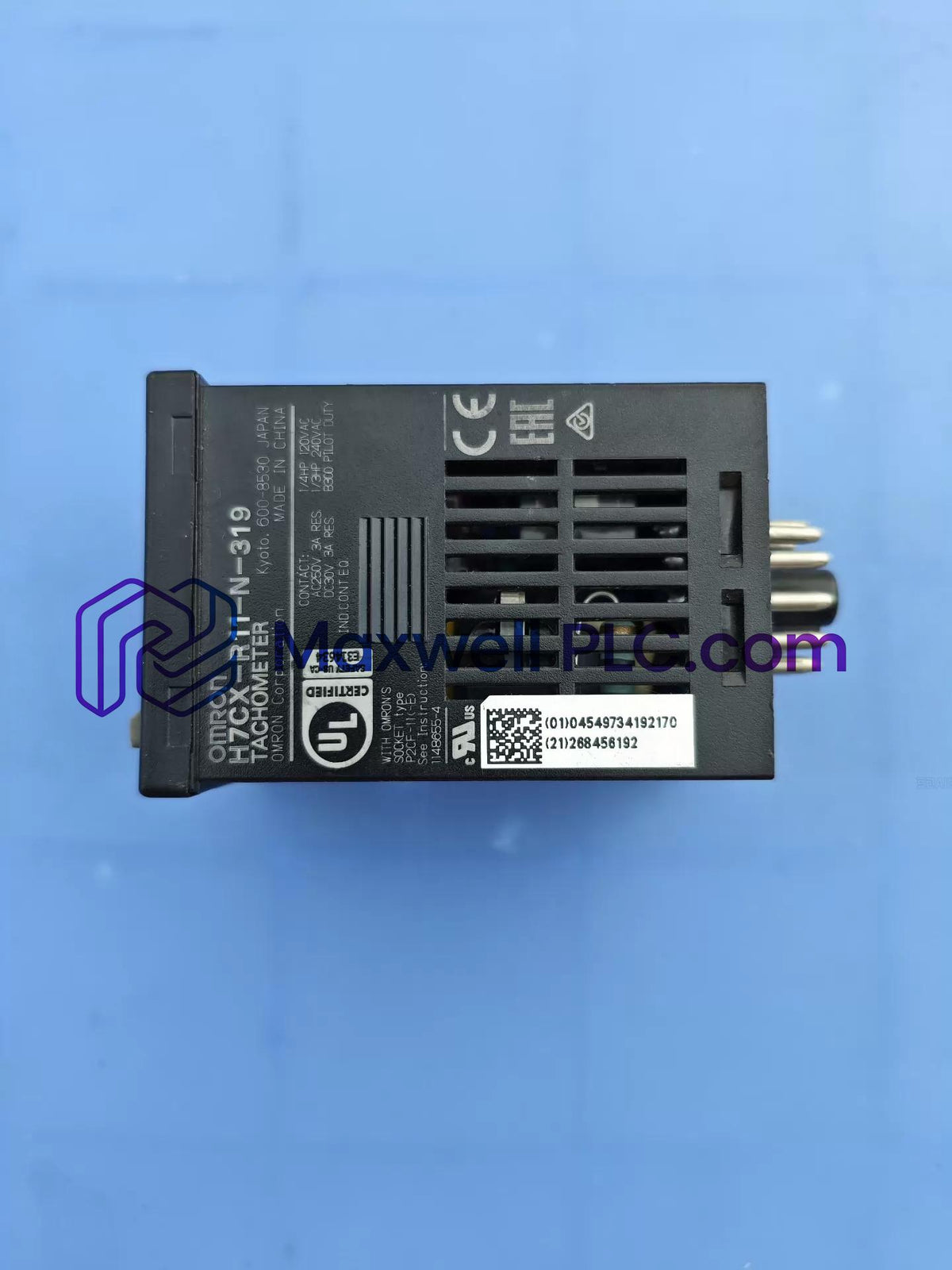

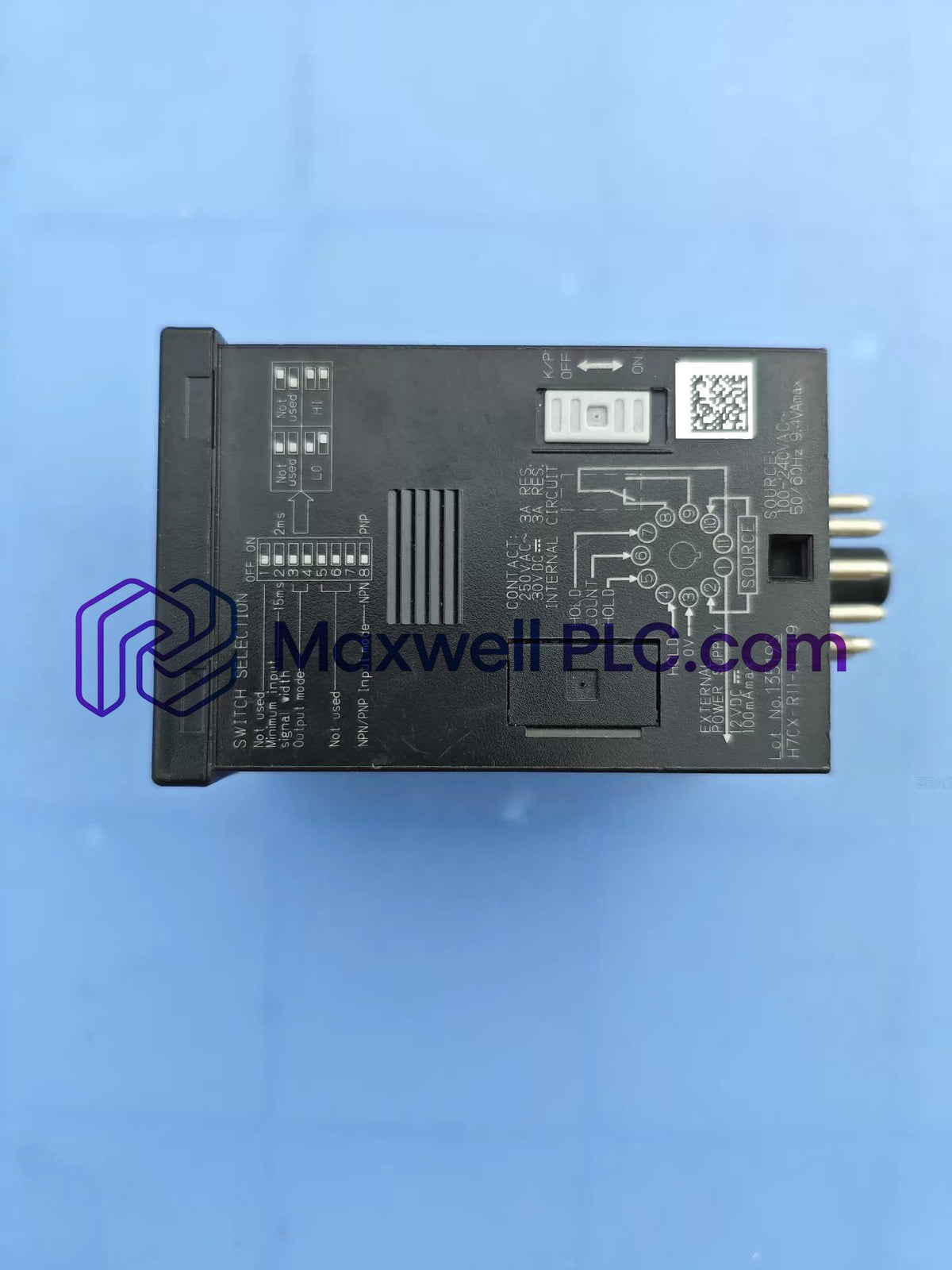

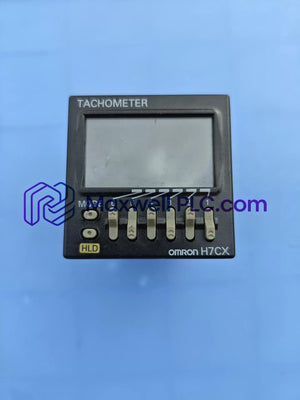

Configured for frequency measurement and speed pulse signal processing in automated drive loops, the Omron H7CX-R11-N (H7CX-R11 Multifunction Counter/Tachometer) provides direct physical/electrical execution.

Model Suffix & Configuration Designation

• H7CX: Base series for Omron 48 mm x 48 mm digital counter and tachometer instruments.
• R: Tachometer functional variant optimized for rotational speed, frequency, and pulse rate evaluation.
• 11: Rear-panel 11-pin circular socket connection structure for plug-in mounting.
• Digits (None): Standard 6-digit negative transmissive LCD display screen with backlight.
• Settings (None): Single-stage limit evaluation preset configuration.
• Output (None): Relay contact output or contact plus transistor auxiliary switching output.
• Supply Voltage (None): High-voltage operating supply accepting 100 to 240 VAC at 50/60 Hz.
• N: Revised hardware architectural generation featuring updated housing geometry and display clarity.

Physical & Electrical Performance Data

Deterministic Microprocessor Processing & Firmware Flash Validation

The integrated digital processing core converts incoming pulse sequences into engineering units using user-configurable scaling factors. Internal firmware algorithms execute real-time frequency calculations to compare rotational rates against preset thresholds without adding measurement latency. Onboard non-volatile EEPROM memory safeguards operating parameters and calibration constants across power interruptions without battery dependencies. Boot-up memory checksums confirm internal firmware integrity before releasing output relay contacts to prevent false triggering during voltage dips.

Package Contents & Accessories

• 1 x Omron H7CX-R11-N Digital Tachometer / Counter Unit
• 1 x Panel Mounting Adapter Clamp
• 1 x Waterproof Rubber Packing Gasket

Mounting Requirements & Field Installation Directives

Physical Panel Assembly

• Cut a standard 45 mm x 45 mm opening in the panel door; fit the rubber sealing ring onto the bezel before insertion to maintain IP66 front protection.
• Push the panel adapter onto the rear of the unit until the retention tabs lock firmly against the inner surface of the enclosure door.

Terminal Wiring & Noise Mitigation

• Align keyway pins when inserting the housing into an 11-pin DIN-rail socket (such as Omron P2CF-11).
• Route pulse input lines from proximity switches or encoders through shielded cables, grounding the braid shield at a single cabinet earth point.
• Keep 100 to 240 VAC supply wiring physically isolated from low-voltage DC sensor input conductors to avoid noise coupling.

Frequently Asked Questions

• What base operating mode is programmed into the R variant?

  The R designation identifies this unit as a dedicated tachometer designed for measuring rotation speeds, frequencies, and line rates.

• What interface is required to wire this unit into a cabinet?

  The unit connects using a standard 11-pin circular socket, allowing rapid plug-in mounting and modular replacement.

• How does the unit retain parameters during a main power failure?

  Internal EEPROM non-volatile memory retains parameter configurations, limit setpoints, and calibration scaling indefinitely without batteries.

• What supply voltage range is accepted by the AC supply terminals?

  The unit accepts a line voltage input ranging from 100 to 240 VAC at 50/60 Hz.

• Does the front display support negative value ranges or decimal points?

  Yes, the 6-digit LCD display features adjustable decimal point positions and supports value displays up to 999999.

• What protection level is achieved when installed in a panel door?

  Using the supplied rubber packing gasket creates an IP66 equivalent dust-tight and water-resistant front seal.

• How are output signals delivered to downstream automation devices?

  The instrument provides a physical relay contact output alongside a transistor output for PLC logic interfacing.

• Can the tachometer display be scaled to show engineering units like RPM or m/min?

  Yes, internal prescaling parameters allow incoming pulse frequencies to be converted into custom engineering units on the screen.
