Product Overview

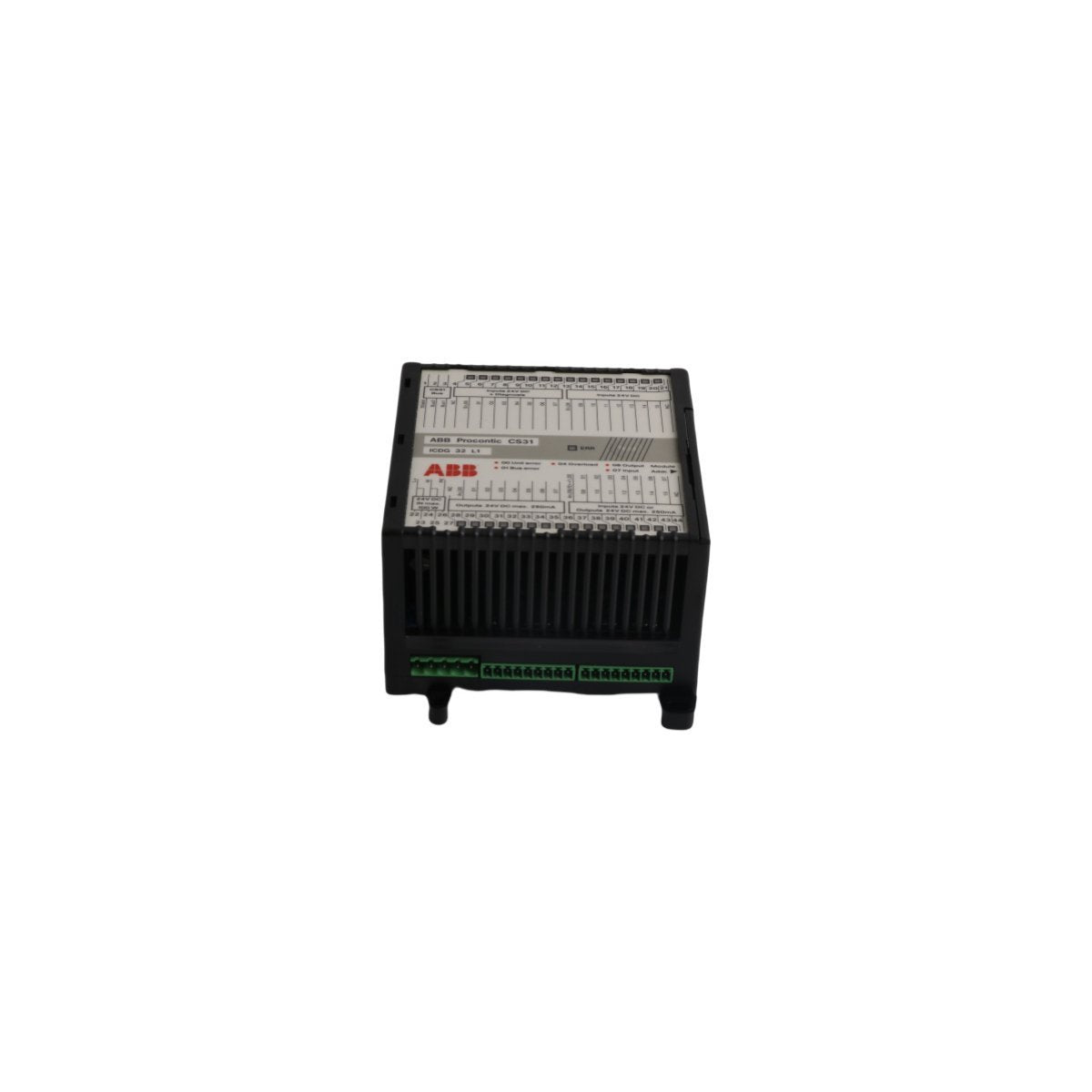

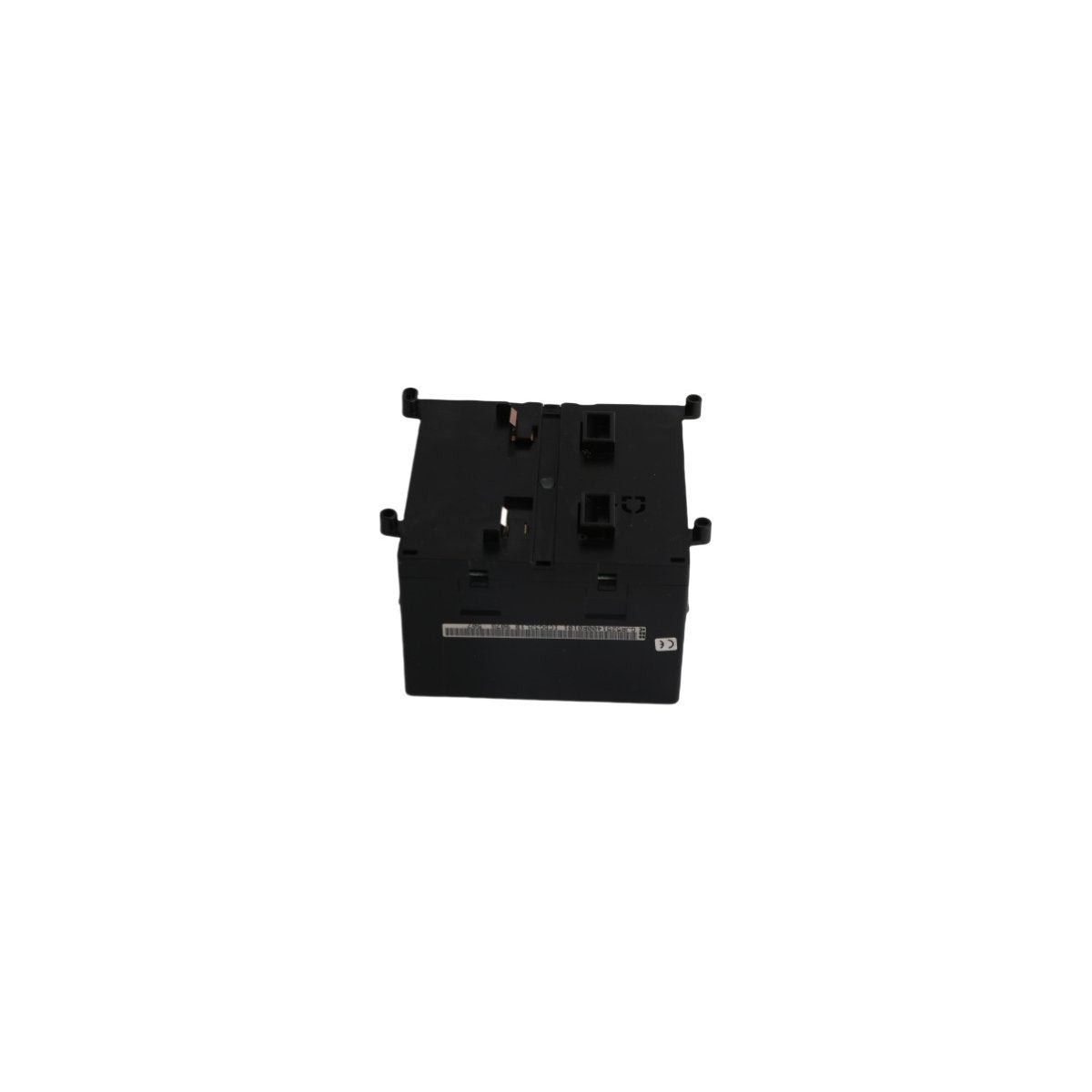

The ABB ICDG32L1, identified by the order reference GJR5251400R0101, is a high-precision servo control module designed for the Procontic CS31 and related Distributed Control System (DCS) architectures. This unit acts as a specialized motion logic controller, bridging the gap between supervisory automation and high-speed motor drives. By utilizing advanced EtherCAT communication, the ICDG32L1 facilitates deterministic data exchange, allowing for microsecond-level synchronization in complex multi-axis motion sequences. Its architecture is optimized for industrial environments where millimetric accuracy and rapid responsiveness are mandatory for system stability and production throughput.

Hardware Infrastructure and Physical Metrics

• Component Category Servo Motion Controller

• Model Designation ICDG32L1 / ICDG32L1B

• Order Reference GJR5251400R0101

• Communication Backbone High-speed EtherCAT Support

• System Family Procontic CS31 / Advant DCS

• Network Integration Integrated Ethernet router diagnostic capabilities

• Control Capability Advanced positioning and multi-axis synchronization

• Net Weight 0.38kg

• Physical Proportions 11.8cm x 13.6cm x 8.5cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Deployment and Site Applications

The ICDG32L1 GJR5251400R0101 is primarily deployed in high-speed automated manufacturing, precision packaging lines, and CNC machining centers. In these settings, the module manages the feedback loops from encoders and translates motion setpoints into physical drive commands. Its 0.38kg compact Swedish-engineered design allows for dense mounting in space-constrained control cabinets, while its robust hardware ensures continuous operation in the presence of electrical noise and vibration. By supporting modern EtherCAT protocols, the ICDG32L1 enables maintenance teams to perform remote diagnostics and real-time performance monitoring via the enterprise network. This level of transparency is essential for optimizing machine uptime and reducing the mechanical wear associated with imprecise servo movements in heavy industrial machinery.

FAQ

Q: What is the primary role of the ICDG32L1 in a Procontic CS31 system?

A: It serves as the dedicated processor for motion tasks, offloading complex trajectory calculations from the main CPU to ensure high-speed, jitter-free servo performance.

Q: Is the ICDG32L1B version interchangeable with the ICDG32L1?

A: The "B" designation often refers to a specific hardware revision or firmware bundle. While generally compatible, it is crucial to verify your current system's software version to ensure consistent multi-axis synchronization after replacement.

Q: Does this 0.38kg controller support EtherCAT networking?

A: Yes, the module is equipped with advanced communication interfaces that support EtherCAT, providing the high-speed, deterministic data flow required for modern motion control applications.

Q: How does the module handle feedback from the motor?

A: The ICDG32L1 interfaces directly with high-resolution encoders, processing feedback signals in real-time to correct positioning errors and maintain precise speed regulation across the servo loop.

Q: Can this unit be used for both new builds and legacy upgrades?

A: Absolutely. Its compact dimensions (11.8 x 13.6 x 8.5cm) and backwards compatibility with ABB’s Procontic range make it an ideal choice for refreshing aging control cabinets without major structural changes.
