Product Overview

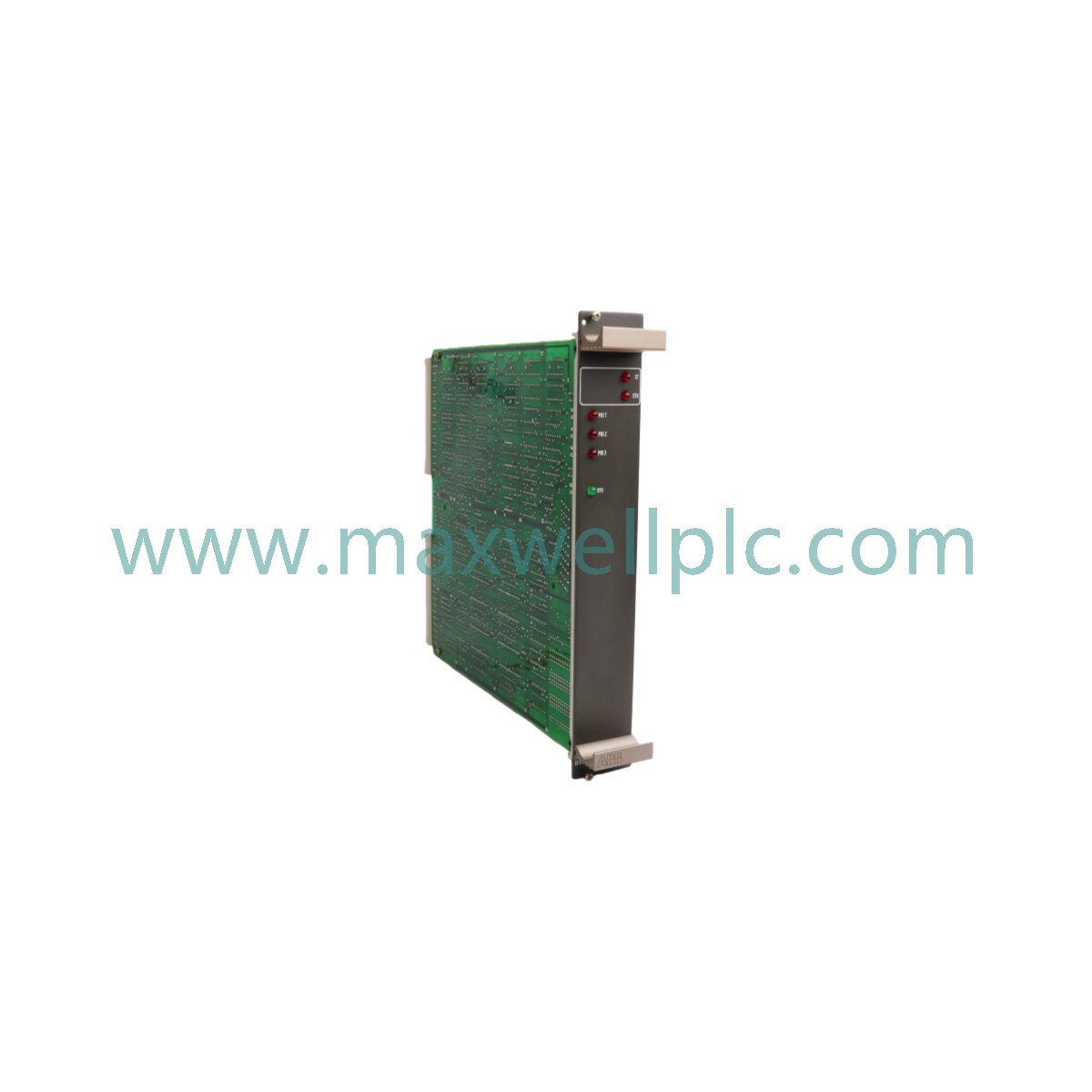

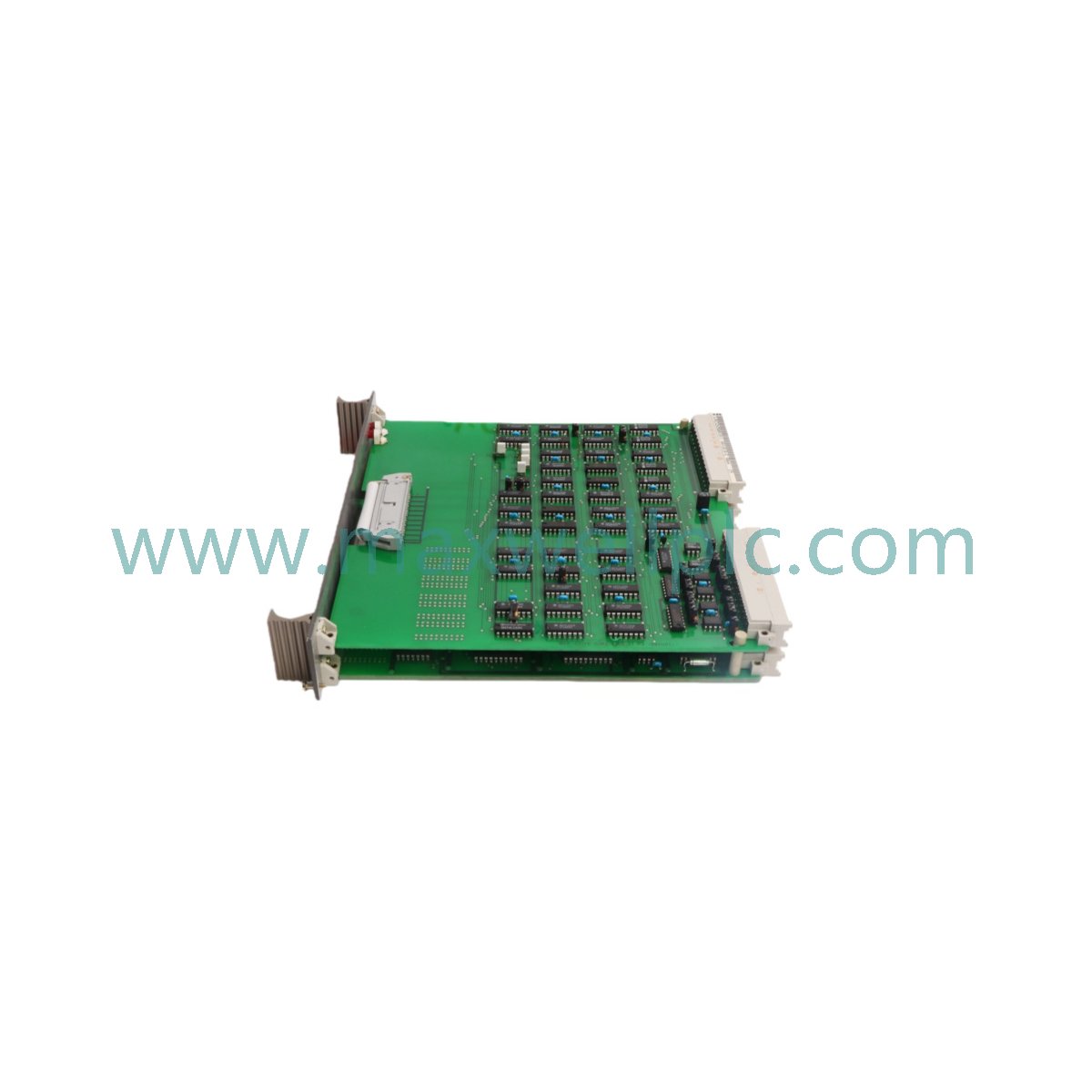

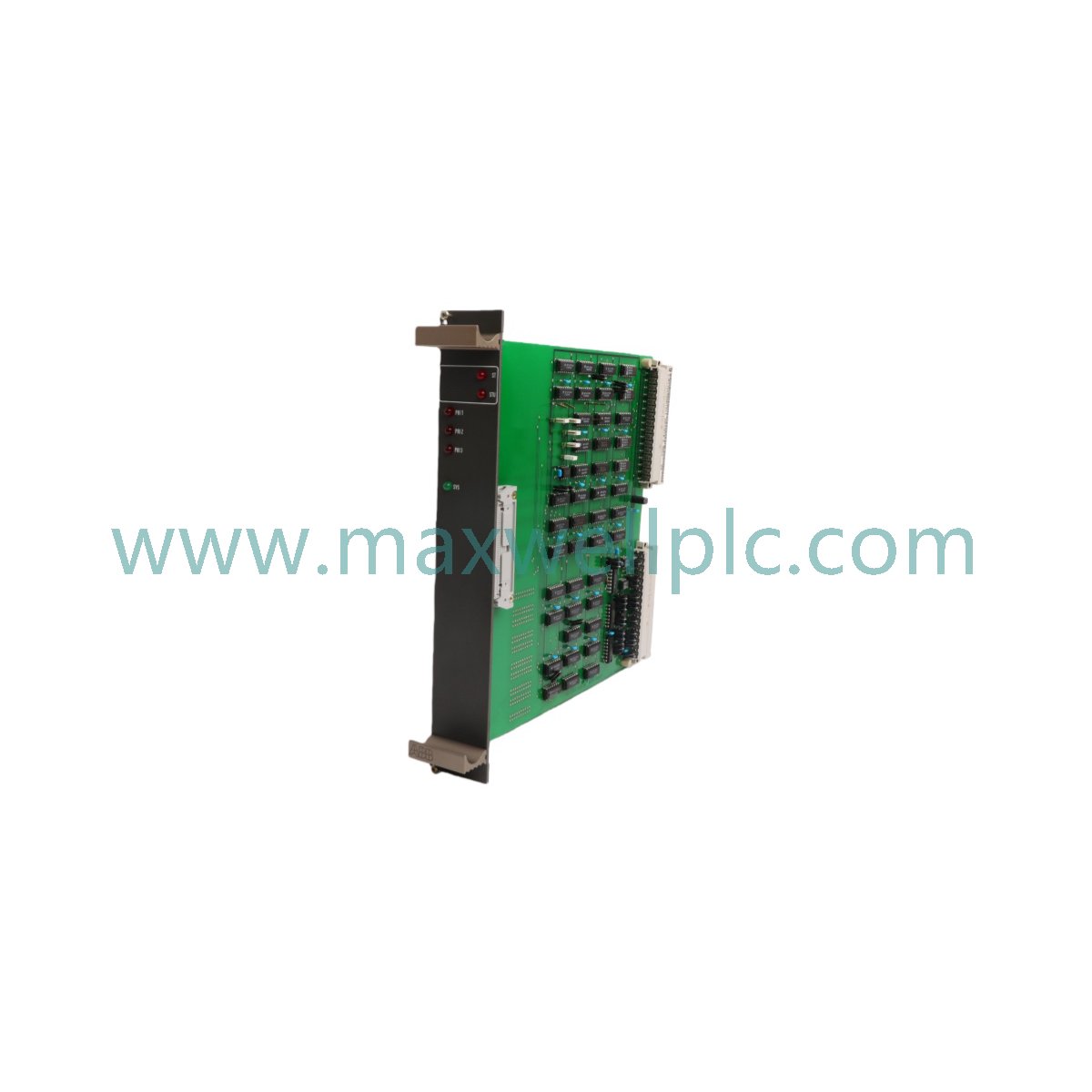

The ABB GJR2326500R1011, also designated as 88VU01B-E, is a specialized control board developed for the Procontrol P14 distributed control system (DCS) architecture. This hardware component serves as a core processing unit for turbine governing, sequencing, and protection. Designed for the high-availability requirements of utility-scale power generation, the module ensures deterministic execution of turbine control logic. It functions as an integral part of the ABB Procontrol P14 environment, providing the computational power and I/O coordination necessary to manage complex steam and gas turbine operations.

In industrial power settings, the control board provides the bridge between process-level sensor feedback and the governing actuators. By utilizing the P14 communication bus, it maintains tight synchronization across disparate turbine subsystems, minimizing response latency during startup, loading, and emergency trip events. The board’s architecture is optimized for long-term operational stability, featuring industrial-grade components built to withstand the rigors of high-vibration power plant environments.

Technical Specifications

Model Configuration Explanation

The 88VU01B-E configuration is tailored for high-precision turbine management. The board is structured with a dedicated central processing core that executes real-time control algorithms, alongside secondary logic arrays that manage data routing to the Procontrol P14 bus. This configuration allows for "hot-swappable" logic updates within certain framework limits and ensures that safety-critical turbine protection loops operate independently of general automation commands. The board’s physical design emphasizes thermal management and electromagnetic shielding, which are essential for maintaining signal integrity when processing low-level feedback from turbine speed sensors and hydraulic pressure transducers.

Typical Applications

• Utility Power Plants: Managing main steam and gas turbines in large-scale energy production grids, where stability is critical to prevent frequency deviation.

• Industrial Steam Turbines: Providing primary governing control for combined heat and power (CHP) units, where process load fluctuations occur frequently.

• Reheater Turbine Control: Executing complex steam path coordination, ensuring efficient pressure management during varying load conditions.

• TURBOTROL and TURBOTURN Integration: Serving as the hardware backbone for TURBOTROL-based turbine control suites, facilitating everything from basic speed control to sophisticated district heating optimization.

• Power Plant Modernization: Acting as the drop-in replacement for aging P14 hardware, allowing facilities to maintain current control strategies while upgrading to newer, more stable board revisions.

System Compatibility

The GJR2326500R1011 88VU01B-E is designed exclusively for the ABB Procontrol P14 system. It interfaces directly with P14 rack backplanes and relies on the platform’s native communication protocols to exchange data with other DCS nodes. While it is fully compatible with Ethernet-based routing via appropriate gateway modules, its primary control logic and data exchange are tied to the P14 bus topology. Engineers should verify the firmware and rack bus versioning before integration, particularly when mixing the 88VU01B-E with legacy versions of P14 hardware to ensure complete protocol alignment.

Installation Guidelines

• Power Off: Before installing the board, ensure the P14 rack is disconnected from all power sources to prevent electrical short-circuits.

• Slot Alignment: Carefully insert the board into the designated rack slot, ensuring the backplane connector pins are aligned correctly with the rack bus.

• Secure Mounting: Use the front-panel locking handles to press the board into the backplane, ensuring it is seated firmly to allow for proper vibration resistance.

• Grounding Check: Verify that the rack chassis is properly connected to the plant’s common safety ground to prevent electrical discharge interference.

• Status Verification: Once powered, observe the board’s LED interface. The "OK" status indicator should illuminate steadily, indicating that the board has passed the power-on self-test (POST) and is communicating with the rack interface.

Product Advantages

• Deterministic Performance: Provides predictable response times for turbine governing, which is a requirement for grid-compliant power generation.

• Robust Reliability: Built to ABB’s stringent engineering standards for Swedish manufacturing, ensuring a long operational life in harsh thermal environments.

• Seamless Integration: Designed specifically for the Procontrol P14 ecosystem, which simplifies spare parts management and logic portability.

• Proven Stability: With a massive global installation base, this board has been stress-tested in nearly every conceivable turbine operating scenario.

Ordering Information

• GJR2326500R1011 88VU01B-E Procontrol P14 Control Board

• Original factory-new condition, provided in static-safe industrial packaging

• Technical documentation and basic configuration instructions included

• Logistics optimized for global transit to industrial facilities

Frequently Asked Questions

• Does the GJR2326500R1011 require special software for programming?

  Yes, it is configured using standard ABB engineering tools associated with the Procontrol P14 system.

• Is this control board capable of managing turbine trips?

  Yes, it is designed for safety-critical tasks, including the execution of turbine trip logic when operational thresholds are exceeded.

• Can I use this board for gas turbine control?

  Yes, the 88VU01B-E is versatile enough to support both steam and gas turbine configurations within the Procontrol P14 architecture.

• What is the response time for turbine control commands?

  The board is designed for millisecond-level determinism, ensuring that the control system reacts immediately to changes in turbine speed or load.

• Does this board support redundant configurations?

  Yes, in appropriate P14 rack configurations, the board can be part of a redundant control scheme to ensure high availability.

• Is the 88VU01B-E compatible with older TURBOTROL versions?

  It is designed to be compatible with established TURBOTROL frameworks; however, check for any firmware-specific requirements on your rack.

• Can I replace a failed board while the turbine is running?

  Procontrol P14 systems typically require a controlled shutdown of the affected control loop for safe board replacement; follow your site safety procedures.

• How do I verify the communication status with the P14 bus?

  The status can be monitored via the diagnostic LEDs on the front panel and through the engineering workstation attached to the rack.
