Product Overview

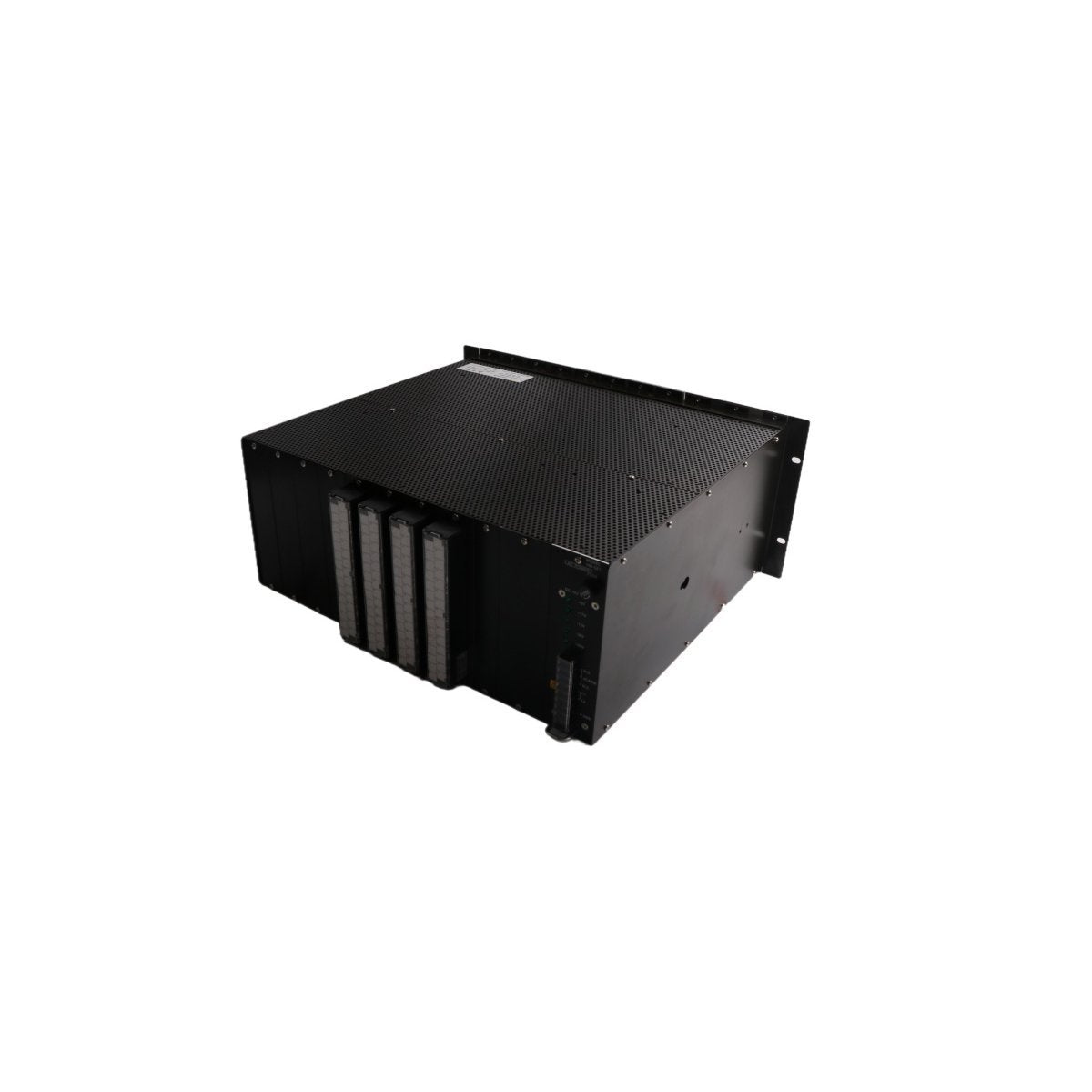

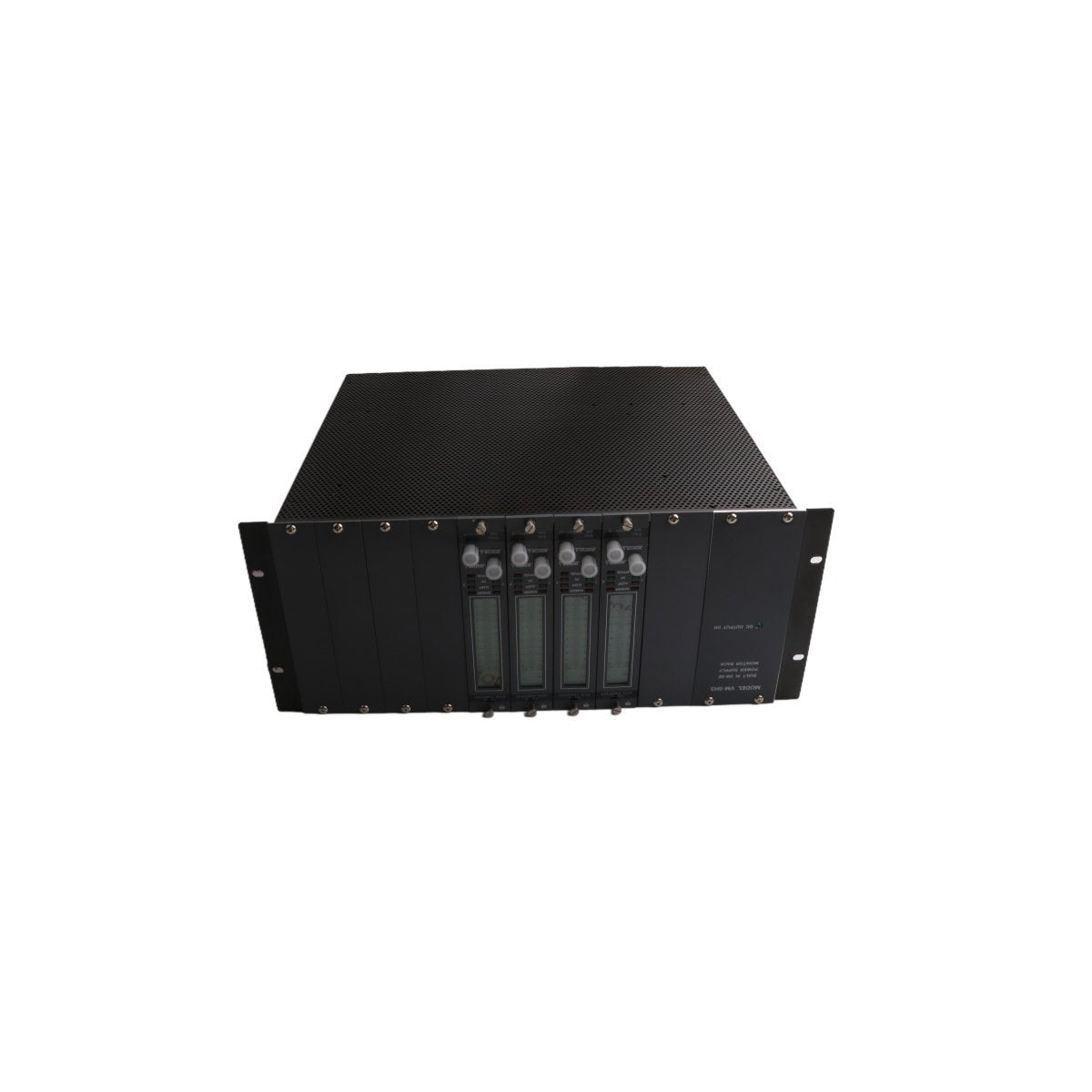

The General Electric VM-5H3, VM-5Z, and VM-5K series represent a highly reliable class of dual-channel vibration monitoring modules designed for the continuous protection of rotating industrial machinery. Unlike standard circuit protection, these units are specifically engineered to interface with velocity transducers and accelerometers to track mechanical health in real-time. By analyzing input signals from various sensor types, the VM series provides a critical safety layer for high-value assets, ensuring that subtle mechanical deviations are identified before they evolve into catastrophic failures. These modules function as the sensory hub of a machinery monitoring rack, converting raw vibration data into actionable status alerts for plant operators.

Technical Hardware Configuration

• Model Group: VM-5H3 / VM-5Z / VM-5K

• Monitoring Capability: Dual-Channel (Simultaneous tracking of two independent signal sources)

• Measurement Range: 0-1000 μm peak-to-peak (standard industrial scaling)

• Signal Accuracy: ±1% of full scale at 25°C; ±2% across full thermal range

• Thermal Tolerance: 0°C to 65°C Operating Environment

• Physical Mass: 0.36 kg

• Dimensions: 3.5 x 13 x 13.5 cm

• Interface Logic: Integrated Alert and Danger setpoints per channel

• System Origin: USA

• HS Classification: 8537101190

Industrial Protection Applications

The VM-5H3 VM-5Z VM-5K series is a fundamental component in predictive maintenance and asset protection strategies across the power and processing sectors. Primary deployment scenarios include:

• Turbine Supervisory Instrumentation: Continuous monitoring of shaft vibration and eccentricity in steam and gas turbines to trigger automatic trips or alarms.

• Centrifugal Compressor Safety: Tracking bearing cap vibration and axial movement to maintain stability in high-pressure gas processing.

• Pump and Motor Diagnostics: Serving as a dedicated monitor for large-scale industrial pumps to detect cavitation, imbalance, or bearing wear.

• DCS Integration: Providing real-time analog or digital status relays to a central Distributed Control System for comprehensive plant-wide health visualization.
