Product Overview

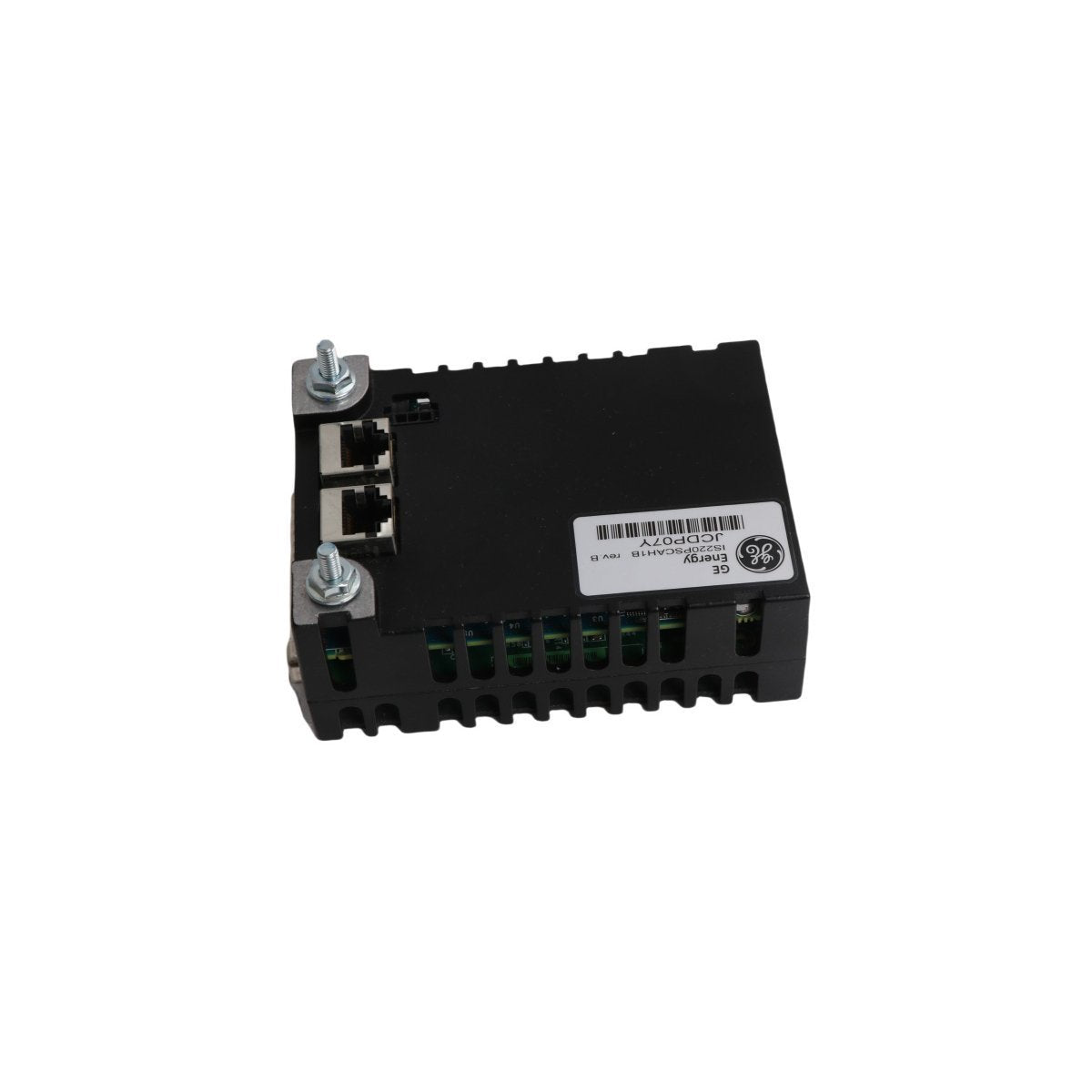

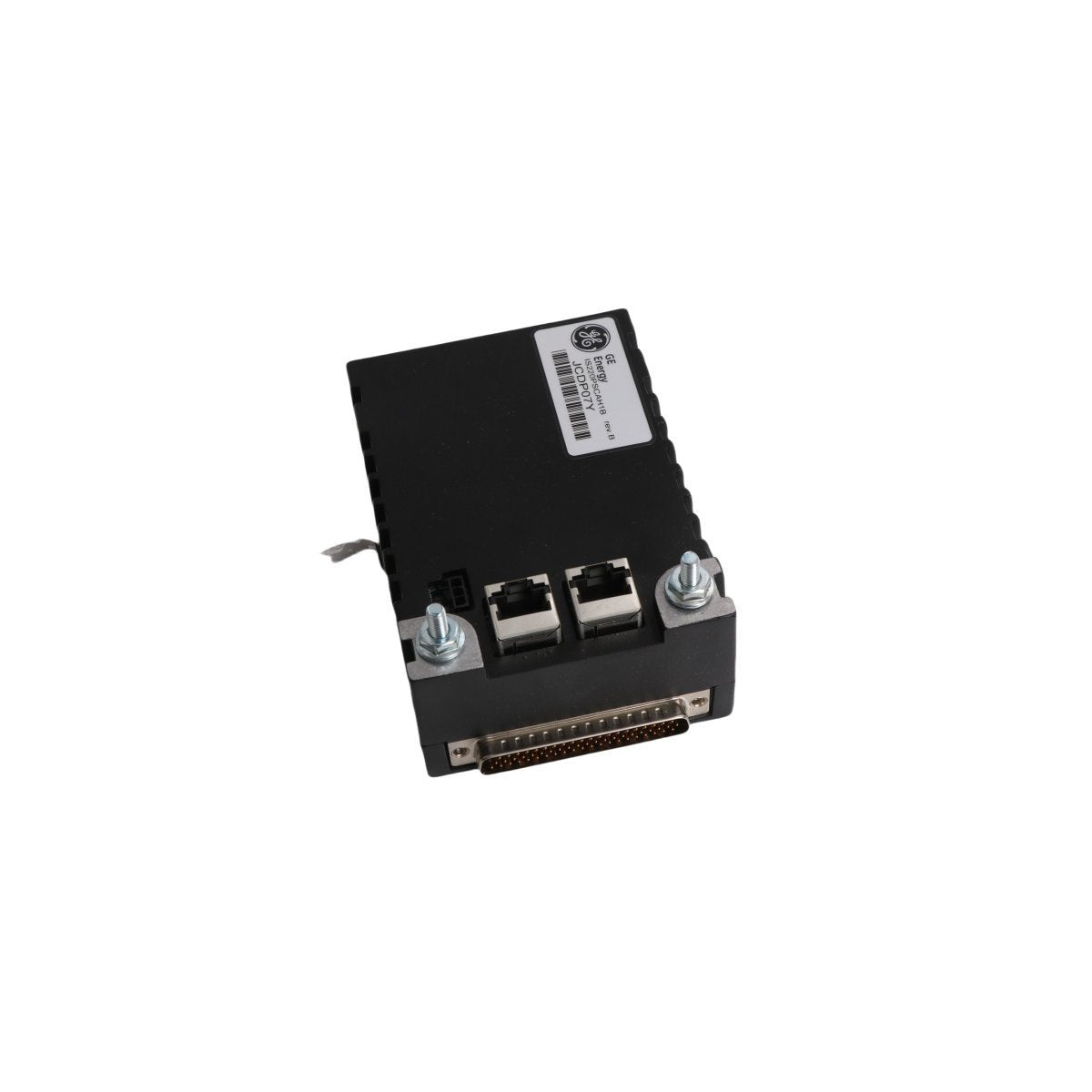

The IS220PSCAH1B is a high-performance Serial Communications I/O Pack from General Electric, serving as a critical bridge within the Mark VIe and EX2100 control architectures. This module facilitates deterministic data exchange between the IONet (Ethernet-based control network) and serial field devices. Equipped with a specialized serial board featuring six independent transceiver channels, the IS220PSCAH1B supports versatile industrial protocols, including Modbus Master/Slave. It is specifically designed to handle both "Fixed I/O" data (such as pressure transducers) and larger "Modbus I/O" data volumes, ensuring that critical turbine control information is processed with prioritized speed and accuracy.

Technical Characteristics

The IS220PSCAH1B is engineered for high-availability industrial communication and features several advanced processing capabilities:

Flexible Serial Configuration The module provides six software-configurable channels that support RS-232, RS-422, and RS-485 physical standards. This flexibility allows the pack to interface with a diverse range of third-party devices, including smart sensors, motor drives, and auxiliary PLCs, without requiring separate interface converters.

Dual Ethernet IONet Interface Featuring two RJ45 Ethernet connectors, the I/O pack supports redundant network configurations. In a TMR (Triple Modular Redundant) or Simplex setup, these ports provide the high-speed link to the Mark VIe controller, ensuring that serial data is integrated seamlessly into the broader control strategy.

Auto-Reconfiguration and Maintenance The "Auto-Reconfiguration" feature allows the system to automatically download the correct firmware and configuration parameters to the pack upon replacement. This "plug-and-play" capability, combined with a built-in soft-start function for inrush current control, ensures safe and rapid maintenance during live operations.

Integrated Diagnostics and Protection The IS220PSCAH1B includes a dedicated hardware watchdog timer and localized power supplies to monitor internal health. Visual diagnostics are provided through a series of LED indicators on the faceplate, signaling network activity, power status, and fault conditions.

Intelligent Data Management The processor board distinguishes between high-priority Fixed I/O and bulk Modbus I/O data. Fixed data is synchronized and processed every control frame, while Modbus data is managed at a sub-frame rate to optimize bandwidth without compromising the stability of the primary control loops.

Technical Specifications

• Manufacturer: General Electric (GE)

• Model Number: IS220PSCAH1B

• Series: Mark VIe / EX2100

• Module Type: Serial Communications I/O Pack

• Serial Channels: 6 Channels (RS-232/422/485)

• Ethernet Ports: 2 x 10/100 RJ45 (IONet)

• Protocols Supported: Modbus Master/Slave, Serial Fixed I/O

• Weight: 0.38 kg

• Dimensions: 12.8 x 8.2 x 6 cm

• HS Code: 8537101190

• Origin: USA

Application Areas

The IS220PSCAH1B is essential for multi-protocol integration in:

• Turbine Control: Interfacing with smart pressure transducers and vibration monitors.

• Excitation Systems: Communicating with digital drives and auxiliary power monitoring units.

• Process Automation: Linking Modbus-enabled field devices to the centralized Mark VIe DCS.

• Subsystem Integration: Bridging third-party PLCs and HMI units to the IONet environment.
