Product Overview

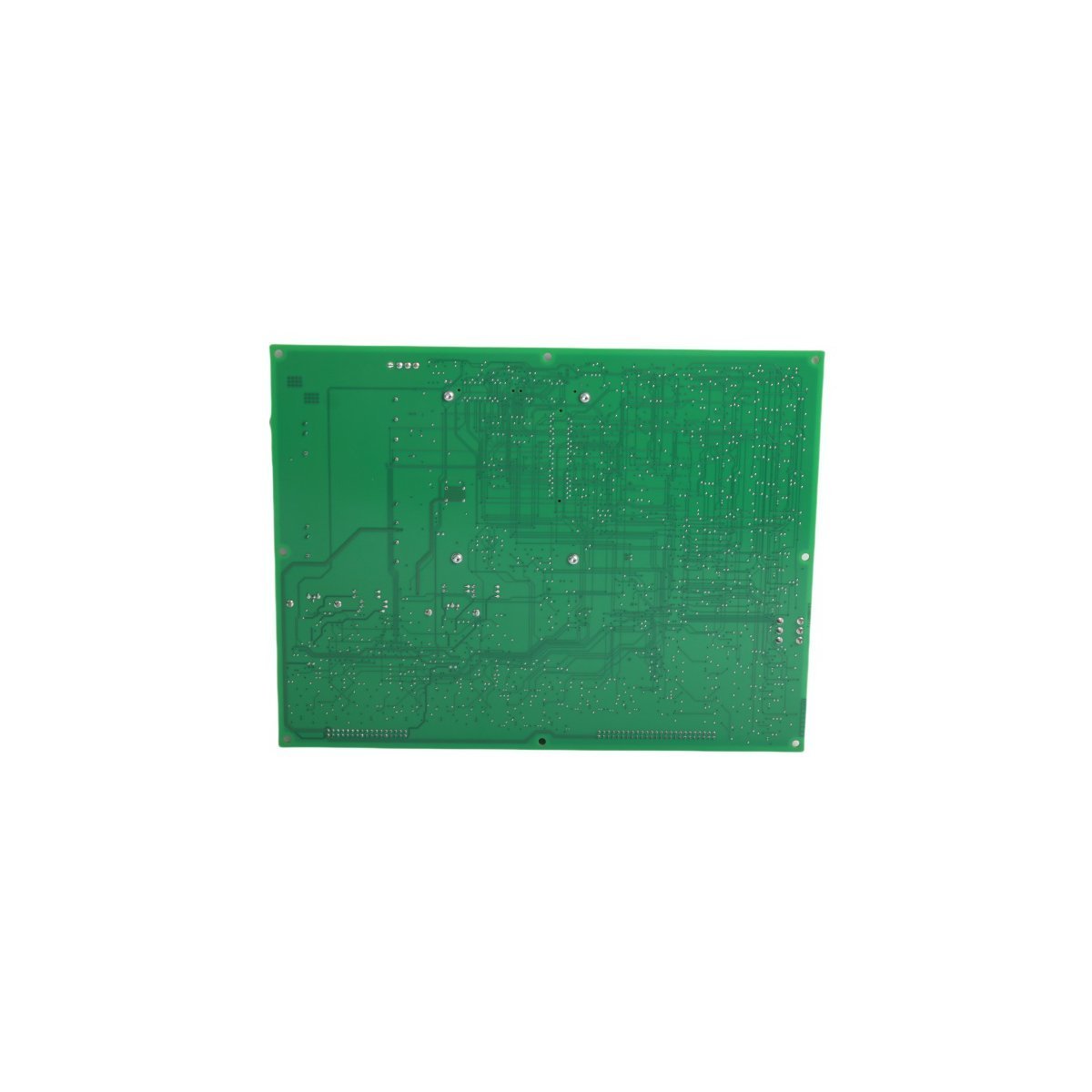

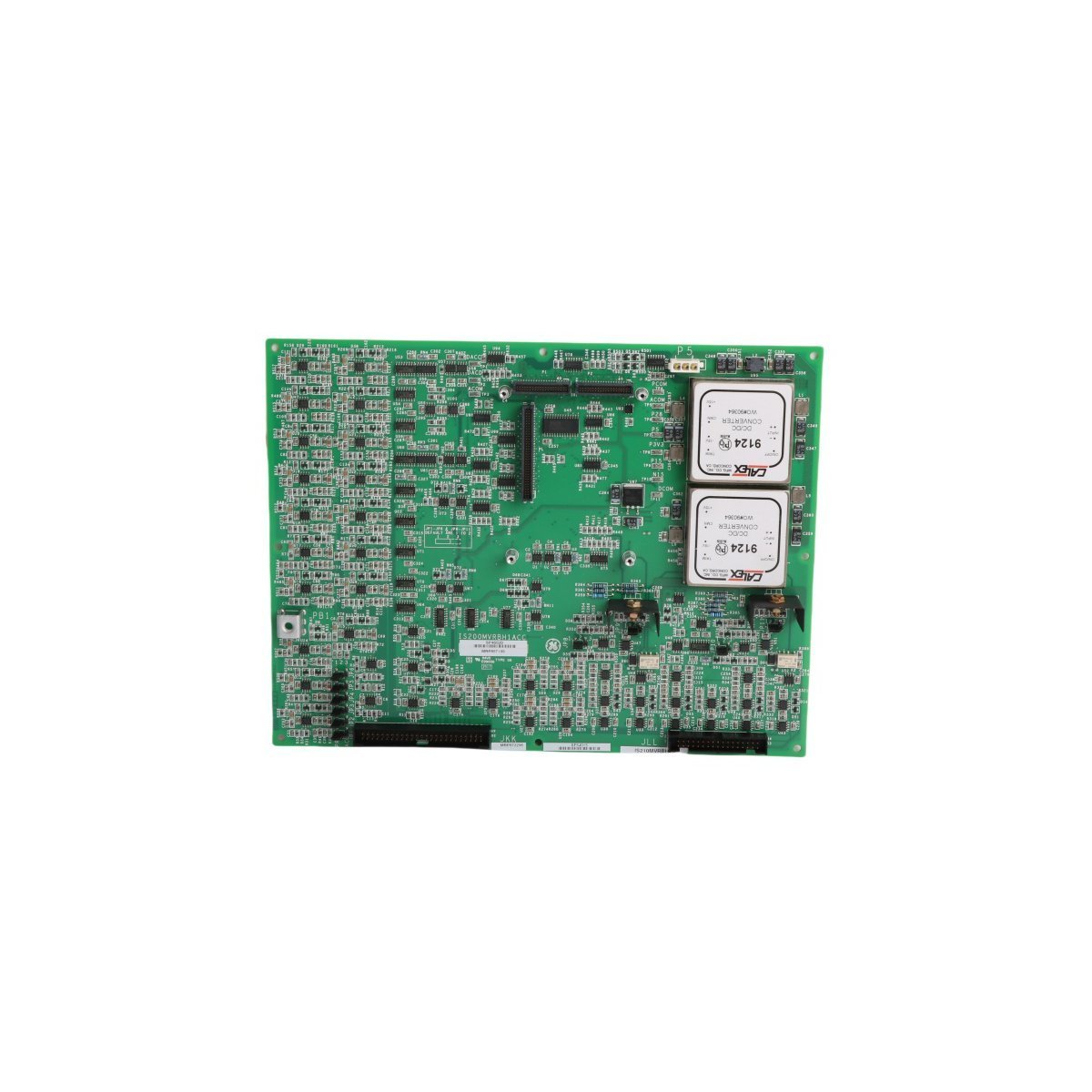

The General Electric IS210MVRBH1A is a high-performance I/O interface board engineered specifically for the Mark VIe control architecture and EX2100 excitation systems. This module serves as a localized communication hub, bridging the gap between field sensors and the central processing units. By facilitating the processing of R/S/T ADIO (Analog/Digital Input/Output) signals, it ensures high-fidelity data acquisition for both continuous and discrete variables. A defining feature of the IS210MVRBH1A is its ability to operate independently via the IONet, allowing for the hot-swapping of I/O packs without requiring the disconnection of field wiring or causing system-wide interruptions.

Hardware Performance and Diagnostic Capabilities

• Network Integration Communicates via dual IONet ports and supports the Unit Data Highway (UDH) protocol for high-speed data transmission.

• Thermal Monitoring Features an onboard precision temperature sensor (±2°C accuracy) that triggers diagnostic alarms and data logs upon detecting overheating.

• Signal Processing Optimized for R/S/T Triple Modular Redundant (TMR) ADIO operations, managing complex analog and digital signal flows.

• Module Compatibility Designed for seamless pairing with PMVE I/O packs to expand sensor and actuator management capacity.

• Maintenance Efficiency Independent IONet communication enables I/O pack replacement while the remainder of the system remains online.

• Physical Specifications Dimensions of 27.8 x 21.2 x 3.5 cm with a weight of 0.46 kg.

• Reliability Standards Undergoes rigorous industrial stress testing to ensure performance in high-vibration and electromagnetically noisy environments.

Core Industrial Deployment Roles

The IS210MVRBH1A is a critical component in the following application sectors:

Excitation System ControlActing as the primary interface for EX2100 systems, managing the high-speed I/O required for generator voltage regulation and field current control.

Turbine Lifecycle ManagementProviding stable signal paths for Speedtronic™ Mark VIe turbine control, where it processes mission-critical data from actuators and smart sensors.

Power Plant Predictive MaintenanceUtilizing its internal temperature logging and diagnostic alarm functions to identify thermal anomalies within the control cabinet before hardware failure occurs.

Distributed Control System (DCS) ExpansionSupporting scalable system architectures by providing a modular termination point that can be expanded with additional I/O packs as site automation requirements evolve.

Fault-Tolerant InfrastructureManaging triple-redundant (R, S, and T) signal paths to ensure that power generation continues safely even in the event of a single-channel sensor or wiring failure.
