Product Overview

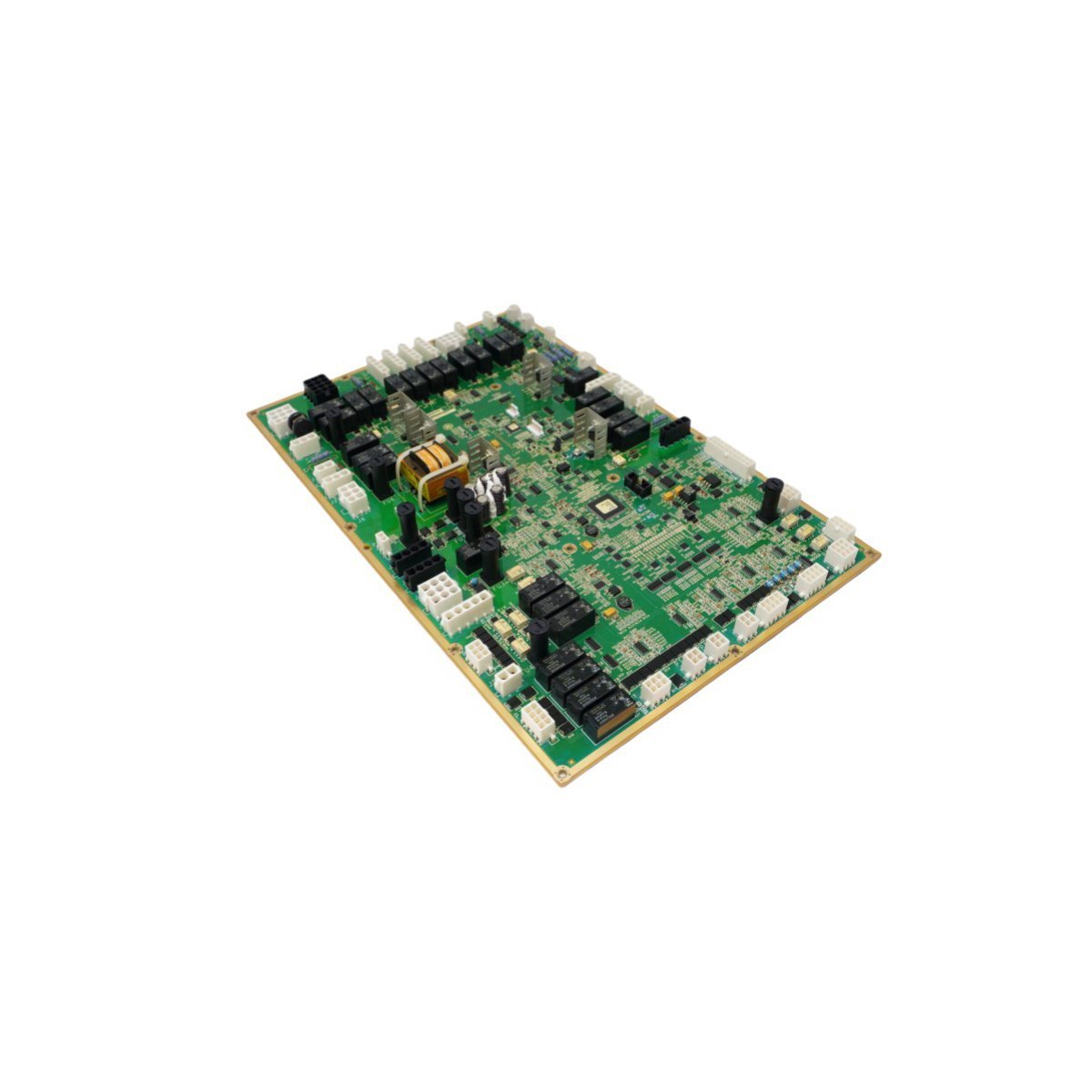

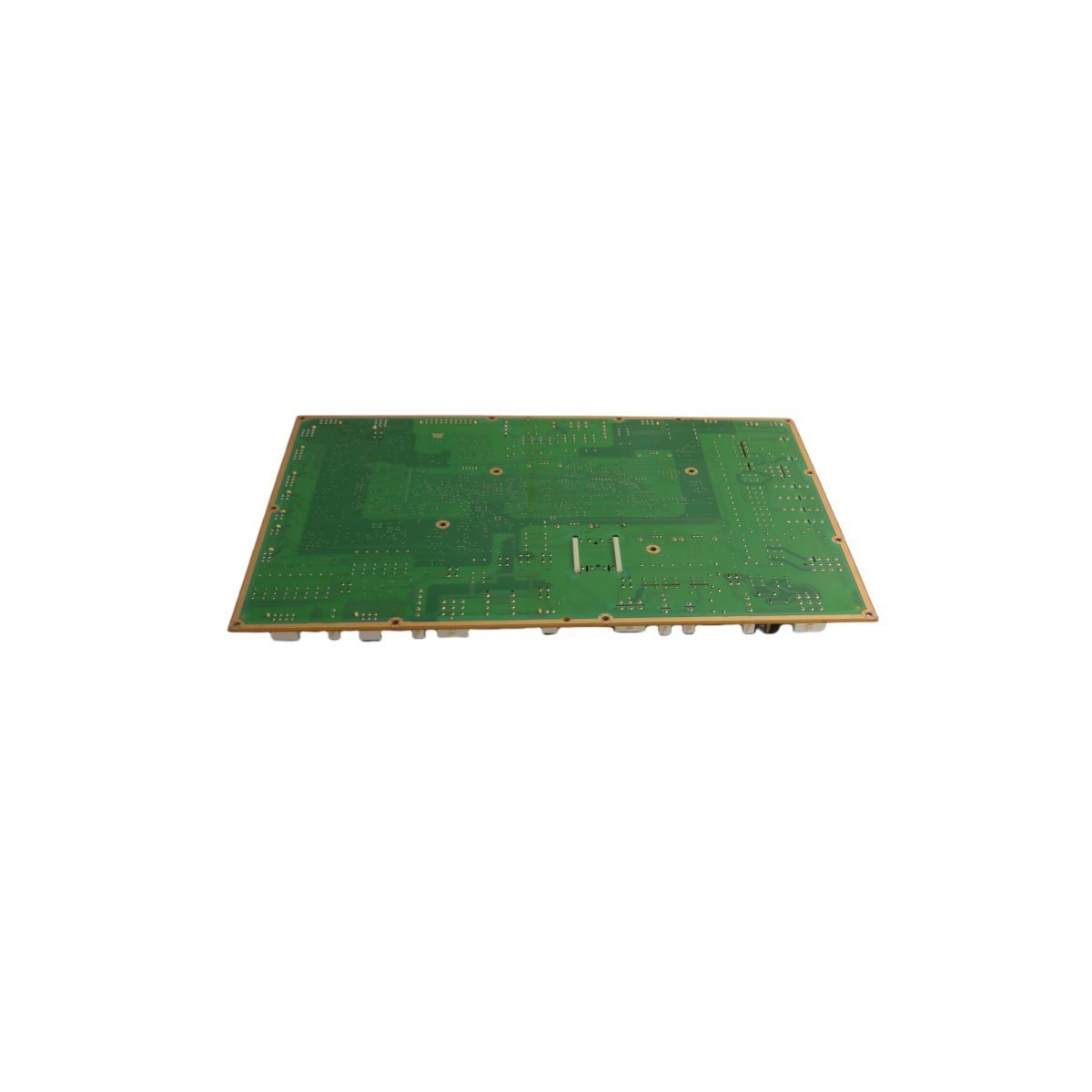

The IS200WETBH1A is a high-reliability terminal board assembly developed by General Electric for the Mark VIe Wind Turbine Control System. Operating under the functional designation WETB, this module serves as a Watertight Terminal Board specifically designed to bridge the gap between turbine sensors and the centralized control architecture. It is engineered to facilitate secure signal termination and communication routing within the turbine's "Top Box" assembly. Given its critical placement in wind energy assets, the module is built to maintain signal integrity while being subjected to the mechanical vibrations and electrical transients common in renewable energy generation.

Engineering for Extreme Environments

The IS200WETBH1A is distinguished by its robust construction, tailored for the unique challenges of offshore and coastal wind farm installations:

• Conformal Coating: Unlike standard industrial PCBs, the H1 suffix indicates that this board features a full conformal coating. This protective layer shields the circuitry from moisture, salt spray, and atmospheric pollutants, preventing dendritic growth and corrosion.

• WETB Functional Design: The "Watertight" designation implies enhanced sealing capabilities, making it a primary choice for outdoor cabinets and environments where humidity levels are high.

• Group 1 Classification: As a Group 1 Mark VIe component, it adheres to GE's domestic manufacturing standards for high-performance control hardware.

• Thermal Stability: Designed to operate reliably across the broad temperature fluctuations experienced by nacelle-mounted equipment.

Technical Characteristics and Integration

• Manufacturer: General Electric (GE Energy)

• System Compatibility: Mark VIe Distributed Control System (DCS)

• PCB Identifier: IS200WETB

• Coating Specification: Full Conformal (H1)

• Mechanical Profile: Dimensions of 28.5 x 22.6 x 9.5 cm with a specialized mounting footprint for wind turbine control cabinets.

• Signal Interface: Optimized for analog and digital signal termination, supporting real-time turbine supervisory control and data acquisition.

Industrial Asset Applications

The IS200WETBH1A Top Box B module is a vital component for the operational availability of GE wind assets:

• Nacelle Control Systems: Managing the pitch, yaw, and generator parameters from the turbine's upper control station.

• Harsh Environment Signal Termination: Providing a ruggedized interface for anemometers, temperature sensors, and vibration monitors in coastal zones.

• Renewable Energy DCS: Functioning as a specialized I/O node within a broader Mark VIe network for utility-scale wind farms.
