Product Overview

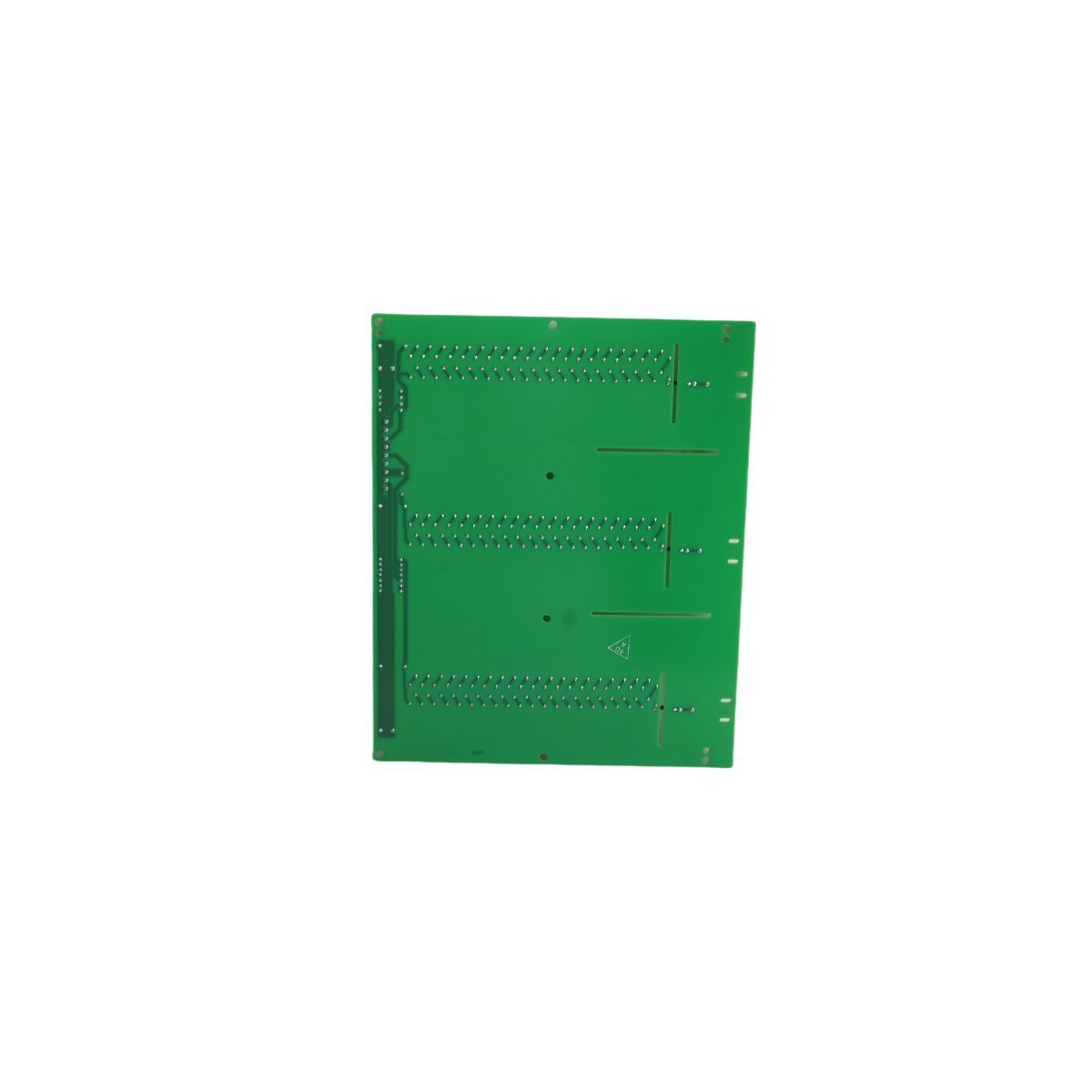

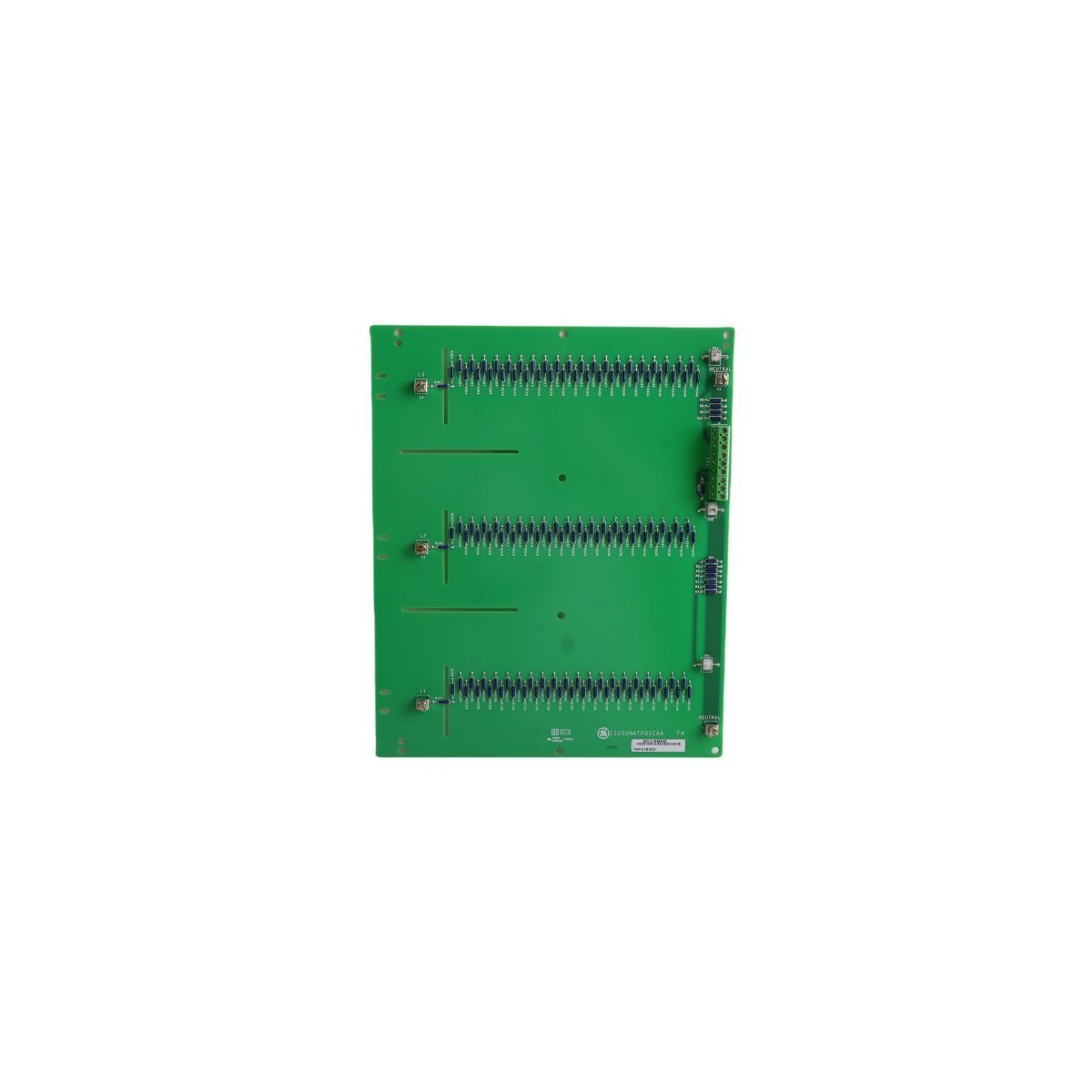

The General Electric IS200NATPG1CAA functions as a high-integrity Precision Control Assembly Backplane, serving as the central nervous system for localized module communication within the EX2100 Excitation and Speedtronic™ Mark VI systems. This backplane is engineered to provide a stable, low-noise data bus and power distribution pathway for various control cards, ensuring that excitation logic and turbine synchronization signals remain synchronized. By acting as the physical and electrical backbone of the assembly, the IS200NATPG1CAA eliminates point-to-point wiring complexity, significantly reducing potential failure points and streamlining the diagnostic process in sophisticated Distributed Control System (DCS) environments.

System Architecture and Hardware Specifications

• Model Identification IS200NATPG1CAA

• Component Category Precision Control Assembly Backplane

• System Lineage EX2100 Excitation / Mark VI Series

• Network Interfacing Supports high-speed data exchange via EtherCAT, Profinet, and Modbus protocols

• Thermal Endurance Operational range spanning -20°C to +60°C

• Power Capacity Designed for a maximum consumption of 50W

• Chassis Profile Standard 2U rack height compatibility

• Installation Style Secure Panel Mount architecture

• Unit Mass 0.28 kg

• Physical Profile 27.8 cm x 22.8 cm x 2.3 cm

• Lifecycle Status Active (Current Production)

• Manufacturing Origin USA

Industrial Utility and Deployment Context

The IS200NATPG1CAA is a foundational element in high-performance automation networks:

Excitation System InterconnectivityProviding the high-speed data plane required for the EX2100 series to manage generator field excitation, facilitating the rapid exchange of voltage regulation and firing pulse data.

Turbine Control ReliabilityActing as the primary mounting interface for Mark VI control modules, ensuring that vibration and thermal expansion in power plant environments do not compromise electrical contact integrity.

Protocol Bridge and RoutingSupporting diverse industrial communication standards, this backplane allows for seamless integration between legacy Modbus devices and modern Ethernet-based Profinet or EtherCAT architectures.

High-Availability Power GenerationDeploying in mission-critical utility plants where the 2U compact design allows for high-density I/O configurations without sacrificing the airflow required for thermal stability.

System Maintenance and Modular UpgradesFacilitating easy module hot-swapping or replacement by providing standardized socket interfaces, which minimizes mean time to repair (MTTR) during critical outages.
