Product Overview

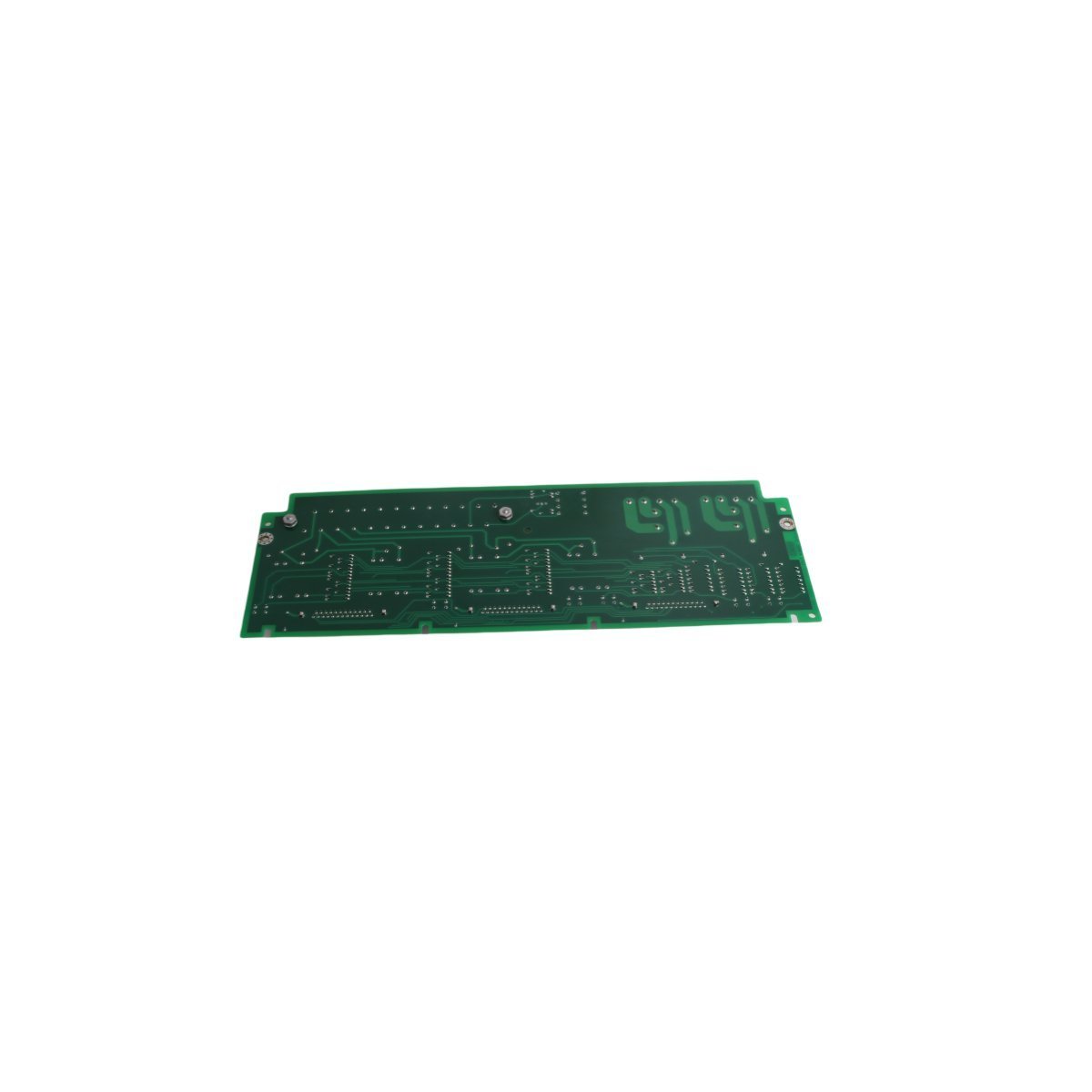

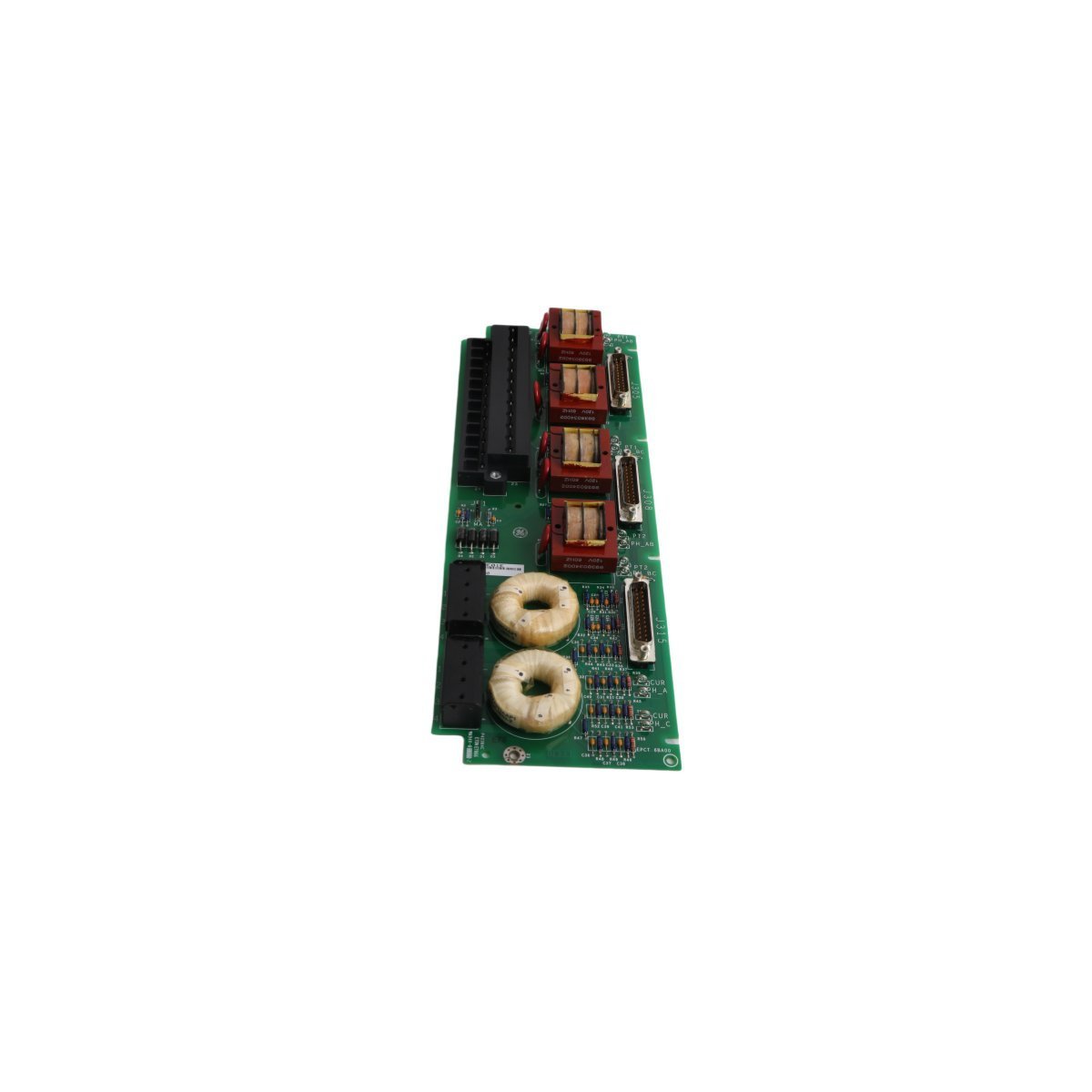

The General Electric IS200EPCTG1AAA is a specialized Exciter PT/CT Terminal Board developed for the Mark VIe control platform. This high-integrity circuit board serves as the primary interface for Potential Transformer (PT) and Current Transformer (CT) signals within the excitation control system. It is responsible for the precise scaling and conditioning of high-voltage and high-current feedback from the generator, converting these signals into a format suitable for the digital controllers. By facilitating accurate monitoring of the generator’s electrical output, the IS200EPCTG1AAA ensures stable voltage regulation and protects the synchronous generator from over-excitation or phase imbalances.

Hardware Parameters and Technical Specifications

Engineered for the rigorous electrical demands of power generation facilities, the IS200EPCTG1AAA features high-isolation circuitry and robust signal paths.

• Manufacturer General Electric (GE)

• Model Number IS200EPCTG1AAA

• Version Identifier IS200EPCTG1AAA 2

• Series Compatibility Mark VIe Control System

• Function Exciter PT/CT Signal Terminal Interface

• Input Support Facilitates three-phase voltage (PT) and current (CT) feedback

• Diagnostics Integrated real-time monitoring of signal integrity and circuit health

• Construction Multi-layer PCB with industrial-grade protective coating for moisture and dust resistance

• Physical Weight 0.86 kg

• Board Dimensions 33.0 x 11.3 x 3.5 cm

• Origin United States of America (USA)

Industrial Applications and Operational Use Cases

The IS200EPCTG1AAA terminal board is a critical component in the synchronization and voltage management of large-scale rotating electrical machinery.

• Gas and Steam Turbine Excitation Acting as the feedback interface for excitation systems (such as the EX2100e) to maintain a constant generator terminal voltage under varying load conditions.

• Generator Protection Providing the Mark VIe system with the raw data required to execute protective relay functions, preventing damage from overcurrent or frequency deviations.

• Power Grid Synchronization Ensuring the generator's phase, frequency, and voltage match the grid parameters exactly during the synchronization process.

• Load Sharing and Stability Facilitating precise reactive power (VAR) control in multi-generator power plants to balance the electrical load across several units.

• Hydroelectric Power Plants Monitoring output parameters in hydro-generator excitation loops where environmental stability and long-term hardware reliability are paramount.

By integrating the IS200EPCTG1AAA into the Mark VIe architecture, operators benefit from GE's advanced signal processing technology, which minimizes electrical noise and maximizes the accuracy of generator control loops.
