Product Overview

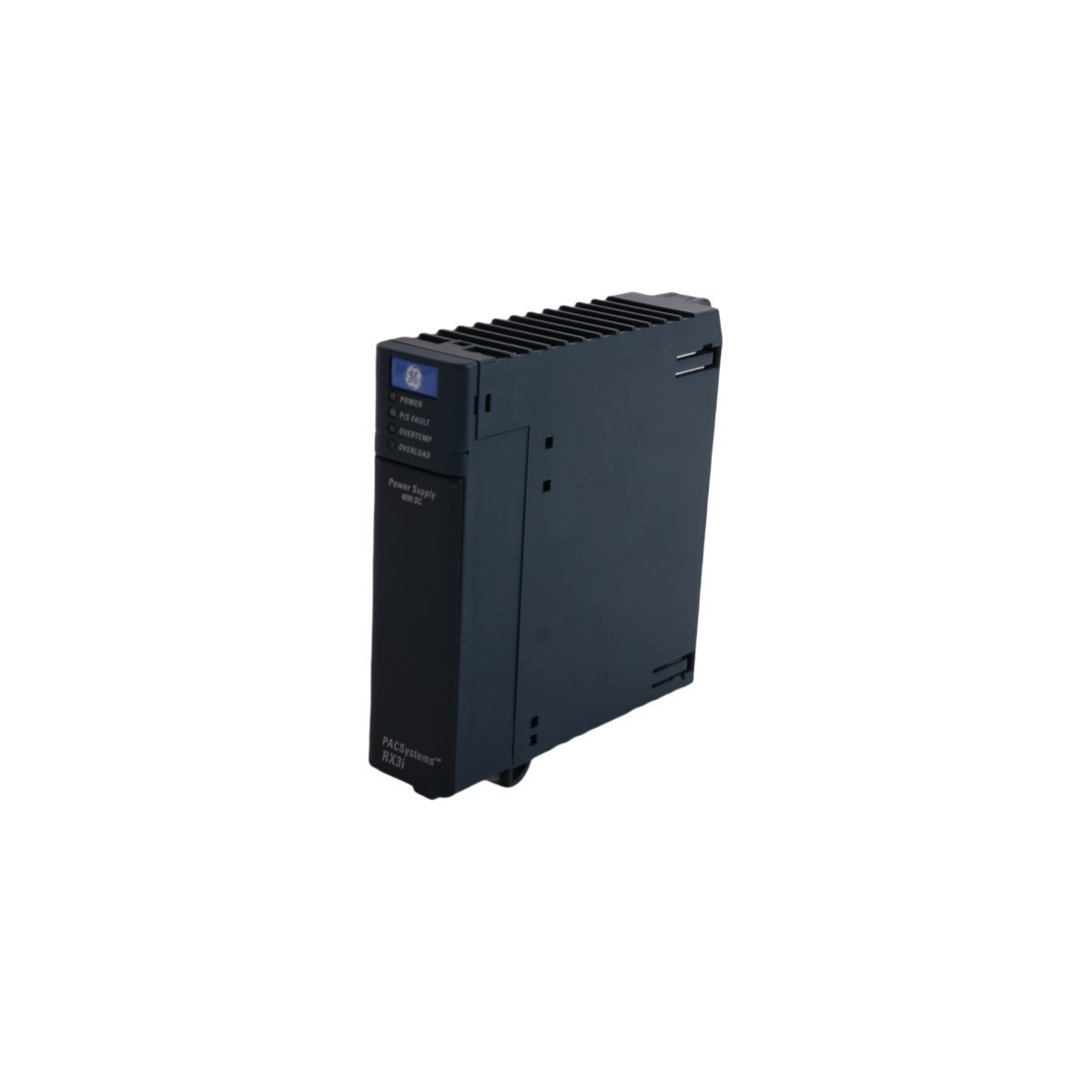

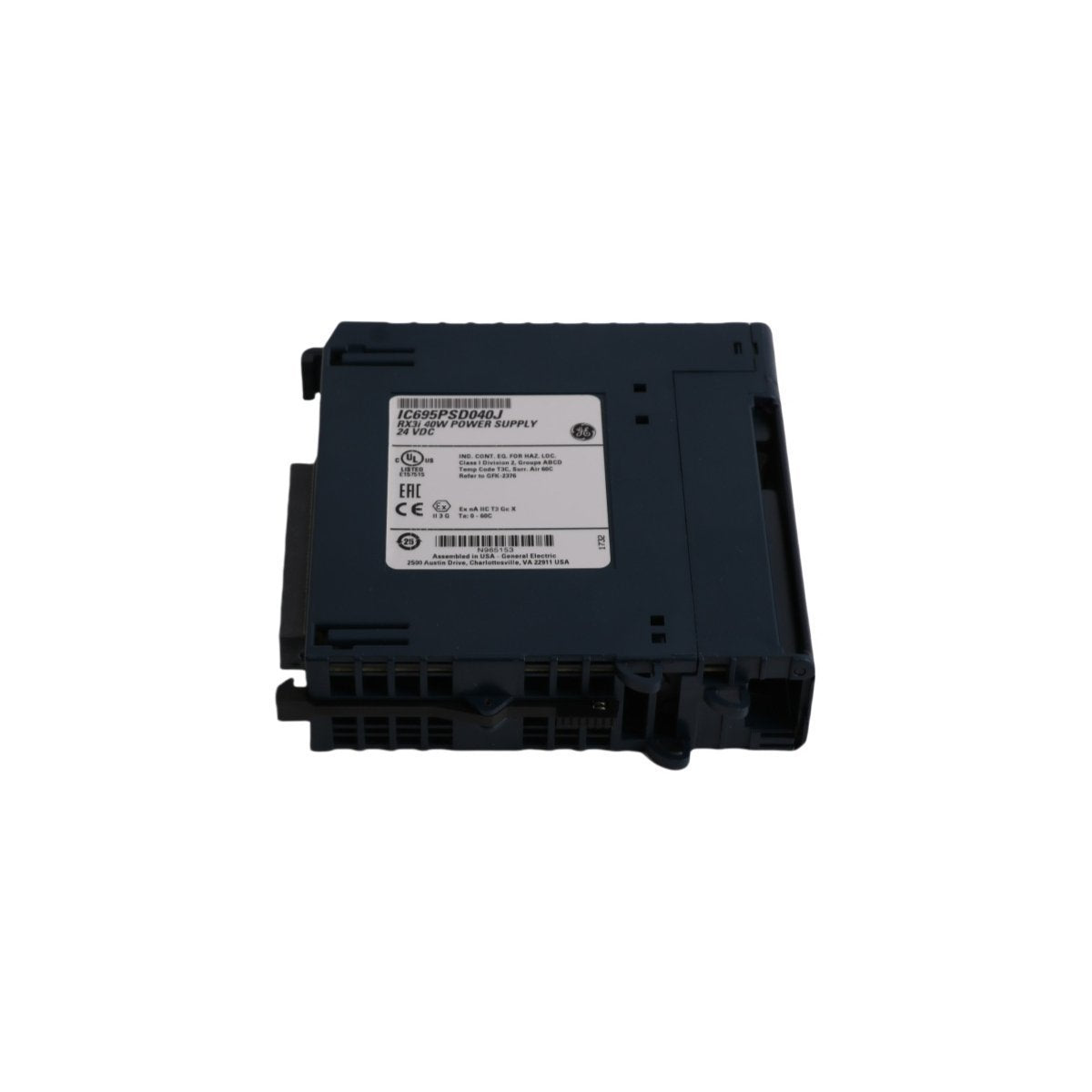

The GE IC695PSD040 is a high-performance, 40-watt DC power supply designed specifically for the PACSystems RX3i Universal Backplane. This module provides the primary regulated power required for the CPU, specialized modules, and standard I/O within a single rack. Engineered for simplicity and reliability, the IC695PSD040 converts a 24VDC input into the multiple voltage rails needed for backplane logic and internal circuitry.

As a non-redundant power solution, this module is intended for single-unit installation. It occupies one slot on the universal backplane and serves as a cost-effective energy source for small to medium-scale automation configurations. The unit features advanced internal diagnostics that integrate with the RX3i CPU to provide real-time status updates and fault reporting, ensuring that power-related events are captured within the system’s diagnostic logic.

Technical Characteristics

• Input Voltage: 24VDC nominal (Input range: 18VDC to 30VDC)

• Output Power: 40 Watts maximum total output

• Output Voltage Rails: Regulated +5.1VDC for logic; +24VDC for relays and isolated circuits

• Configuration: Single-unit operation only (Non-parallel / Non-redundant)

• Slot Occupancy: Single slot on the RX3i Universal Backplane (IC695CHSxxx)

• Protection Circuitry: Built-in hardware safeguards against overvoltage and overcurrent conditions

• Diagnostic Interface: Automatic power-fail reporting to the system CPU

• Holdup Time: Minimum 10ms for transient power interruptions

• Physical Interface: Front-facing terminal strip for secure DC input wiring

• Dimensions: 3.5 x 13.3 x 13.5 cm

• Weight: 0.26 kg

• Country of Origin: USA

Installation and System Safety

The IC695PSD040 is optimized for standard industrial environments where a stable 24VDC source is available. To maintain system integrity, it is vital to adhere to the single-supply installation rule. This module cannot be wired in parallel with other power supplies on the same backplane; doing so may result in equipment damage or unpredictable system resets. If the power budget of a single rack exceeds 40W, users should utilize expansion bases or remote I/O drops to distribute the load.

Furthermore, the module includes a specialized ground connection to ensure high noise immunity against electromagnetic interference (EMI). Its rugged design and lack of internal fans make it highly durable in dusty or high-vibration industrial settings. By strictly following the installation guidelines regarding version compatibility—particularly ensuring this 40W unit is not mixed with redundancy-capable modules—operators can guarantee a long service life and stable control system performance.
