Product Overview

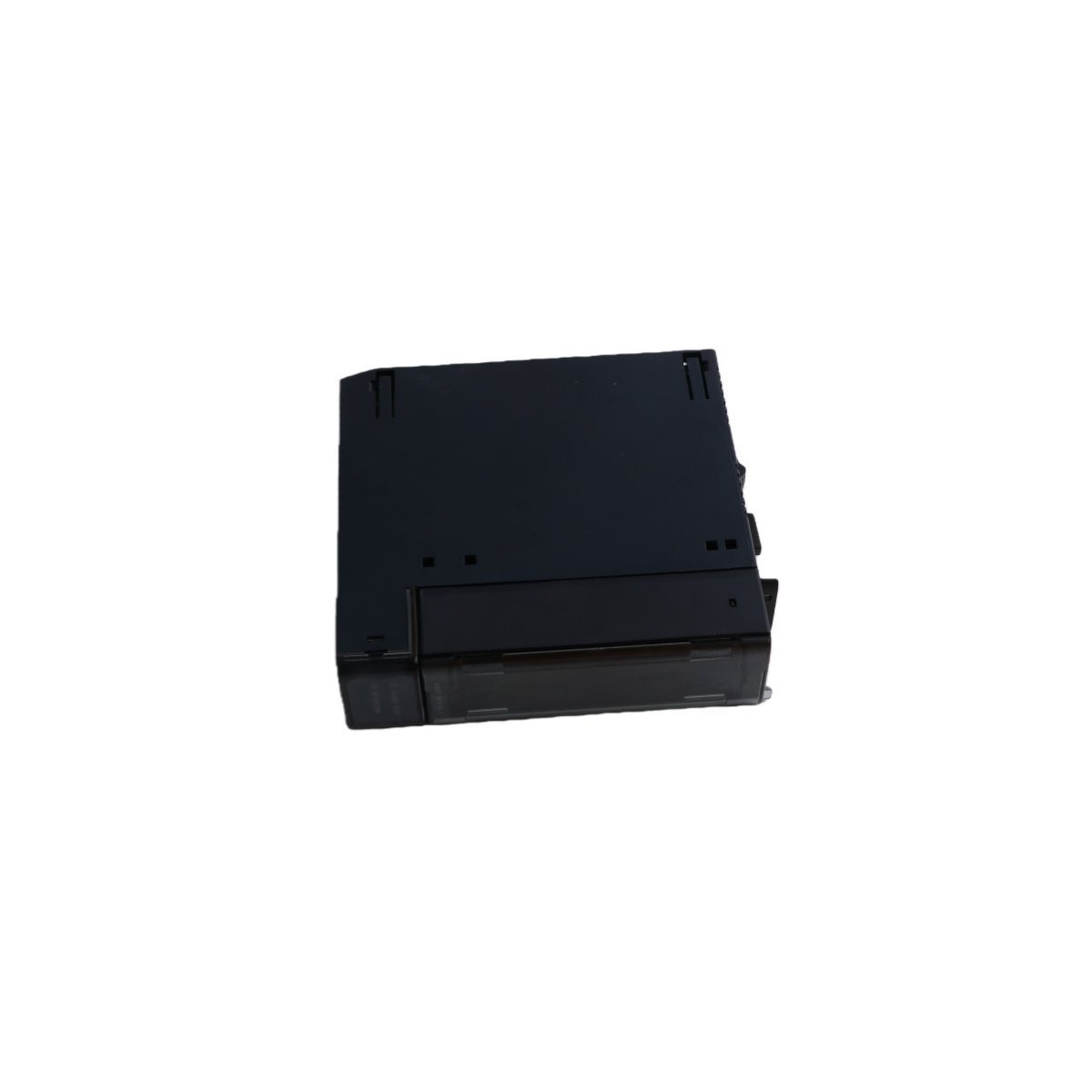

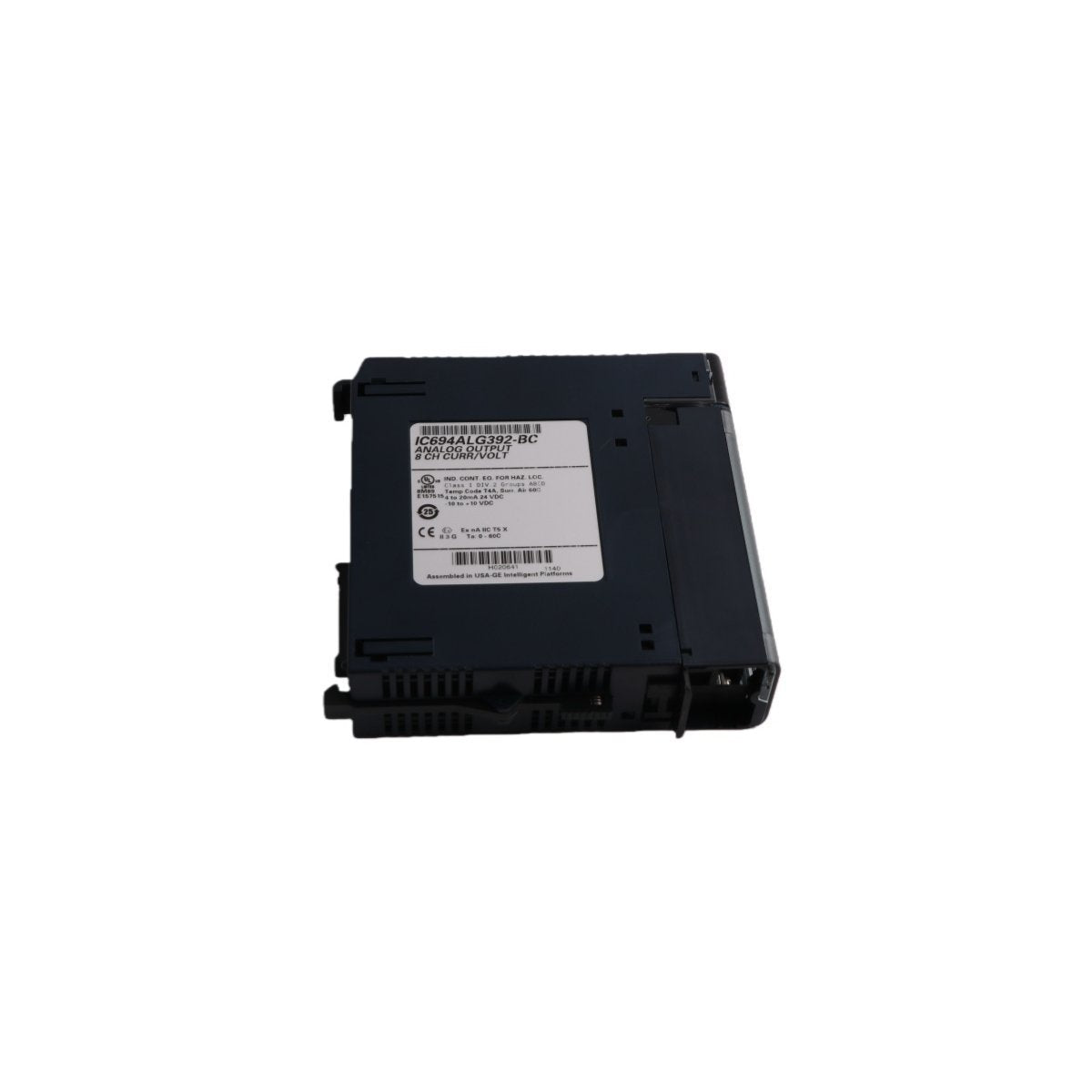

The IC694ALG392-FG is an analog output module designed for the GE PACSystem RX3i control platform. It provides eight independently configurable analog output channels for delivering accurate voltage or current control signals to field devices. This module is commonly used where precise analog command generation is required for process regulation, motion-related control, and equipment interfacing.

Built for continuous industrial operation, the IC694ALG392-FG supports integration with RX3i CPUs and application logic, including PID control routines. Its diagnostic and fail-safe behaviors help maintain stable plant operation, even during power interruptions or wiring faults.

Key Technical Characteristics

• Brand: General Electric

• Control Platform: PACSystem RX3i

• Module Category: Analog Output Module

• Model / Order Number: IC694ALG392-FG

• Number of Output Channels: 8

• Output Signal Types: Voltage and Current (software selectable)

• Supported Voltage Ranges: 0–10 VDC, ±10 VDC

• Supported Current Ranges: 0–20 mA, 4–20 mA

• Output Resolution:

• 15-bit or 16-bit resolution depending on selected range

• Channel Update Rate: All channels updated within 8 ms

• Diagnostic Functions:

• Open-wire detection in current mode

• Module and channel status reporting to the controller

• Output Behavior on Power Loss: Holds last commanded output value

• Electrical and Mechanical Data:

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: Active

• Country of Origin: USA

• Minimum Order Quantity: 1

• System Type: DCS / PLC Control System

• Weight: 0.9 kg

• Dimensions: 20.0 × 11.5 × 5.7 cm

• HS Code: 8537101190

• Integration Notes:

• Designed for direct installation in PACSystem RX3i baseplates

• Compatible with RX3i controllers and application software environments

• Suitable for use with PID control blocks or manual output control logic

Industrial Applications

• Control of modulating valves using voltage or 4–20 mA signals

• Output reference generation for variable frequency drives and inverters

• Analog command delivery to actuators, positioners, and process instruments

• Process automation systems requiring high-density analog outputs

• Maintenance replacement for installed PACSystem RX3i analog output modules
