Product Overview

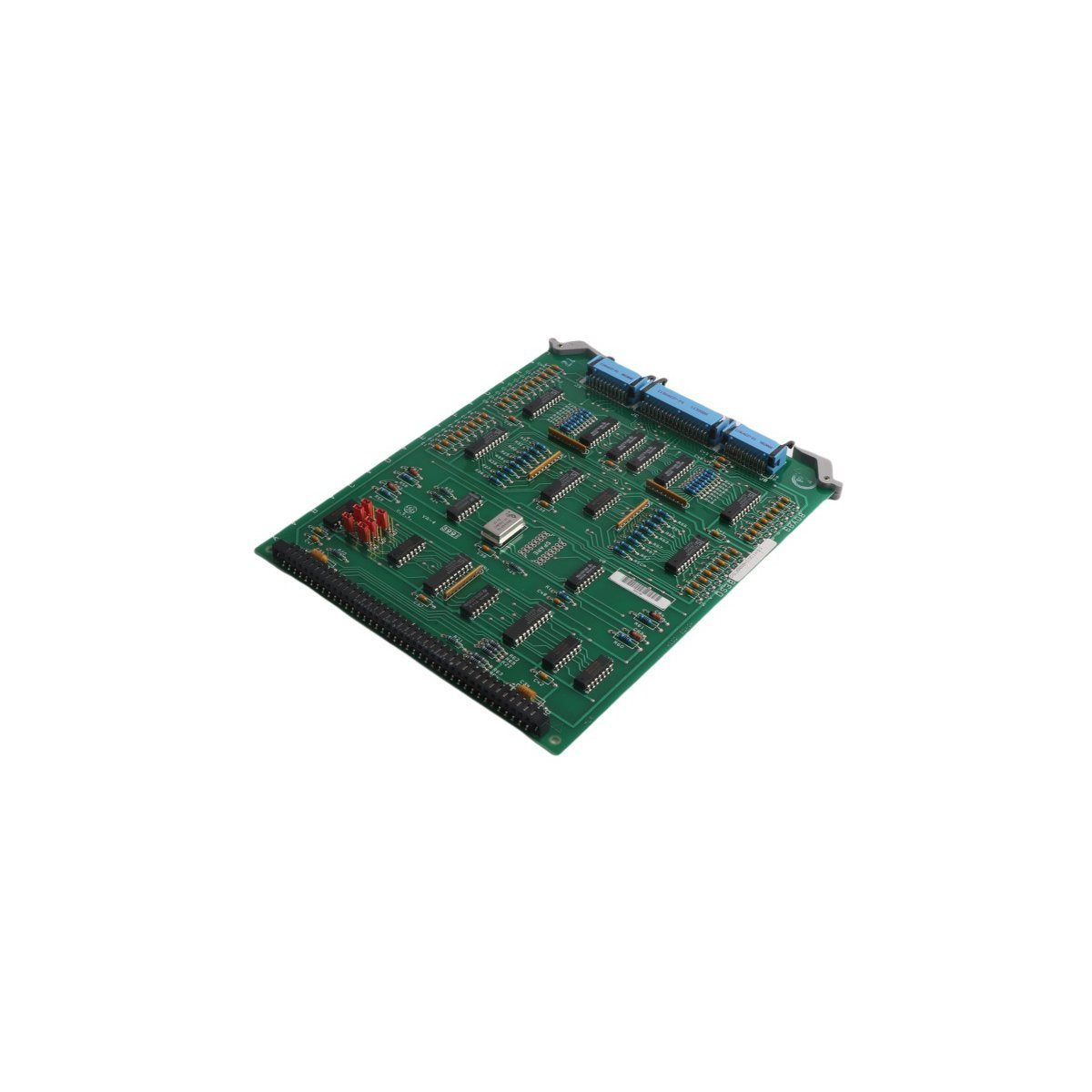

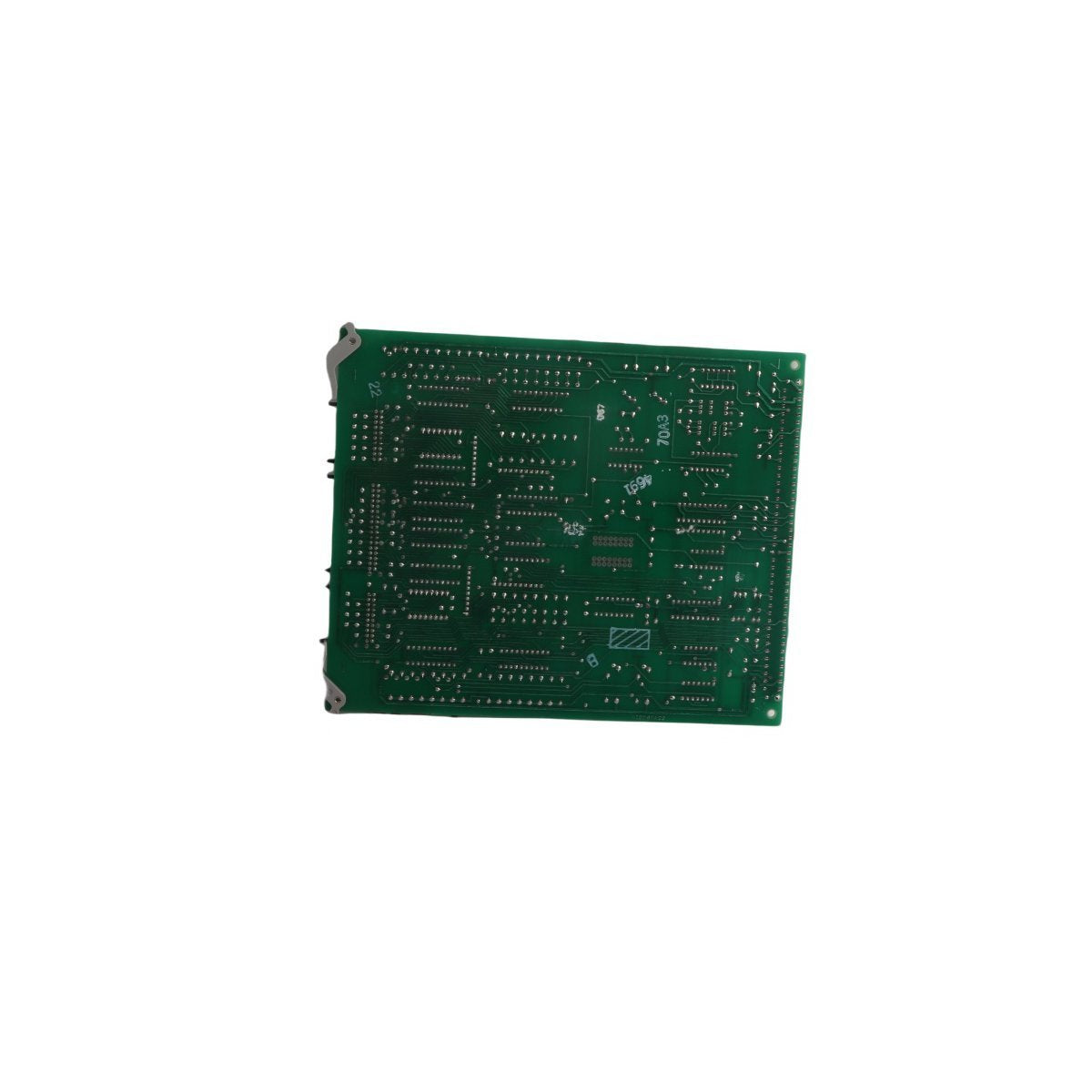

The General Electric DS3800HIOD1H1G is a high-reliability digital I/O interface board designed for use within GE’s legacy drive systems and Mark IV Speedtronic turbine control architectures. This module functions as a critical input isolator, providing a secure electrical barrier between external field signals and the internal processing logic of the control system. By isolating discrete inputs, the board protects sensitive control electronics from voltage surges and ground loops common in industrial power environments.

The DS3800HIOD1H1G is characterized by its modular design, featuring high-density pin connectors and integrated retention hardware for secure cabinet installation. It is engineered to facilitate rapid signal processing and logic state distribution, ensuring the operational integrity of high-demand motor drives and turbine management systems.

Technical Specifications

• Manufacturer: General Electric (GE)

• Model Number: DS3800HIOD1H1G

• Board Type: Digital Input/Output & Input Isolator

• Interface Connectors: One 40-pin header, Two 10-pin headers

• Backplane Connection: Single modular edge connector

• Configuration Hardware: Six onboard jumpers for logic customization

• Dimensions: 22.9 cm x 18.7 cm x 1.8 cm

• Weight: 0.26 kg

• Installation Mechanism: Dual retention levers for secure seating

• Origin: USA

Key Technical Characteristics

• Signal Isolation Architecture: Designed to serve as an isolator, this board prevents electrical noise and transients from entering the primary control bus, thereby increasing the overall MTBF (Mean Time Between Failures) of the drive system.

• Front-Access Connectivity: All primary I/O headers, including the 40-pin and dual 10-pin connectors, are strategically positioned between the retention levers. This layout allows for easy cable attachment and troubleshooting from the front of the rack.

• Logic Customization: The inclusion of six user-configurable jumpers enables maintenance teams to define specific signal paths or logic behaviors, making the board adaptable to various system revisions.

• Mechanical Stability: The board utilizes heavy-duty retention levers that provide the necessary leverage for proper seating into the backplane while locking the module in place to resist vibration-induced loosening.

• Static Sensitivity (ESD): As a precision semiconductor assembly, the DS3800HIOD1H1G requires strict adherence to ESD (Electrostatic Discharge) protocols during handling. The use of grounded wrist straps and anti-static workstations is mandatory to prevent latent component damage.

Application Utility

The DS3800HIOD1H1G is primarily utilized in heavy industrial control environments, including:

• GE Speedtronic Mark IV Turbine Control Systems.

• Large-scale industrial motor drive systems.

• Discrete signal isolation for power plant Distributed Control Systems (DCS).

• Logic processing for legacy Multilin protection relays and associated drive hardware.
