General Electric DS3800HIOA1C1E Input Isolator Board Mark IV Speedtronic
-
Dimensions: 22.9 x 18.7 x 1.8 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview

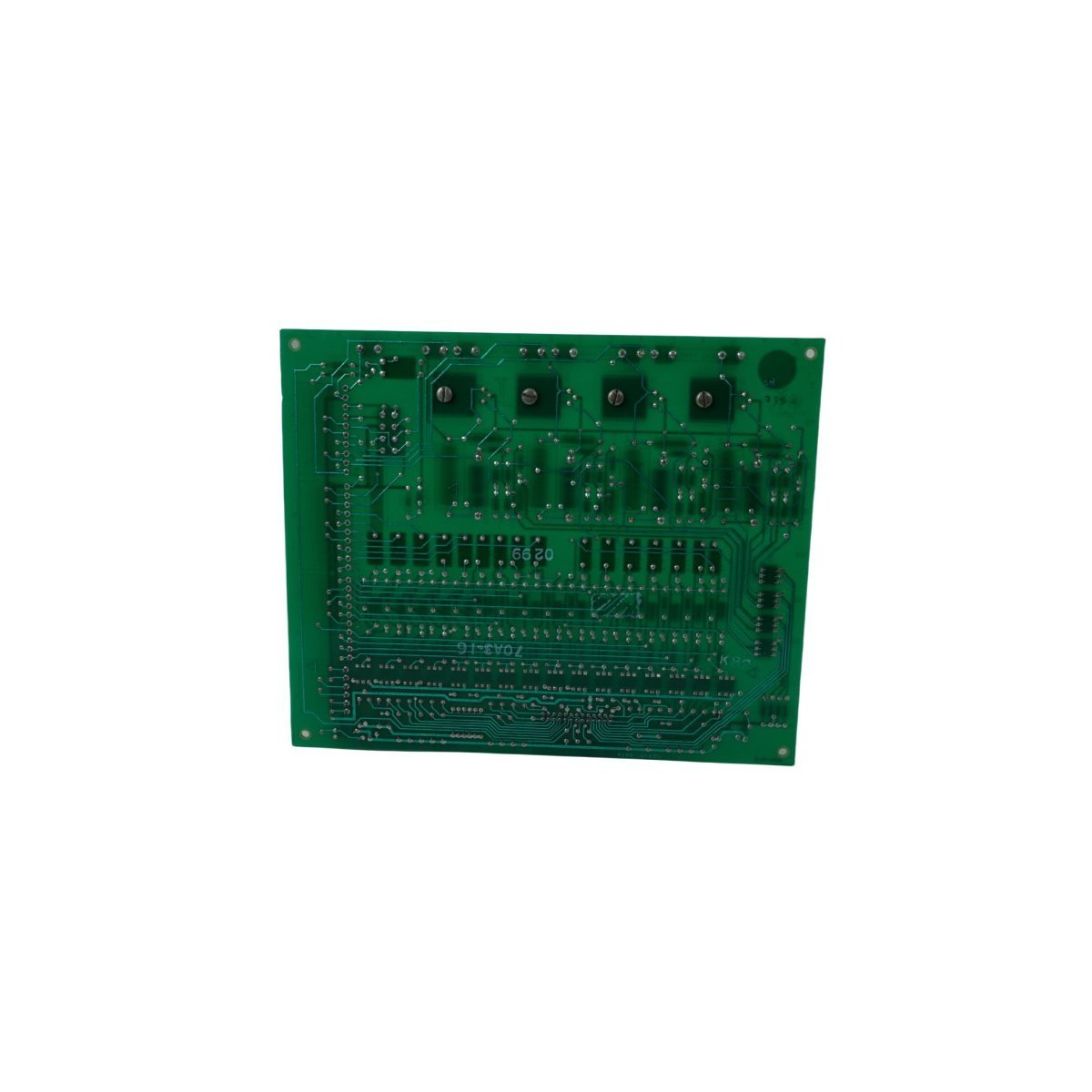

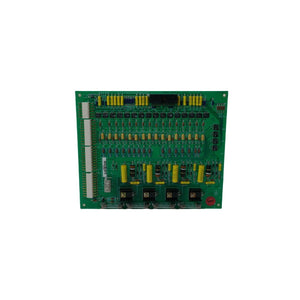

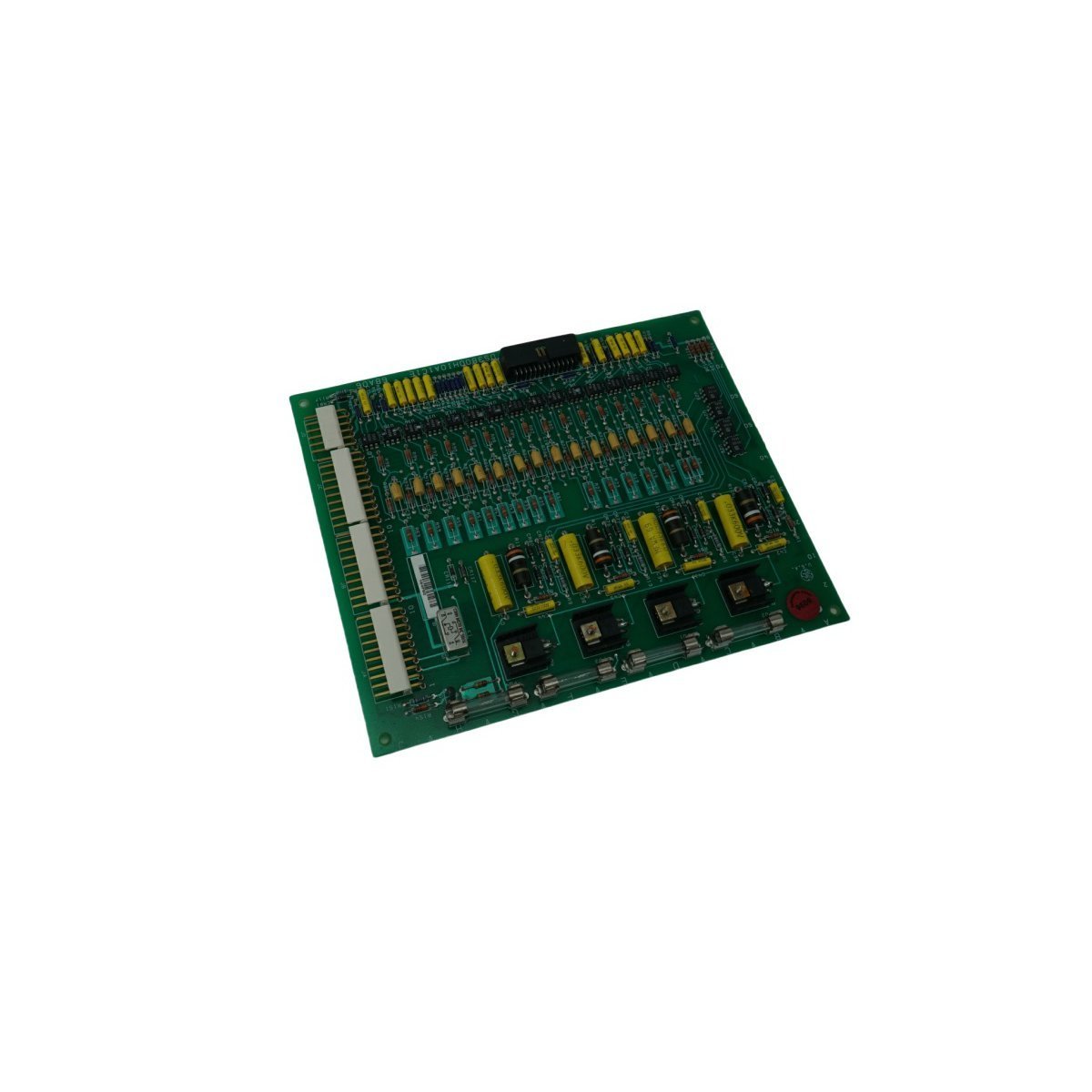

The DS3800HIOA1C1E is a high-integrity Input Isolator Board specifically engineered for the General Electric Speedtronic Mark IV turbine control ecosystem. This module serves a critical role in signal conditioning, providing galvanic isolation between field inputs and the sensitive control logic of the Distributed Control System (DCS). By preventing ground loops and protecting against high-voltage transients, the DS3800HIOA1C1E ensures the accuracy of incoming process data. Although part of GE's legacy lineup, this board remains a vital asset for maintaining the reliability of established gas and steam turbine installations that rely on the deterministic performance of Mark IV hardware.
Hardware Topology and Component Infrastructure
The DS3800HIOA1C1E utilizes a sophisticated array of components designed for localized signal processing and fault containment:
-
Integrated Microprocessor: Features an onboard logic controller to manage signal routing and validation before data is transmitted to the primary processors.
-
EPROM Storage: Equipped with Erasable Programmable Read-Only Memory modules containing the specific firmware required for signal linearization and isolation protocols.
-
High-Density Connectivity: Utilizes a 34-pin vertical header for secure, low-impedance interfacing with the system backplane or adjacent I/O cards.
-
Diagnostic Test Points: Strategically placed physical test points allow maintenance personnel to perform real-time voltage and signal continuity checks without interrupting the circuit.
-
Circuit Protection: Incorporates modular fuses to protect the board's internal traces from overcurrent events and power supply irregularities.
-
Physical Specifications: A compact PCB footprint measuring 22.9 x 18.7 x 1.8 cm with a lightweight mass of 0.26 kg.
-
Interchangeability: The "C1E" revision suffix denotes an advanced hardware iteration compatible with standard Mark IV rack configurations.
Industrial Applications and Strategic Deployment
This Input Isolator Board is indispensable for the continued operation of heritage turbine assets in the following contexts:
| Operational Function | Application Detail |
| Galvanic Signal Isolation | Decoupling field sensors from the main control bus to eliminate noise and electrical interference. |
| Legacy System Maintenance | Serving as a direct-fit replacement for obsolete Mark IV components to prevent system downtime. |
| Signal Protection | Safeguarding the central processing unit from external voltage surges coming through input lines. |
| Fault Isolation | Utilizing onboard fuses to localize electrical failures, preventing damage to neighboring PCB assemblies. |
| Deterministic Data Acquisition | Ensuring that sensor inputs are properly conditioned for the Speedtronic control logic governing turbine speed and temperature. |
