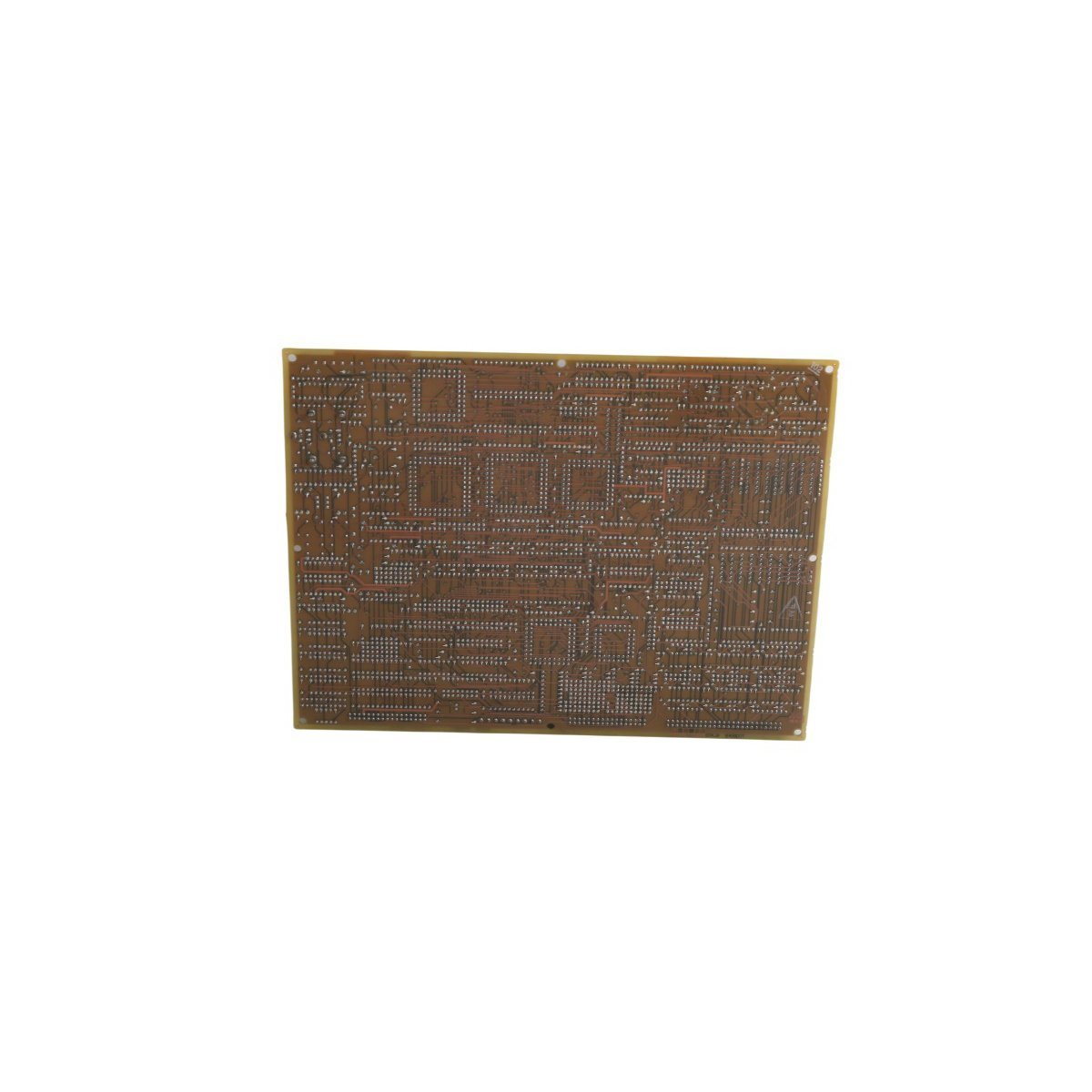

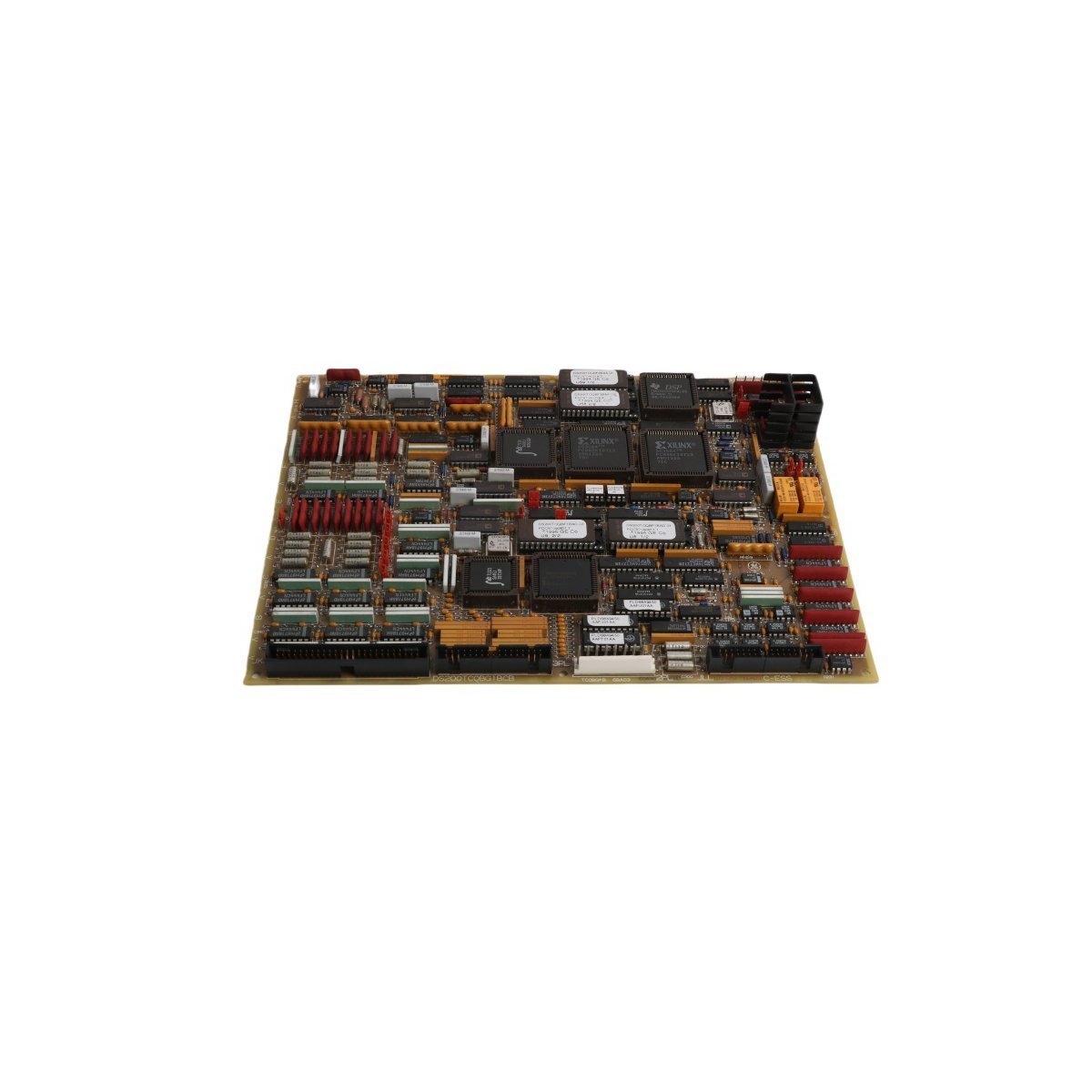

General Electric DS200TCQBG1BCB Extended Analog I/O Board Speedtronic Mark V
-
Dimensions: 27.8 x 21.2 x 3.5 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The DS200TCQBG1BCB is a high-performance Extended Analog I/O Board developed by General Electric for the Speedtronic Mark V turbine control system. Functioning as an integral component of the "RST" architecture, this module provides the supplemental analog signal processing required for automated gas, steam, and wind turbine drive assemblies. As a mature revision within the DS200 series, the "BCB" iteration incorporates enhanced circuitry designed to handle overflow data paths, ensuring that complex turbine diagnostics and feedback loops remain synchronized across the control cores. This board is essential for maintaining the operational integrity of legacy Distributed Control Systems (DCS) where high-density analog interfacing is required.
Integrated Circuitry and Hardware Infrastructure
The DS200TCQBG1BCB is characterized by its robust hardware configuration, engineered for precision data acquisition and system diagnostics:
-
Processing Logic: Features onboard Programmable Logic Devices (PLDs) and Erasable Programmable Read-Only Memory (EPROM) modules for localized firmwares and signal linearization.
-
Connectivity Array: Equipped with a high-density 50-pin connector (JKK) and dual 34-pin headers (3PL and JLL) to facilitate rapid data exchange via ribbon cables.
-
Customization Matrix: Includes 15 user-adjustable jumpers, allowing engineering personnel to tailor the hardware to specific turbine site requirements and signal scaling.
-
Diagnostic Interface: Features a side-mounted "OK" LED status indicator for immediate visual verification of board health and processing activity.
-
Physical Profile: A standard large-form factor PCB measuring 27.8 x 21.2 x 3.5 cm with a specialized mounting mass of 0.66 kg to resist industrial vibration.
-
Revision Standards: This version represents a refined group revision (BCB), offering improved noise immunity and thermal stability compared to earlier G1 base models.
Primary Operational Roles and Industry Utility
The Extended Analog I/O Board serves as a critical bridge for specialized process signals in power generation environments:
| Control Function | Implementation Detail |
| RST Core Overflow | Managing supplemental analog inputs that exceed the capacity of primary control cards in redundant architectures. |
| Signal Normalization | Utilizing onboard EPROMs to condition raw sensor data from pressure, temperature, or flow transducers. |
| System Life Extension | Providing a direct-replacement path for legacy Mark V panels to restore full I/O functionality. |
| Redundant Processing | Supporting voting logic across the R, S, and T cores to ensure failsafe turbine operation. |
| Diagnostic Routing | Facilitating the transfer of internal system metrics to the central operator interface for real-time monitoring. |
