Product Overview

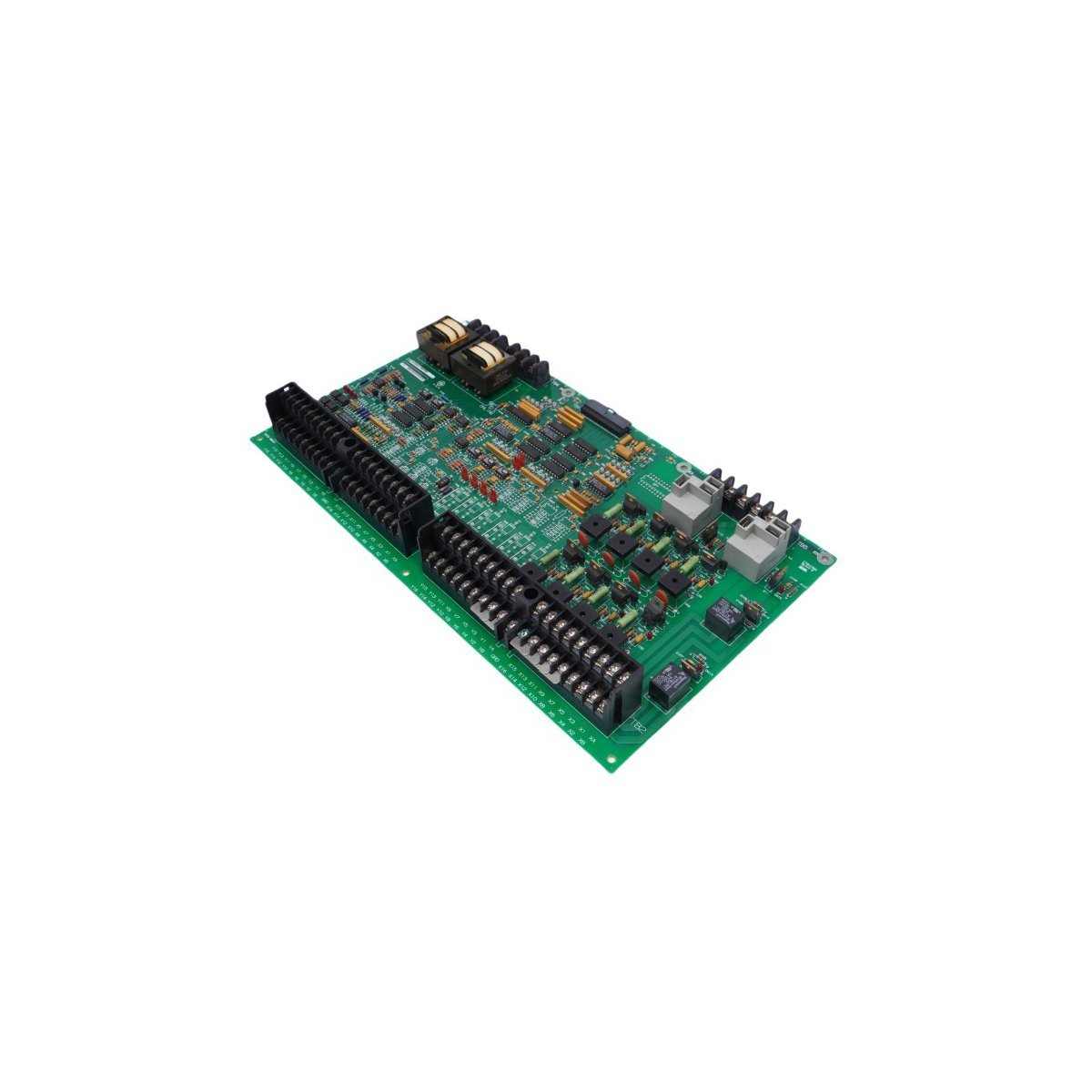

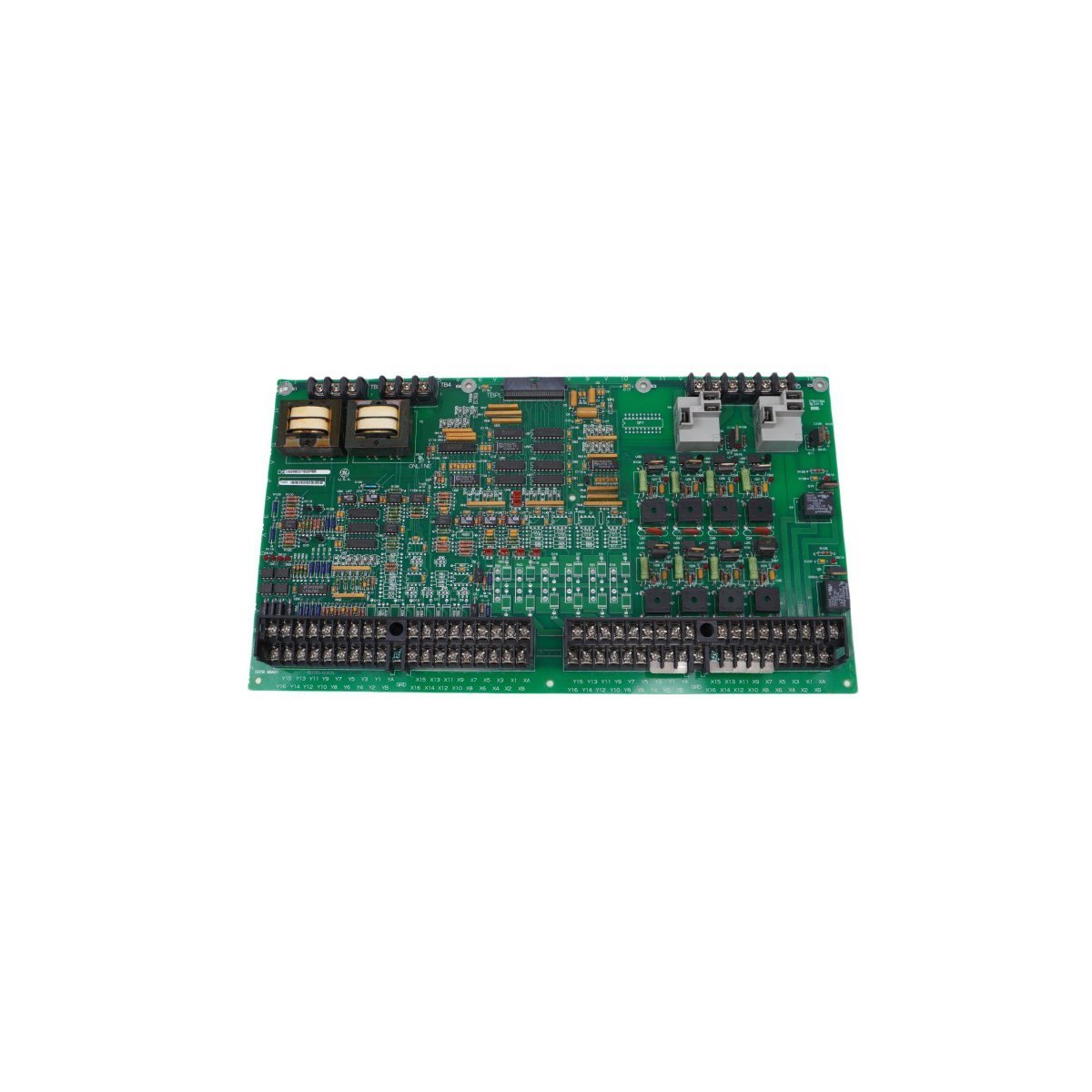

The General Electric DS200DDTBG2ABB is a high-performance LCI (Load Commutated Inverter) Auxiliary I/O Terminal Board specifically developed for the Speedtronic Mark V turbine control framework. This module acts as a specialized bridge for auxiliary signals, facilitating critical data exchange between field sensors and the digital control core. Engineered for high-reliability environments, the DS200DDTBG2ABB supports the Mark V’s signature triple-modular redundancy (TMR) architecture, ensuring that protection parameters and control commands remain stable even during localized hardware faults. As a "G2ABB" revision, this board features optimized circuitry for improved signal isolation and diagnostic depth compared to earlier legacy versions.

Technical Characteristics

The DS200DDTBG2ABB is distinguished by its versatile signal handling and extensive onboard diagnostic tools:

Diverse Signal Interface Capabilities This board is equipped to manage a broad spectrum of signal types, including high-voltage AC inputs, 4-20 mA current loops, and both high and low-current discrete signals. With 16 digital I/O points and multiple analog outputs, it provides the comprehensive connectivity required for complex LCI drive systems and turbine auxiliary control.

Advanced Daughterboard Integration The DS200DDTBG2ABB is designed to interface directly with the DS200ADMA daughterboard, which subsequently connects to the DS200DSPC Digital Signal Processor board. This tiered architecture allows for localized signal conditioning before data is processed by the primary controller, reducing CPU overhead and improving response times.

Onboard Diagnostic and Calibration Tools For real-time maintenance and troubleshooting, the board features 33 dedicated test points and an array of 17 status LEDs. Twelve user-configurable jumper switches allow for precise signal routing and hardware customization, enabling technicians to adapt the board to specific turbine site requirements without additional software overhead.

Robust Power and Signal Conditioning The hardware includes two onboard transformers, four relays, and fourteen transistors to manage mechanical actuation and signal isolation. To ensure long-term stability in high-EMI (Electromagnetic Interference) environments, the board utilizes a network of varistors, resistor arrays, and high-tolerance capacitors to suppress transients and maintain signal purity.

Mechanical Connectivity The board is fitted with five terminal strips featuring varying screw positions to accommodate different wire gauges and connection densities. This design facilitates secure field wiring and simplifies the organization of the control cabinet.

Technical Specifications

• Manufacturer: General Electric (GE)

• Model Number: DS200DDTBG2ABB

• Series: Speedtronic Mark V / LCI Drive

• Module Type: Auxiliary I/O Terminal Board

• Diagnostic Hardware: 33 Test Points, 17 LEDs, 12 Jumpers

• Interface Compatibility: DS200ADMA Daughterboard

• Signal Support: 4-20mA, High-Voltage AC, Digital I/O

• Weight: 0.62 kg

• Dimensions: 28.6 x 7.5 x 5.5 cm

• Origin: USA

Application Areas

The DS200DDTBG2ABB is a core component for:

• LCI Drive Control: Managing auxiliary signals for large motor starters and drive systems.

• Turbine Auxiliary Systems: Interfacing with lube oil pumps, cooling fans, and heater controls.

• Redundant Control Protection: Providing high-reliability I/O paths for TMR-configured Mark V systems.

• Signal Concentration: Centralizing disparate analog and digital field signals into a single processor interface.
