Product Overview

The 531X306LCCBFM1 is a specialized drive display and diagnostic interface card manufactured by General Electric for the 531X industrial drive family. This module functions as a local human-machine interface (HMI), providing real-time alphanumeric feedback through a 16-slot LED faceplate. It is engineered to deliver critical system status codes, fault indicators, and operational parameters directly at the drive cabinet level. Beyond simple visualization, the board incorporates precise timing circuitry and signal conditioning to ensure that the data displayed is synchronized with the main drive control processor. Its robust design allows it to operate reliably as a primary diagnostic tool within GE’s Distributed Control Systems (DCS).

Component Layout and Hardware Profile

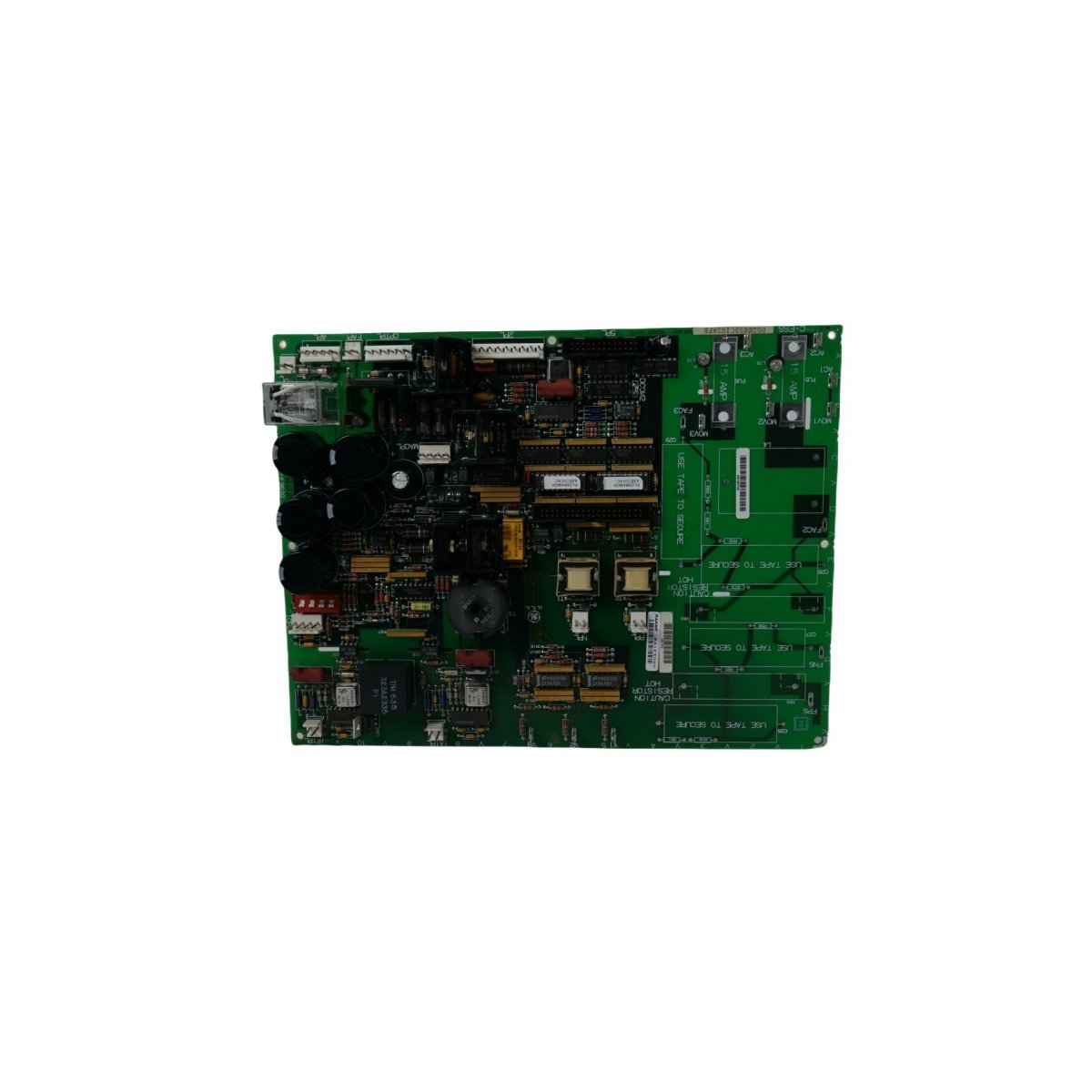

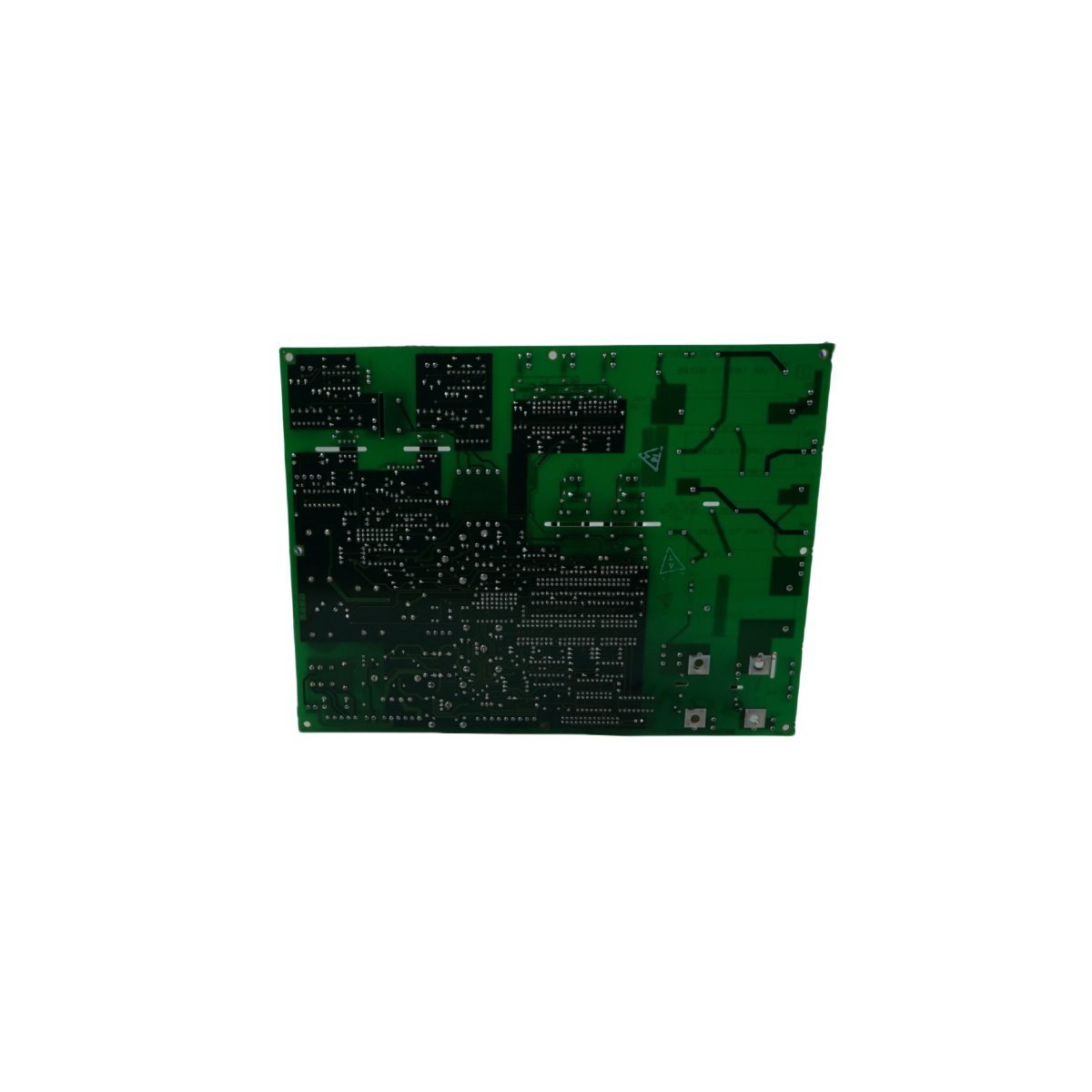

The 531X306LCCBFM1 is a compact, high-density PCB designed for seamless integration with drive control racks. The hardware is optimized for high-frequency signal stability and thermal management.

• Manufacturer General Electric (GE)

• Model Number 531X306LCCBFM1

• Module Mass 0.12 kg

• Physical Dimensions 13.3 x 9.2 x 2.3 cm

• Visual Interface 16-character LED numeric display

• Timing Control Integrated crystal oscillator for high-precision frequency generation

• Logic Switching Onboard jumper pins for customizable circuit configuration

• Connectivity Two black-encased male terminals and two white exposed male headers

• Signal Processing Built-in transistors for signal amplification and resistors for thermal energy dissipation

• Installation Features 10-point mounting hole pattern with alphanumeric (1-5, A-F) alignment guides

• Manufacturing Origin USA

• HS Classification 8537101190

Industrial Deployment and Interface Utility

As a core diagnostic component of GE Industrial Control Systems, the 531X306LCCBFM1 is utilized in environments where rapid status verification is essential for maintaining uptime.

• Drive System Diagnostics Displaying real-time fault codes and operational status for DC drive units in manufacturing and metal processing.

• Local Parameter Monitoring Providing technicians with immediate access to voltage, current, or frequency readings without the need for external laptop connection.

• System Configuration Utilizing the onboard jumper pins to define specific display modes or communication paths during initial drive commissioning.

• Maintenance and Repair Serving as a critical point of failure analysis, where the 16-slot LED identifies specific hardware anomalies in the broader drive control loop.

• DCS Network Support Integrating into Ethernet-ready control architectures as a local monitoring node for automated drive synchronization.
