Product Overview

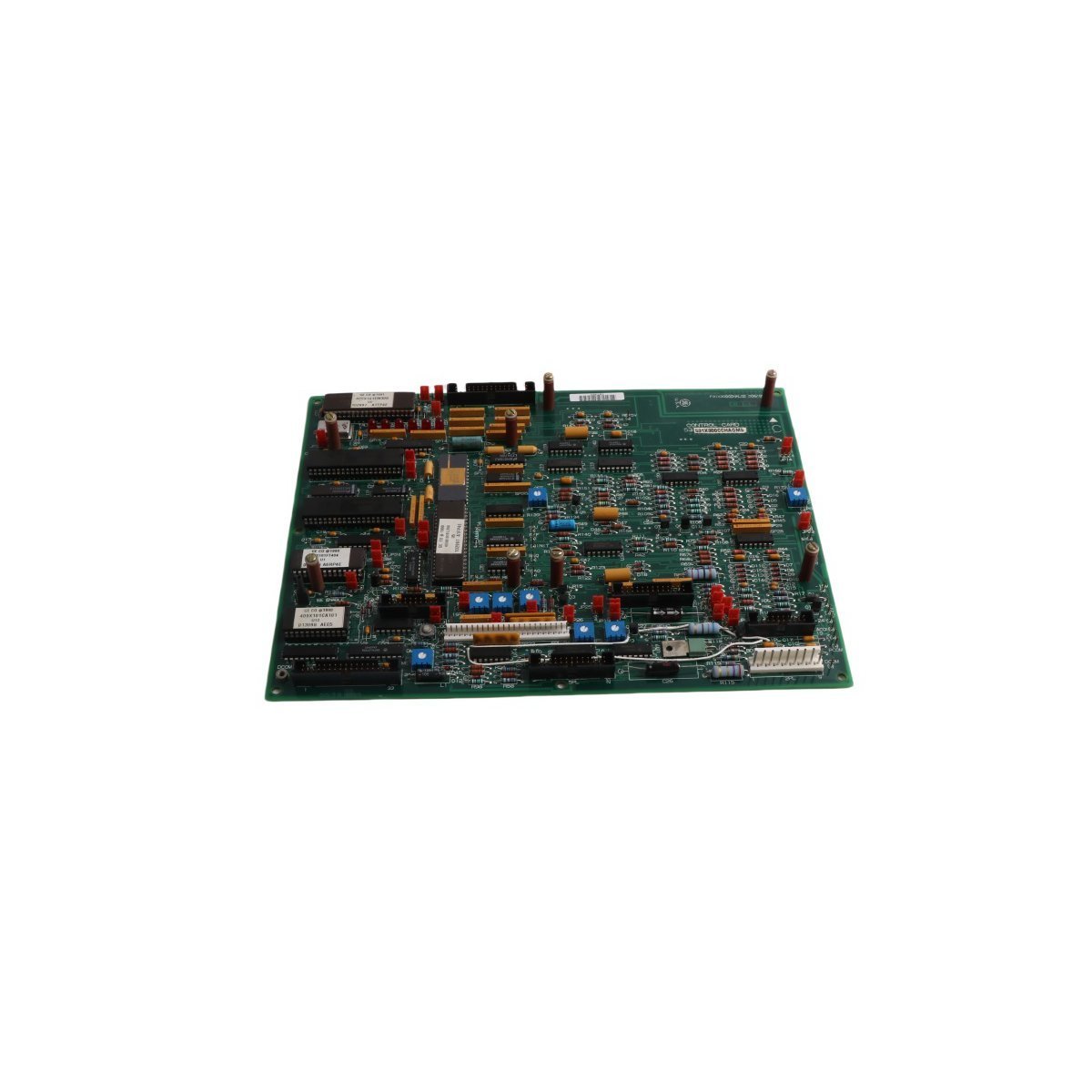

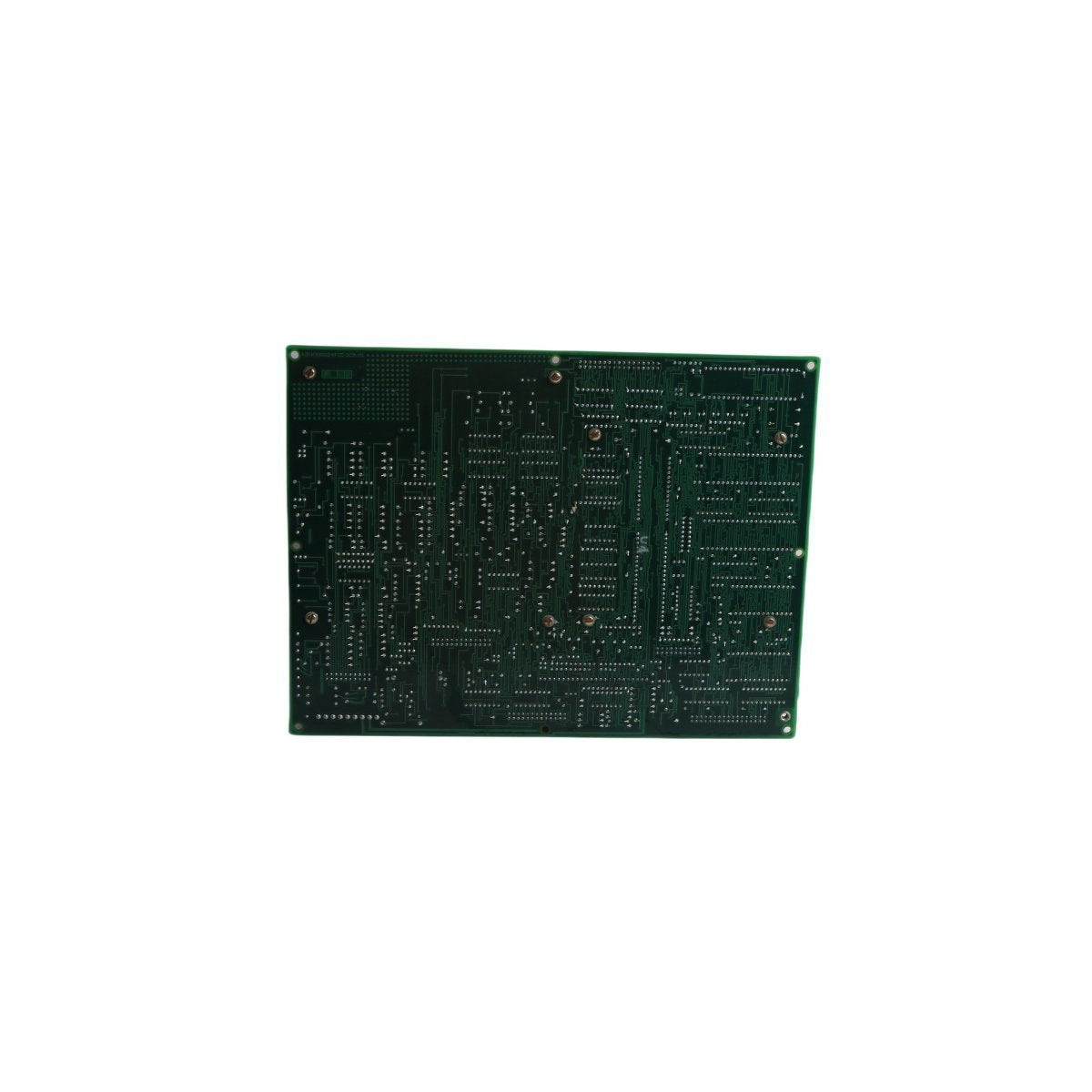

The 531X300CCHAGM5 is a primary drive control motherboard engineered by General Electric for the DC-300 and DC-2000 industrial drive families. This sophisticated control card serves as the central logic processor for GE’s general-purpose motor drives, managing complex power conversion tasks for both AC and DC input configurations. Designed with a modular architecture, the board functions as a high-integrity interface for speed and torque regulation. It is built to support the high-demand requirements of heavy-duty industrial applications, ensuring precise motor performance and system stability across diverse manufacturing environments.

Technical Hardware Infrastructure

• Model Number 531X300CCHAGM5

• Module Type Drive Control Mainboard

• System Compatibility DC-300, DC-2000, and VA-4 Drive Systems

• Expansion Capacity 8 integrated standoffs for mounting up to two auxiliary daughterboards

• Signal Interfacing 6 vertical pin cable connectors and 2 header connectors for board-to-board communication

• Onboard Tuning 8 precision potentiometers for manual calibration and 30 user-configurable jumper switches

• Diagnostic Indicators 6 red LED status lamps for real-time error and state tracking

• Logic Components 25 resistor network arrays and 11 high-gain transistors for signal modulation

• Power Regulation Integrated localized voltage regulator and dedicated test points for circuit validation

• Physical Mass 0.68 kg

• Dimensions 28.0 cm x 21.4 cm x 3.5 cm

• Country of Origin USA

Industrial Operational Scenarios

The 531X300CCHAGM5 is a critical asset for power electronics and motor control in high-stakes industrial sectors:

Heavy-Duty DC Motor ControlActs as the logic core for DC-300 drives in metal rolling mills and paper processing plants, where precise speed regulation is required to maintain tension and product quality.

Material Handling and LogisticsManaging the acceleration and deceleration ramps for large-scale conveyor systems and automated gantry cranes in mining and shipping operations.

Drive System CustomizationUtilized in specialized VA-4 systems where the ability to attach auxiliary boards allows for custom I/O configurations or specific fieldbus communication requirements.

Fault Protection and MaintenanceLeveraging the onboard test points and LED indicators for rapid troubleshooting in high-uptime environments, reducing mean time to repair (MTTR).

Legacy Control ModernizationServing as a "Brand New" replacement component for established GE drive fleets, allowing facilities to maintain original manufacturer specifications without upgrading entire drive cabinets.
