Product Overview

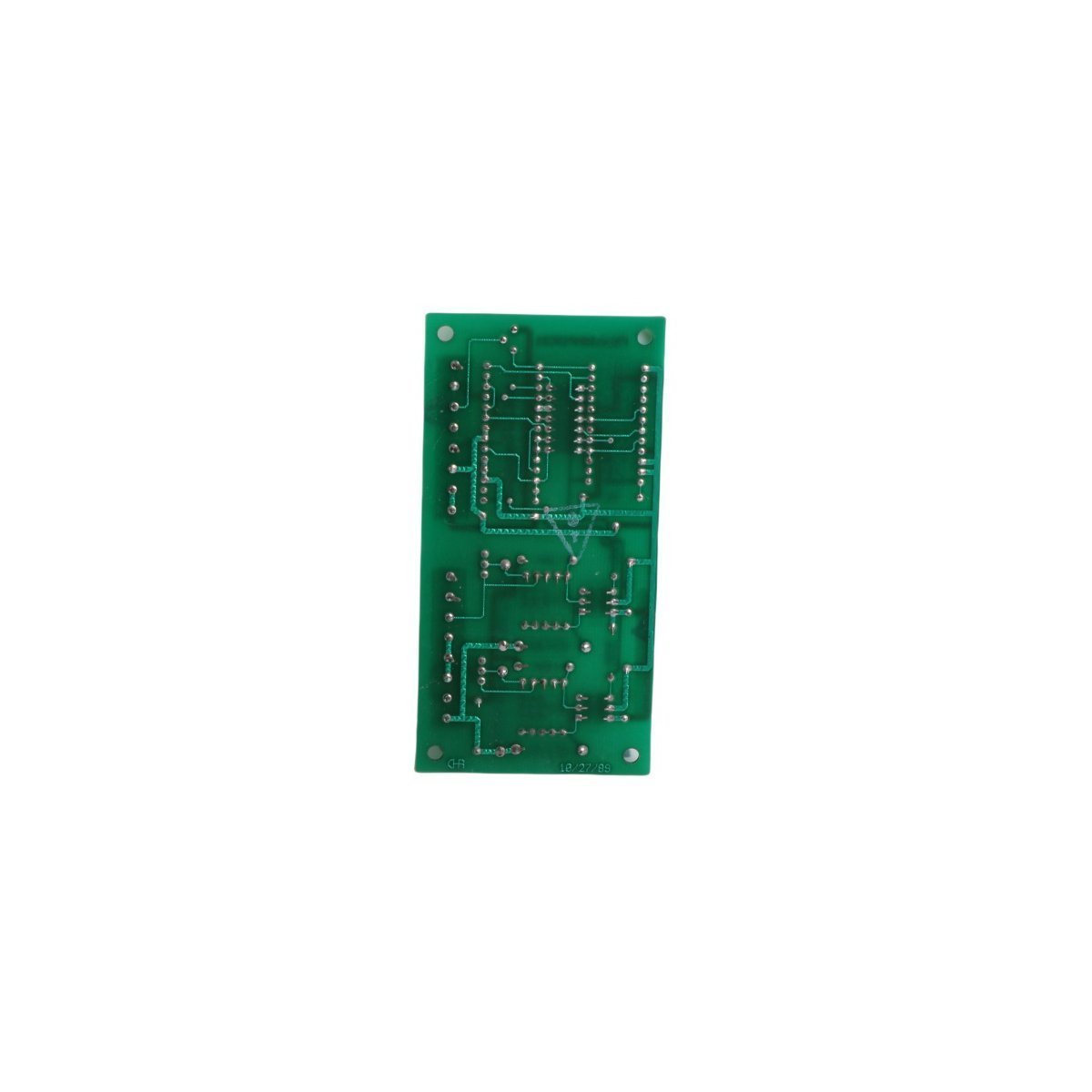

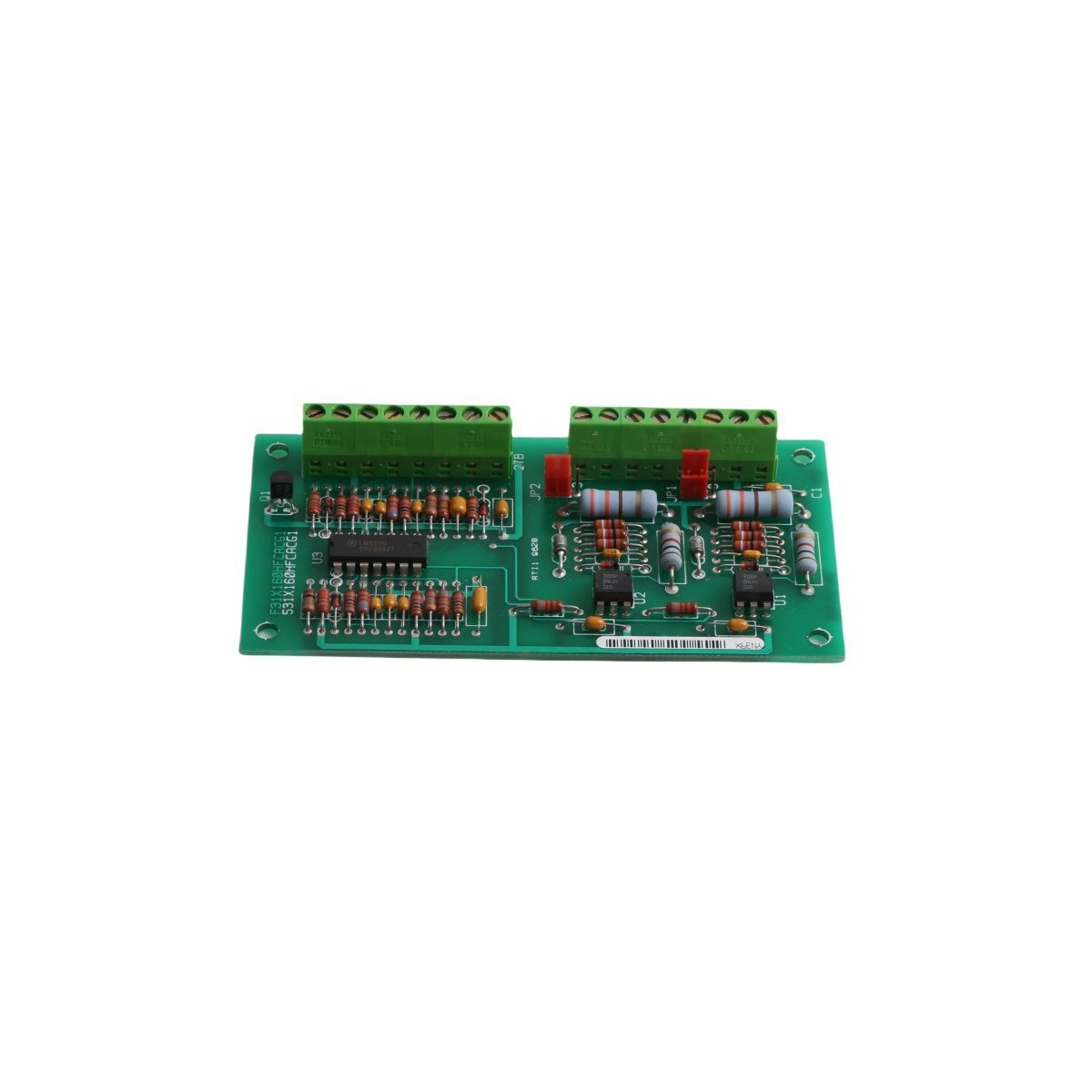

The 531X160HFCACG1 is a specialized Home/Flag Board developed by General Electric for use within industrial drive and turbine control systems. This component serves as a critical signaling and status-monitoring interface, providing visual and electrical "flags" or indicators that represent specific system states, home positions, or fault conditions. Designed to integrate with GE’s legacy 531X series drive components and broader Distributed Control System (DCS) architectures, this board ensures that operators and automated supervisors receive real-time feedback from the machinery's core logic. Its compact form factor and robust electrical design allow for precise signal routing in high-density control cabinets.

Technical Capabilities and Design

The 531X160HFCACG1 is engineered to maintain high reliability in demanding industrial power environments:

• Signal Processing: Efficiently handles discrete status signals, converting internal logic states into observable flag indicators or home-position confirmations.

• System Integration: Specifically compatible with GE 531X drive assemblies and often utilized in Multilin or Speedtronic-adjacent control frameworks.

• Compact Footprint: Measuring 11.3 x 5.7 x 1.5 cm and weighing only 0.06 kg, it is designed for space-saving mounting within existing rail or rack systems.

• Diagnostic Precision: Features onboard circuitry to support smart diagnostics, allowing for rapid identification of operational anomalies or position-tracking errors.

• Durability: Manufactured using high-grade industrial laminates and components capable of withstanding the thermal and electrical stressors typical of turbine control rooms.

Hardware Specifications

• Manufacturer: General Electric (GE)

• Model Number: 531X160HFCACG1

• Board Classification: Home/Flag Logic Interface

• Application Environment: Distributed Control Systems (DCS) and Turbine Control

• Dimensions: 11.3 x 5.7 x 1.5 cm

• Weight: 0.06 kg

• Mounting: Designed for internal cabinet integration within specific GE drive housings

Industrial Applications

The 531X160HFCACG1 Home/Flag Board is essential for maintaining the health and safety of heavy industrial assets, including:

• Gas and Steam Turbine Control: Monitoring "home" positions for actuators or valve assemblies during startup and operational cycles.

• Industrial Drive Systems: Providing status flags for variable speed drives used in manufacturing and processing plants.

• Power Generation Facilities: Enhancing the diagnostic layer of DCS environments to minimize mean time to repair (MTTR).

• Legacy System Support: Acting as a vital replacement part for maintaining active 531X-series control installations that require high-reliability signaling.
