Product Overview

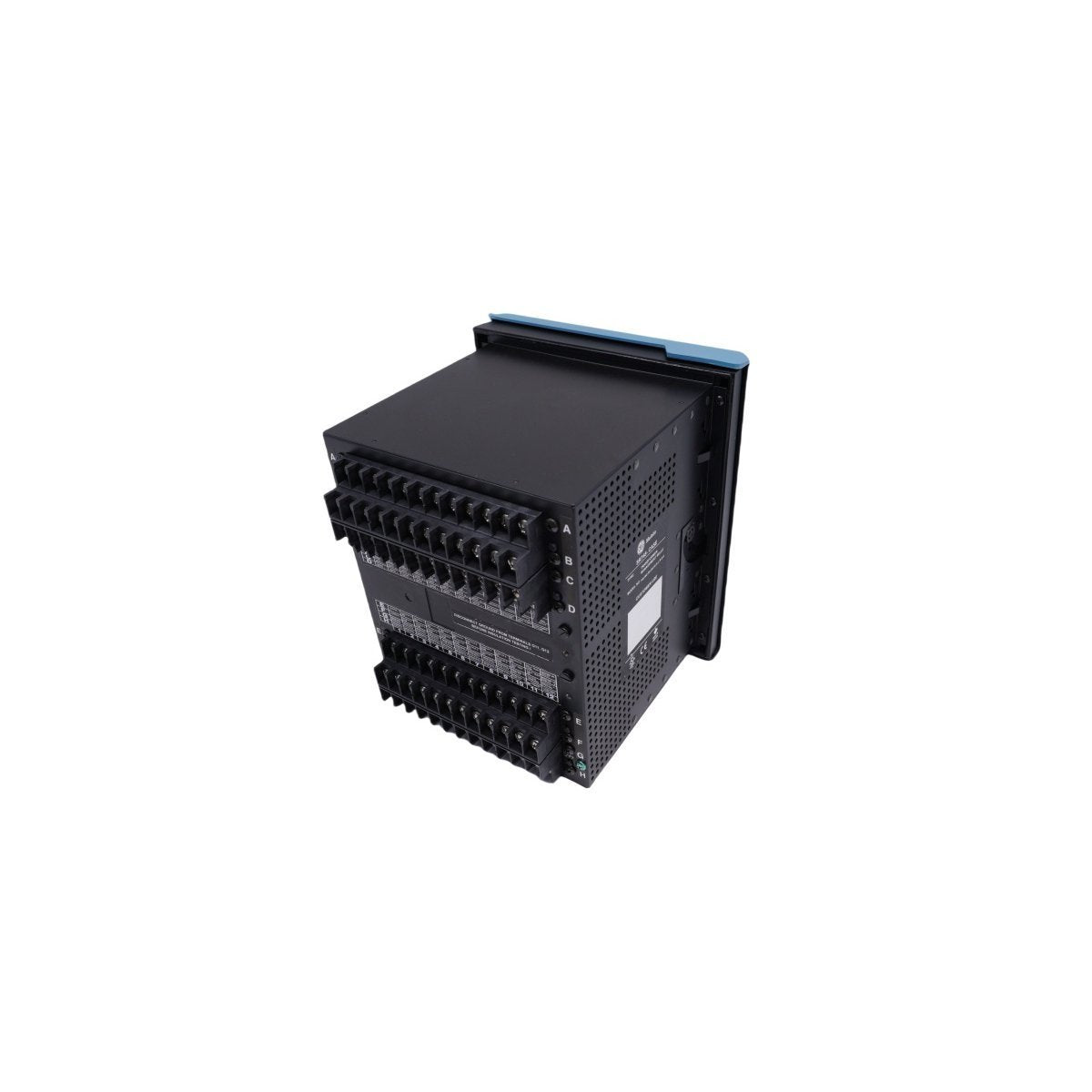

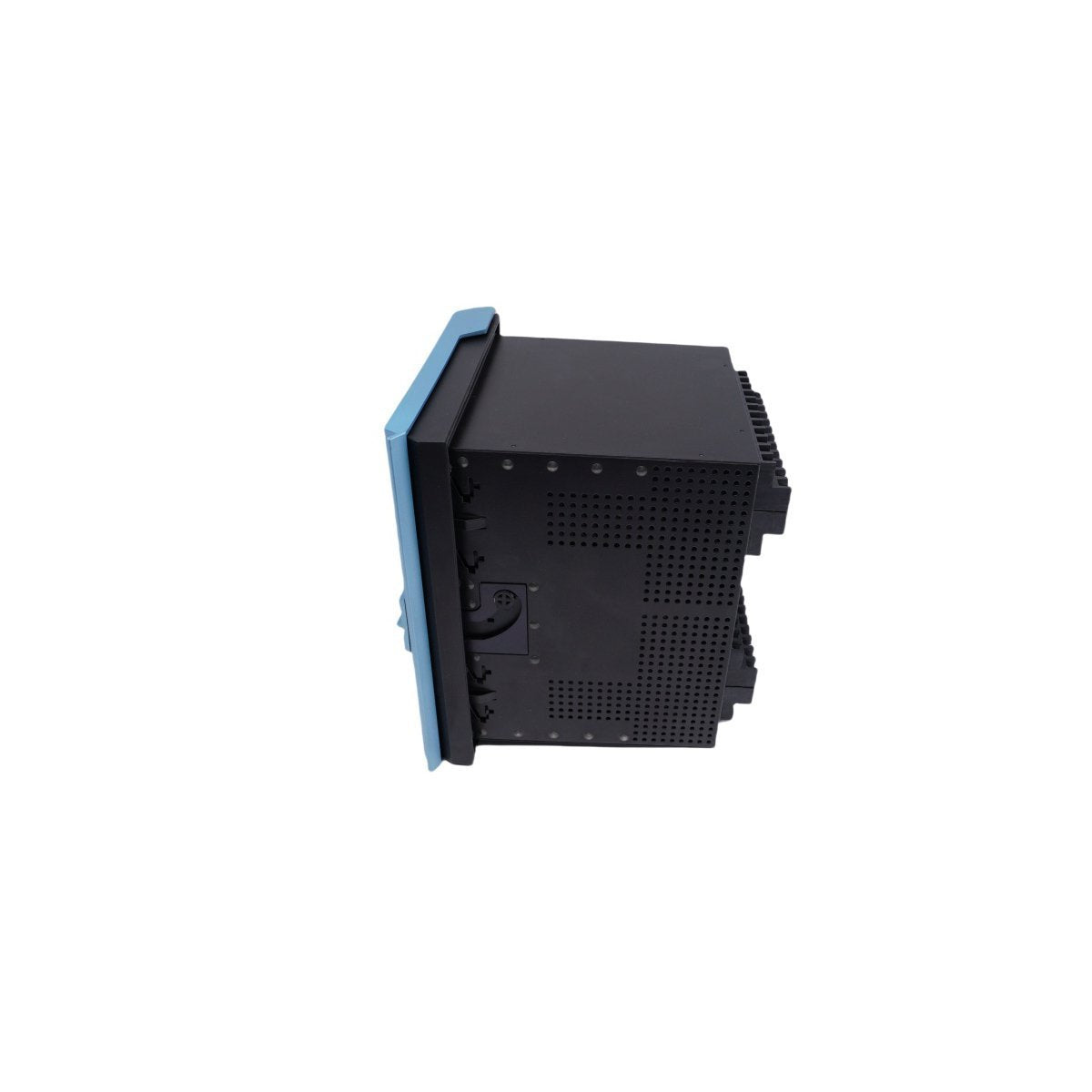

The 745-W2-P5-G5-HI-A-R-E is a GE Multilin 745-series management relay used for power equipment protection and supervision in utility and industrial distribution systems. This relay is applied where dependable protection, monitoring, and local operator control are required for critical assets such as feeders and transformer-connected circuits. It is commonly supplied in an SR-series draw-out style that supports service replacement without reworking the entire panel wiring, depending on the installed case configuration.

The relay provides metering, protective functions, and operator interface features to support commissioning, troubleshooting, and ongoing asset management. It is typically used in installations that require stable control power tolerance and clear front-panel status indication for operations teams.

Key Technical Characteristics

• Brand: GE Multilin

• Product Family: Multilin 745 / SR745 platform

• Device Category: Feeder Management Relay / Protection Relay

• Model / Order Number: 745-W2-P5-G5-HI-A-R-E

• Mounting Style: SR-series draw-out relay style (case-dependent)

• Application Class: Distribution protection, asset supervision, metering, and control

• Input and Power (as specified):

• 90–300 VDC

• 70–265 VAC, 48–62 Hz

• CT Input Rating: 5 A class (model-coded configuration)

• Supports multi-winding measurement arrangements (application-dependent)

• Control Power Supply Range:

• Protection and Supervision Functions (typical for 745 platform):

• Ground fault and restricted ground fault capability (configuration-dependent)

• Integrated metering and event/alarm handling through relay firmware

• Analog I/O capability supported on configured models

• Local Interface and Service Features:

• Front-panel LCD display for settings and measured values

• LED status indicators for alarm/trip and device state

• Keypad/control keys for local access and operations

• Communication/interface port for engineering access (system-dependent)

• Supply and Logistics:

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: Active (as provided)

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 7.6 kg

• Dimensions: 20.8 × 22.0 × 24.6 cm

• System Type: DCS / Protection & Control Panel
