Product Overview

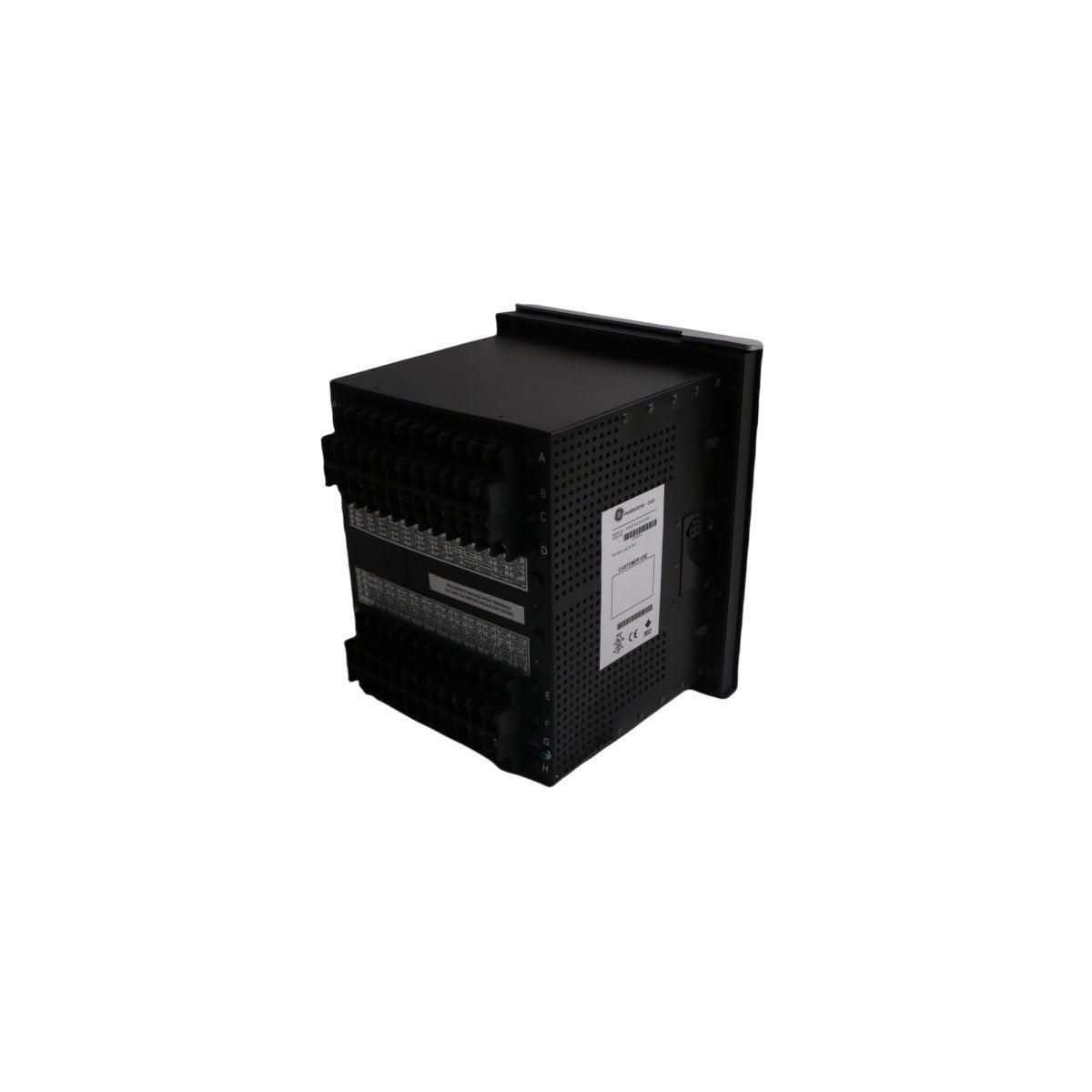

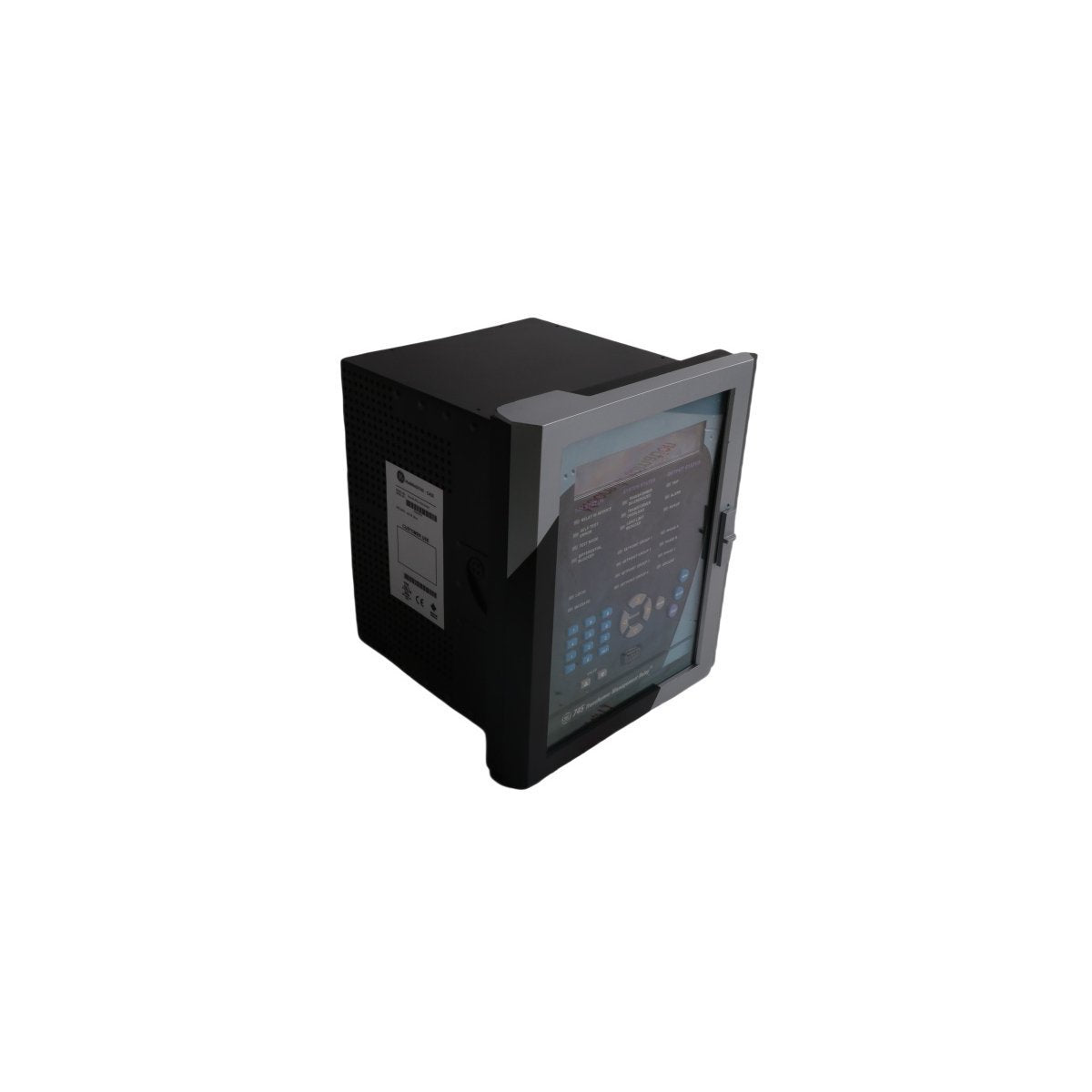

The 745-W3-P511-G51-HI-R-E is a GE Multilin SR745 feeder management relay used in distribution protection and control panels. It is designed to combine protection, metering, monitoring, and local operator interface functions in a single relay platform for power feeders and associated equipment. In typical installations, the relay supports continuous supervision of electrical conditions and provides event-driven alarming to assist with operational reliability and maintenance response.

This model is commonly deployed in switchgear lineups and substation-style panels where rugged front-panel interaction, configurable settings, and integration with plant monitoring systems are required.

Hardware Parameters

• Brand: GE Multilin

• Product Family: SR745 / Multilin 745 Series

• Device Category: Feeder Management Relay / Protection Relay

• Model / Order Number: 745-W3-P511-G51-HI-R-E

• System Type: DCS / Protection & Control Panel

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: Active

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 7.6 kg

• Dimensions: 20.8 × 22.0 × 24.6 cm

• Functional Capabilities (platform-level):

• Feeder protection, metering, and monitoring functions handled through relay firmware

• Real-time status indication and diagnostics for panel operations

• Event and alarm reporting for troubleshooting and system integrity checks

• Interface and Service Features (typical SR745 design):

• Front-panel display for settings and measured values

• Keypad and control keys for local access

• LED indicators for alarm/trip and device state

• Engineering access interface for configuration and data retrieval (system-dependent)

• Integration Notes:

• Exact I/O, CT/VT input ratings, and communication options depend on the configuration code within the full model string

• Installation, wiring, and settings should follow the applicable SR745 instruction manual and site protection standards

Industrial Applications

• Distribution feeder protection in industrial plants and utility substations

• Switchgear protection and monitoring for incoming and outgoing feeders

• Motor control center incomer protection and facility distribution supervision

• Panel upgrades where feeder protection, metering, and operator interface are consolidated

• Replacement relay for installed SR745/745 series panels to restore protection and monitoring functions
