Product Overview

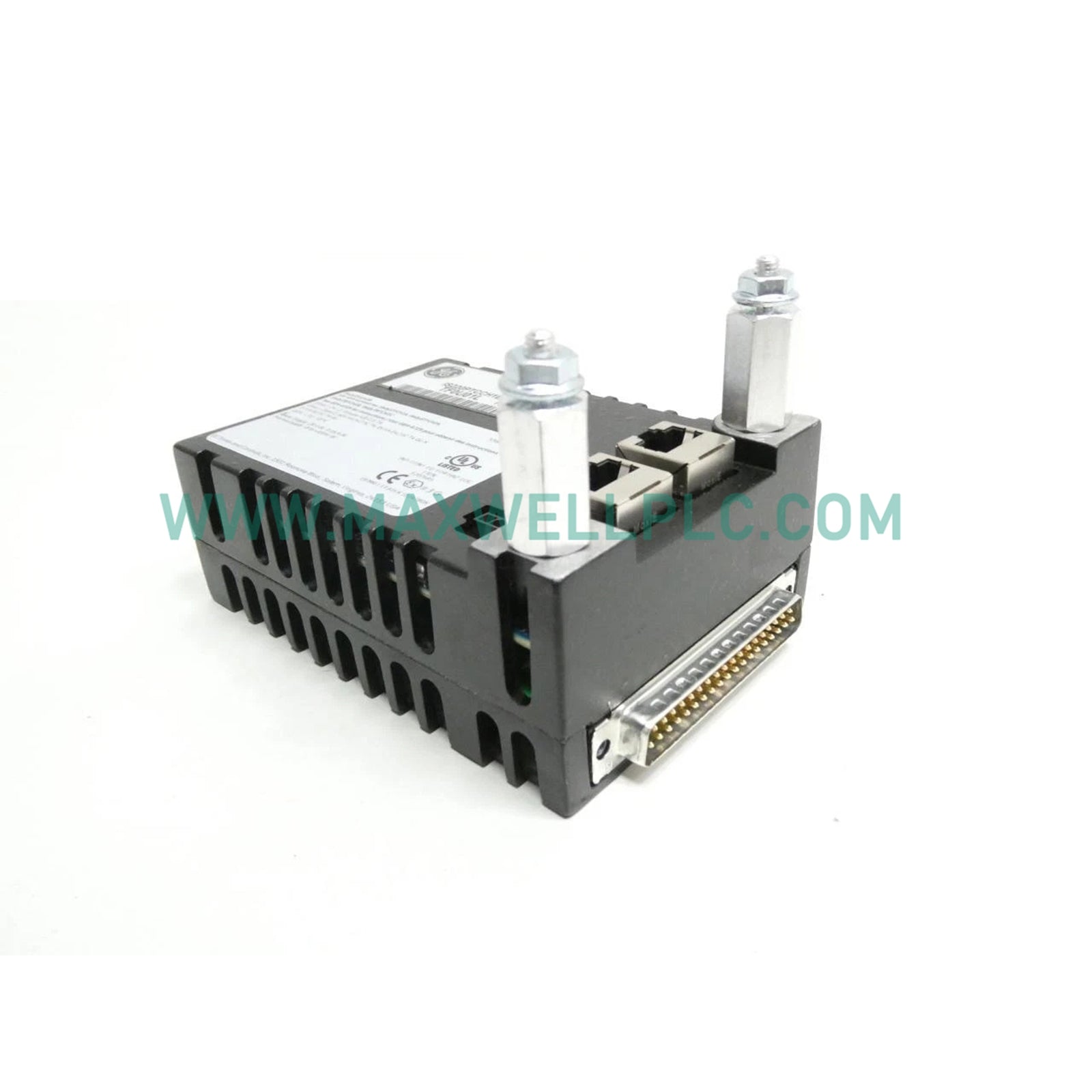

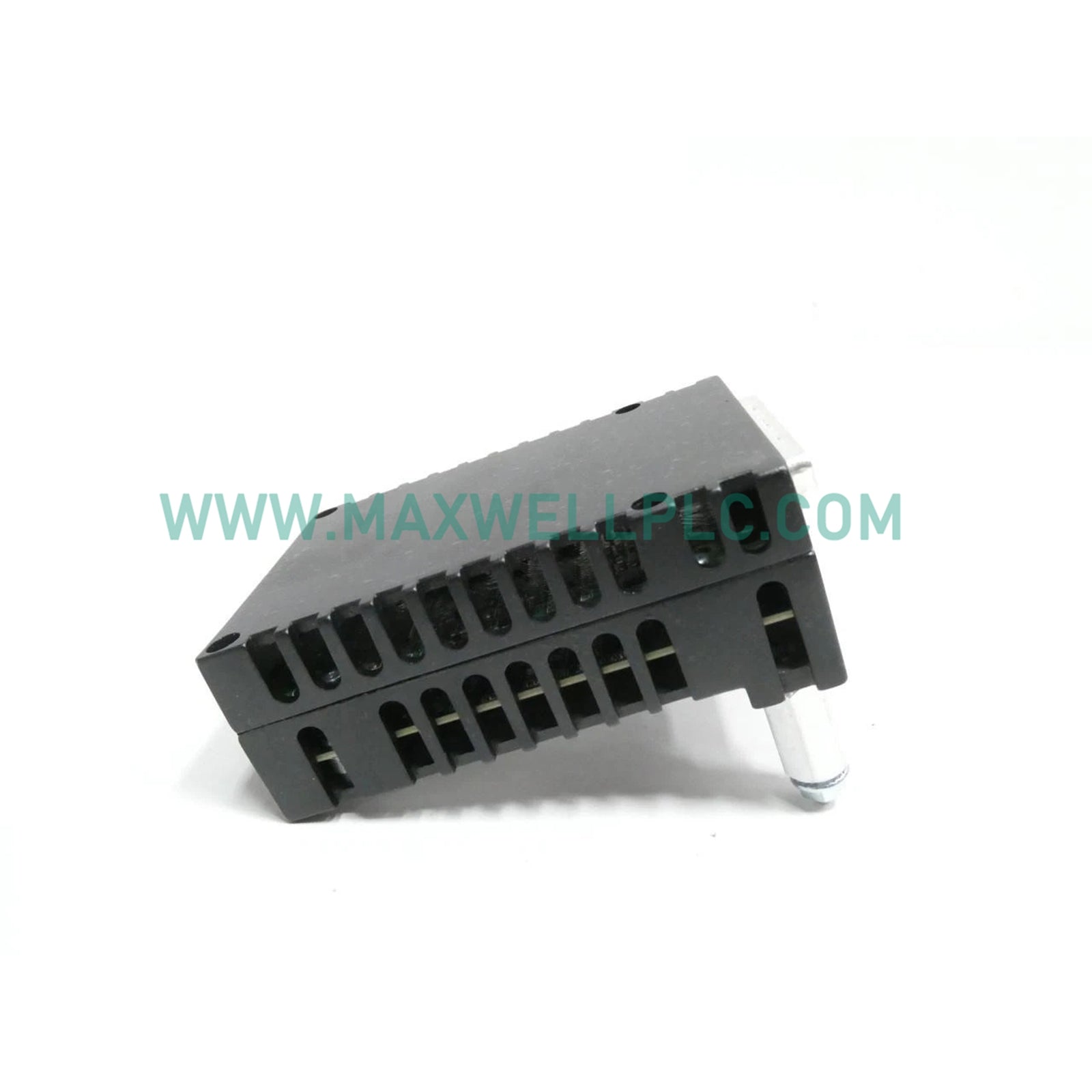

The IS220PTCCH1B is a high-precision Thermocouple Input Module engineered specifically for the General Electric Mark VIe Speedtronic control platform. Designed to meet the rigorous demands of gas turbine thermal monitoring, this module provides the interface between field-mounted temperature sensors and the digital control network. It is capable of processing 12 independent channels of millivolt signals, converting them into accurate temperature data for combustion optimization and exhaust spread analysis. The module features integrated cold junction compensation and is built to operate within Simplex, Duplex, or Triple Modular Redundant (TMR) architectures, ensuring maximum system availability and fail-safe performance in mission-critical power generation environments.

Hardware Parameters and Key Technical Characteristics

The IS220PTCCH1B is characterized by its broad sensor compatibility and robust signal conditioning capabilities.

• Manufacturer: General Electric (GE)

• Model Identification: IS220PTCCH1B

• Control Platform: Mark VIe Speedtronic

• Channel Density: 12 High-accuracy thermocouple inputs

• Thermocouple Support: Types E, J, K, S, and T

• Signal Range: -8 mV to +45 mV (millivolt level processing)

• Reference Compensation: 1 Integrated cold junction reference

• Input Impedance/Resistance: Maximum cable resistance of 450 Ohms

• Transmission Limit: Supports cable runs up to 984 feet (300 meters)

• Power Input: 28 VDC (nominal) at 0.16 Amps

• Sensor Compatibility: Supports both grounded and ungrounded thermocouple junctions

• Physical Footprint: 18 cm x 12 cm x 5 cm

• Weight: 0.5 kg (1.1 lbs)

Industrial Applications and Operational Use Cases

This thermocouple interface is a cornerstone for thermal management in heavy-duty rotating machinery.

• Gas Turbine Exhaust Monitoring: Real-time tracking of exhaust gas temperatures (EGT) to detect combustion imbalances and prevent turbine blade damage.

• Combustion Optimization: Providing 12-channel high-resolution data for the fine-tuning of fuel-to-air ratios to reduce emissions and improve heat rate.

• Bearing and Stator Temperature Tracking: Monitoring critical mechanical components within the turbine-generator set to initiate protective trips before thermal runaway occurs.

• TMR Protection Schemes: Deploying three IS220PTCCH1B modules in a 2-out-of-3 (2oo3) voting configuration for maximum reliability in emergency shutdown systems.

• Remote I/O Deployment: Utilizing the module's ability to maintain signal accuracy over long distances (up to 300 meters) to place I/O packs closer to the turbine skin, reducing expensive specialized cabling.
