Product Overview

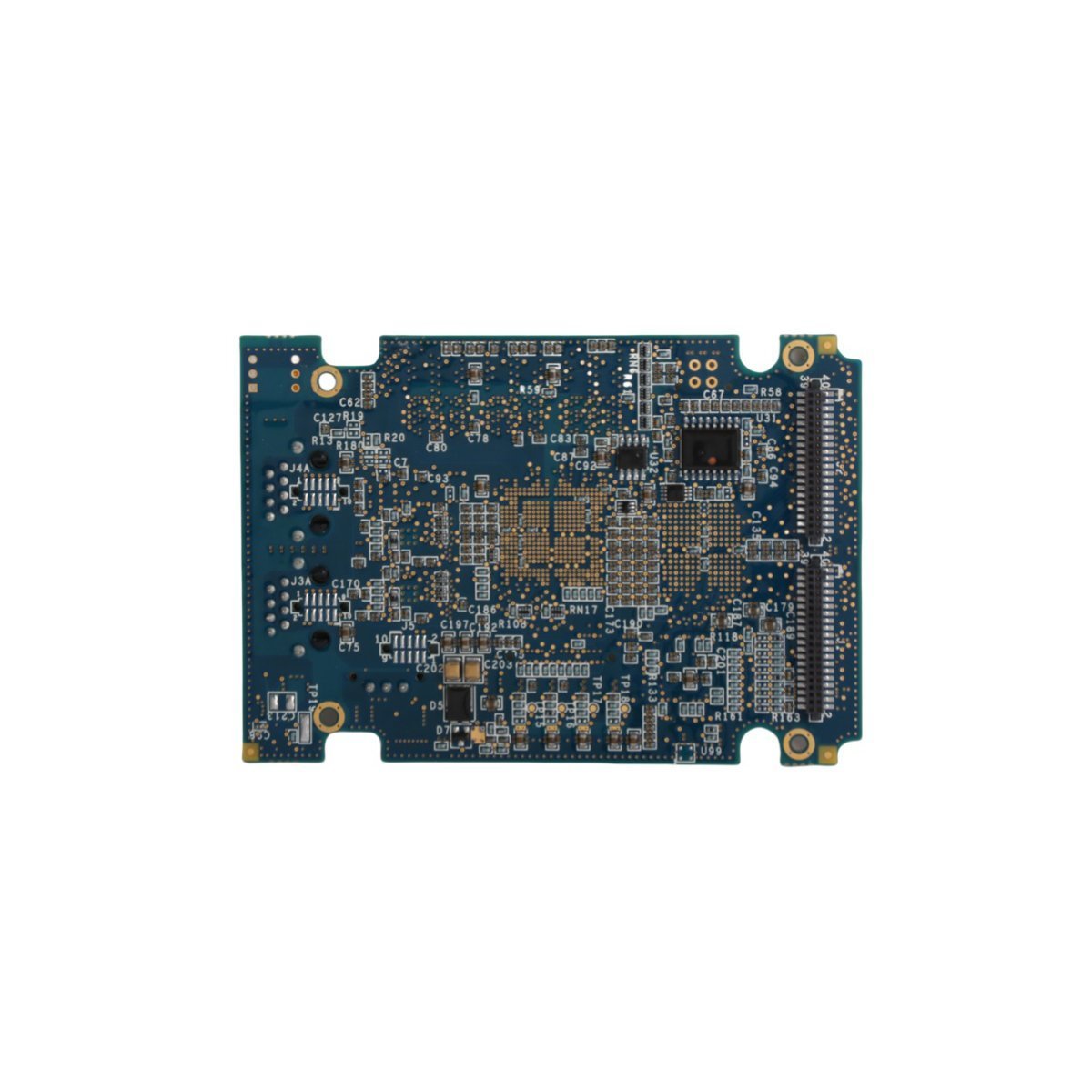

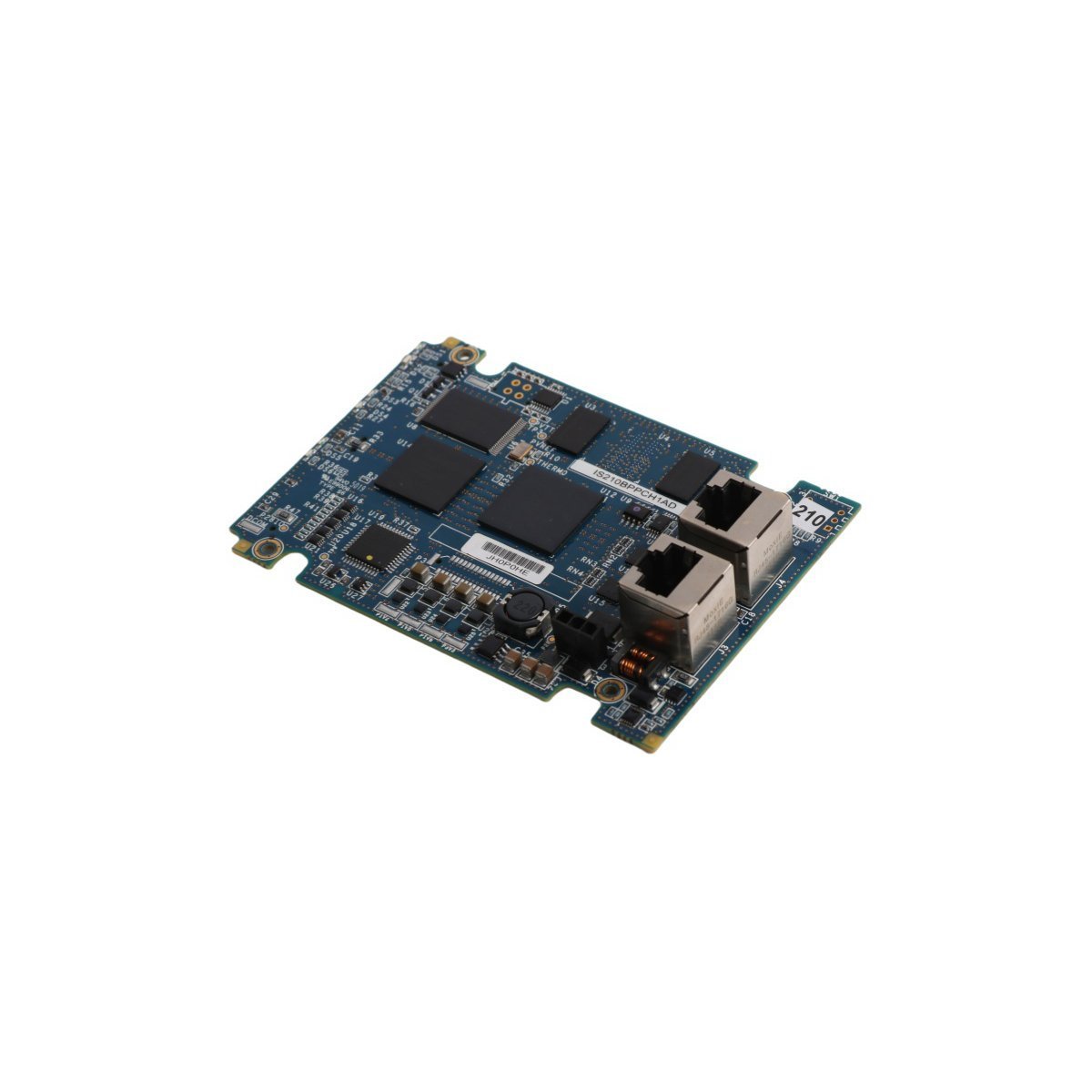

The IS210WETAH1A is a high-performance Application Control Layer (ACL) module designed by General Electric for the Mark VIe and Mark VI control ecosystems. While classified as an analog input interface, this board functions as a sophisticated processing node within the turbine management system, bridging the gap between field data acquisition and high-level control logic. It features an integrated x86-based architecture that manages complex I/O tasks, memory buffering, and network synchronization. The module is housed behind a wide front faceplate equipped with a comprehensive LED diagnostic array, allowing for real-time monitoring of ISBus connectivity and internal hardware status. This component is vital for maintaining the computational integrity of industrial turbine governors and secondary control loops.

Hardware Parameters and Technical Specifications

The IS210WETAH1A utilizes fourth-generation microprocessor technology combined with high-speed memory management to ensure deterministic control performance.

• Manufacturer General Electric (GE)

• Model Number IS210WETAH1A

• Series Compatibility Mark VIe / Mark VI Speedtronic

• Processor Architecture Intel 486 DX4-100 (100 MHz Core Speed)

• Cache Memory 16 KB L1 Internal Cache; 128 KB L2 External Cache

• System Memory 8 MB of 60ns EDO Dynamic RAM (Non-parity)

• Bus Interface 33 MHz PCI Controller managing memory and I/O transfers

• Local Bus Memory Dual-ported RAM for efficient data exchange

• Network Ports 1x 10BaseT Ethernet connector; 2x ISBus connectors

• Serial Interface 2x COM connectors for localized diagnostics and communication

• Diagnostics 4 Function LEDs, 8 Status LEDs, and 4 integrated ISBus LEDs

• Dimensions 26 cm x 15.2 cm x 3 cm

• Mass 0.52 kg

• Country of Origin United States (USA)

Industrial Applications and Operational Use Cases

This module is a critical asset in distributed control systems (DCS) where high-speed analog processing and application-level control are required.

• Turbine Application Control Layer (ACL) Serving as a replacement or expansion module for managing the primary control software in gas and steam turbine assemblies.

• Synchronous Data Acquisition Processing multi-channel analog inputs and synchronizing field data across the ISBus to ensure consistent state data for the controller.

• Legacy System Integration Acting as a modern replacement path for ACL modules in Innovation Series controllers and earlier Mark VI hardware racks.

• Real-Time Clock (RTC) Management Maintaining precise time-stamping for sequence-of-events (SOE) logging through its PC-compatible real-time clock interface.

• Diagnostic Troubleshooting Utilizing the comprehensive front-panel LED matrix and the onboard reset switch to facilitate rapid hardware recovery and link-layer verification during commissioning or maintenance.

By deploying the IS210WETAH1A, facility operators can maintain the precision and responsiveness necessary for modern grid-connected turbine operations.
