Product Overview

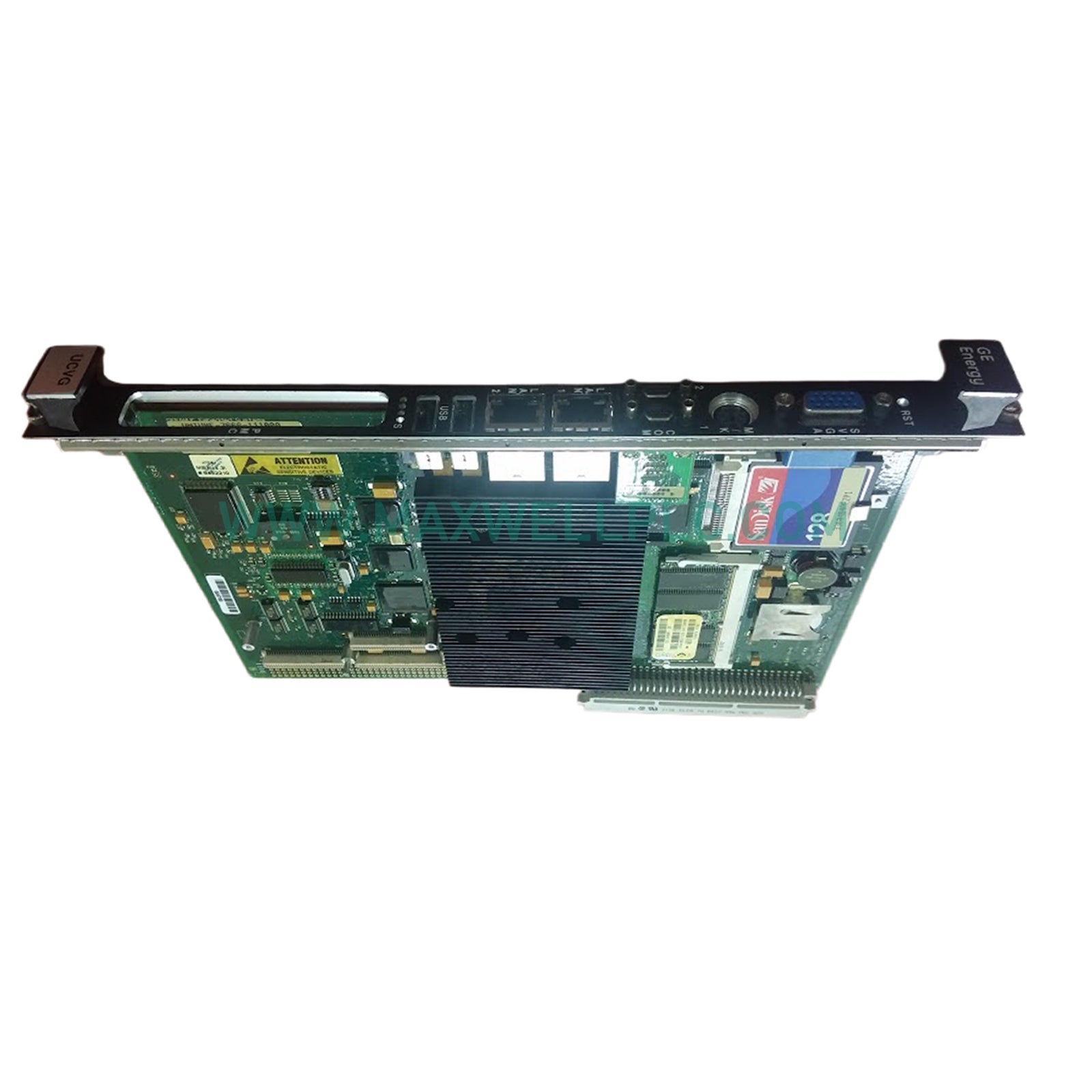

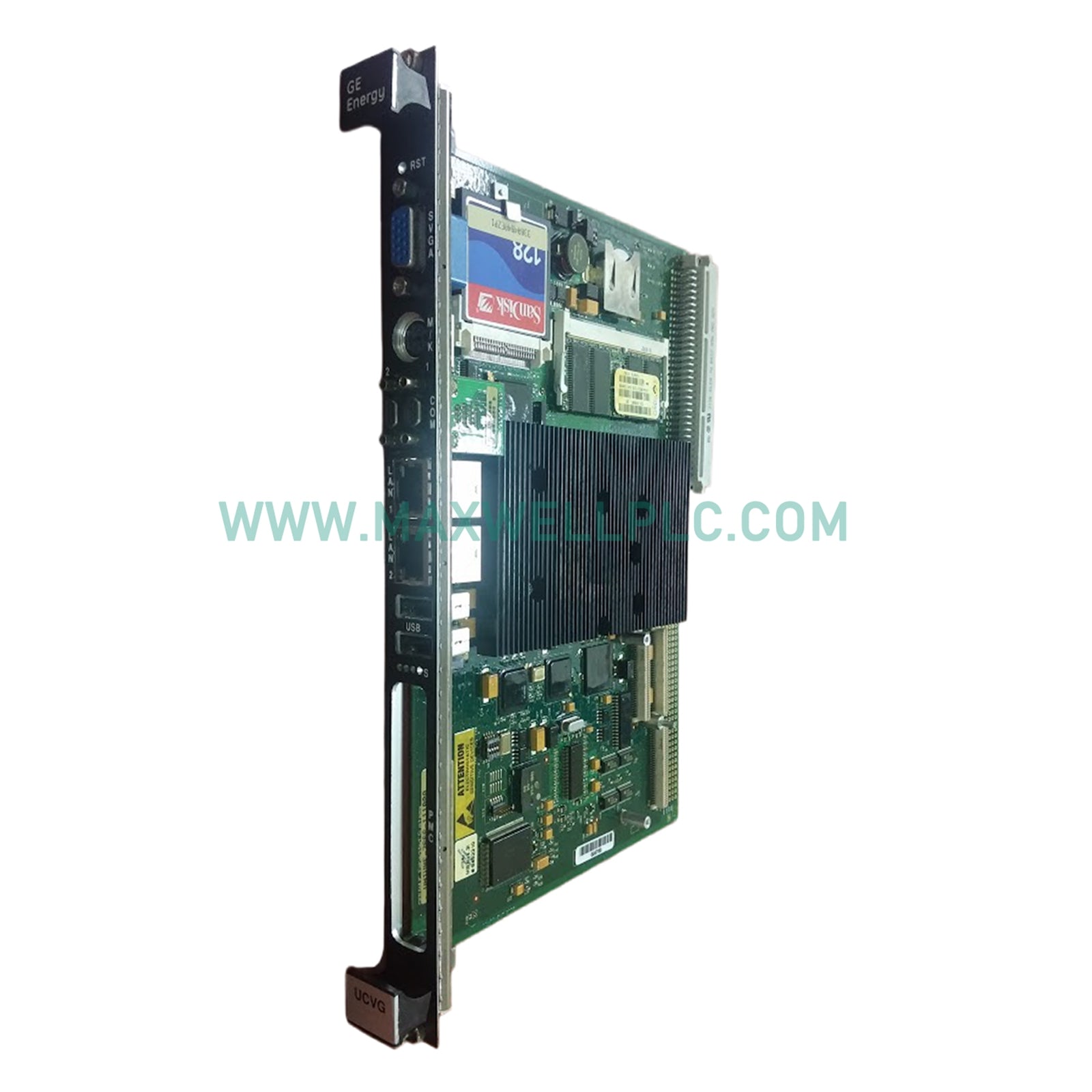

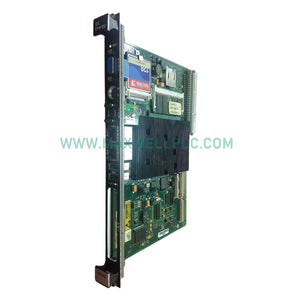

The IS215UCVGH1A is a high-performance, single-slot VME controller card engineered by General Electric for the Speedtronic Mark VI turbine control system. Functioning as the primary computational engine for the DCS, this unit executes complex control logic, protection algorithms, and data processing tasks essential for turbine operation. The board is built on a robust x86 architecture, utilizing a specialized real-time operating system (RTOS) to ensure deterministic performance and sub-millisecond response times. Its compact single-slot design allows for efficient use of rack space while providing the high-speed data throughput necessary to manage large-scale power generation assets.

Hardware Parameters and Key Technical Characteristics

The IS215UCVGH1A is defined by its industrial-grade processing components and integrated solid-state storage, optimized for continuous 24/7 operation in utility environments.

• Manufacturer General Electric (GE)

• Model Number IS215UCVGH1A

• Control Family Mark VI Series

• Central Processor Intel Ultra-Low Voltage (ULV) Celeron

• Clock Speed 650 MHz

• Volatile Memory 128 MB SDRAM

• Non-Volatile Storage 128 MB Compact Flash Module

• Cache Architecture 256 KB Advanced Transfer Cache

• Operating System Environment QNX Real-Time OS

• Thermal Performance 0°C to 70°C (Operational) / -40°C to 80°C (Storage)

• Chassis Compatibility Single-slot VMEbus backplane

• Physical Mass 0.95 kg

• Module Dimensions 35 cm x 33 cm x 3 cm

Industrial Applications and Operational Use Cases

As the "brain" of the Mark VI system, the IS215UCVGH1A is deployed in critical infrastructure where high availability and reliability are mandatory.

• Main Turbine Controller (Core Processing) Running the primary governor and fuel control software for heavy-duty gas and steam turbines.

• Redundant Control Logic Functioning as the R, S, or T core in Triple Modular Redundant (TMR) configurations to provide fail-safe voting logic.

• High-Speed Data Acquisition Coordinating the exchange of data between the VME backplane and Ethernet-based IONets for real-time monitoring.

• Combined-Cycle Power Plants Managing the synchronized control of multiple generation units to ensure grid stability and load-following accuracy.

• System Diagnostics and Communication Interfacing with the Human-Machine Interface (HMI) to provide operators with system health alerts and localized performance metrics.

By integrating the IS215UCVGH1A into a Mark VI rack, facility managers ensure their control architecture is powered by a processor capable of handling the most demanding industrial automation and protective sequences.
