Product Overview

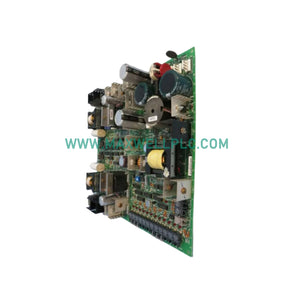

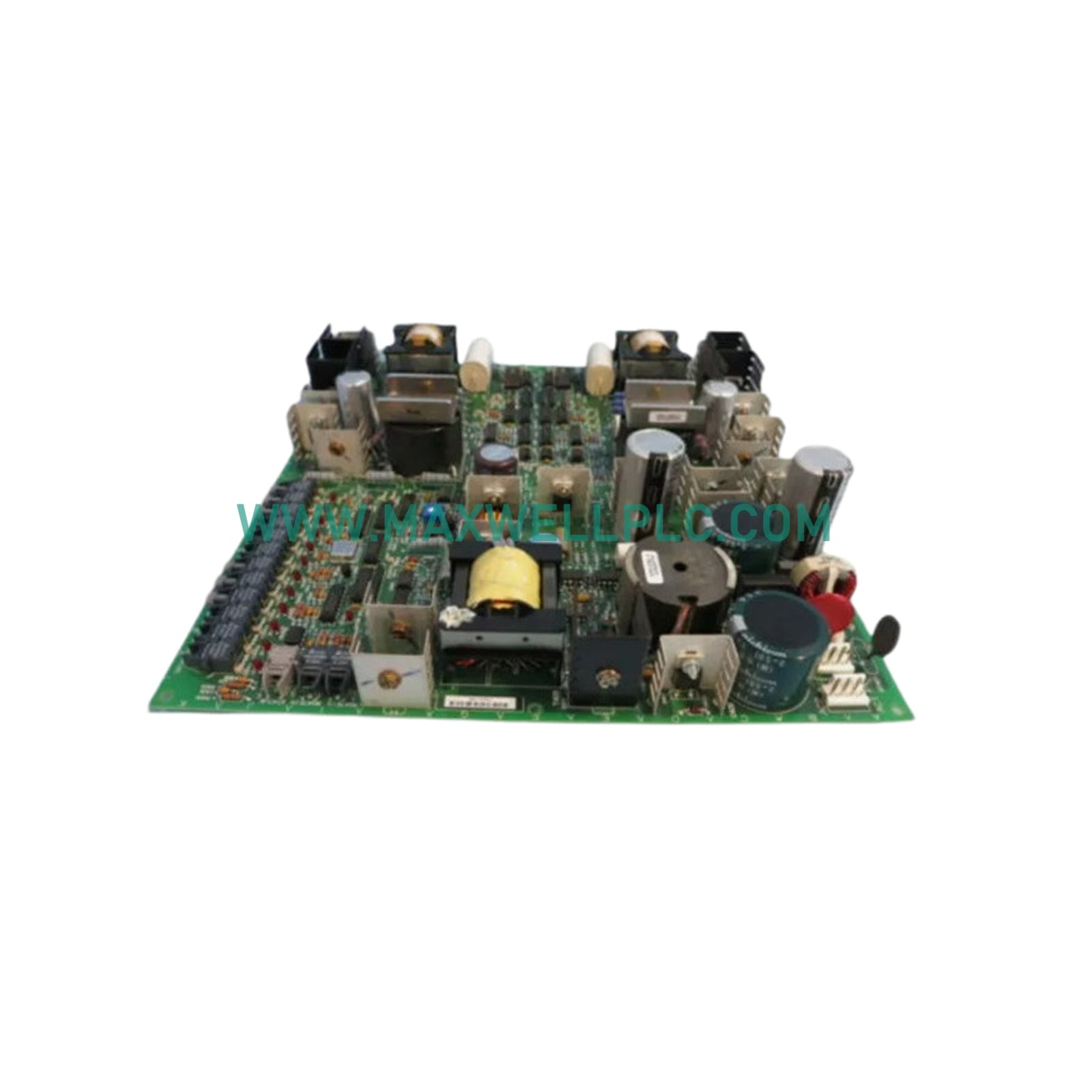

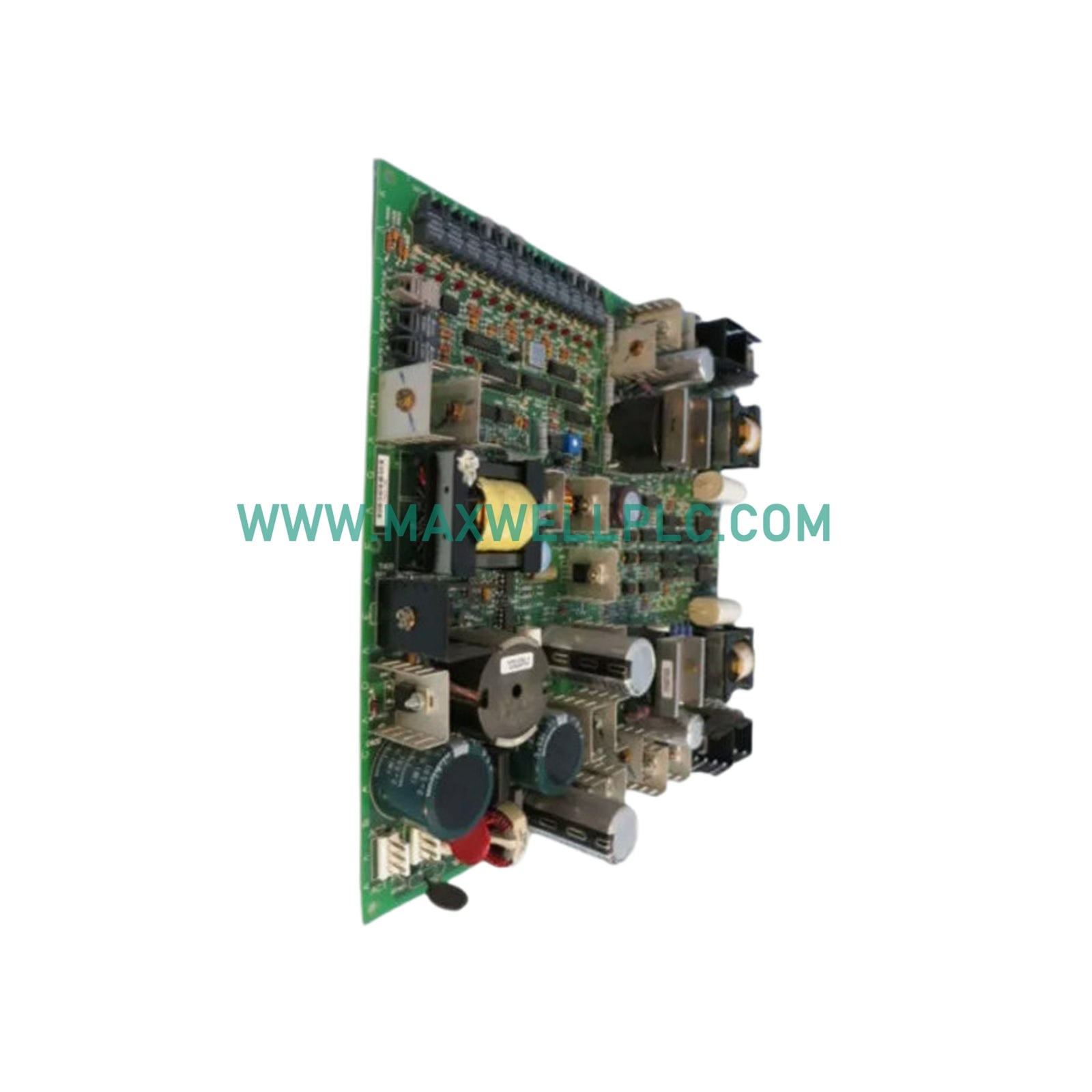

The DS200FGPAG1A, an essential component of the GE LS2100 and Mark V control ecosystems, serves as a high-performance Gate Pulse Amplifier (FGPA) board. This module is specifically engineered to bridge the gap between low-level control logic and high-power Silicon Controlled Rectifier (SCR) switching. By amplifying firing pulses and ensuring precise timing, the board facilitates the efficient operation of Load Commutated Inverters (LCI) and large-scale power converters. Beyond simple amplification, the DS200FGPAG1A provides comprehensive diagnostic oversight through integrated SCR status monitoring and a specialized fiber optic interface that ensures electrical isolation between control circuits and high-voltage power components.

Hardware Parameters and Key Technical Characteristics

The DS200FGPAG1A is designed for high-voltage environments, incorporating advanced signal filtering and a multi-channel optical interface to maintain system integrity.

• Primary Function Gate Pulse Amplification and SCR Monitoring

• Voltage Input 120 VRMS nominal source

• Power Rating 350 VA Maximum Capacity

• Converter Compatibility Rated for 2080 VAC or 3300 VAC systems

• Optical Interface 15 Fiber Optic Ports (1 Transmitter / 14 Receivers)

• Diagnostic Monitoring 30 Dedicated Hardware Test Points

• Signal Isolation Fiber optic coupling for high-voltage transient protection

• Reference Manual GEI-100223

• Series Compatibility LS2100 Static Starter and Mark V Control Systems

• Revision Status DS200FGPAG1AGD (Multiple sub-revisions supported)

Industrial Applications and Operational Use Cases

This amplifier board is a critical element in high-demand power conversion and motor starting sequences within heavy industrial facilities.

• Static Starter Systems (LCI) Driving the SCR gates in Load Commutated Inverters used to start large gas turbines and synchronous motors.

• High-Voltage Power Conversion Managing the firing sequences for power converters operating in the 2kV to 3.3kV range.

• SCR Health Diagnostics Continuously monitoring the feedback from 14 individual receivers to detect failed thyristors or firing irregularities in real-time.

• Utility-Scale Generation Implementation within Mark V and LS2100 cabinets to ensure reliable control of auxiliary power systems and turbine starters.

• Electrical Isolation Management Utilizing fiber optic channels to eliminate electromagnetic interference (EMI) and prevent high-side voltage from reaching control processors.




Proper handling is mandatory to maintain the board's sensitive electronics; the module should remain in its static-protective shielding until the point of installation, and fiber optic cables must adhere to specified bend radii to prevent signal attenuation.
