Product Overview

The GE IS215VPROH1B is an emergency turbine protection assembly used in turbine control and protection architectures to provide an independent layer of trip logic for critical operating conditions. It is commonly associated with overspeed and speed comparison functions and is also used for backup synchronization checking to help prevent unsafe breaker closing conditions.

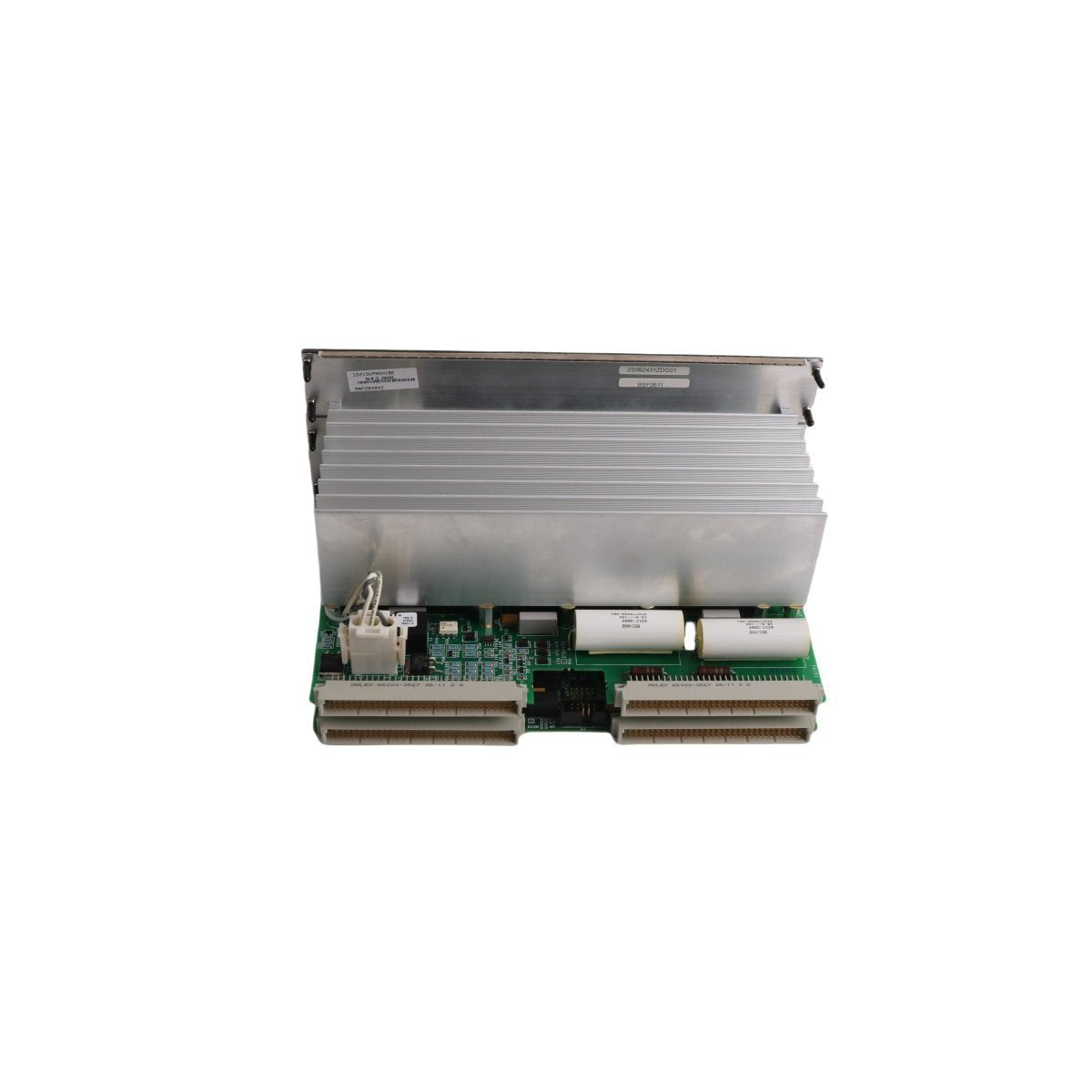

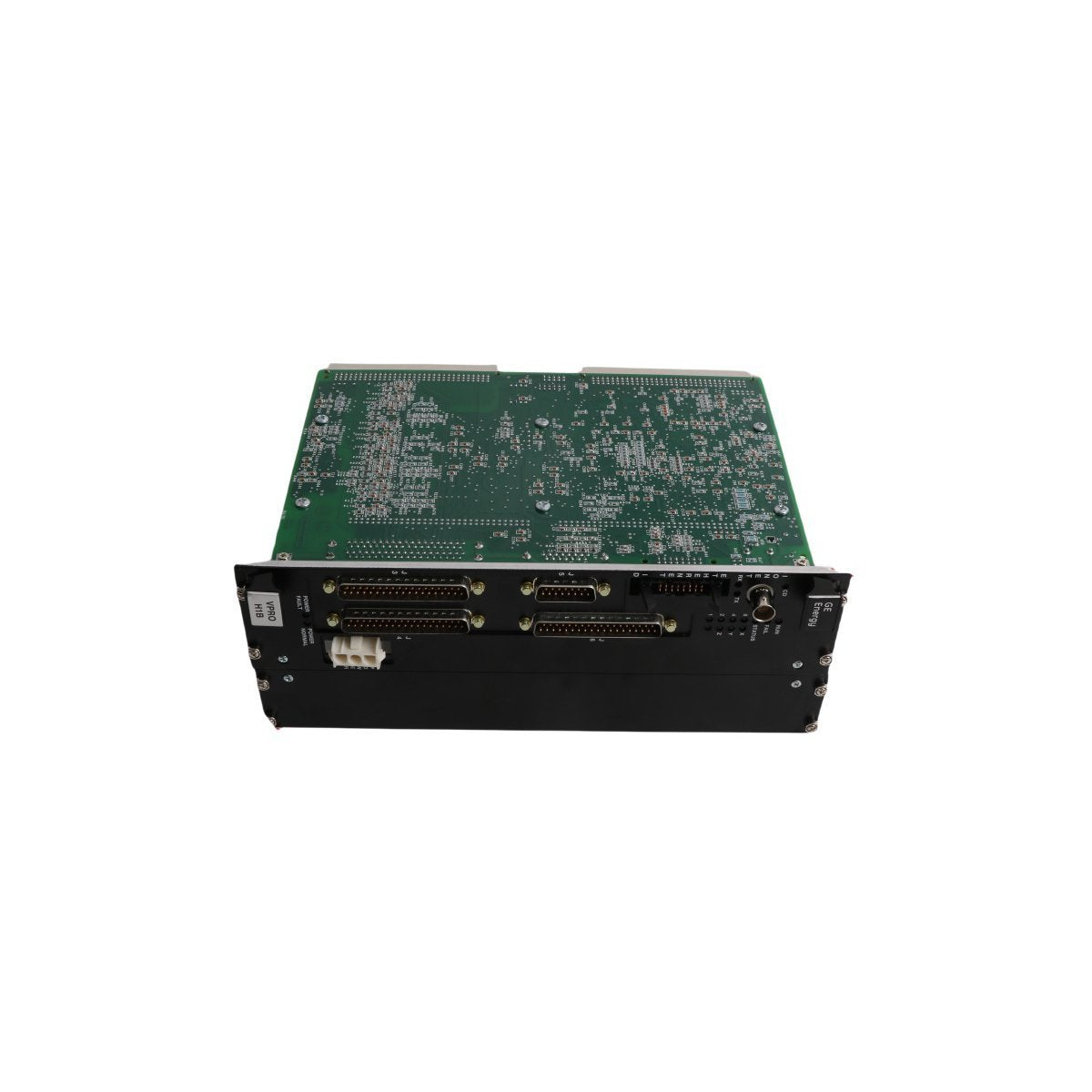

This module is built as a multi-board assembly with integrated power/conditioning circuitry and front-access connections intended for serviceability in turbine control cabinets. It supports protection actions by driving external trip devices through the appropriate interface boards in the control system, enabling controlled shutdown when abnormal conditions are detected.

Hardware Parameters

Key Technical Characteristics

• Emergency protection role providing independent protective trip capability for turbine systems

• Speed-related protection support including speed difference logic used in multi-sensor architectures

• Backup synchronization check to assist safe generator/turbine breaker close permissives

• Trip output control path designed to actuate trip solenoids through the system’s trip interface hardware

• Maintainability features such as labeled faceplate, LED status indication, and accessible connectors

• Revision-managed build; “H1B” identifies a controlled configuration and functional revision level

Industrial Applications

• Steam and gas turbine protection cabinets requiring an emergency shutdown layer

• Power generation units using GE turbine control platforms where independent trip handling is mandated

• Protection system troubleshooting when speed sensing, sync-check permissives, or trip actuation requires verification

• Lifecycle spares and planned outages for sites maintaining installed GE turbine control/protection infrastructure
