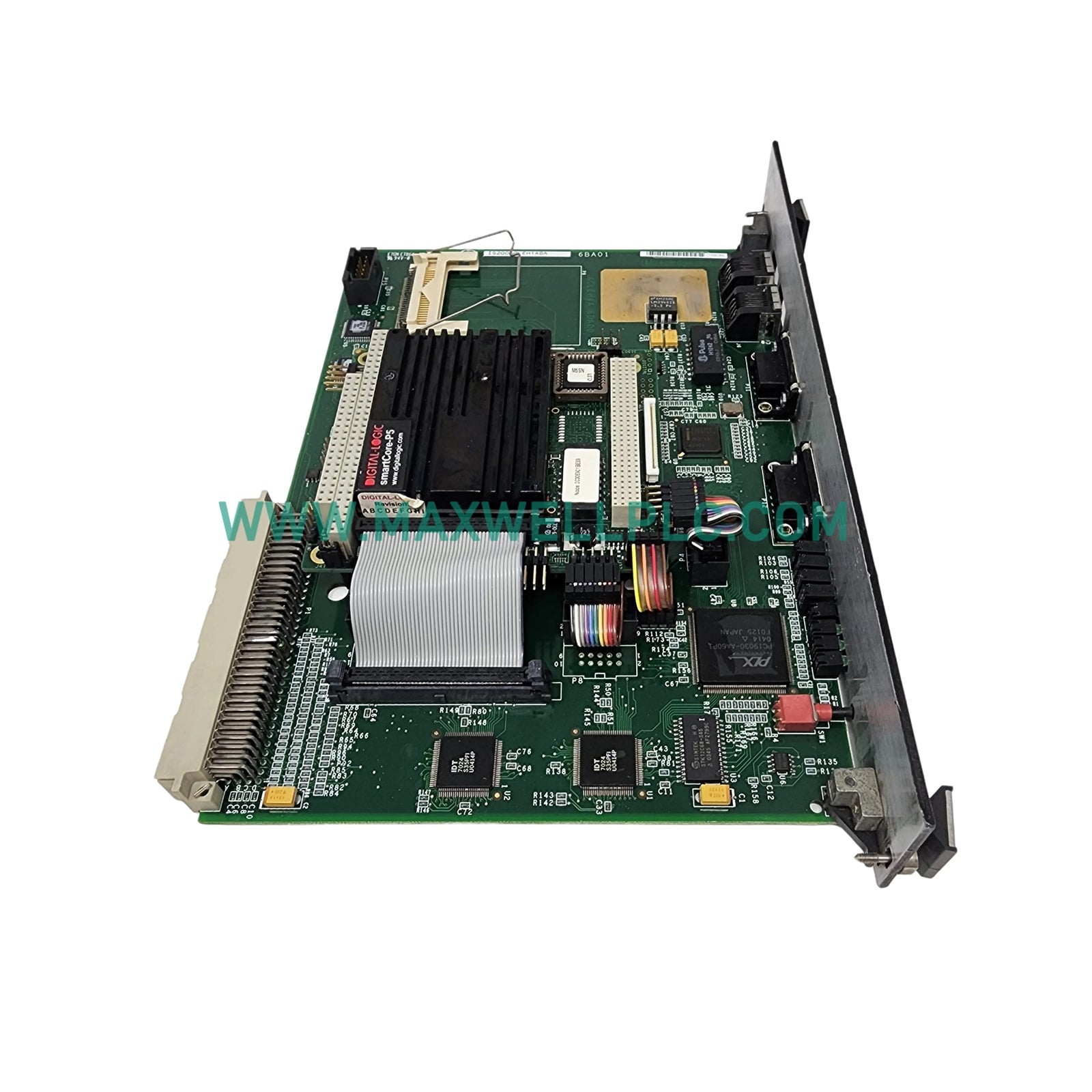

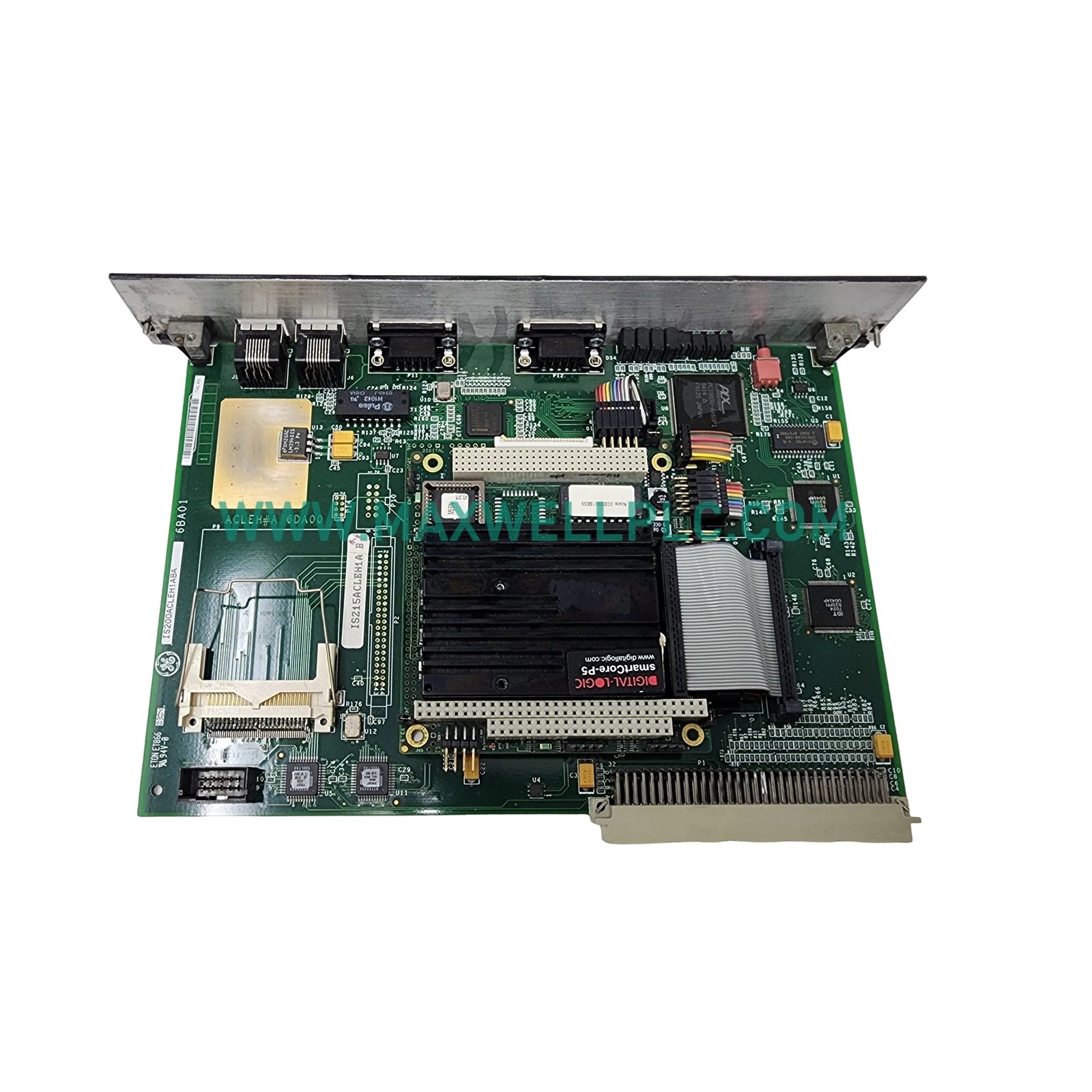

The GE IS215ACLEH1A, also cataloged as the IS215ACLEH1A Application Control Layer (ACL) Module, operates as a dedicated hardware component for high-level logic execution and data communication within EX2100 excitation control platforms.

Model Identification

• Model: IS215ACLEH1A

• Series: EX2100 Excitation Control

• Function: Application Control Layer (ACL)

• Architecture: x86 microprocessor-based

Hardware Specifications

Control Platform Performance

The module executes deterministic application software for field current regulation and terminal voltage control. It maintains backplane bus communication velocity sufficient for real-time synchronization requirements across EX2100 racks. The integrated x86 processing core supports the computational load of Power System Stabilizer (PSS) algorithms and gateway functions for HMI interfacing. Firmware flash compatibility is managed via the control network to ensure consistency across excitation control nodes.

Ordering Info

• One (1) IS215ACLEH1A Application Control Layer module

• Factory packaging

• Mounting hardware for EX2100 chassis integration

Field Installation Guidelines

• Backplane Integration: Verify the chassis slot is free of debris. Slide the module into the designated guide rails, ensuring the ISBus and Ethernet backplane connectors engage correctly.

• Grounding: Secure the module using integrated fasteners to ensure the chassis ground connection is established.

• Connectivity: Terminate ISBus and Ethernet cables according to the site wiring schedule; verify link status indicators post-installation.

• Configuration: Initialize the module via the system configuration interface to map the required application logic before putting the excitation system into service.

Frequently Asked Questions

• Q: Is the IS215ACLEH1A compatible with older EX2000 systems?

  A: No, this module is specifically engineered for the EX2100 Excitation Control architecture and is not cross-compatible with legacy platforms.

• Q: Does this module support hot-swapping?

  A: System documentation must be consulted; typically, a controlled shutdown of the associated excitation channel is required before module replacement.

• Q: How is the firmware updated?

  A: Firmware updates are performed over the control network using the GE-provided system engineering software.

• Q: What is the purpose of the onboard memory?

  A: Onboard SDRAM and Flash memory provide the storage required for runtime execution of control algorithms and local system status logging.

• Q: Can I monitor the module status remotely?

  A: Yes, the module provides diagnostic data through the integrated Ethernet gateway for HMI and remote maintenance access.

• Q: What is the primary communication link?

  A: The module communicates via the proprietary ISBus for real-time control and standard 10/100 Ethernet for data historian and HMI integration.

• Q: How do I identify if the module is in a fault state?

  A: Utilize the front-panel status LEDs and the excitation system management interface to view diagnostic codes.

• Q: Does the module require periodic calibration?

  A: No, the module is a digital processing unit and does not require analog calibration; performance is verified through logic software diagnostics.
