Product Overview

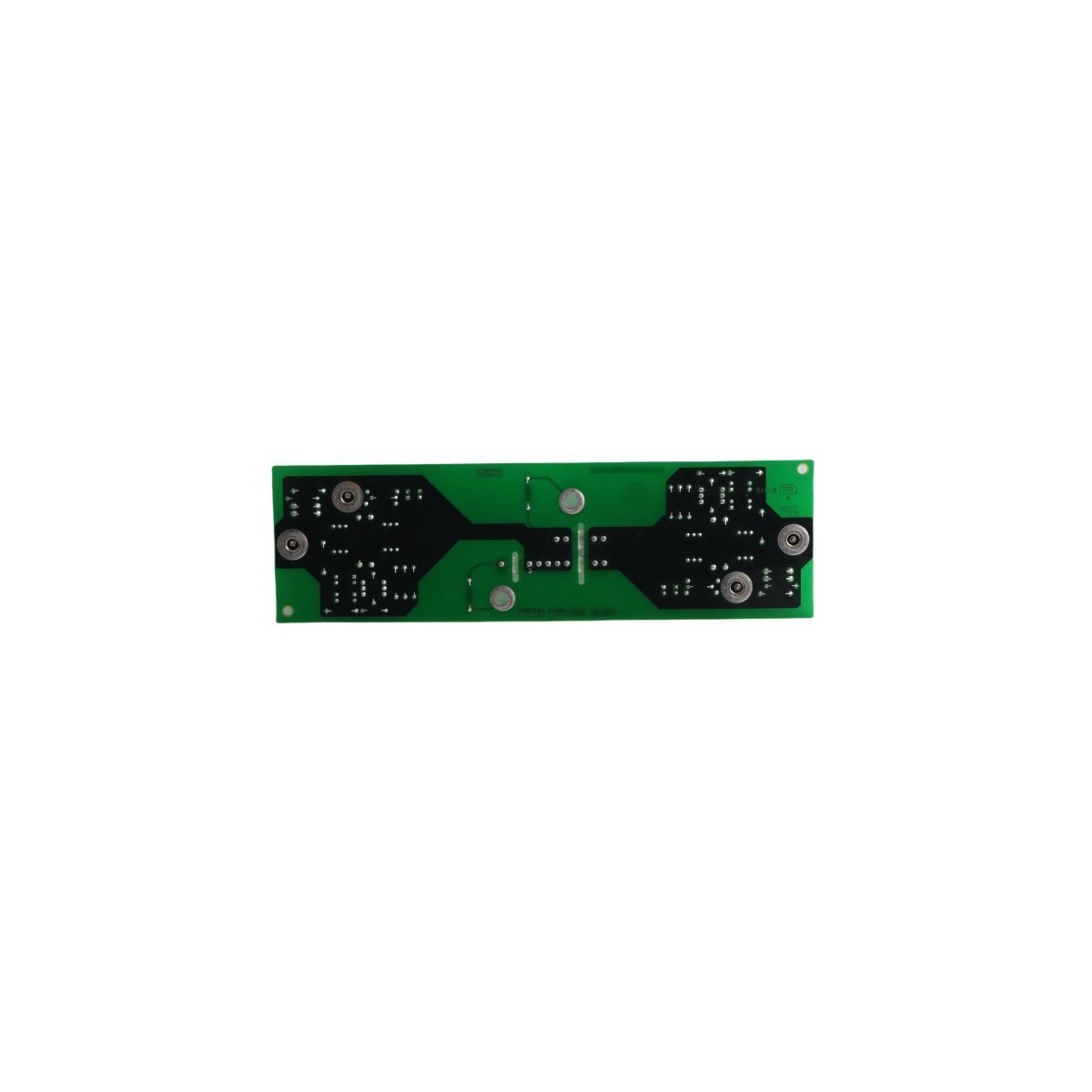

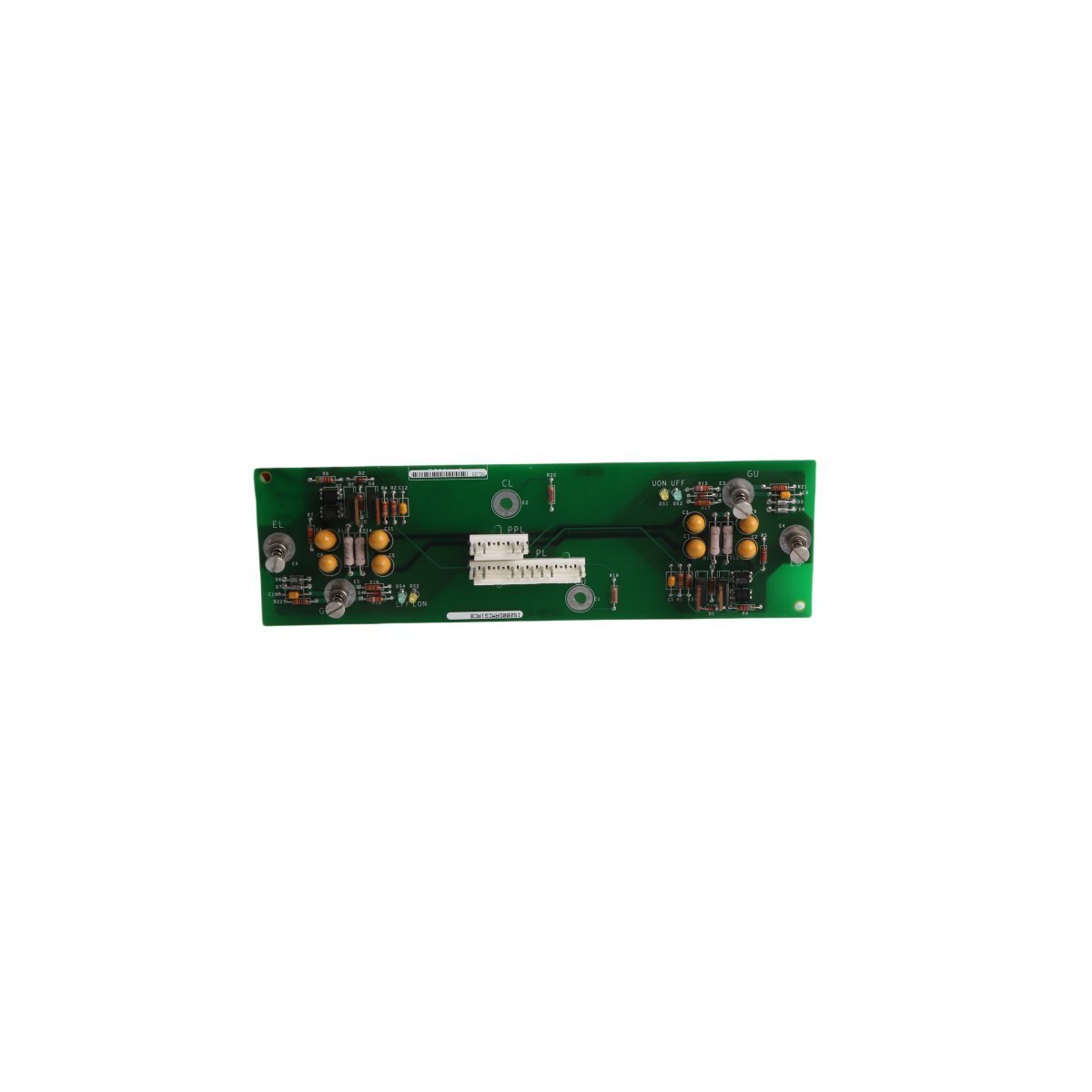

The GE IS200DAMCG1ACB is a gate drive amplifier and interface board developed for the EX2100 excitation platform and Mark VI control architecture. This board serves as a critical link between the control rack and the power switching stage, converting low-level control signals into precisely amplified gate drive outputs for IGBT devices. Its role is essential for stable and accurate switching performance in turbine excitation and drive control systems.

Designed with a simplified and robust circuit structure, the IS200DAMCG1ACB focuses on reliable signal amplification without unnecessary configurable elements. This ensures predictable behavior, fast response, and reduced failure points in high-demand industrial control environments.

Key Technical Characteristics

• Control System Compatibility: GE EX2100 and Mark VI platforms

• Functional Role: Gate drive signal amplification and IGBT interface

• Supported Devices: Low-voltage IGBT power bridges

• Supply Requirements: +15 V / −7.5 V gate drive power input

• Interface Connections: Direct links to gate, emitter, and collector terminals

• Diagnostic Indicators: Four onboard LEDs for operating and fault status

• Model Number: IS200DAMCG1ACB

• Board Construction: Printed circuit board without fuses or jumpers

• Dimensions: Approx. 22.8 × 6.6 × 2.2 cm

• Net Weight: Approx. 0.08 kg

• Country of Origin: USA

Industrial Applications

The IS200DAMCG1ACB is widely applied in gas and steam turbine control systems where precise power modulation is required. Typical use cases include excitation control, low-voltage drive systems, and power conversion stages within GE Mark VI installations.

This board is commonly used as a replacement or spare component in existing EX2100 systems, supporting lifecycle maintenance and ensuring continued operational stability. Its straightforward design and clear visual diagnostics make it suitable for environments where reliability, fast troubleshooting, and predictable performance are critical.
