Product Overview

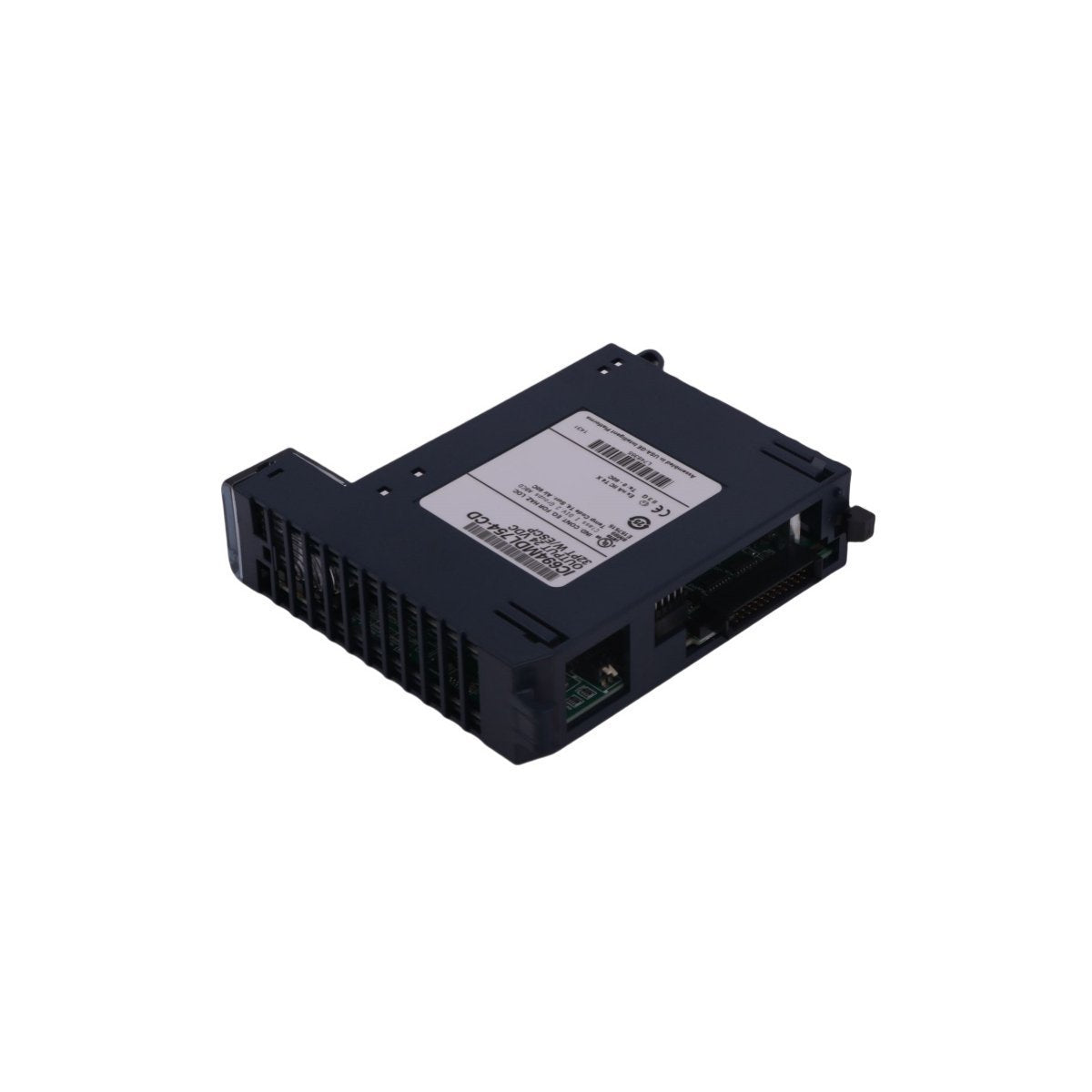

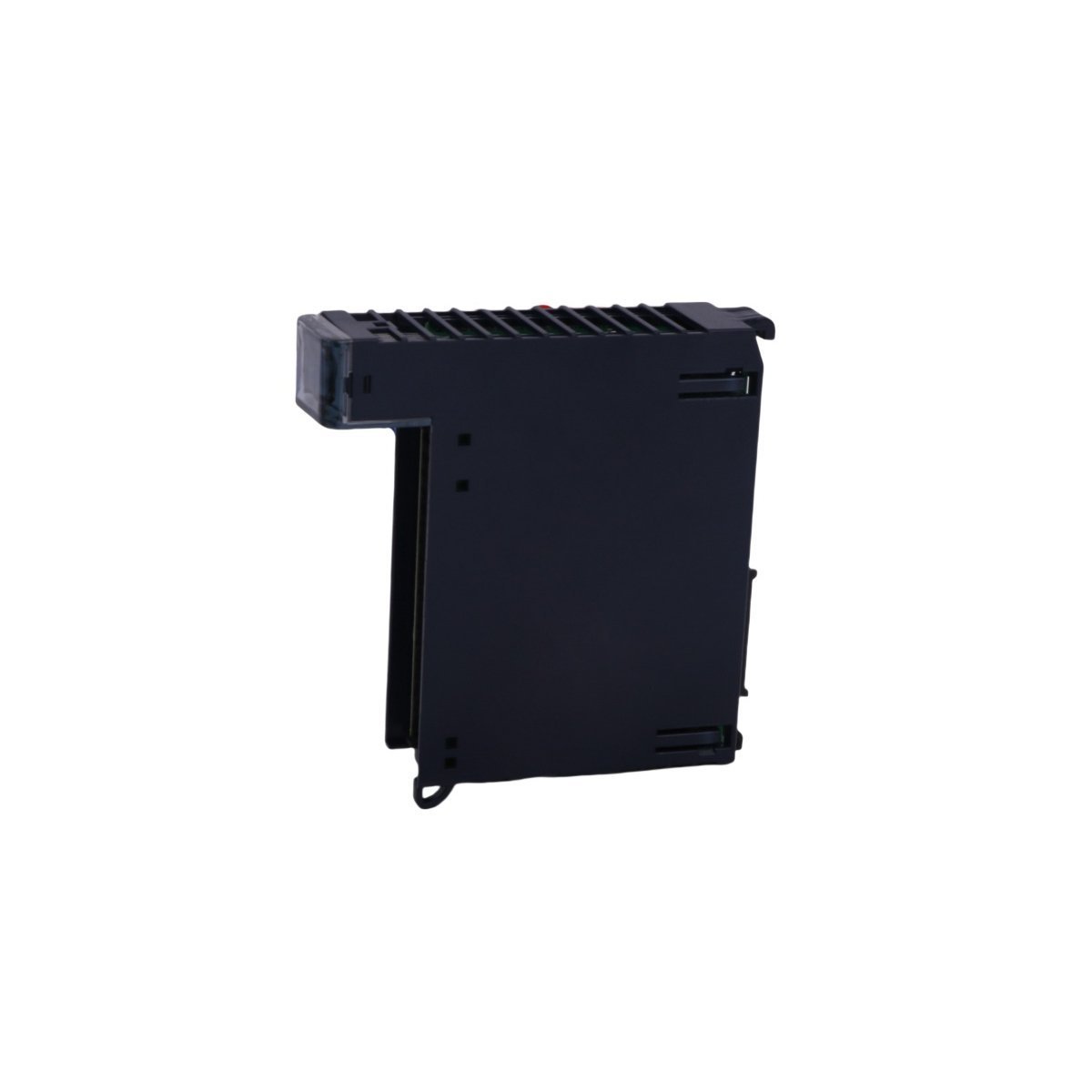

The IC694MDL754 is a high-density DC discrete output module used with GE PACSystem RX3i control platforms. It provides 32 positive-logic output points for switching field devices such as solenoids, relays, contactors, indicators, and interposing relays. Outputs are arranged into two electrically isolated banks to improve wiring segregation and simplify power distribution practices in industrial panels.

Designed for reliable machine and process automation duty, the module includes electronic protection features and point-level LED indication to support rapid commissioning and fault isolation. It installs in a standard rack slot and is suitable for both local racks and remote I/O stations when used within a compatible RX3i architecture.

Hardware Parameters

• Brand: GE

• Control Platform: PACSystem RX3i

• Module Category: Discrete Output Module

• Logic Type: Positive logic (sourcing)

• Model / Order Number: IC694MDL754

• Total Output Points: 32

• Output Grouping: 2 isolated groups, 16 points per group

• Output Voltage Range: 10.2 to 30.0 VDC

• Nominal Field Voltage: 12/24 VDC

• Output Current Capacity: Up to 0.75 A per point

• Inrush Capability: Up to 3 A for 10 ms (per point)

• Switching Response Time: 0.5 ms (typical)

• Backplane Current Draw: 300 mA at 5 VDC

• Channel Indication: Individual point status LEDs

• Protection Features:

• Short-circuit protection with automatic recovery

• Overcurrent protection with automatic recovery

• Overtemperature protection with automatic recovery

• Installation and Compatibility:

• Fits standard rack slot in local CPU base or remote I/O station

• Terminal Block Support: Box-style or spring-style terminal blocks (system-dependent)

• CPU Firmware Requirement: RX3i CPU firmware v2.90 or higher (as specified)

• Supply and Logistics:

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: Active

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 0.25 kg

• Dimensions: 3.6 × 13.4 × 13.7 cm

Industrial Applications

• Switching DC solenoid valves, pneumatic manifolds, and actuator coils

• Driving interposing relays for higher-power loads

• On/off control of pilot devices, beacons, stack lights, and panel indicators

• Discrete output expansion for packaging, material handling, and process skids

• Replacement module for installed PACSystem RX3i racks requiring 32-point DC sourcing outputs
