Product Overview

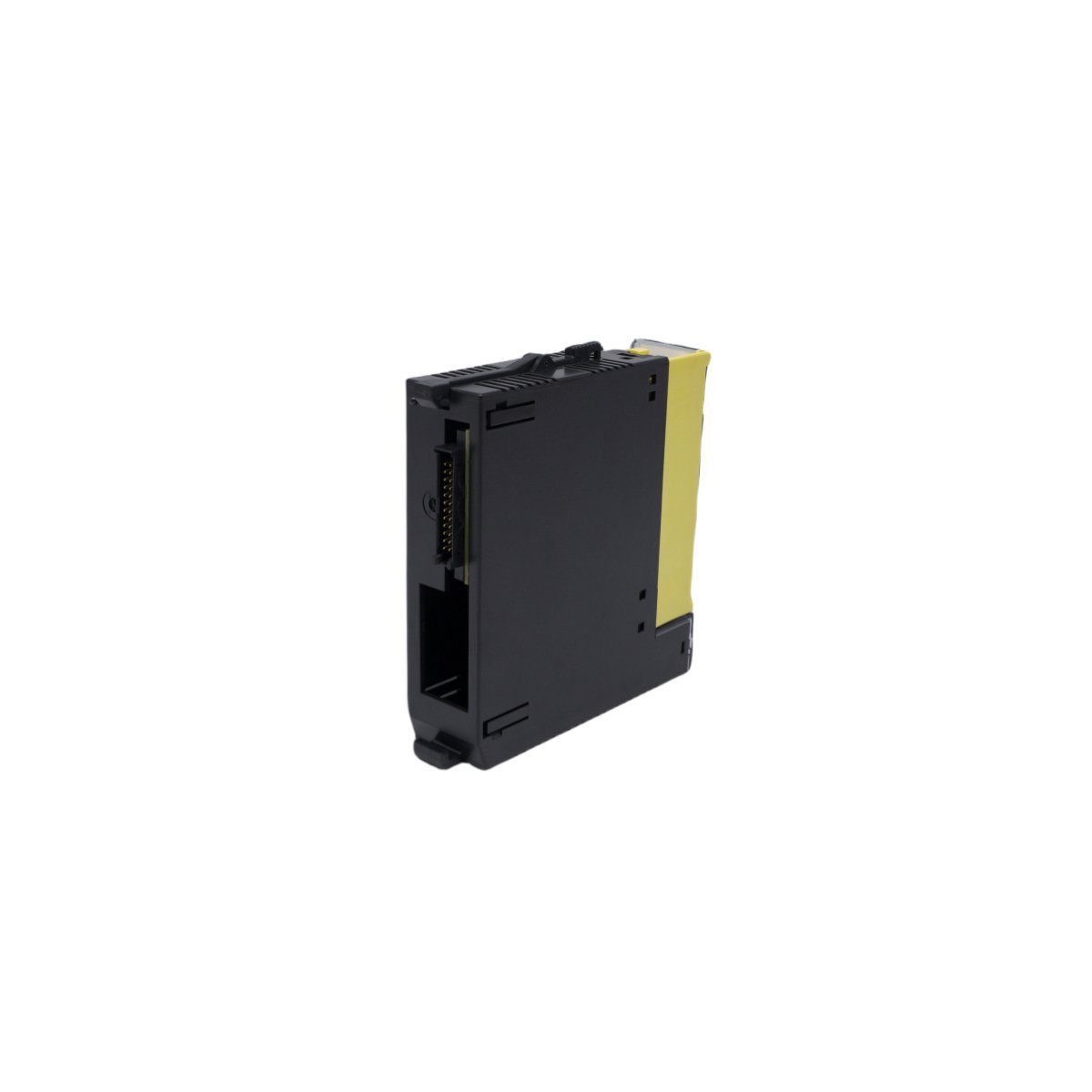

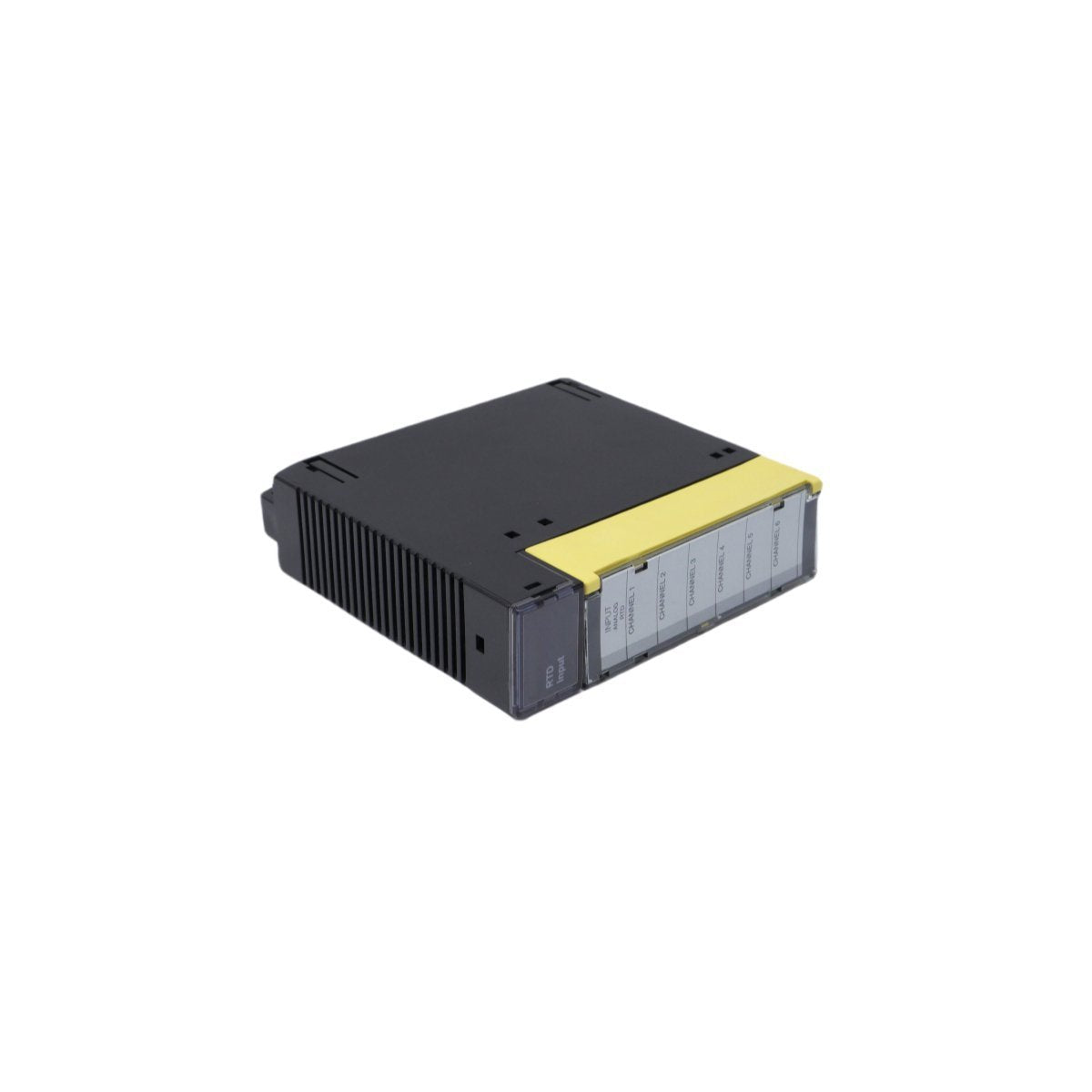

The GE HE693RTD600T, developed by Horner Electric for the GE PACSystems RX3i platform, is a high-density resistance temperature detector (RTD) input module. This precision instrument is engineered to facilitate direct interfacing between industrial temperature sensors and the PLC backbone, eliminating the need for external signal transmitters. By providing localized analog-to-digital conversion, the HE693RTD600T ensures that thermal data is transmitted with minimal signal degradation. It is a critical component for automated systems that demand rigorous thermal regulation and high-resolution feedback in real-time processing environments.

Core Hardware Specifications and Performance Data

• Module Interface: Seamless integration with PACSystems RX3i (and legacy Series 90-30) backplanes.

• Sensor Compatibility: Supports a diverse range of RTD types, including Platinum (Pt100), Nickel, and Copper probes.

• Conversion Logic: High-resolution analog-to-digital circuitry for superior data granularity.

• Circuit Isolation: Features robust channel-to-backplane isolation to protect the CPU from field-side electrical surges.

• Environmental Tolerance: Designed for continuous duty in high-vibration and thermally variable industrial cabinets.

• Configuration: Software-configurable via standard GE programming environments for rapid deployment.

Primary Industrial Deployment Scenarios

The HE693RTD600T is deployed across a variety of sectors where thermal precision is a prerequisite for safety and product quality:

Chemical and Material Processing: Monitoring exothermic reactions in reactor vessels where precise temperature maintenance is vital for chemical stability.

Energy and Utilities: Tracking bearing and winding temperatures in large motors and generators to prevent overheating and mechanical seizure.

Food and Beverage Production: Managing pasteurization and cooling cycles to ensure compliance with strict health and safety regulations.

HVAC and Building Automation: Centralized temperature monitoring for large-scale industrial climate control and refrigeration systems.

Refining and Oil & Gas: High-reliability thermal data acquisition for distillation columns and pipeline heating systems.
