Product Overview

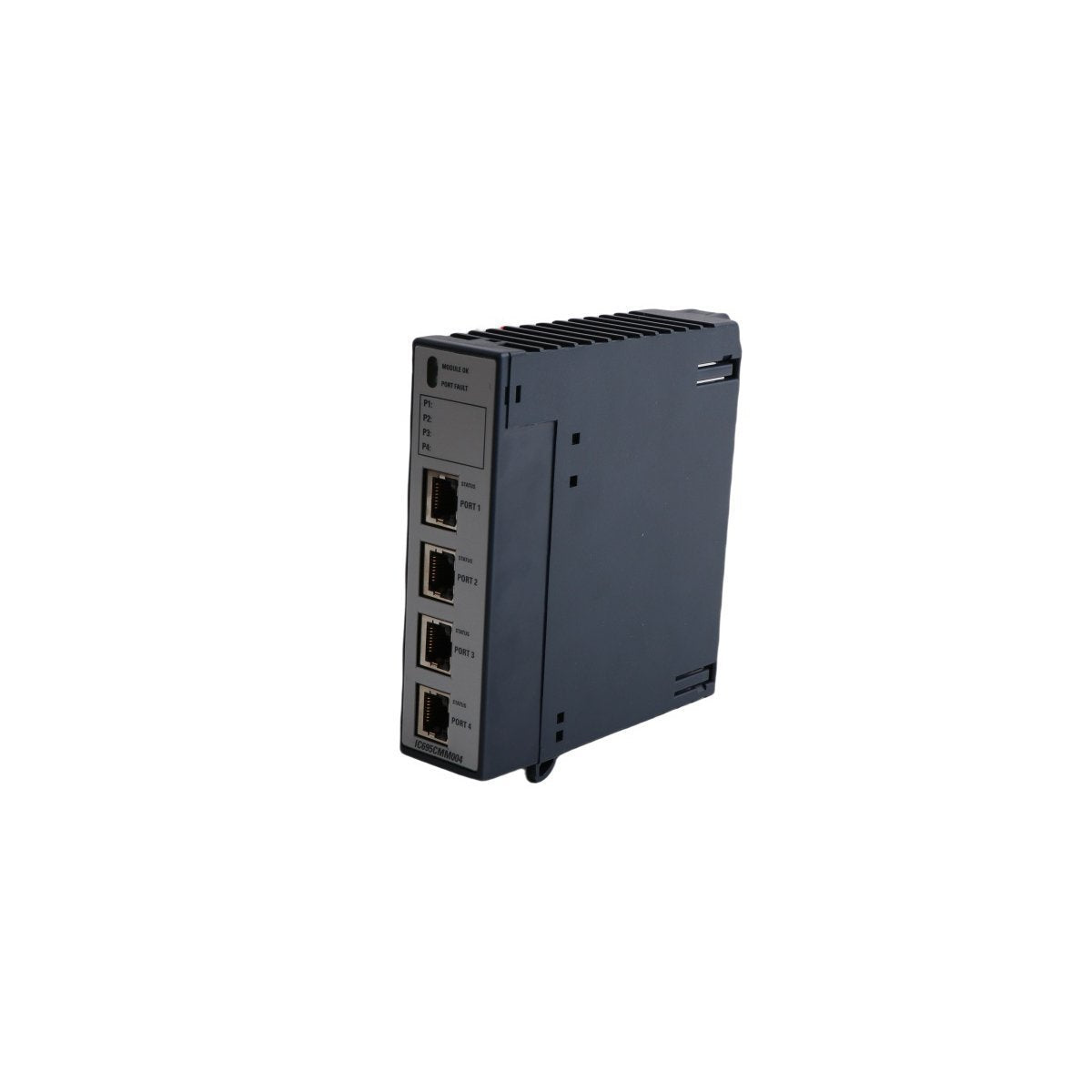

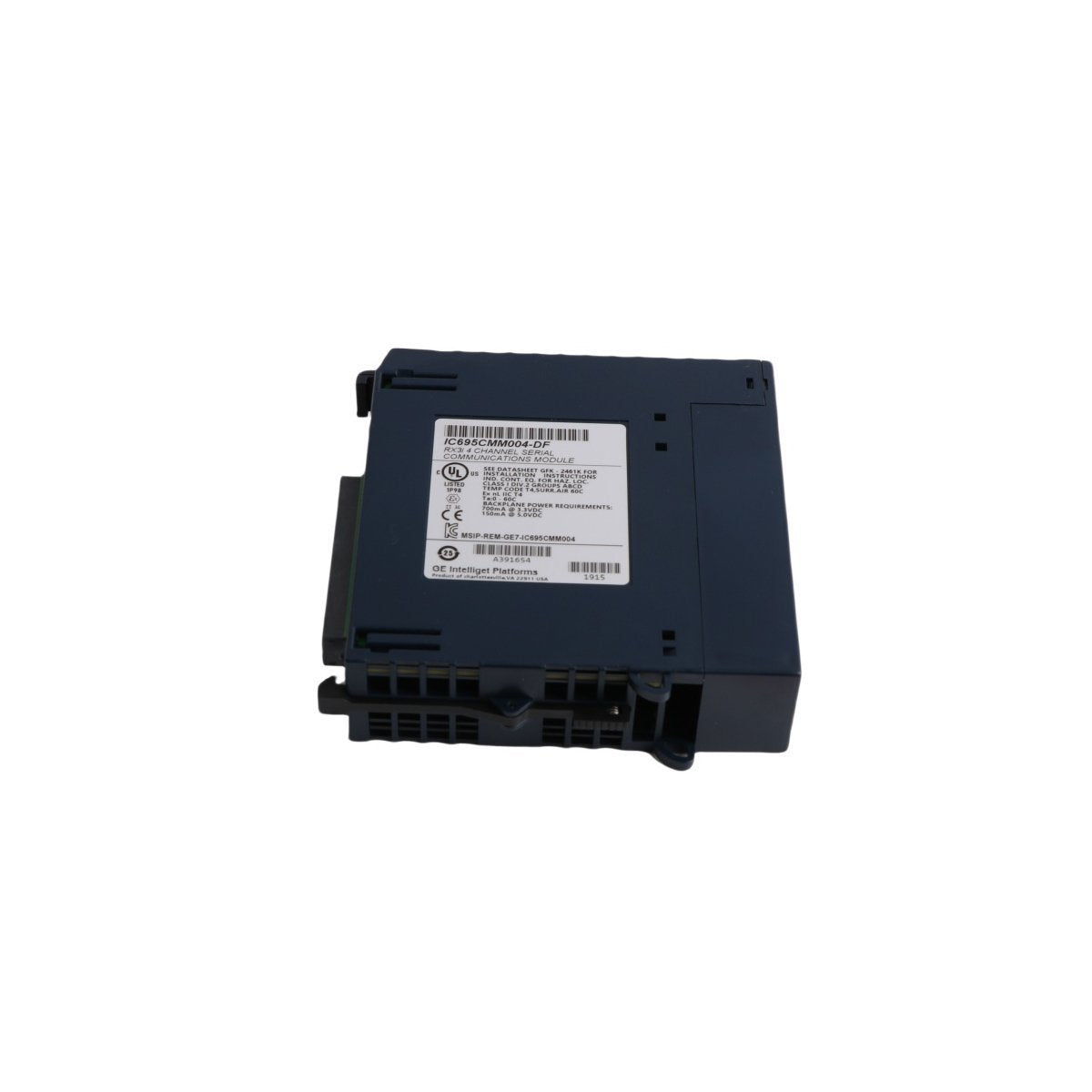

The GE Fanuc IC695CMM004 is a multi-port serial communication module designed for PACSystems RX3i PLC platforms. This module expands controller connectivity by providing four independently operating and electrically isolated serial ports, enabling reliable data exchange between the PLC and a wide range of serial-based industrial devices.

Each port is equipped with an RJ45 connector and supports flexible serial standards, allowing the module to be used in point-to-point or multi-drop network architectures. The IC695CMM004 is commonly applied in systems where multiple field devices must be integrated using established serial protocols. Its modular design allows multiple communication modules to be installed within a single RX3i system, significantly increasing overall serial port capacity.

Hardware Specifications

• Model / Order Number: IC695CMM004

• Product Family: PACSystems RX3i

• Module Category: PLC Serial Communication Module

• Number of Ports: 4 isolated serial ports

• Connector Type: RJ45 per port

• Supported Interfaces: RS232, RS422, RS485

• Supported Protocols: Modbus Master and Slave, CCM Slave, DNP3 Master and Slave, Serial I/O

• Baud Rate Range: 1200 to 115.2 kbps

• Electrical Isolation: 500 VDC port-to-port isolation, 250 VAC isolation to backplane and frame ground

• Diagnostic Indicators: Module OK and status LEDs for fault and communication monitoring

• Firmware: Field-upgradable

• Operating Temperature Range: 0 to 60 °C

• Power Consumption: Up to 0.7 A at 3.3 VDC and 0.15 A at 5 VDC

• Installation Platform: RX3i PLC baseplate

• Condition: Brand New

• Availability: In Stock

• Country of Origin: USA

• Net Weight: 0.2 kg

• Dimensions: 3.5 × 13 × 13.6 cm

• HS Code: 8537101190

• Minimum Order Quantity: 1

• Lifecycle Status: Active

Industrial Application Scenarios

• Integration of power meters, protection relays, and energy monitoring devices

• Communication with variable frequency drives and motor controllers

• Serial connectivity for protocol converters and third-party control equipment

• Multi-device serial networks in process automation and utility systems

• Expansion or replacement of communication infrastructure in PACSystems RX3i PLC installations
