Product Overview

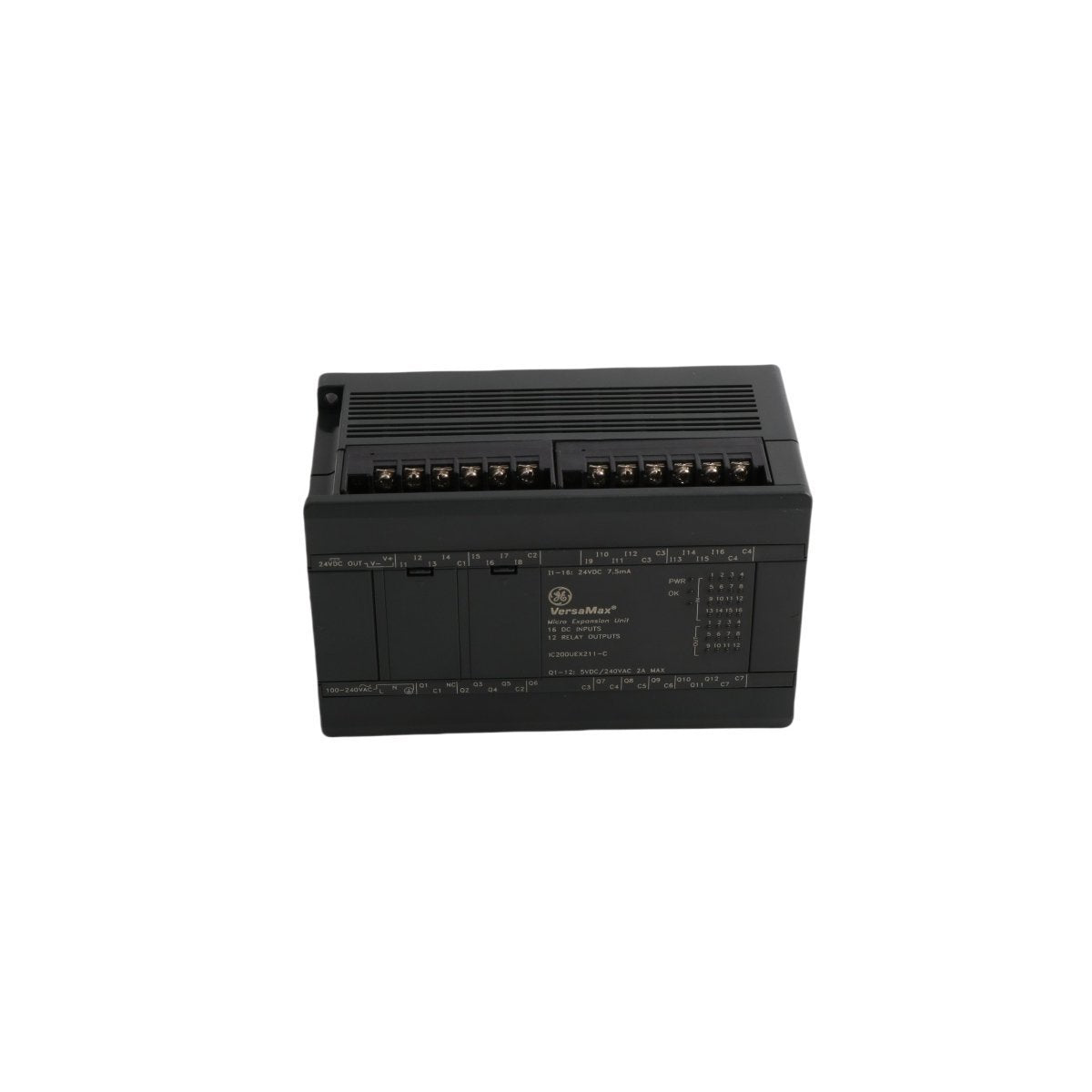

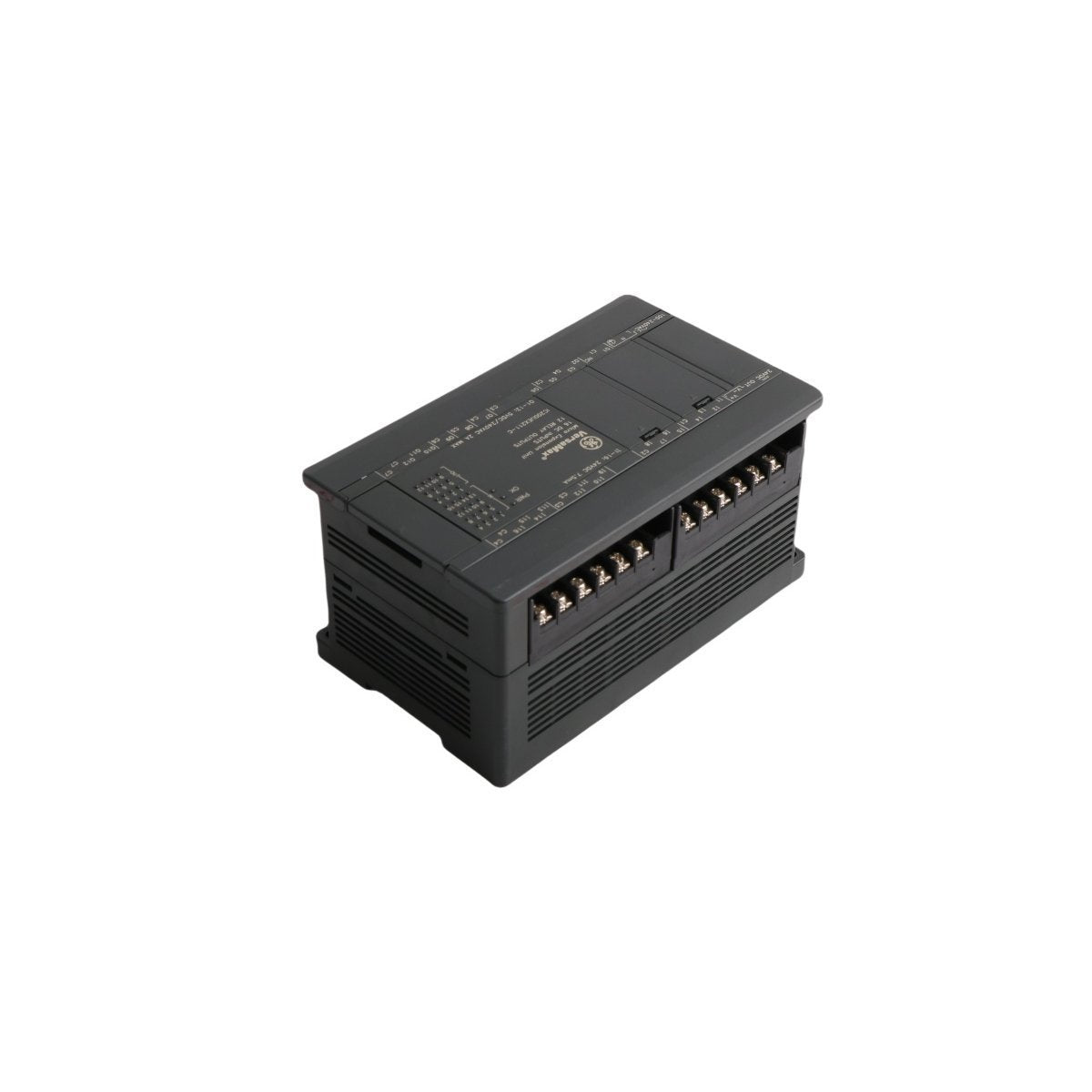

The GE Fanuc IC200UEX211 VersaMax Micro Expansion Unit adds additional discrete inputs and relay outputs to VersaMax Micro PLC installations. It combines DC input acquisition and relay switching in a single compact module, supporting small machine control panels that need extra field connections without adding multiple separate I/O cards.

The unit is powered from an AC supply and provides an auxiliary 24 VDC source for input circuits and connected sensors, simplifying wiring for common 24 VDC devices.

Electrical and I/O Configuration

• Model Number: IC200UEX211

• Product Type: Expansion I/O Module

• Product Family: VersaMax Micro

• Inputs: 16 × 24 VDC discrete inputs

• Input Logic: Selectable positive or negative logic

• Sensor Supply: +24 VDC auxiliary output, up to 200 mA total (inputs and connected devices)

• Outputs: 12 × relay outputs

• Relay Type: Form A, normally open

• Relay Rating: 2 A per point (application dependent)

• Power Input: 100–240 VAC, 50/60 Hz

• Inrush Capability: Up to 40 A (startup surge)

• Condition: Brand new

• Weight: Approx. 0.56 kg

• Dimensions: Approx. 15 × 9 × 7.5 cm

• System: PLC

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC200UEX211 is used to expand compact PLC systems in packaging machines, conveyors, small assembly stations, pump panels, and utility control boxes. Typical applications include adding extra pushbuttons, limit switches, proximity sensors, and relay-driven loads such as solenoids, pilot lights, and interposing relays.

It is suitable where mixed discrete I/O is needed near the machine and an AC-powered expansion module simplifies panel power distribution.
