Product Overview

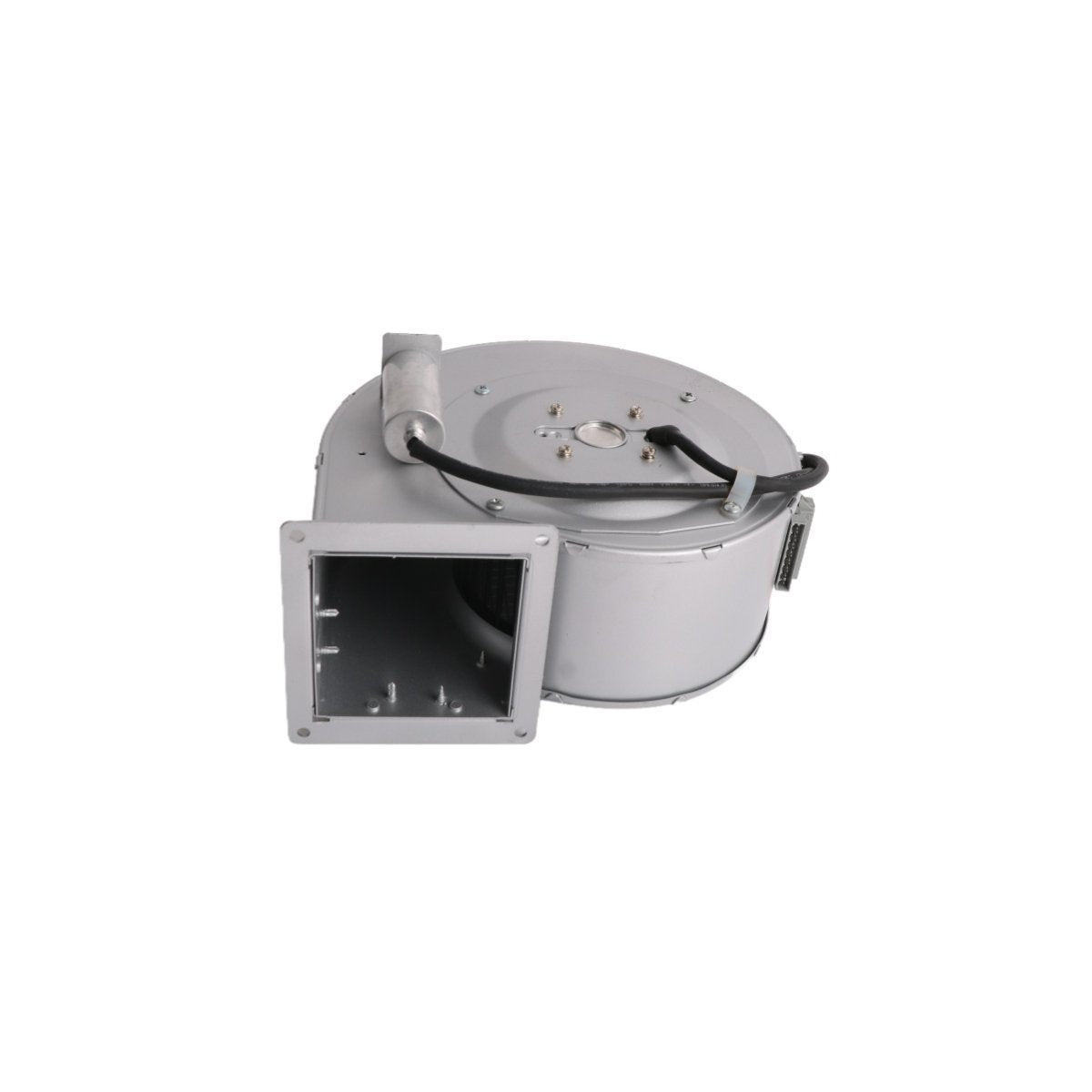

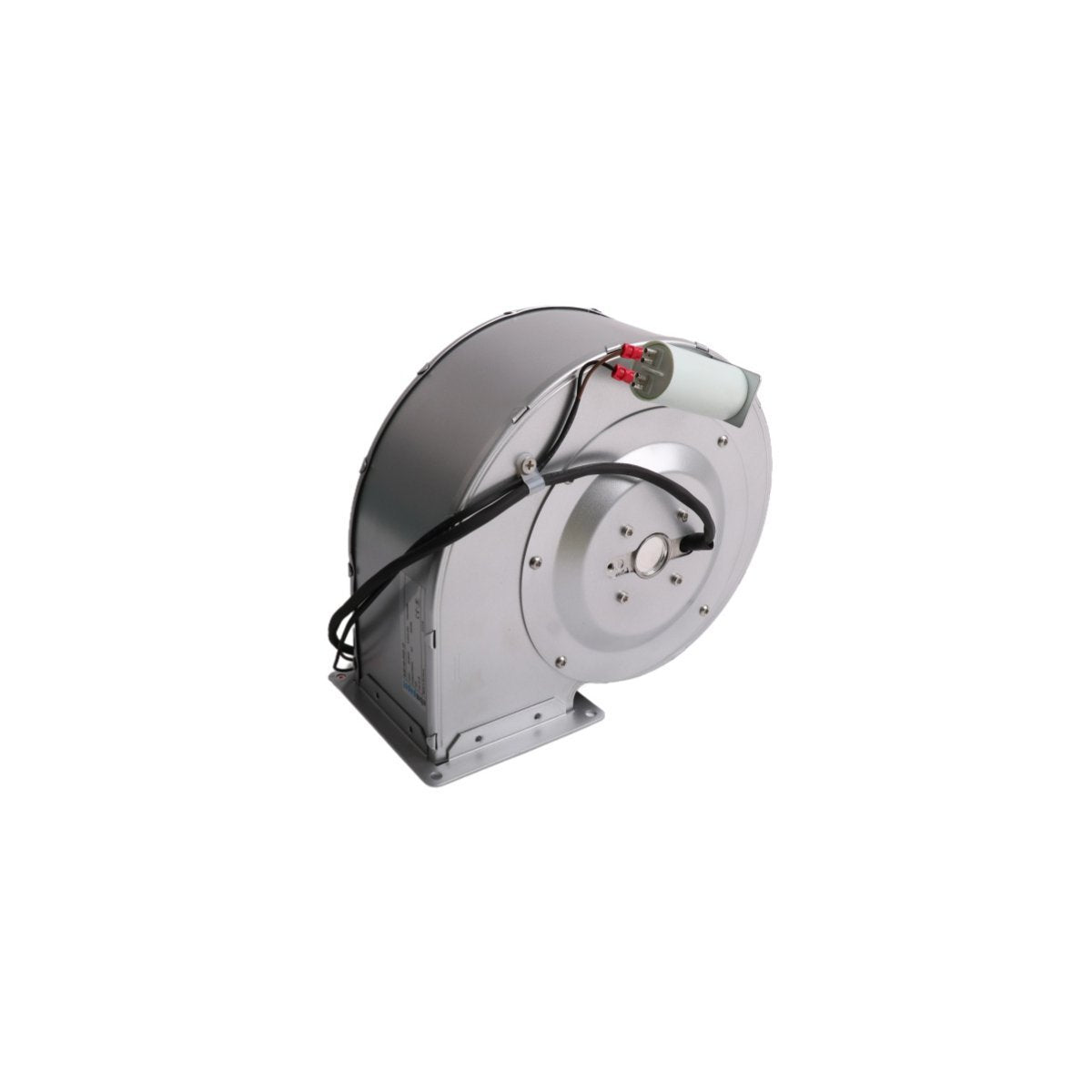

The ABB G2E140-PI32-10 is an industrial-grade cooling solution engineered to resolve thermal accumulation issues within sensitive electrical enclosures and Distributed Control Systems. By providing a consistent and high-velocity airflow of 140 cubic meters per hour, this axial fan prevents the overheating of internal logic modules and power supplies. It is a critical component for maintaining the operational longevity of automation hardware, ensuring that temperature-sensitive electronics remain within their optimal functional range even during continuous high-load operations in demanding factory environments.

Essential Hardware Parameters

Model Code Decomposition

The alphanumeric designation for the G2E140-PI32-10 defines its specific mechanical and electrical build:

• G2E: Identifies the primary fan series, characterized by a single inlet axial or centrifugal design optimized for high-pressure industrial cooling.

• 140: Represents the impeller diameter in millimeters, directly correlating to the unit's volumetric airflow capacity.

• PI: Denotes the motor type and protection class, indicating a high-efficiency induction motor designed for permanent operation.

• 32-10: These suffixes specify the power rating and the electrical interface configuration. The 10 revision signifies a standardized terminal connection suitable for industrial control cabinet integration.

Installation Strategy and Wiring

For peak cooling performance and motor safety, the G2E140-PI32-10 must be installed according to these technical standards:

• Orientation: The fan should be mounted at the upper section of the cabinet for air extraction or at the bottom for intake to leverage natural convection. Ensure the airflow direction arrow on the housing matches the intended path.

• Mechanical Security: Use the provided mounting holes to fix the fan to the chassis. Given the 2800 RPM speed, secure tightening is necessary to prevent acoustic resonance and mechanical wear from vibrations.

• Power Connectivity: Connect the 230V AC supply to the specified terminals. It is recommended to use a small fuse or thermal protection switch to safeguard the motor against voltage transients or mechanical stalling.

• Safety Clearance: Maintain a minimum distance of 50mm from the intake and exhaust ports to ensure the fan achieves its rated static pressure and airflow volume.

FAQ Frequently Asked Questions

Is this fan suitable for outdoor industrial enclosures?

Yes, as long as the enclosure provides an appropriate IP rating. The fan itself operates between -30 and +70 degrees Celsius, making it highly resilient to ambient temperature fluctuations found in outdoor installations.

Does the fan require periodic lubrication?

No. The G2E140-PI32-10 uses high-endurance, maintenance-free ball bearings. The only required maintenance is the periodic removal of dust from the blades to maintain aerodynamic efficiency and balance.

What happens if the fan is run at 60 Hz instead of 50 Hz?

The fan is designed for both frequencies. When running at 60 Hz, the rotational speed and airflow will increase slightly, accompanied by a corresponding increase in power consumption, within the rated 50 Watt limit.
