Product Overview

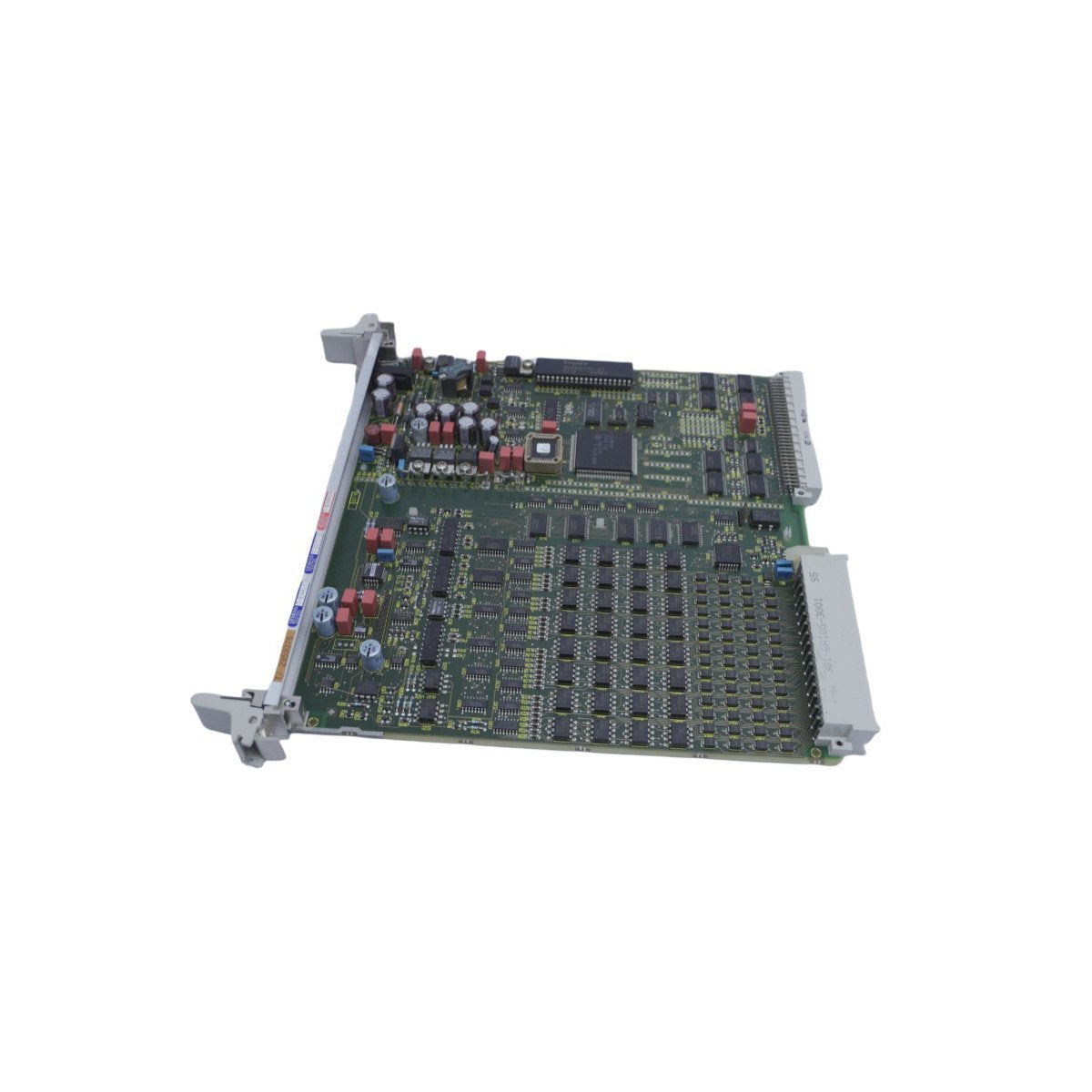

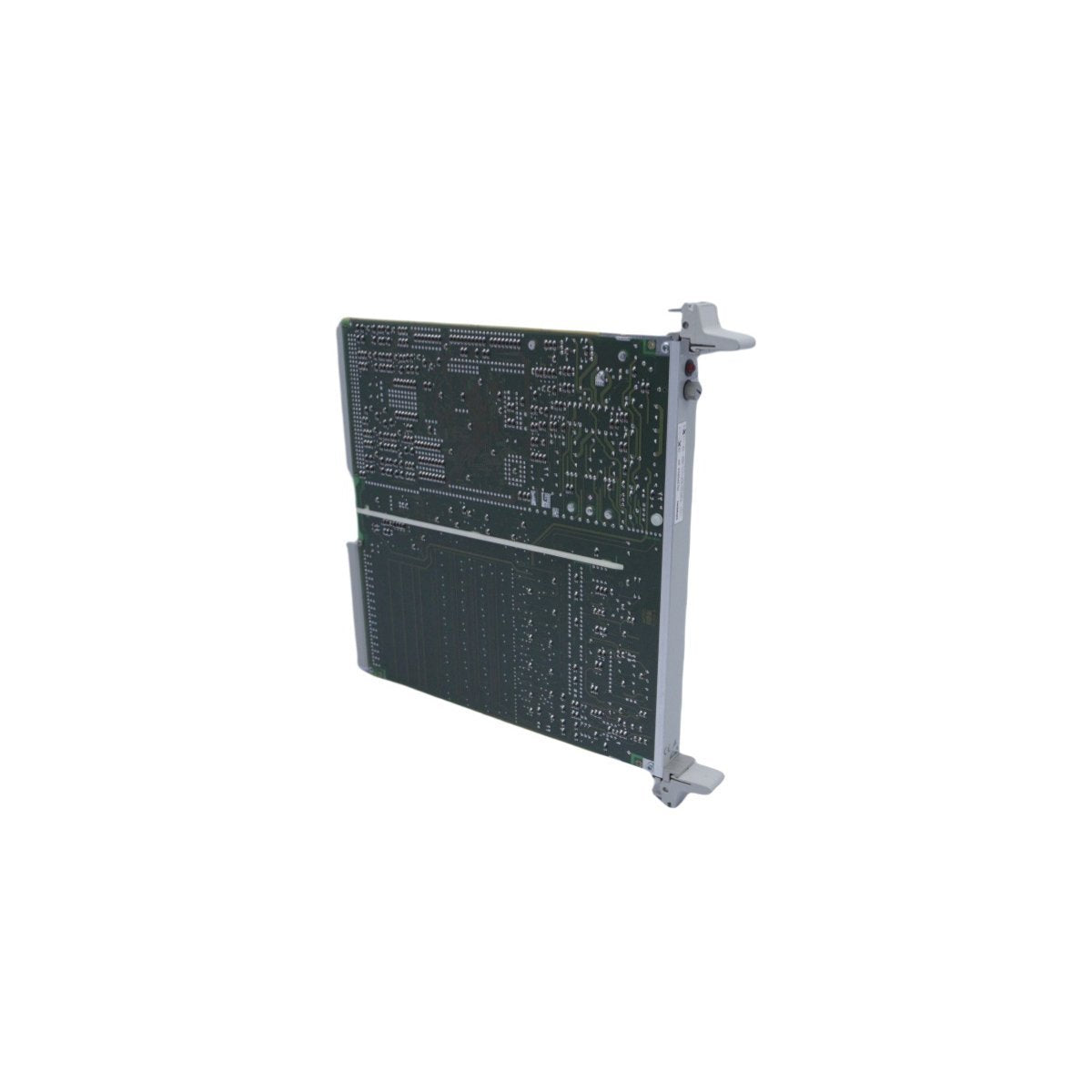

The Siemens 6DP1232-8BA, also designated as the FUM 232, is a high-density analog signal conditioning interface designed for the TELEPERM XP (TXP) control system architecture. This module serves as a specialized thermal data acquisition unit, capable of processing complex inputs from various temperature sensors including RTDs and thermocouples. By providing precise digitization of field signals, the 6DP1232-8BA facilitates advanced thermal profiling and process monitoring in large-scale industrial environments. Its architecture is optimized for high-reliability applications where signal accuracy and comprehensive sensor diagnostics are required to maintain system safety and operational efficiency.

Hardware Architecture and Signal Processing Capability

The FUM 232 is engineered with a focus on input versatility and high-voltage protection to ensure data integrity in electrically noisy industrial settings.

• Sensor Compatibility: Supports up to 14 PT100 resistance thermometers via 4-wire configuration or up to 28 independent thermocouples.

• Measurement Precision: Delivers a high-accuracy rating of $\pm$0.1% Full Scale Range (FSR).

• Isolation Integrity: Features robust channel-to-channel galvanic isolation rated at 1500V AC.

• Signal Range: Accommodates standard industrial inputs including 0/4-20 mA current loops and 0-10 VDC signals.

• Diagnostic Logic: Integrated monitoring for wire breakage, measurement range overshoot/undershoot, and transmitter power supply faults.

• Thermal Flexibility: Supports differential temperature calculations and both fixed or variable reference junction temperatures.

Industrial Process Deployments and Utilization

The 6DP1232-8BA FUM 232 is a critical component in sectors that demand deterministic temperature monitoring and redundant system configurations.

Power Generation and Turbine ControlIn utility-scale energy plants, the FUM 232 is utilized to monitor steam turbine bearing temperatures and exhaust gas profiles. Its high channel density and 4-wire PT100 support ensure that thermal deviations are detected with minimal lead-wire resistance error, preventing mechanical fatigue or catastrophic failure.

Chemical and Petrochemical RefineriesFor exothermic reactor monitoring, the module's differential temperature measurement capability is vital. It allows operators to track heat gradients across catalyst beds, ensuring that chemical processes remain within safe stoichiometric and thermal boundaries.

Large-Scale HVAC and Environmental ControlIn facilities requiring precise climate regulation, such as cleanrooms or data centers, the 6DP1232-8BA manages extensive sensor arrays. Its ability to operate in humidities up to 95% non-condensing makes it suitable for air handling units and cooling tower instrumentation.

Redundant Automation SystemsThe FUM 232 is frequently deployed in high-availability DCS architectures. Its integrated diagnostics provide the necessary feedback for system-level bumpless transfer to backup modules, ensuring that critical process data is never lost during a sensor or wiring fault.
