Product Overview

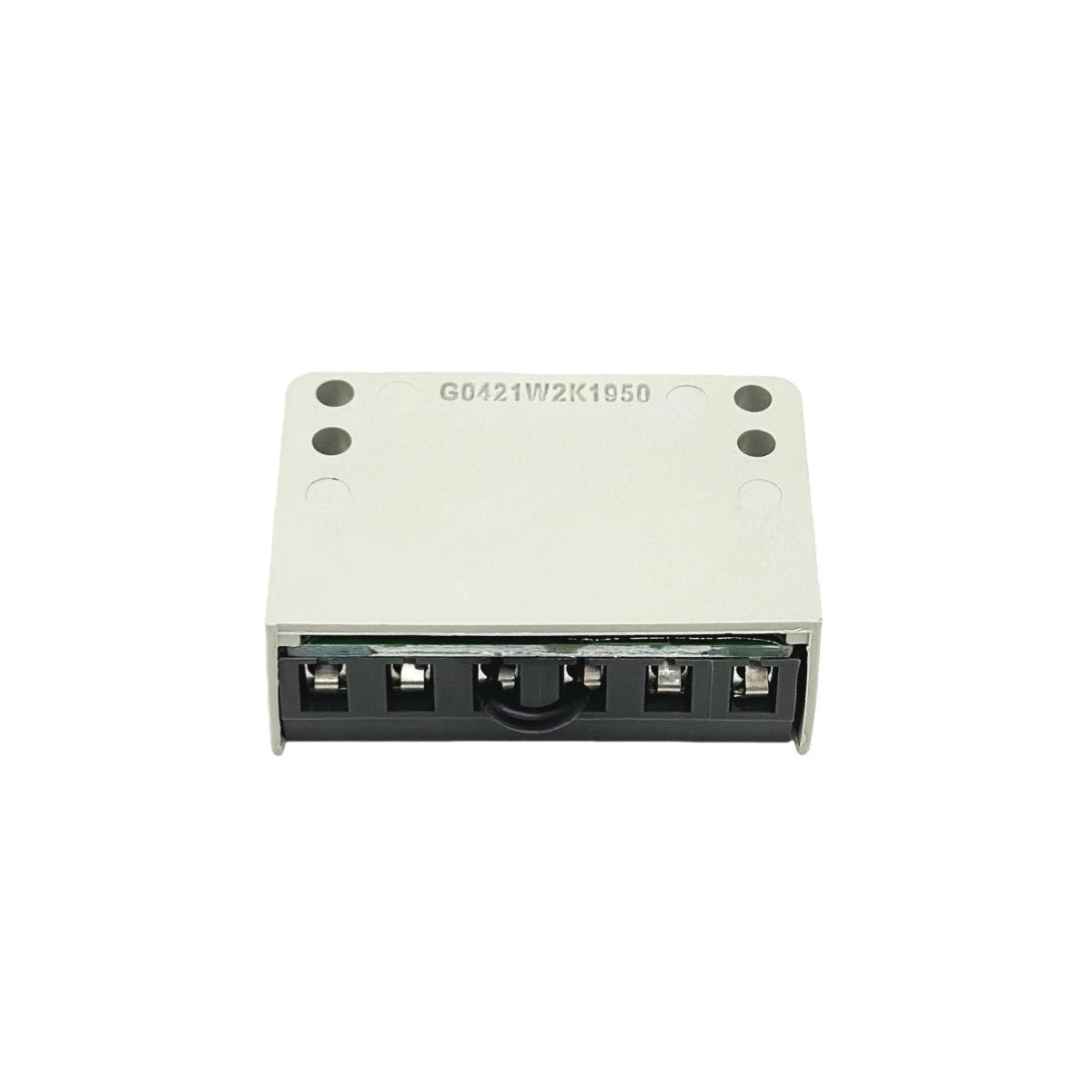

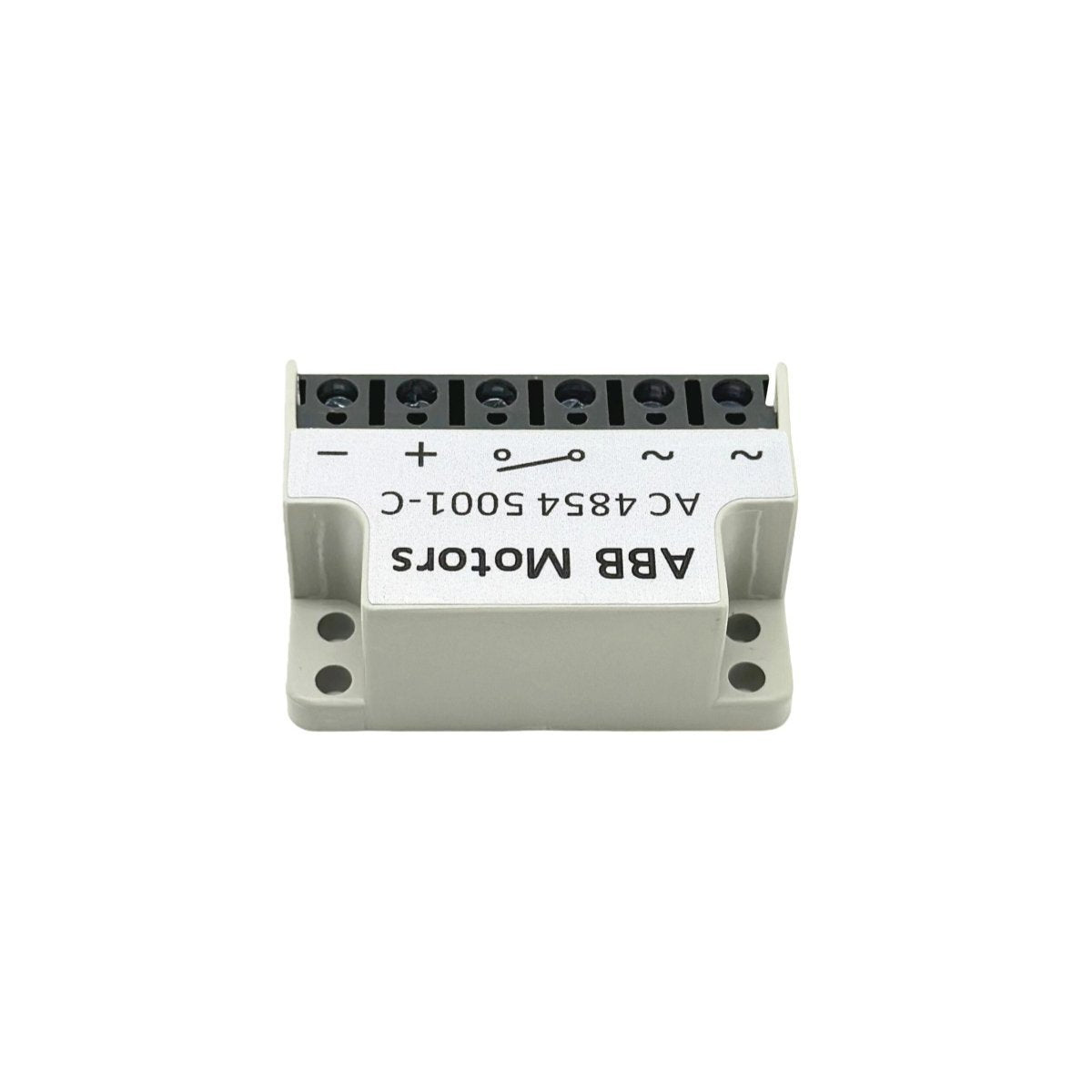

The ABB AC48545001-C is a high-performance full wave rectifier specifically engineered to manage electromagnetic braking systems in industrial electric motors. This module serves as the primary power conversion interface, transforming 220V alternating current into a stable, high-quality direct current output required for rapid and reliable brake engagement. Primarily designed for compatibility with ABB's M2AA series (frame sizes 090 to 160), this rectifier ensures that the motor's braking torque is applied consistently and without the mechanical chatter often associated with half-wave alternatives. By providing a superior DC profile, the AC48545001-C extends the life of the brake coil and improves the overall safety of the drive system in automated environments.

Technical Infrastructure and Hardware Parameters

• Model Designation AC48545001-C

• Rectification Type Full Wave Bridge

• Nominal Input Voltage 220V AC

• Application Compatibility ABB M2AA 090-160 Motor Series

• Integrated Safety Built-in surge protection for brake coil longevity

• System Integration Advant OCS and Advant-800xA support

• Unit Mass 1.22 kg

• Module Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

• Customs Code (HS) 8537101190

• Network Service Ethernet router diagnostic compatibility

Industrial Application Scenarios

The AC48545001-C is an essential component in any motion control system where precise stopping distances and mechanical safety are non-negotiable. Key deployments include:

• Automated Conveyor Systems Ensuring immediate halts to prevent material pile-ups or safety hazards.

• Vertical Lift and Hoisting Providing reliable holding torque for cranes and elevators once the motor stops rotating.

• Packaging and Bottling Lines Managing the high-cycle braking requirements of rapid production machinery.

• Centrifugal Equipment Regulating the deceleration of high-inertia loads in chemical or textile processing.

• Machine Tool Spindles Offering rapid braking for CNC equipment during tool changes or emergency stops.

Q: Why choose a full wave rectifier like the AC48545001-C over a half-wave model?

A: Full wave rectification utilizes both halves of the AC cycle, resulting in a significantly smoother DC output with less ripple. This leads to faster brake response times and prevents the "humming" or vibration of the brake coil.

Q: Is this rectifier compatible with motors other than the M2AA series?

A: While optimized for the M2AA 090-160 series, it can be utilized with other 220V electromagnetic brakes provided the electrical ratings and duty cycles are within the specified parameters.

Q: How does this module protect other DCS components?

A: The AC48545001-C is designed with robust internal isolation that prevents electrical noise and inductive kickback from the brake coil from migrating back into the sensitive control network.

Q: Can this rectifier be monitored by the Advant-800xA system?

A: Yes, it is fully integrated into the Advant OCS architecture, allowing for status monitoring and diagnostic reporting via standard Ethernet router communication services.

Q: What is the expected service life in a high-cycle environment?

A: Thanks to its Swedish-engineered ruggedized construction, the AC48545001-C is designed for millions of switching cycles, provided it is operated within its rated thermal and voltage limits.
