Product Overview

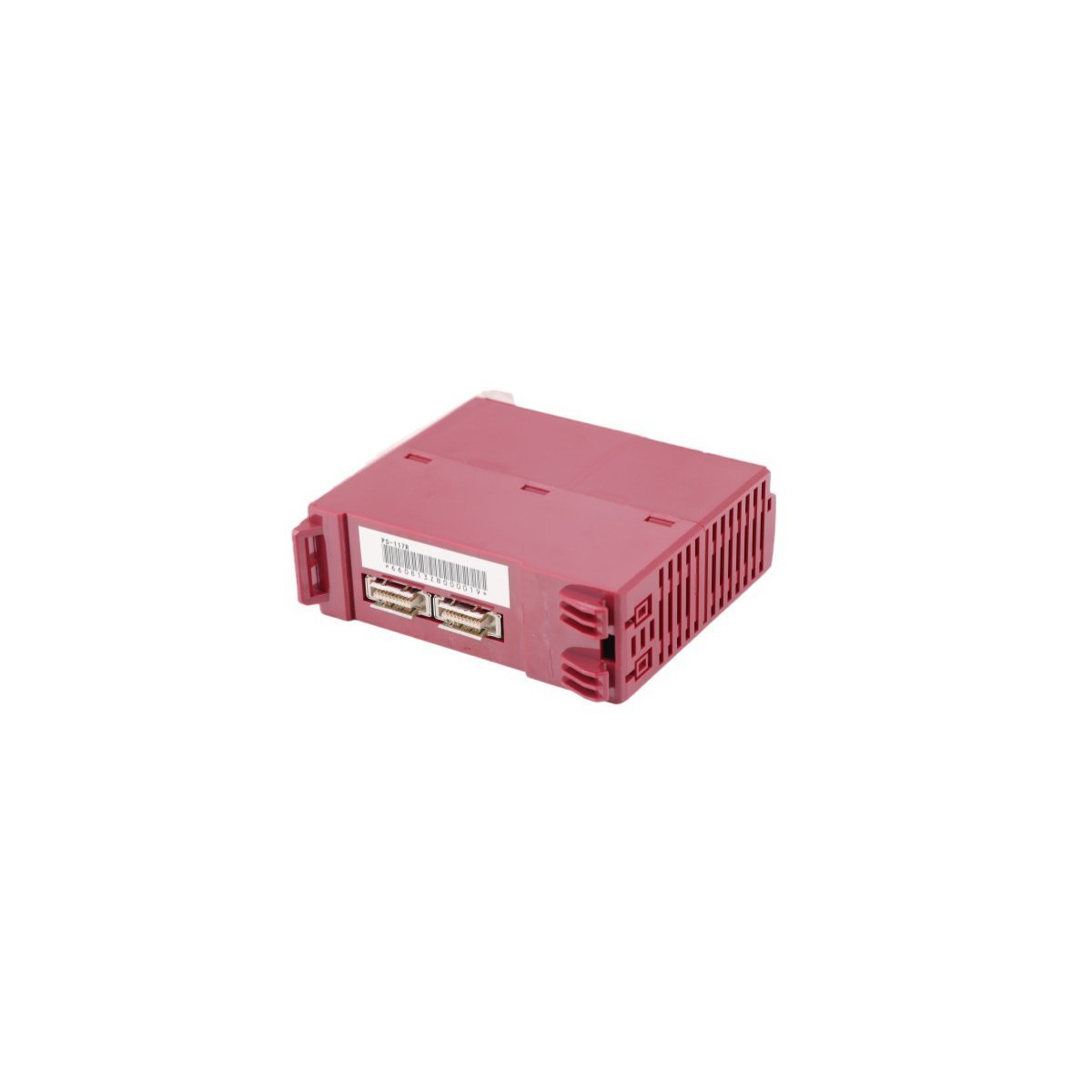

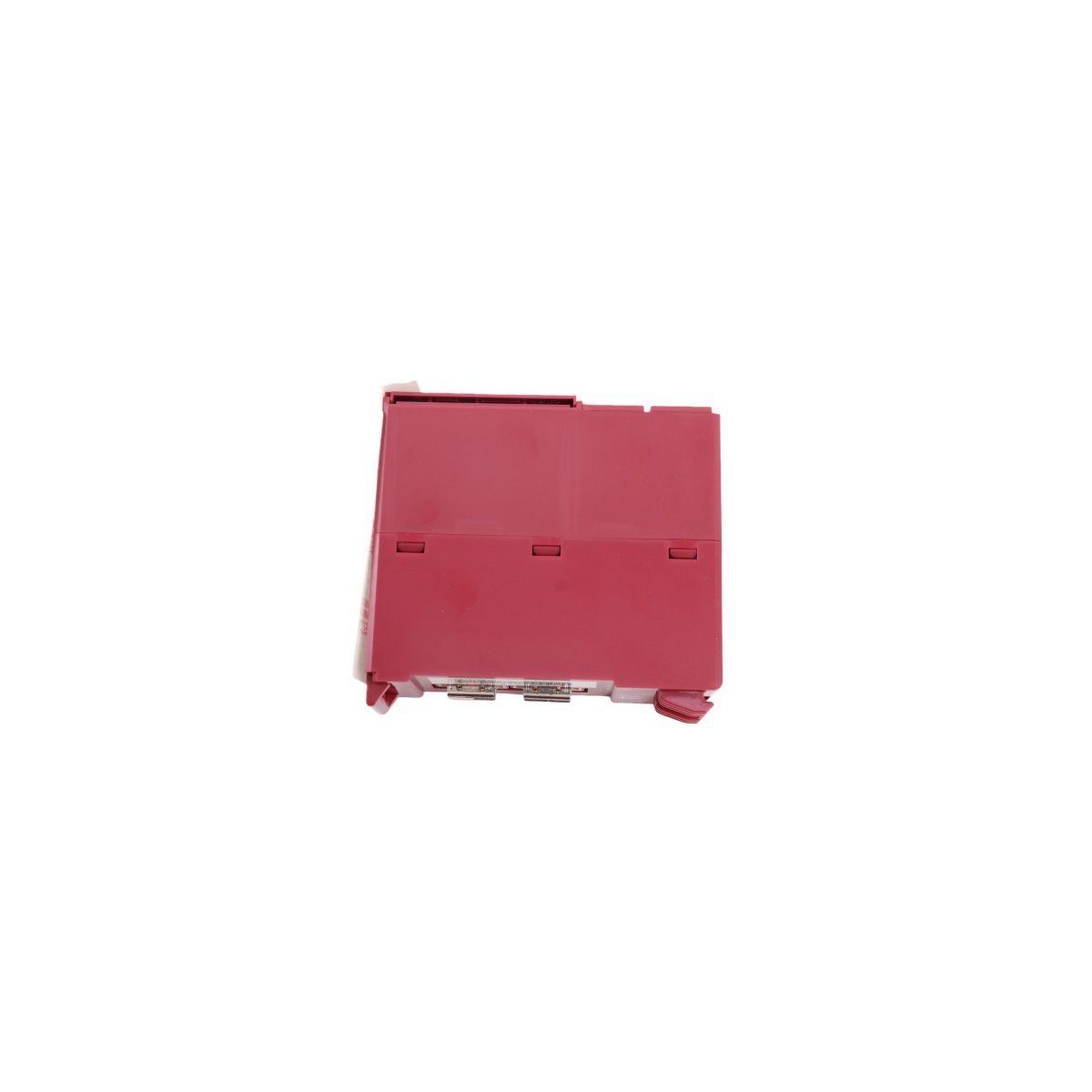

The Fuji Electric NP1PH-08 serves as a high-performance central processing unit for the MICREX-SX SPH series programmable controllers. Designed to anchor complex automation architectures, this CPU module provides the computational power necessary for high-speed machine control and sophisticated motion synchronization. It is engineered for industrial environments that demand continuous uptime, offering a scalable solution for localized logic or distributed control networks. By adhering to international programming standards and utilizing a robust hardware platform, the NP1PH-08 ensures seamless execution of user programs while maintaining strict deterministic timing for critical factory processes.

Hardware Architecture and System Specifications

The NP1PH-08 is built with a focus on processing efficiency and environmental resilience, featuring the following technical attributes:

• Processing Engine: High-speed logic execution optimized for the MICREX-SX SPH platform.

• Memory Capacity: Provides a program capacity of 8K steps (expandable depending on system configuration) to handle mid-range logic sequences.

• Standardized Programming: Fully compliant with IEC 61131-3, supporting multiple languages such as Ladder Diagram and Structured Text.

• Power Requirements: Operates on a standard 24V DC input with an optimized power consumption profile of 8W to 20W.

• Environmental Tolerance: Rated for stable operation in ambient temperatures between 0°C and +55°C.

• Reliability Features: Built-in self-diagnostics and support for redundant system configurations to prevent process interruptions.

• Physical Profile: Compact DIN-rail mountable design weighing approximately 0.2 kg to 0.38 kg, facilitating high-density panel integration.

Strategic Process Deployments

This CPU module is a versatile choice for a wide array of automated sectors requiring reliable logic management:
