Product Overview

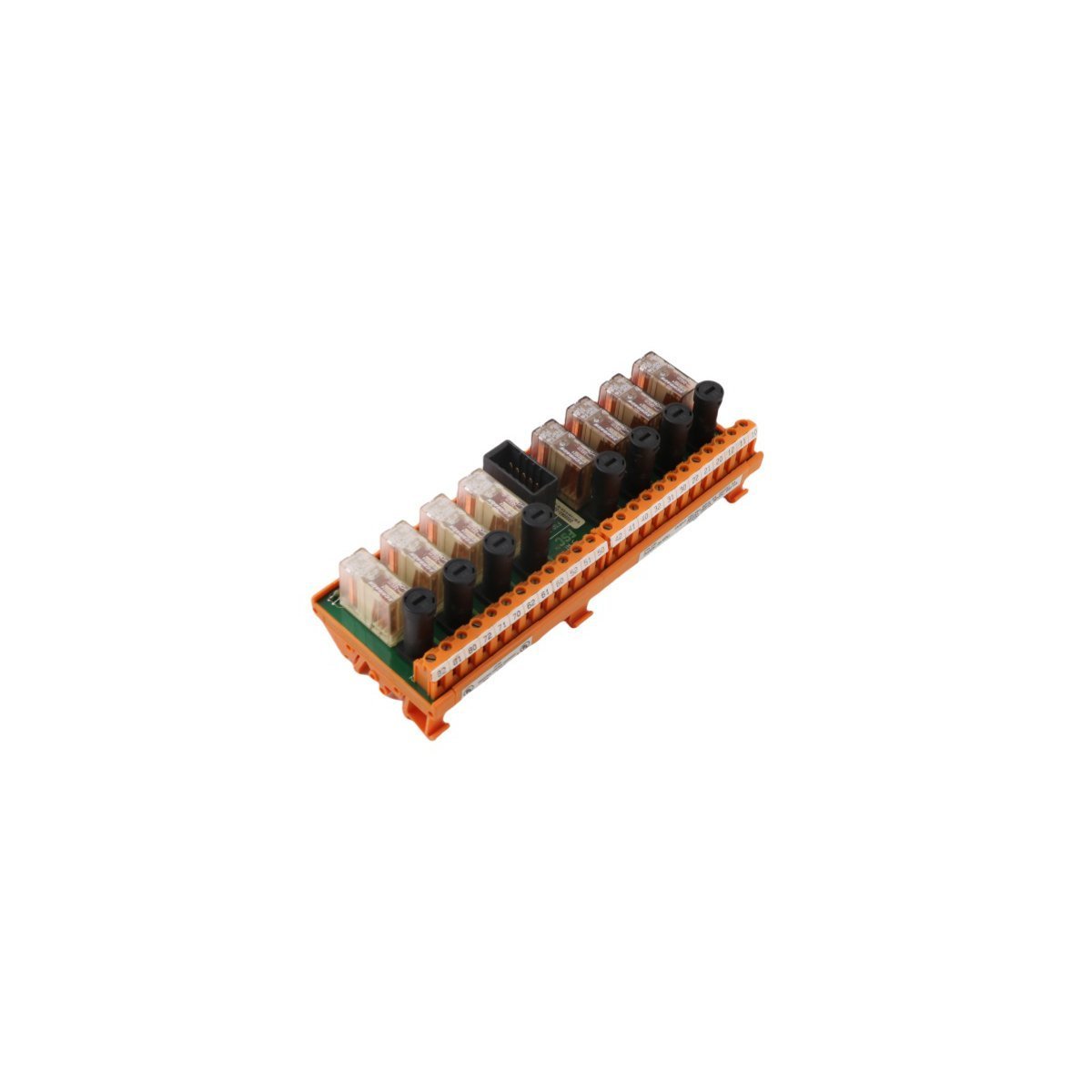

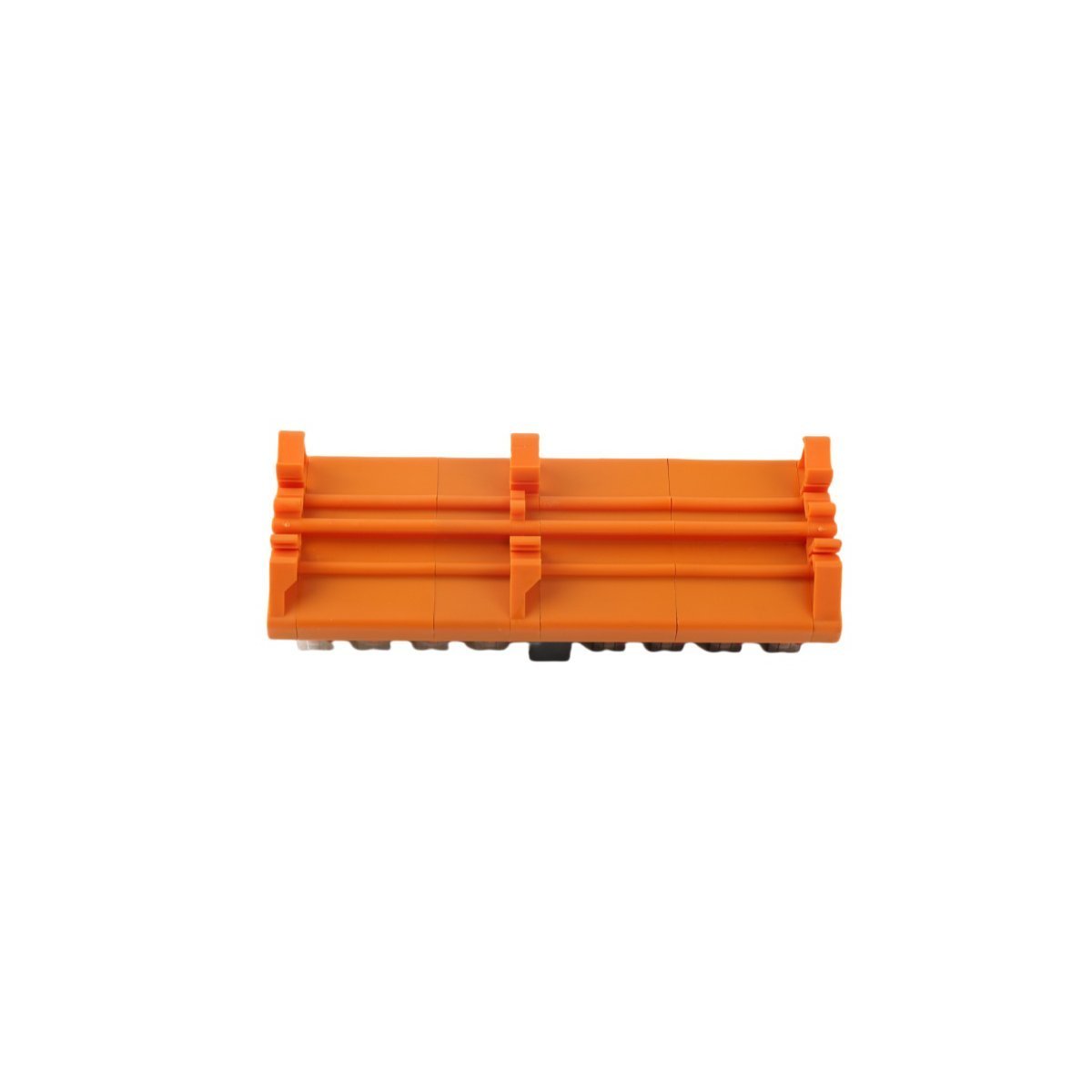

The Honeywell FTA-T-20 is a specialized Field Termination Assembly (FTA) designed for the Fail Safe Control (FSC) system, functioning as the high-integrity interface for digital output signal distribution. This module acts as the vital connection point between the safety logic solver and field-mounted actuators, such as solenoids, motor starters, and indicating lamps. Engineered to handle high-voltage switching requirements, the FTA-T-20 facilitates secure power distribution while providing physical isolation between the sensitive DCS electronics and the rugged field environment. Its architecture is optimized for safety-critical applications where deterministic switching and reliable circuit termination are essential for plant protection.

Technical Hardware Infrastructure

The FTA-T-20 is built to withstand rigorous industrial conditions, offering a structured and secure platform for discrete wiring management.

• Module Function: Field Termination Assembly (FTA) for Discrete Outputs

• System Ecosystem: Honeywell FSC / Safety Manager Systems

• Voltage Rating: Supports high-level switching (up to 220V AC/DC environments)

• Frequency Handling: Capable of high-speed switching response for safety logic execution

• Isolation Architecture: Galvanic separation between control logic and field power

• Form Factor: Compact footprint designed for vertical carrier mounting

• Construction: Rugged, fire-retardant industrial chassis

• Shipping Weight: 0.34 kg

• Module Dimensions: 19 x 7 x 5.7 cm

• Origin: United States (USA)

• Tariff Code: HS 8537101190

Industrial Control Applications

This output termination assembly is indispensable in high-reliability sectors where final control elements must operate without fail.

• Emergency Isolation Management: Driving 220V solenoid valves to achieve rapid process cut-off in upstream oil and gas manifolds.

• Burner Safety Interlocks: Executing discrete power sequences for fuel valves and ignition systems in large-scale utility boilers.

• Chemical Batch Shutdowns: Managing the output signals for high-capacity relays used to de-energize mixing and heating equipment during a safety excursion.

• Fire Suppression Activation: Interfacing with hard-wired fire protection hardware to trigger deluge systems or fire dampers upon system demand.

• Safety System Expansion: Serving as the termination backbone for adding new SIL-rated output channels to existing FSC control cabinets.
