Product Overview

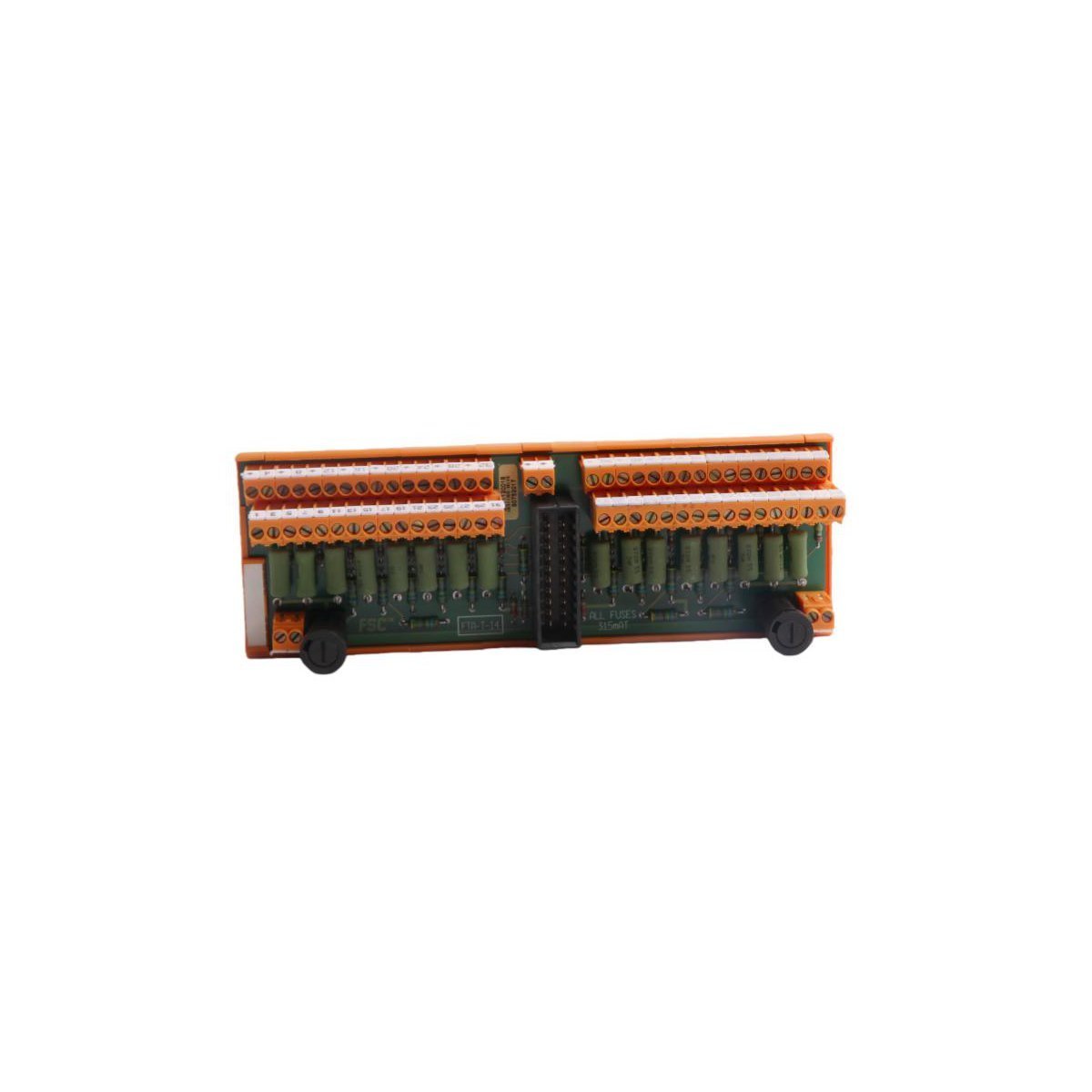

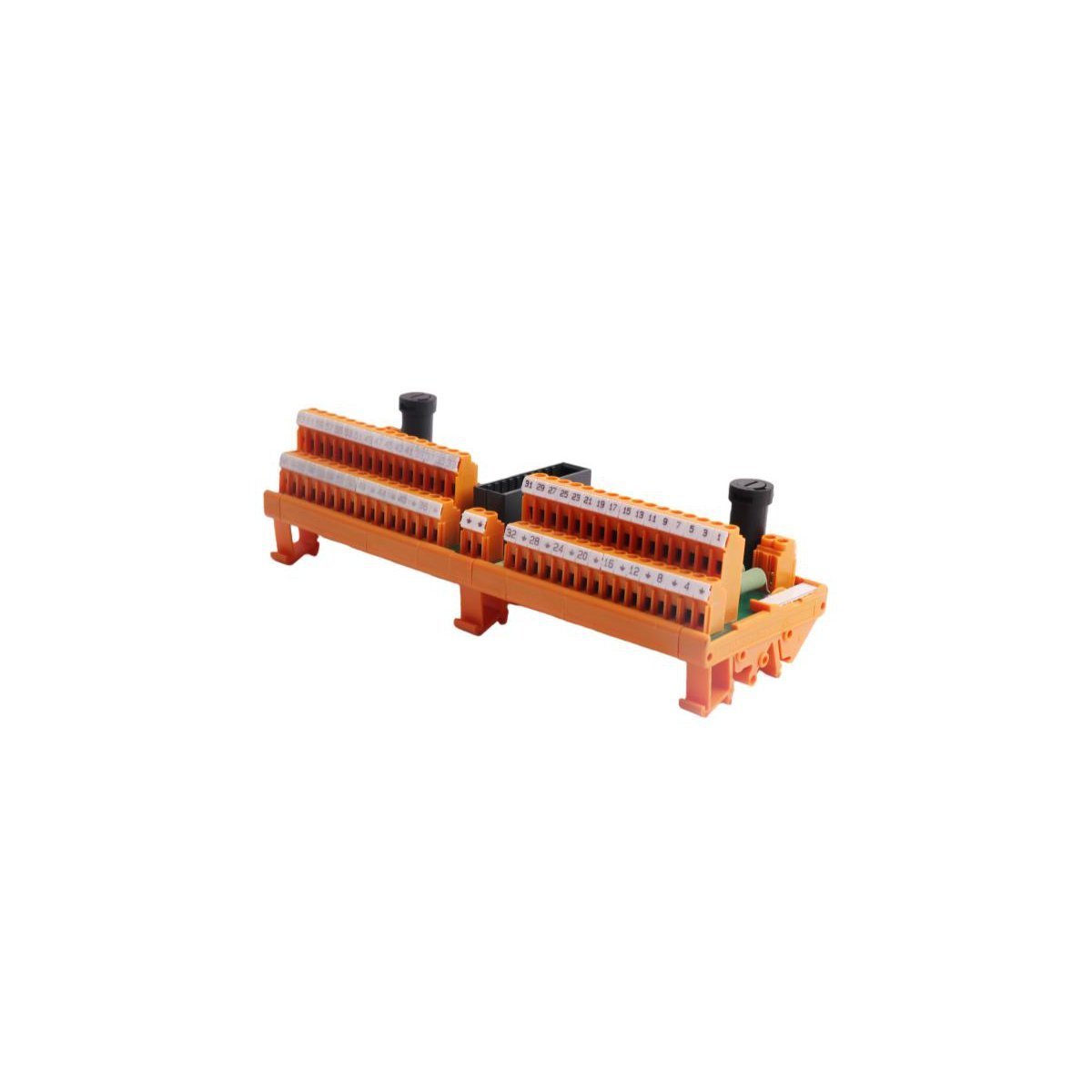

The Honeywell FTA-T-14 is a high-performance, 4-channel discrete interface engineered for the Fail Safe Control (FSC) system architecture. Classified as a "versatile" digital input module, this unit is specifically designed to bridge diverse field signal levels into a unified control logic. It possesses the unique ability to process a wide variety of electrical inputs, accommodating both low-voltage 24V DC signals and high-voltage 120V AC/220V AC industrial circuits. Built for the rigorous demands of safety-instrumented systems and Distributed Control Systems (DCS), the FTA-T-14 ensures that critical state changes in field equipment are detected with high precision and high-speed responsiveness.

Technical Infrastructure and Hardware Metrics

The FTA-T-14 is characterized by its adaptability across multi-voltage platforms while maintaining a compact footprint for cabinet efficiency.

• Input Capacity: 4 Independent Discrete Channels

• Voltage Compatibility: Supports 24V DC, 120V AC, and 220V AC

• Signal Frequency: Up to 30kHz Output Frequency for rapid data acquisition

• Electrical Connection: Secure heavy-duty screw terminals

• Diagnostic Feedback: Integrated LED status indicators per channel

• Mounting Standards: Part of the modular FTA-T series ecosystem

• Construction: Ruggedized industrial-grade chassis for harsh environments

• Physical Weight: 0.4 kg

• Standard Dimensions: 7cm x 14cm x 14.5cm

• Tariff Identification: HS Code 8537101190

Industrial Deployment and System Integration

This module is a strategic choice for facilities that operate with mixed-voltage field instrumentation. Its "versatile" nature allows engineers to consolidate different signal types into a single interface series, simplifying spare parts management and system design.

• Safety Interlock Monitoring: Relaying critical "Go/No-Go" signals from limit switches and emergency stop buttons to the FSC safety logic.

• High-Speed Pulse Detection: Utilizing the 30kHz frequency capability to monitor rapid mechanical transitions or pulse-based flow meters in machine automation.

• Mixed-Voltage Logic Management: Integrating field devices that operate on standard 24V DC alongside legacy 120V/220V AC hardware within a single control cabinet.

• Building and Infrastructure Automation: Managing large-scale ventilation status, pump motor feedback, and valve positioning in utility management systems.

• Process Event Logging: Serving as a reliable digital input node for sequence-of-events (SOE) recording in power generation and chemical manufacturing plants.
