Product Overview

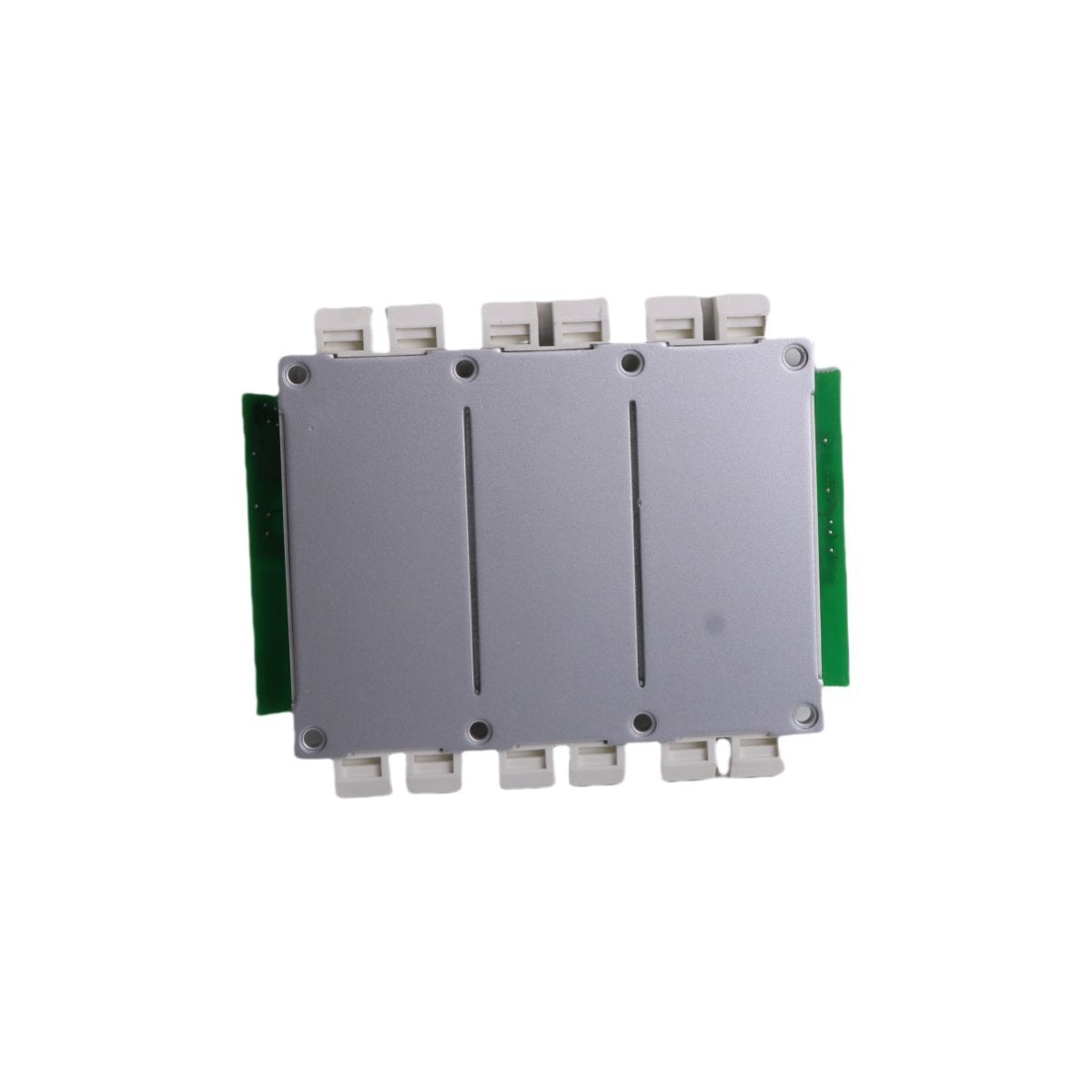

The FS450R17KE3/AGDR-72CS is a high-power Insulated Gate Bipolar Transistor (IGBT) module assembly integrated with a dedicated gate driver board, engineered by ABB for high-performance inverter stages. This unit is specifically optimized for 1700V applications, providing a robust switching solution for medium-voltage drives and power conversion systems within the Advant OCS and 800xA ecosystems.

A standout feature of this module is the integration of advanced Thermal Interface Material (TIM) foil technology. By utilizing pre-applied TIM foil instead of traditional thermal paste, the module achieves superior heat dissipation and long-term stability under heavy cyclic loads. This design significantly reduces thermal resistance and prevents the "pump-out" effect often seen with liquid grease, ensuring the semiconductor remains within safe operating temperatures during peak demand.

Key Technical Characteristics and Hardware Parameters

The FS450R17KE3/AGDR-72CS combines high-capacity power electronics with precision gate drive control to deliver deterministic switching performance.

• Manufacturer ABB

• Model Designation FS450R17KE3 / AGDR-72CS

• Module Type IGBT Power Transistor with Integrated Drive Board

• Voltage Rating 1700 V (Collector-Emitter Voltage)

• Current Rating 450 A (Continuous Collector Current)

• Thermal Management Integrated TIM (Thermal Interface Material) foil for grease-free cooling

• Cooling Compatibility Compatible with both TIM-foil and hybrid grease-cooled heat sinks

• Gate Driver Integrated AGDR-72CS board for optimized pulse-width modulation (PWM)

• System Integration Fully compatible with ABB Advant OCS and Industrial IT 800xA drive stacks

• Physical Mass 1.02 kg

• Dimensions 18.4 cm x 14.8 cm x 3 cm

• Manufacturing Origin Sweden

• HS Classification 8537101190

Industrial Applications and Operational Use Cases

This IGBT assembly is a critical component for power-intensive sectors where thermal reliability and high-voltage switching precision are mandatory.

• Heavy Industrial Variable Frequency Drives (VFD) Serving as the primary power switching element in high-capacity motor controllers for mining hoists and steel rolling mills.

• Renewable Energy Converters Implementing efficient DC-to-AC conversion in wind turbine converters and large-scale solar inverters.

• Traction and Marine Propulsion Managing the high-current requirements of electric propulsion systems where space-saving thermal management is essential.

• Power Grid Stabilization Utilizing the 1700V rating for STATCOM and active filter applications to maintain voltage quality in industrial microgrids.

• DCS Power Stage Maintenance Providing a high-reliability replacement module for aging Advant OCS power stacks, extending the service life of mission-critical infrastructure.

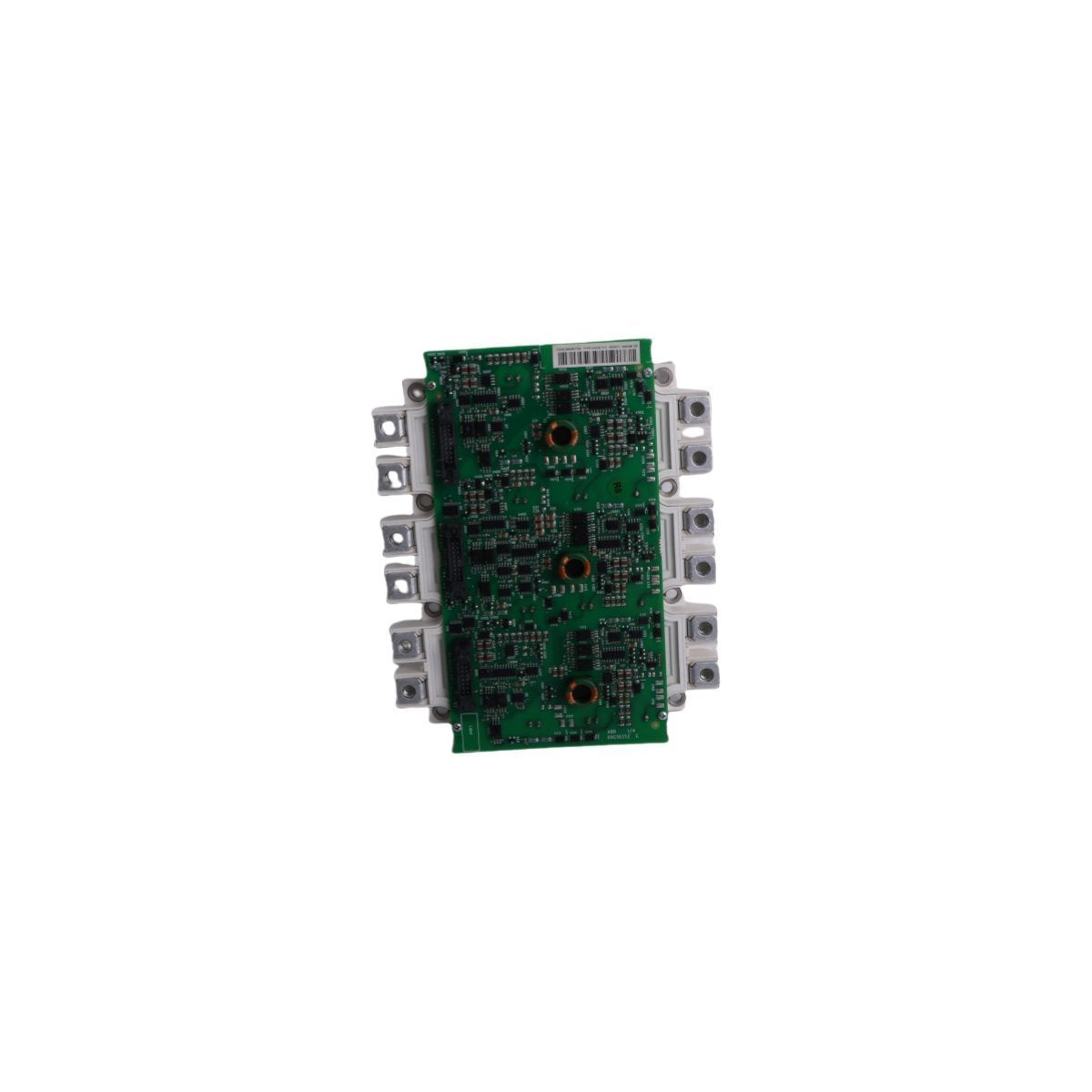

The inclusion of the AGDR-72CS drive board ensures that the IGBT gates are driven with the correct timing and protection logic, effectively shielding the semiconductor from over-voltage transients and short-circuit conditions.
