Product Overview

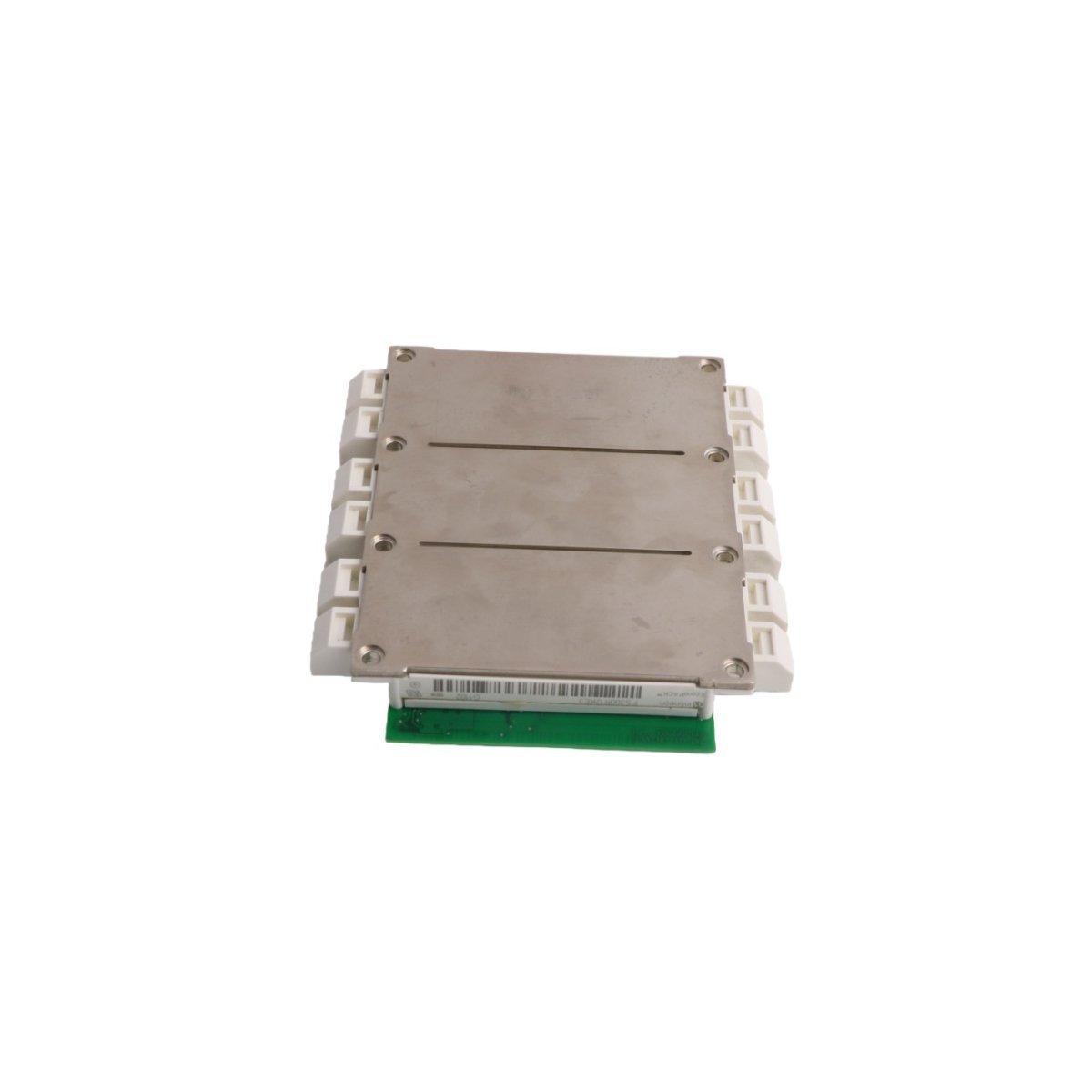

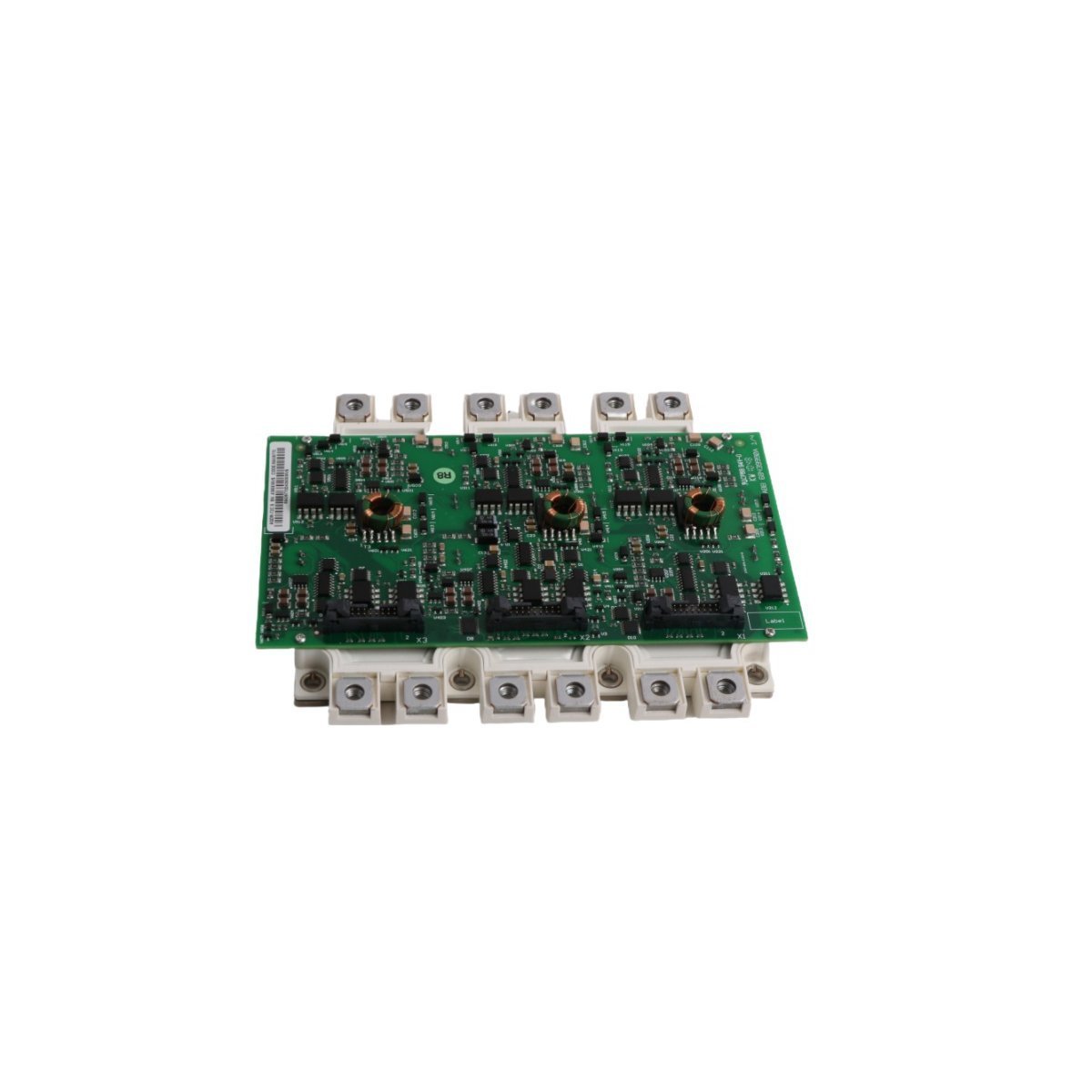

The ABB FS300R12KE3/AGDR-72C is a high-performance power electronics assembly specifically engineered for the maintenance and repair of ACS800 series industrial frequency converters. This comprehensive kit integrates a 1200V FS300R12KE3 IGBT (Insulated Gate Bipolar Transistor) module with a matched AGDR-72C gate driver board. By providing a pre-configured power stage, this module kit ensures synchronized switching and optimal electrical characteristics for high-power inverter phases. It serves as a vital replacement component for drive systems requiring precise motor speed regulation and high-efficiency energy conversion, maintaining the integrity of the power stack while reducing installation complexity.

Hardware Parameters and Key Technical Characteristics

This integrated assembly is designed for high-current density and robust thermal management, ensuring stable operation under continuous industrial duty cycles.

• Module Identification FS300R12KE3 (IGBT) + AGDR-72C (Driver)

• Configuration Integrated 6-pack IGBT module with mounted gate driver PCB

• Voltage Rating 1200V (Collector-Emitter Voltage)

• Current Capacity 300A Continuous DC

• Switching Frequency Optimized for medium to high frequency PWM (Pulse Width Modulation)

• Protection Logic Built-in short-circuit protection, under-voltage lockout (UVLO), and thermal monitoring

• Heat Dissipation Includes Thermal Interface Material (TIM) for superior thermal conductivity to the heatsink

• Mounting Style Compatible with both screw-type and press-fit electrical connections

• Weight 1.08 kg (Net Weight) / 1.389 kg (Gross Weight)

• Dimensions 18.5 x 8.5 x 30.5 cm

• Thermal Range High-temperature stability for heavy-load industrial environments

Industrial Applications and Operational Use Cases

The FS300R12KE3/AGDR-72C kit is a critical spare part for industries relying on large-scale motor control and power modulation.

• ACS800 Inverter Maintenance Direct replacement for worn power stages in ABB ACS800 multidrive and single drive units used in steel mills and chemical plants.

• Variable Frequency Drive (VFD) Servicing Restoration of phase output functionality in large motor controllers for centrifugal pumps and heavy-duty fans.

• Renewable Energy Converters Management of DC-to-AC conversion in wind turbine power stacks and utility-scale solar inverters.

• Pulp and Paper Mill Drives Providing reliable power switching for paper machine section drives where downtime results in significant production loss.

• High-Power Industrial UPS Regulating the power output in large-scale uninterruptible power supplies for sensitive data centers and medical facilities.
