Product Overview

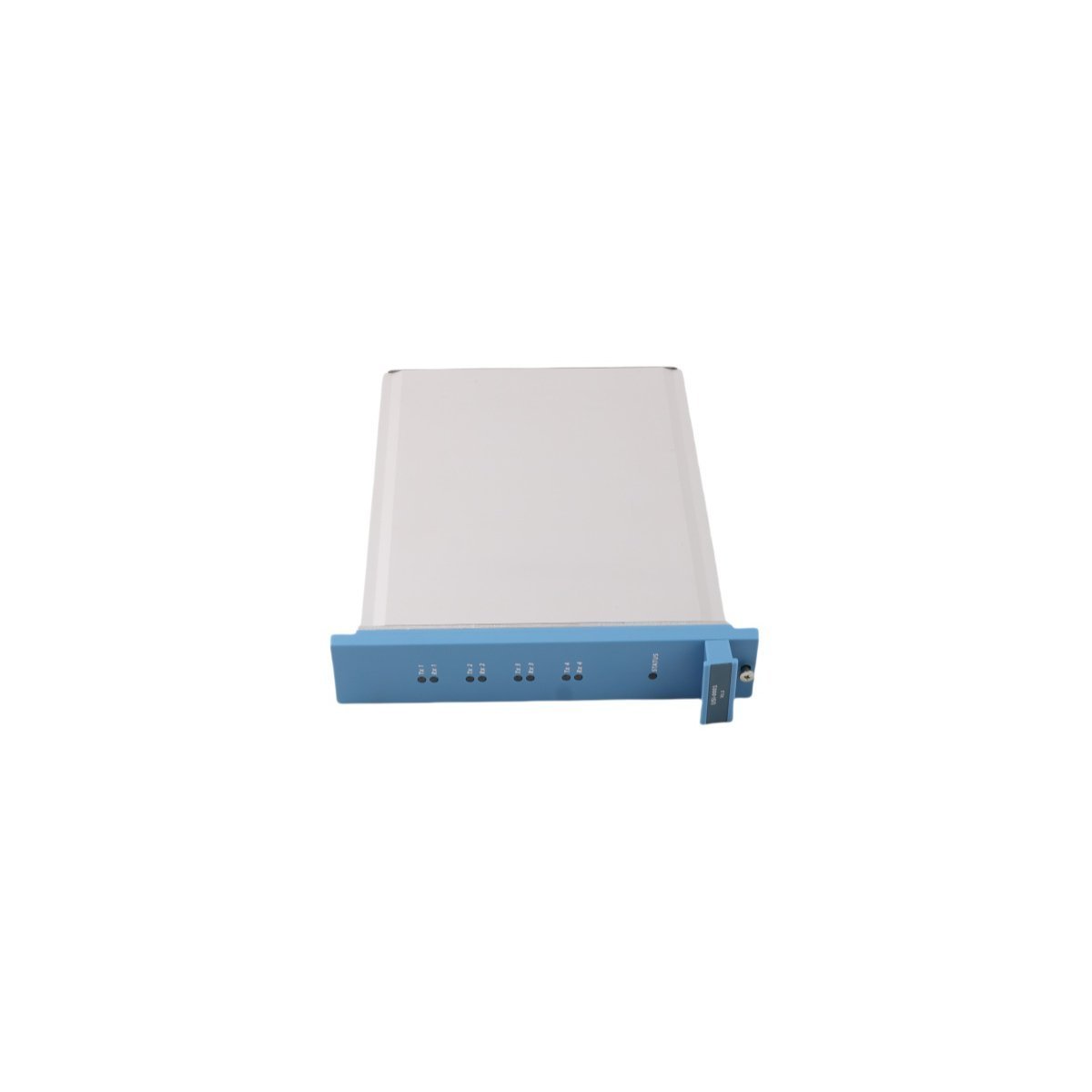

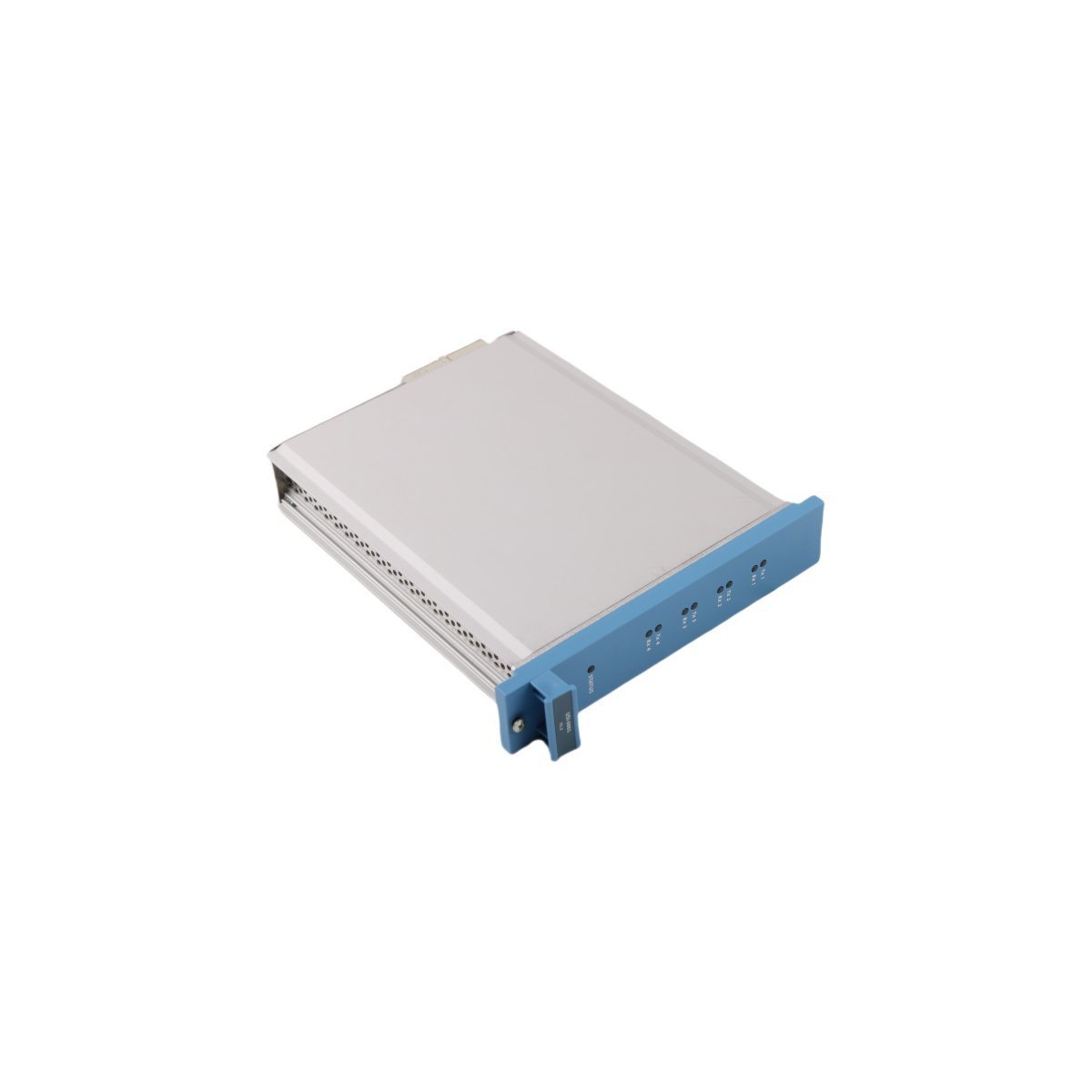

The Honeywell FS-USI-0001 is a versatile Universal Interface Module engineered for the Safety Manager and FSC architecture. This high-integrity component serves as a specialized bridge for complex signal processing, allowing the safety system to interpret diverse analog and digital data streams with millisecond precision. Designed for mission-critical logic solver environments, the FS-USI-0001 handles the acquisition and translation of vital process variables, ensuring that safety-instrumented functions (SIF) receive high-fidelity data. Its architecture is specifically optimized for applications requiring ultra-fine resolution and robust isolation, making it a cornerstone for plants that prioritize risk mitigation and operational uptime.

Hardware Architecture and Data Acquisition Capabilities

The FS-USI-0001 is built to maintain signal stability across a wide environmental spectrum, featuring advanced noise rejection and high-resolution sampling circuitry.

• Input Signal Range: Bipolar measurement capability from -10 V to +10 V

• Signal Resolution: Precise 0.1 mV detection for high-accuracy sensing applications

• Protocol Versatility: Supports Modbus RTU and other industrial communication standards for seamless DCS integration

• Thermal Resilience: Rated for reliable operation in extreme climates ranging from -40°C to +85°C

• Power Requirements: Compatible with standard 12-36 VDC external power sources

• Ingress Protection: Secured in an IP65-rated housing to prevent contamination from particulates and moisture

• Safety Compliance: Engineered for use in SIL-rated (Safety Integrity Level) control loops

• Physical Mass: 0.7 kg

• Chassis Dimensions: 3.5 x 22.8 x 17.5 cm

• Origin: Made in USA | HS Code: 8537101190

Industrial Implementation and Safety Logic Roles

This universal interface is deployed in high-hazard sectors where the accuracy of a single signal can determine the safety status of an entire facility.

• High-Precision Thermal Monitoring: Interfacing with sensitive voltage-based sensors to monitor reactor skin temperatures in chemical processing plants.

• Safety System Expansion: Serving as a flexible I/O gateway for integrating third-party sensors into the Honeywell Safety Manager environment without protocol conflicts.

• Emergency Response Coordination: Managing high-speed data acquisition for overpressure protection systems in oil and gas midstream operations.

• Remote Infrastructure Monitoring: Utilizing its wide temperature range and IP65 protection for field-mounted safety monitoring at remote wellheads or pumping stations.

• Complex Interlock Management: Providing the high-resolution input data necessary for intricate safety interlocks in pharmaceutical batch manufacturing.
