Product Overview

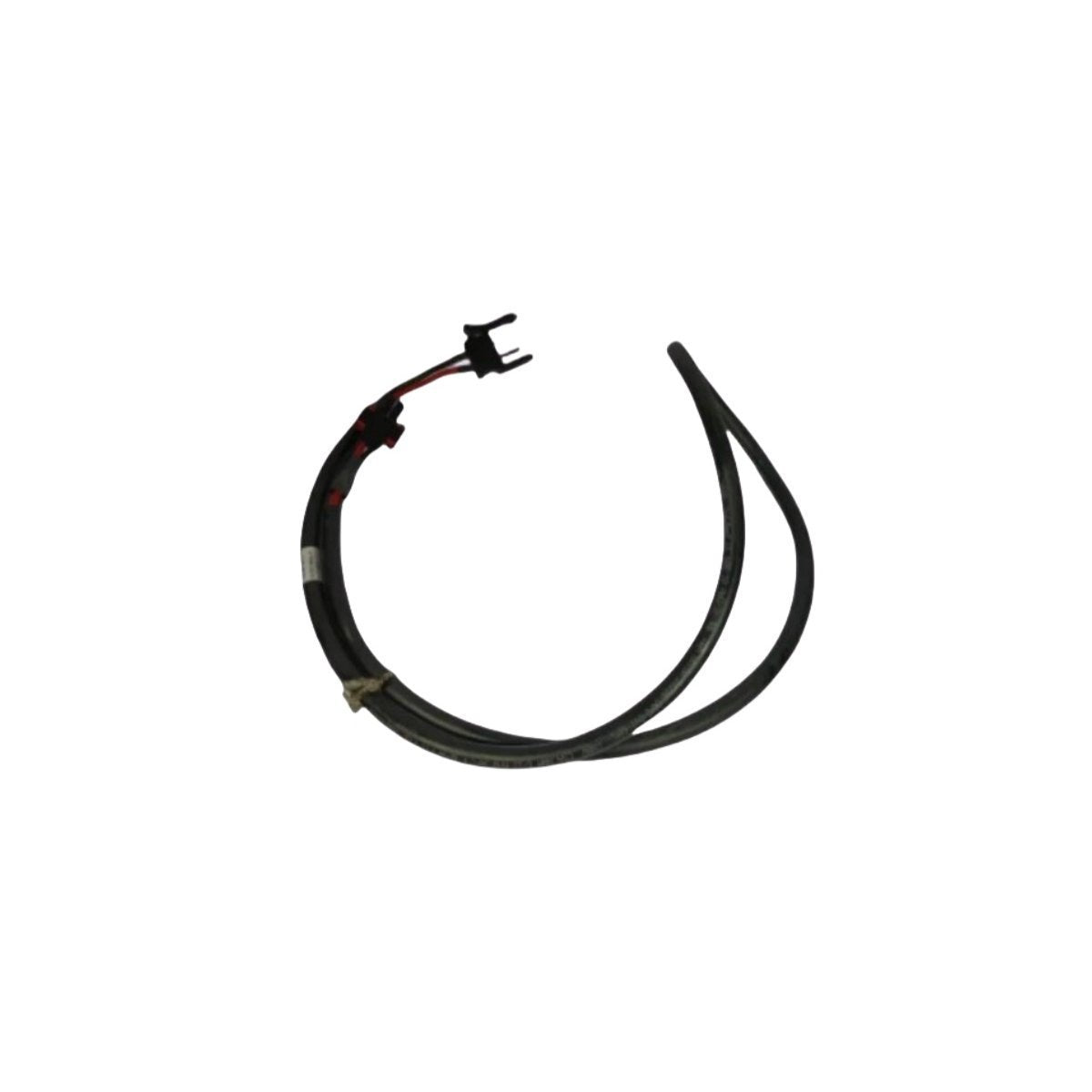

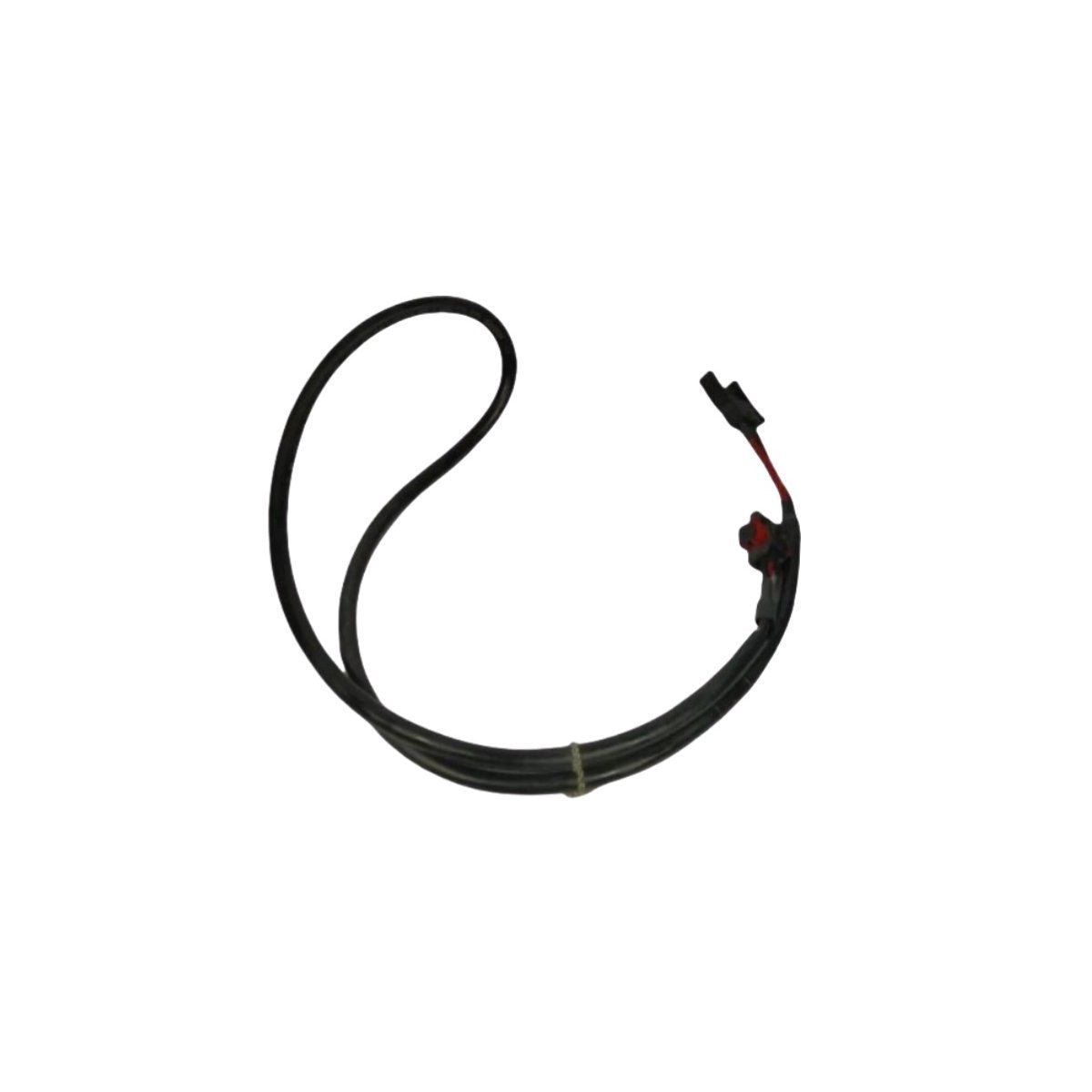

The Honeywell FS-PDC-IOS05A is a specialized Power Distribution Cable assembly engineered for the Safety Manager DCS platform. This critical interconnect is designed to provide a stable and uninterrupted 5VDC power supply to I/O chassis and associated control modules. By utilizing high-grade industrial conductors and secure terminal interfaces, the FS-PDC-IOS05A ensures that safety-critical hardware maintains operational integrity even under heavy load conditions. It serves as a vital link in the power management architecture of automation systems where voltage stability is paramount for signal accuracy.

Hardware Parameters and Technical Specifications

This cable assembly is manufactured to strict industrial standards, focusing on low resistance and high mechanical durability for long-term deployment in control cabinets.

• Cable Type: SAB 2040415 industrial grade

• Conductor Cross-section: 4 × 1.5 mm² for optimized current carrying capacity

• Assembly Length: 2.45 meters (approx. 8 feet)

• Connector Interface: 8-pole Weidmuller pin header (BLZP 5.08HC/08/180F SN BK)

• Voltage Rating: Specifically configured for 5VDC power distribution loops

• Protection Rating: IP20-rated connector housing for finger-safe operation

• Compliance Standards: Fully certified under UL and CSA guidelines for global industrial use

• Mechanical Build: Robust insulation jacket resistant to aging and thermal stress

• Shipping Weight: 0.4 kg

Industrial Applications

The FS-PDC-IOS05A is essential for maintaining the power bus within Honeywell Safety Manager environments, particularly in high-reliability sectors.

• Safety Manager I/O Expansion: Providing the primary power bridge for IOCHAS-0003S chassis units and high-density I/O configurations.

• System Upgrades and Retrofits: Ensuring localized power distribution remains consistent when adding new modules to existing Safety Manager SC hardware.

• Fail-Safe Automation: Deployment in Emergency Shutdown (ESD) systems where power cable failure could lead to unnecessary plant downtime.

• Control Panel Integration: Used within DCS cabinets in oil refineries, chemical plants, and power generation facilities to organize and secure low-voltage power rails.
