Product Overview

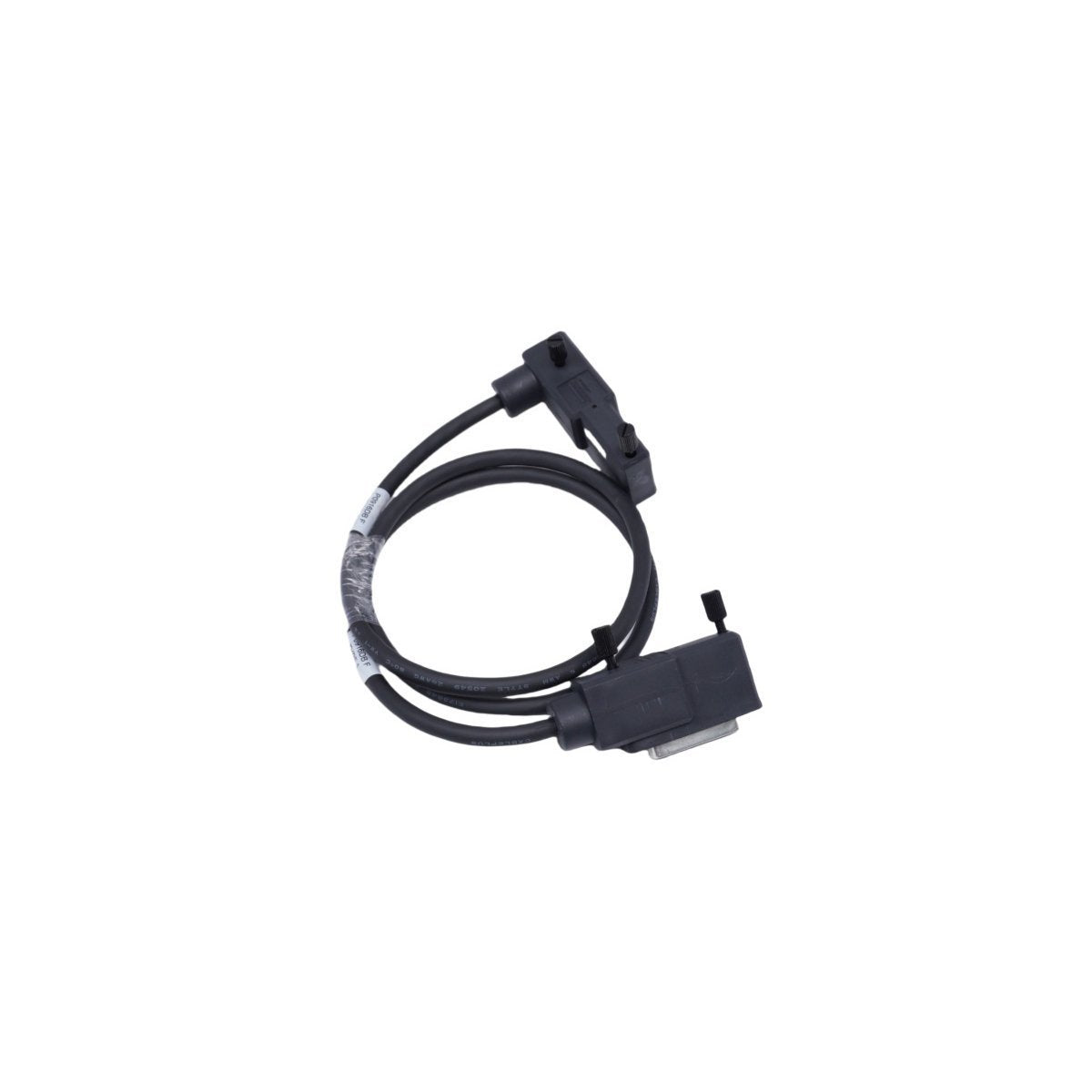

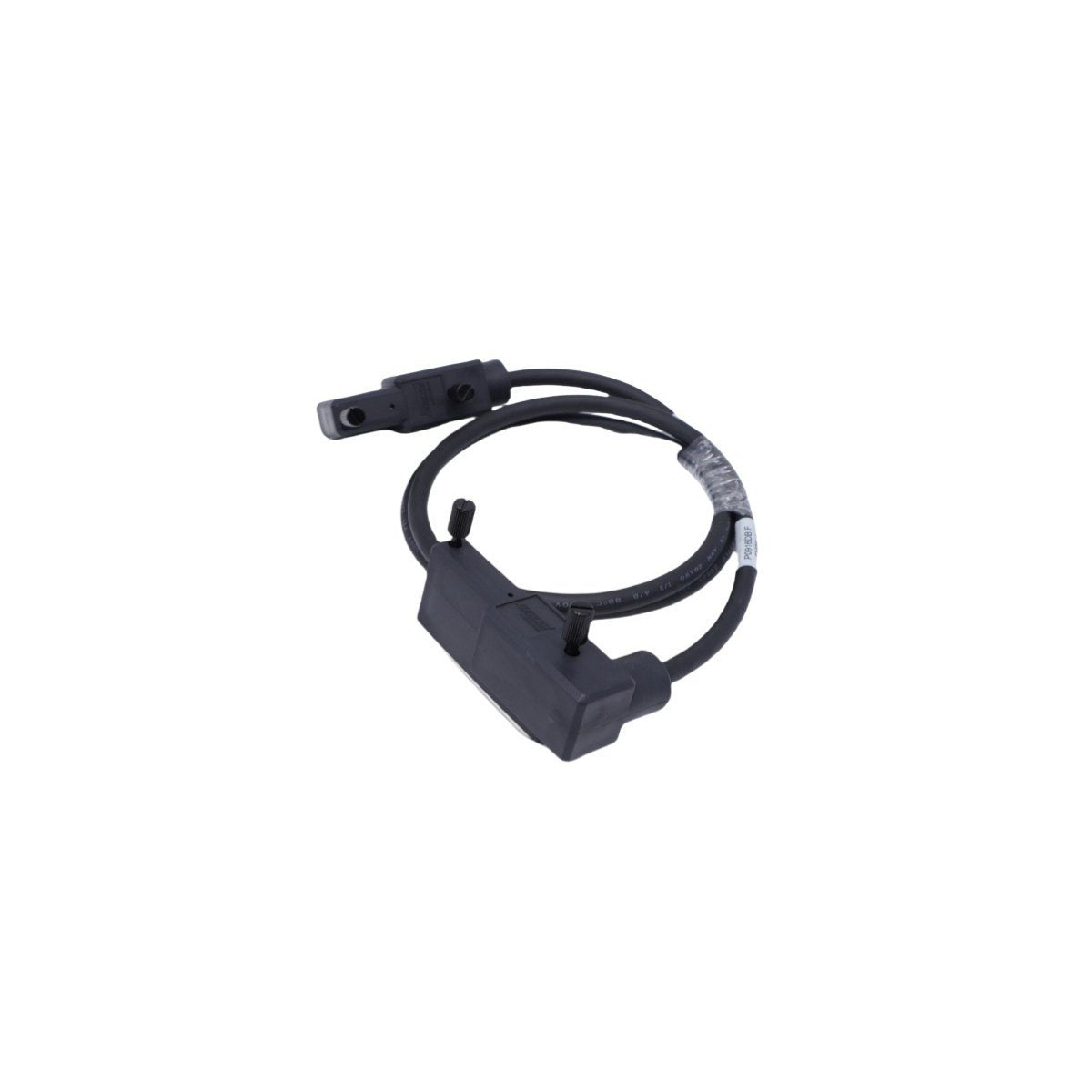

The Foxboro P0916DB is a high-performance, 10-meter termination interface cable engineered for the I/A Series Distributed Control System (DCS). This mission-critical interconnect is designed to bridge the gap between Fieldbus Modules (FBM) and Termination Assemblies (TA), ensuring the accurate delivery of process signals. Built to withstand the rigorous electrical and mechanical stresses of industrial environments, the P0916DB maintains signal purity for sensitive instrumentation and control loops, including flow, pressure, and temperature monitoring.

By utilizing premium materials and standardized industrial connectors, this cable minimizes signal attenuation and electromagnetic interference. It is a vital component for plant operators seeking to maintain high system availability and deterministic control in complex automation architectures.

Technical Specifications

• Manufacturer: Foxboro (Schneider Electric)

• Model Number: P0916DB

• Product Series: I/A Series

• Cable Length: 10 Meters (Approx. 32.8 feet)

• Conductor Material: High-conductivity Multi-strand Copper

• Insulation: Thermal-resistant Teflon (PTFE)

• System Compatibility: Foxboro I/A Series DCS / PLC Interface

• Weight: 0.28 kg

• Dimensions (Packaging): 14.5 x 14.0 x 5.5 cm

• Origin: USA

Key Technical Characteristics

• High-Grade Signal Path: Constructed with premium electrolytic copper, the P0916DB provides a low-resistance path for data and power. This ensures that analog and digital signals are transmitted with zero data corruption, even over its full 10-meter span.

• PTFE Thermal Shielding: The cable is encased in a Teflon (PTFE) insulation layer, which offers industry-leading resistance to extreme temperatures and chemical exposure. This allows for stable operation in areas subject to thermal fluctuations or corrosive vapors.

• Standardized Interfacing: Featuring precision-engineered industrial connectors, the P0916DB facilitates a secure, vibration-resistant "lock" with Fieldbus baseplates and termination modules. This reduces installation time and prevents accidental disconnections.

• Enhanced Dielectric Strength: The high-density insulation protects the internal conductors from voltage spikes and grounding issues, maintaining the safety integrity of the connected I/O modules.

• Mechanical Flexibility: Despite its rugged construction, the cable maintains a flexible bend radius, making it easier to route through congested cable trays and tight electrical cabinet enclosures without stress-induced signal loss.

• Optimized for Harsh Environments: Specifically designed to meet the demands of G3-rated environments, the cable’s exterior is resistant to abrasion and common industrial lubricants, ensuring a long operational lifespan.

Primary Applications

The Foxboro P0916DB termination cable is a standard solution for:

• Process Control Loops: Linking smart transmitters (Flow, Level, Pressure) to DCS I/O modules.

• Actuator and Motor Control: Delivering command signals to final control elements in manufacturing lines.

• Refinery and Chemical Plants: Safe signal routing in hazardous and high-heat production zones.

• Power Generation: Interfacing turbine and boiler monitoring systems with central controllers.
