Product Overview

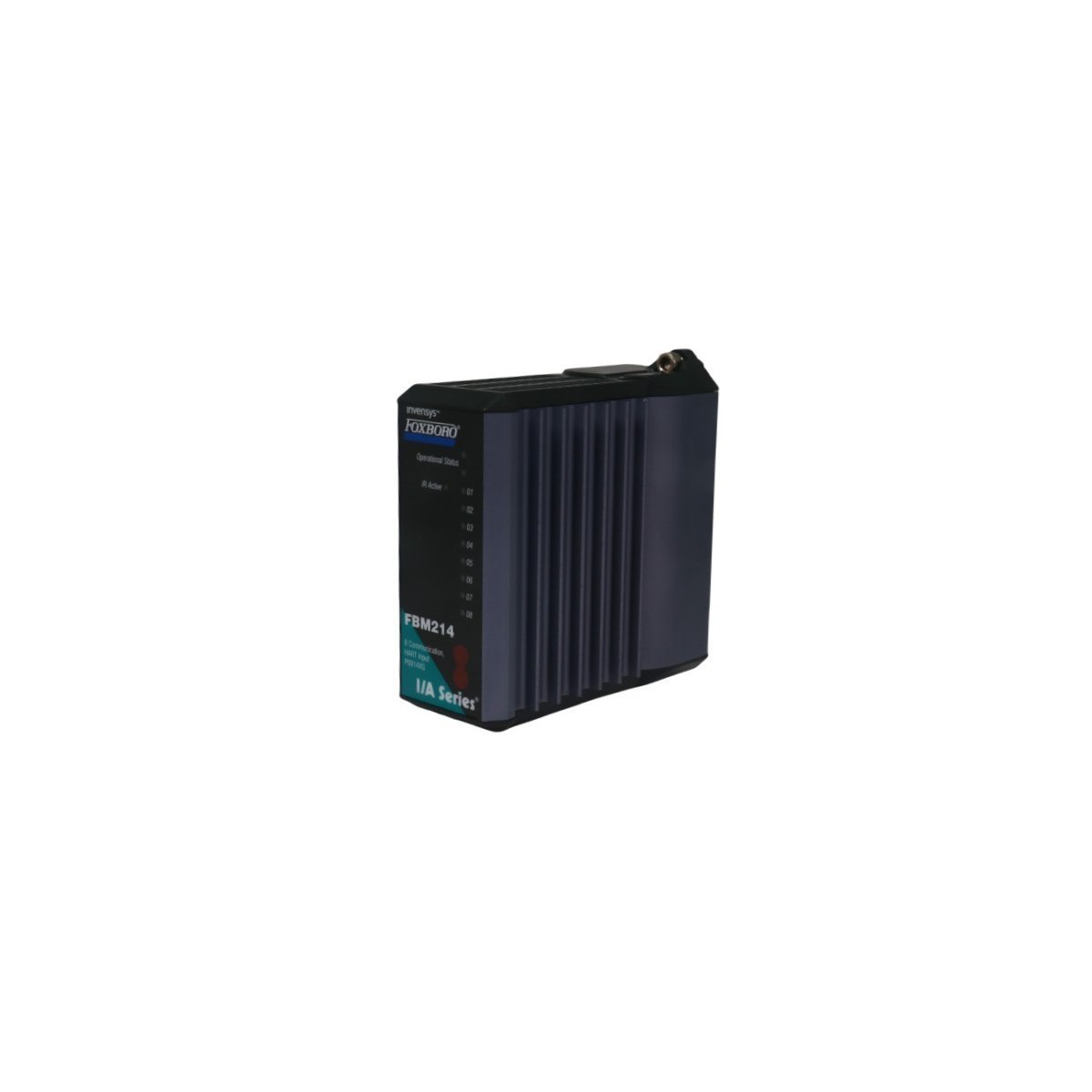

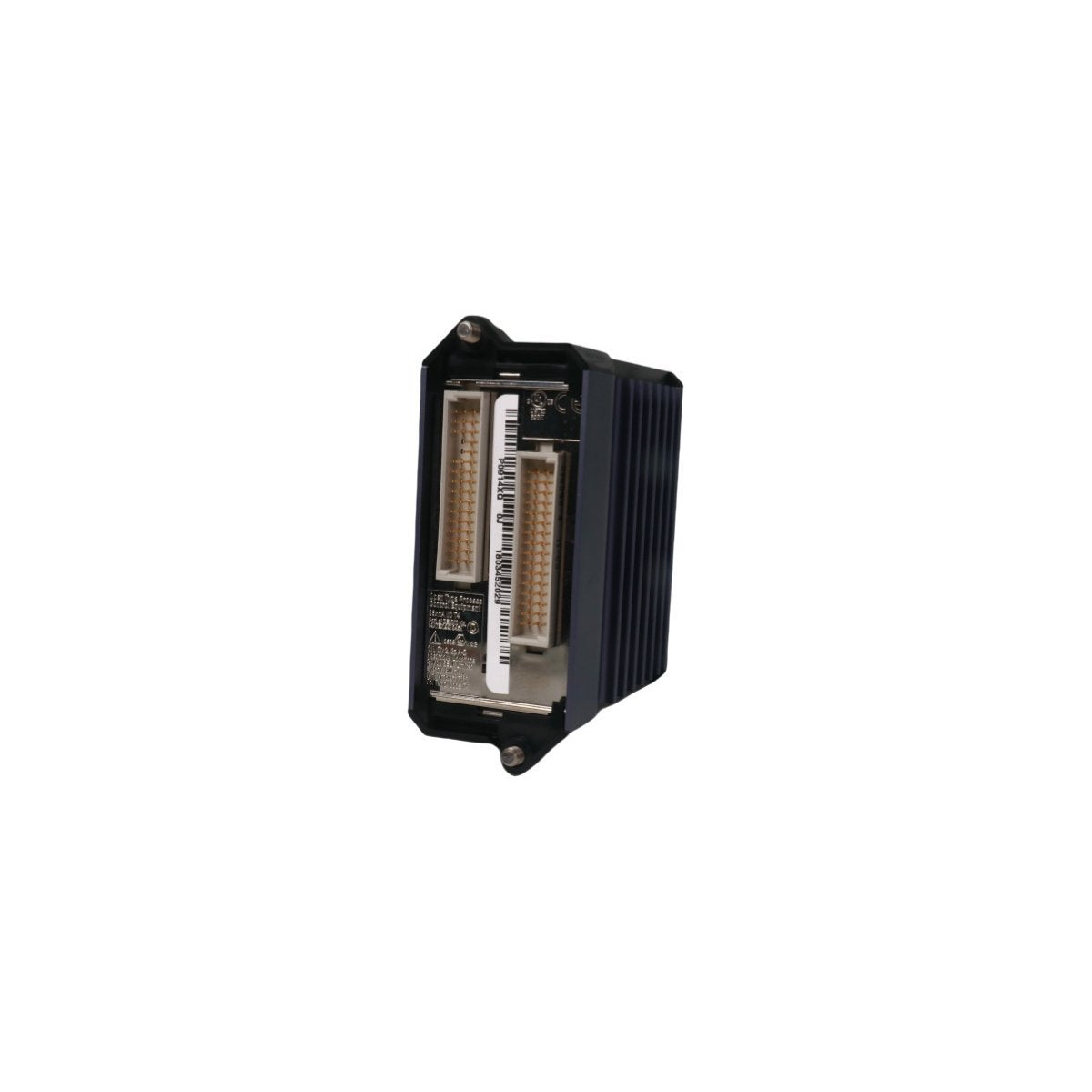

The Foxboro FBM214 is a high-performance analog input module designed for the I/A Series Distributed Control System (DCS). This interface module provides eight channels specifically engineered to support 4 to 20 mA analog signals with integrated HART (Highway Addressable Remote Transducer) digital communication. By bridging the gap between field instrumentation and the control room, the FBM214 allows for the simultaneous acquisition of primary process variables and advanced diagnostic data from intelligent field devices.

The module acts as a dedicated host for HART communications, allowing the system to execute universal, common practice, and device-specific commands. This functionality enables plant operators to perform remote configuration, calibration, and health monitoring of field assets through the Intelligent Field Device Configurator (IFDC), significantly optimizing maintenance workflows and process reliability.

Technical Specifications

• Manufacturer: Foxboro (Schneider Electric)

• Model Number: FBM214

• Module Type: HART Communication Input Interface

• Number of Channels: 8 Group-Isolated Channels

• Input Signal: 4 to 20 mA (Analog) + HART FSK (Digital)

• Conversion Method: High-accuracy Sigma-Delta data conversion

• Digital Communication Rate: Approx. 2 messages per second

• Isolation: Galvanic isolation between field channels and module logic

• Environmental Rating: Suitable for Class G3 (Harsh) environments

• Dimensions: 4.6 x 11.0 x 11.5 cm

• Weight: 0.32 kg

• Origin: USA

Key Technical Characteristics

• Hybrid Signal Processing: Each channel features a dedicated Frequency Shift Keying (FSK) modem. This allows the module to extract digital HART data superimposed on the standard 4 to 20 mA analog loop without signal interference.

• Flexible Power Configuration: The FBM214 can provide a common isolated 24V DC power supply to all eight loops. Alternatively, it supports external sourcing for field transmitters. When using external power across multiple channels, the system supports Balun module integration to eliminate potential cross-talk.

• Sigma-Delta Conversion: Utilizing high-resolution sigma-delta A/D converters for every channel, the FBM214 ensures superior noise rejection and measurement accuracy for critical process variables.

• Advanced Diagnostics Host: The module supports all HART universal commands required for system database interfacing. This pass-through capability allows for deep-level communication with smart transmitters, excluding only the burst mode.

• Industrial Hardening: The compact and rugged hardware design is G3 rated, meaning it is specifically built to resist corrosion and failure in environments with high concentrations of atmospheric contaminants.

• Versatile Termination: Compatible with a range of Termination Assemblies (TAs), the module supports both local and remote field wiring. This flexibility accommodates various loop-powered transmitter configurations, including internally and externally powered variants.

Primary Applications

The FBM214 is an essential component for modernizing DCS architectures in:

• Chemical Processing: Monitoring smart flowmeters and pressure transmitters with remote calibration needs.

• Oil & Gas Refineries: Managing high-density analog inputs while maintaining access to secondary HART variables.

• Power Generation: Integrating intelligent instrumentation into burner management and boiler control systems.

• Water Treatment: Centralizing diagnostics for widely distributed intelligent sensors.
