Product Overview

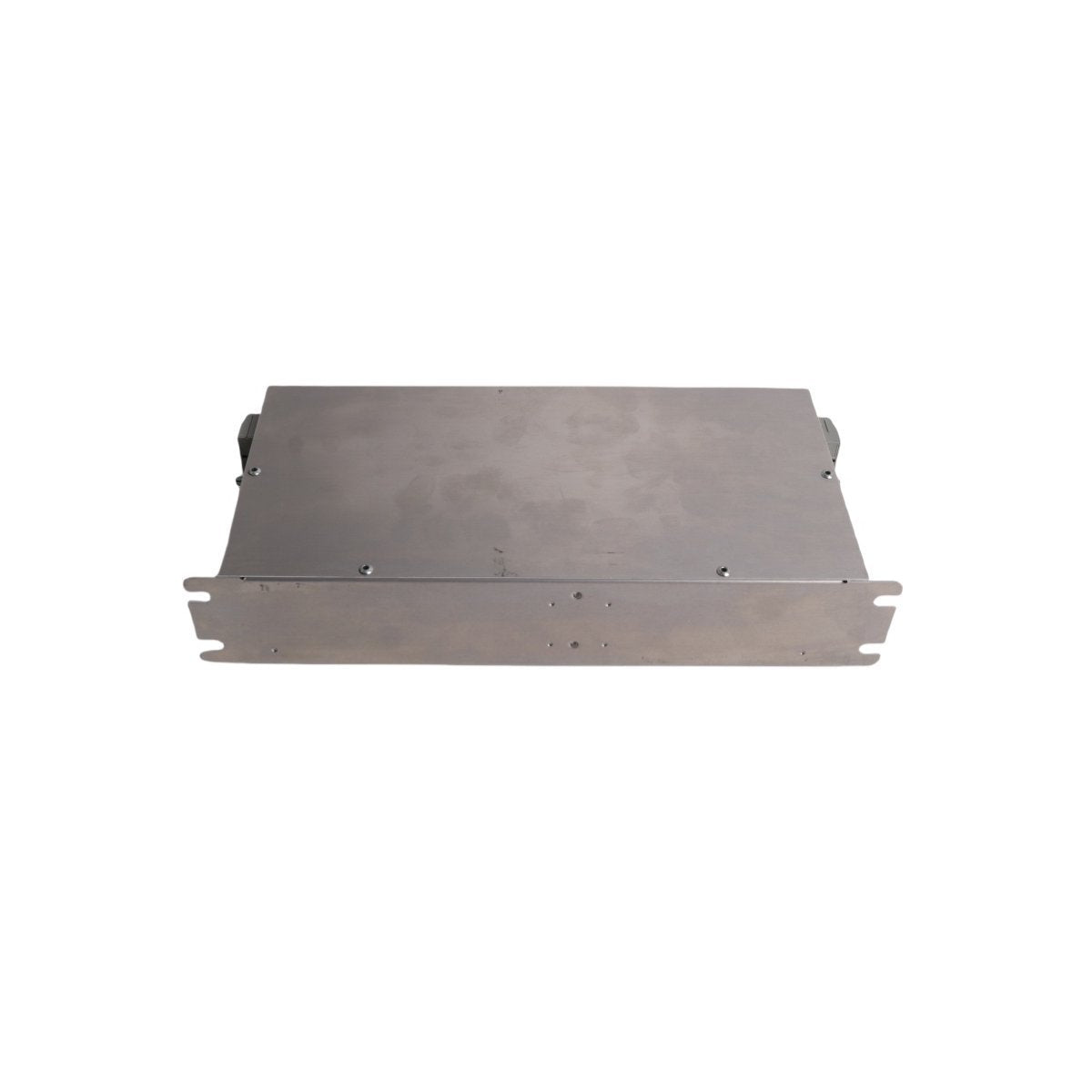

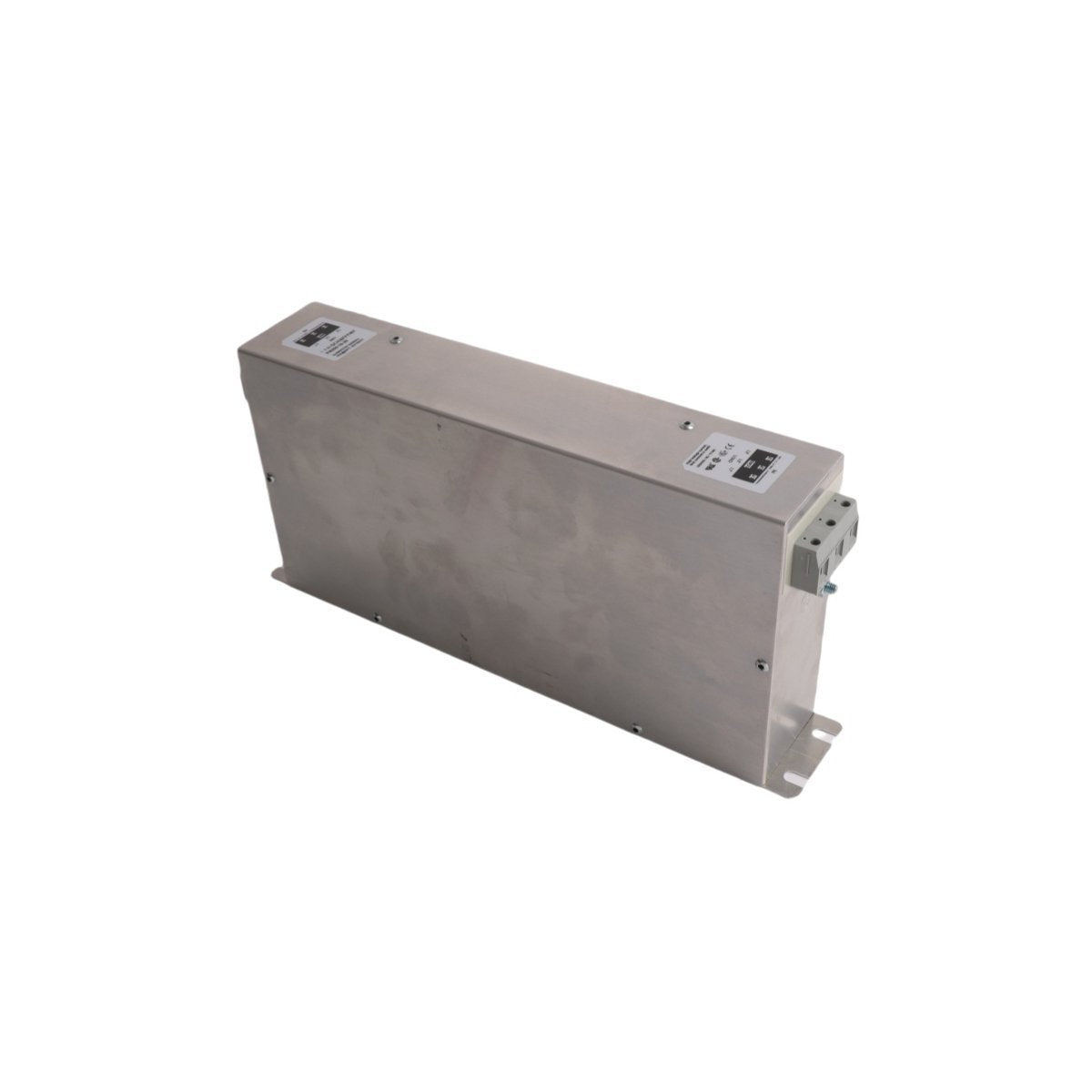

The ABB 3BHB011317R0001, also designated as the FN258-16/29, is a high-performance electromagnetic compatibility (EMC) filter engineered for three-phase industrial power systems. This specialized component is designed to mitigate conducted electromagnetic interference (EMI) generated by power electronics, such as variable speed drives and frequency converters. By attenuating high-frequency noise within the 150 kHz to 30 MHz spectrum, the FN258-16/29 ensures that sensitive control logic and automated instrumentation receive clean, stable power. Its robust Swedish engineering allows it to serve as a critical barrier, preventing electrical noise from polluting the mains supply and ensuring compliance with international EMC standards.

Hardware Parameters and Technical Specifications

The 3BHB011317R0001 is built to handle significant current loads and voltage fluctuations common in heavy-duty manufacturing environments.

• Order Code 3BHB011317R0001

• Model Type FN258-16/29

• Phase Configuration 3-Phase

• Rated Voltage 400 VAC to 480 VAC

• Rated Current Range 16 A to 29 A

• Operating Frequency 50/60 Hz

• Attenuation Range 150 kHz to 30 MHz

• Operating Temperature -25°C to +85°C

• Storage Temperature -40°C to +85°C

• Housing Material Durable industrial-grade metal enclosure

• Weight Approximately 2.82 kg (Shipping weight may vary)

• Dimensions 44.8 x 17.3 x 4.2 cm (Standard industrial footprint)

• Origin Sweden

Industrial Applications and Operational Use Cases

This EMC filter is an essential integration component for systems utilizing high-frequency switching power electronics.

• Variable Frequency Drives (VFD) Installed on the line side of AC drives to eliminate harmonic distortion and high-frequency interference that could disrupt nearby PLC communication or sensor accuracy.

• Servo and Motion Control Ensures precise synchronization in multi-axis robotic systems by protecting the power bus from transient noise generated during rapid motor acceleration and braking.

• Renewable Energy Systems Used in solar inverters and wind turbine converters to maintain power quality standards when feeding energy back into the localized grid.

• Industrial Automation Racks Provides a centralized noise suppression solution for DCS cabinets in chemical and textile plants where high-density electronics are susceptible to cross-talk.

• Medical and Laboratory Equipment Employed in large-scale diagnostic imaging or precision testing facilities where stable, interference-free power is mandatory for accurate results.
