Product Overview

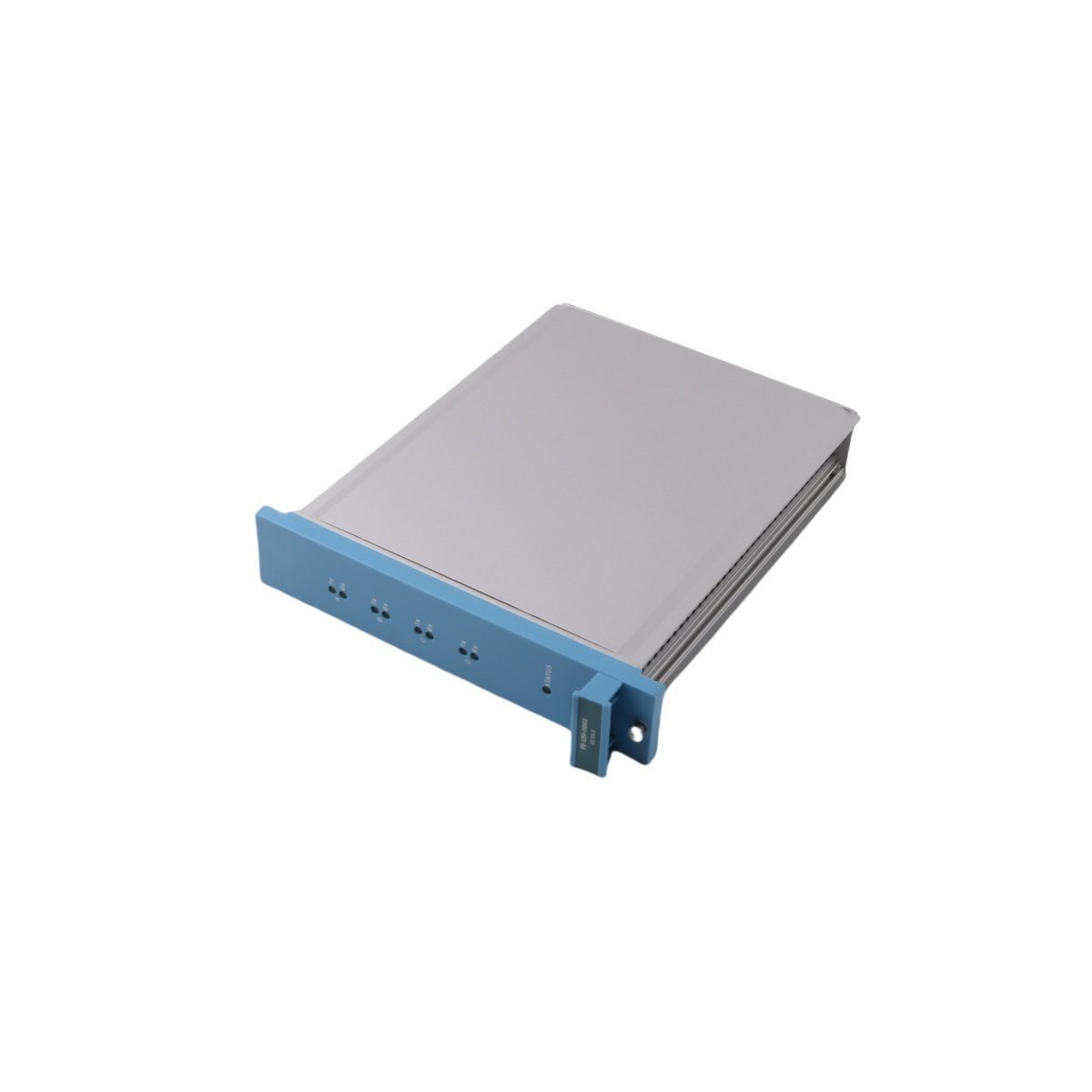

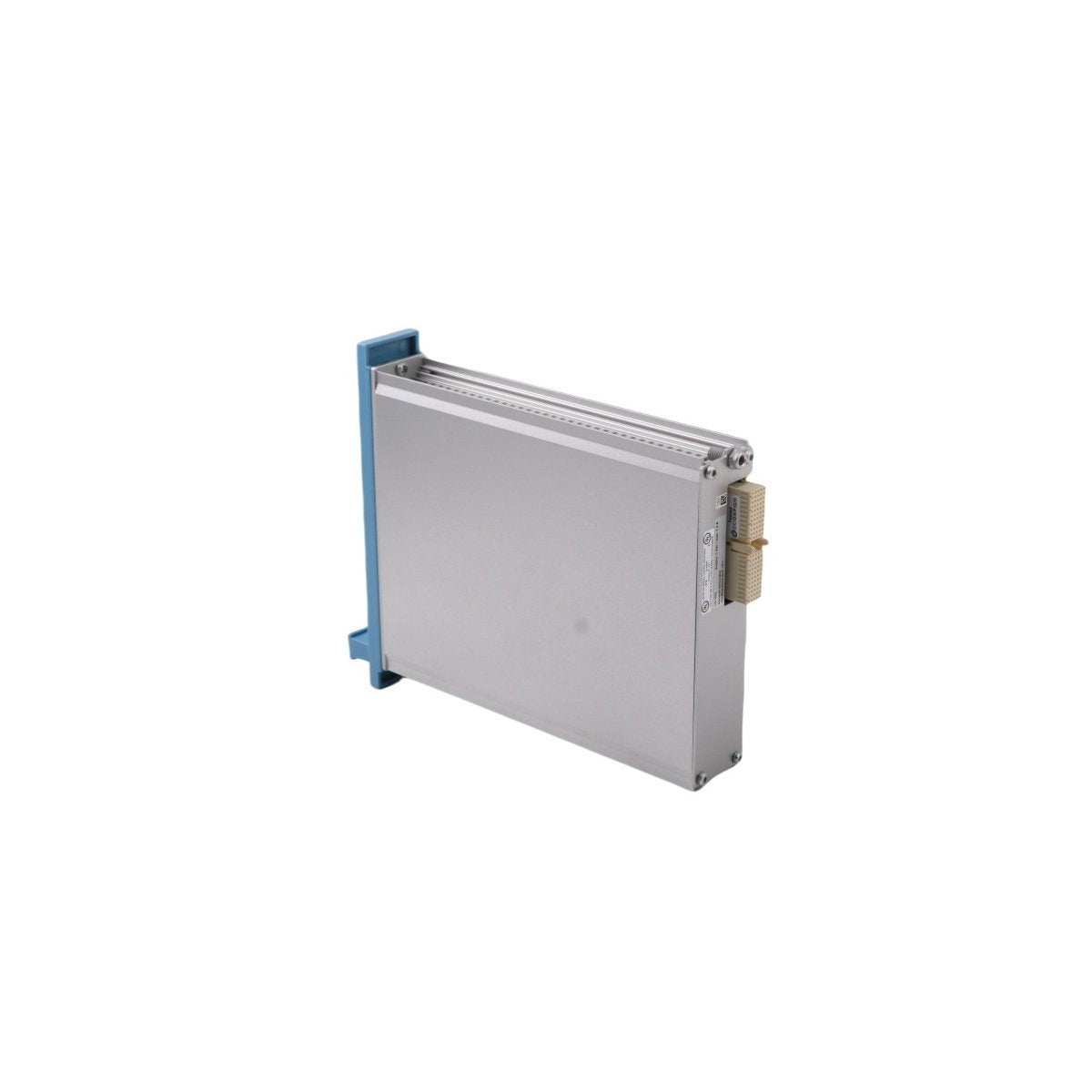

The Honeywell FE-USI-0002 is a sophisticated Universal Safety Interface developed for the Experion PKS platform, specifically tailored for high-stakes signal conditioning in safety-instrumented systems (SIS). This module serves as a versatile acquisition bridge, capable of interpreting a broad spectrum of low-level field signals—including thermocouples, RTDs, and millivolt inputs—and converting them into high-fidelity data for the DCS logic solver. By providing galvanic isolation and advanced noise suppression, the FE-USI-0002 ensures that process-critical measurements remain accurate and reliable, even in the presence of significant electromagnetic interference common in heavy industrial facilities.

Hardware Architecture and Functional Attributes

The FE-USI-0002 is engineered with a focus on environmental resilience and measurement precision, facilitating stable operation across extreme industrial conditions.

• Sensor Compatibility: Multivariable support for Thermocouples (Type J, K, T, E, R, S, B, N), RTDs (Pt100), and mV signals.

• Signal Accuracy: High-precision processing with 0.1% full-scale accuracy.

• Isolation Protection: Robust galvanic isolation to safeguard system electronics from field-side surges and ground loops.

• Environmental Rating: Ruggedized chassis meeting IP66 standards for dust and moisture resistance.

• Thermal Endurance: Rated for continuous performance in temperatures ranging from -40°C to +85°C.

• Output Interface: Isolated 4-20mA signal transmission for clean data uplink.

• Mounting Infrastructure: Standard DIN-rail compatible design for rapid cabinet integration.

• Physical Mass: 0.68 kg.

• Unit Dimensions: 3.5 x 22.7 x 17.5 cm.

• Customs Header: HS Code 8537101190.

Strategic Industrial Implementations

This universal safety interface is a primary choice for engineers managing critical monitoring loops in volatile or complex process environments.

• High-Integrity Thermal Monitoring: Acquiring precise temperature data from reactor skins or turbine bearings where thermal excursions require immediate safety interlock activation.

• Petrochemical Safety Loops: Providing reliable signal conditioning for pressure and temperature transmitters in explosive atmospheres where IP66 protection is mandatory.

• Power Plant Instrumentation: Managing a diverse array of sensor inputs across steam generation units, consolidating different signal types into a unified DCS interface.

• Chemical Batch Protection: Ensuring the accuracy of millivolt and resistance-based sensors to maintain strict safety parameters during exothermic reactions.

• Remote Field Asset Management: Utilizing the module's wide temperature rating to monitor critical variables at remote wellheads or pipeline stations without the need for climate-controlled enclosures.
