Product Overview

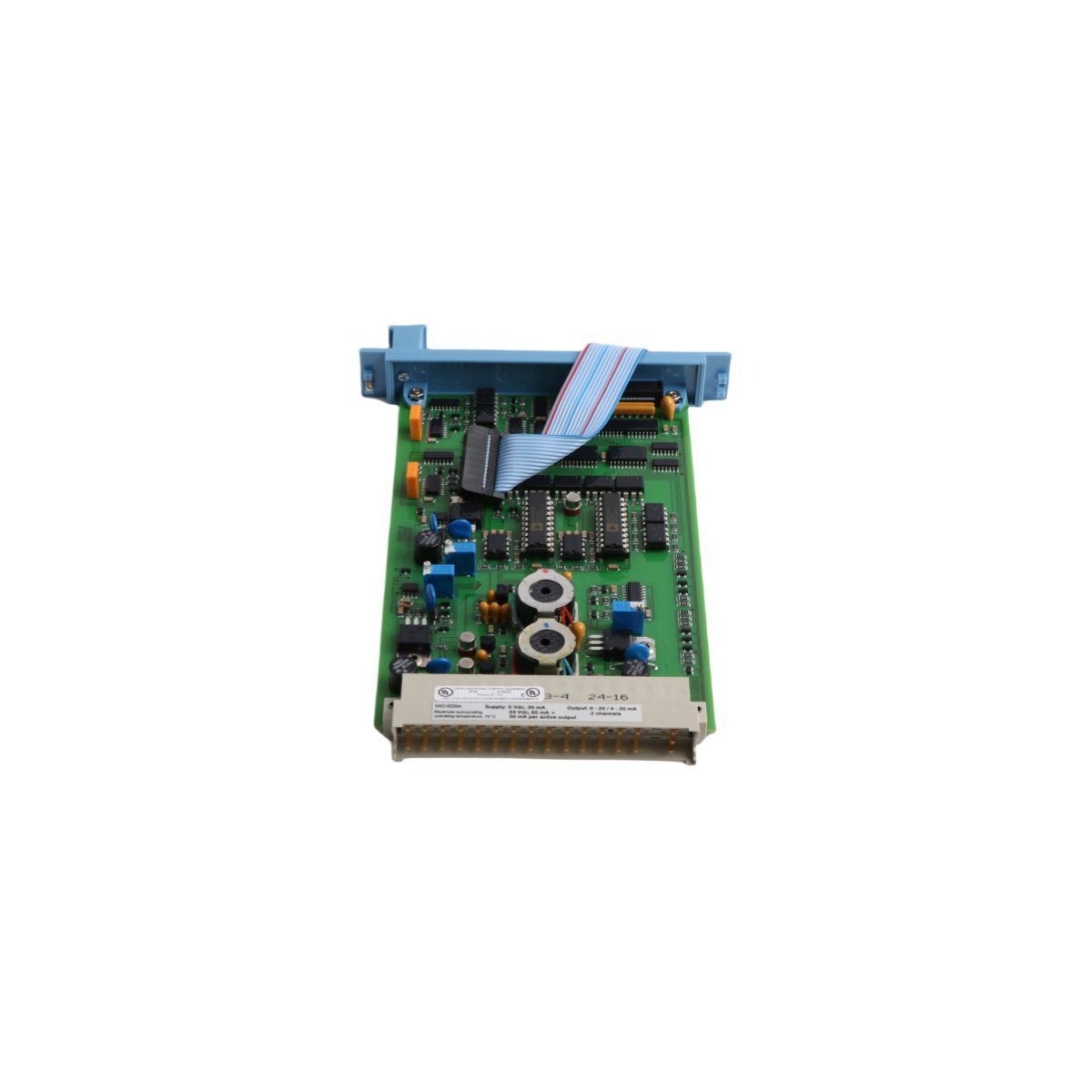

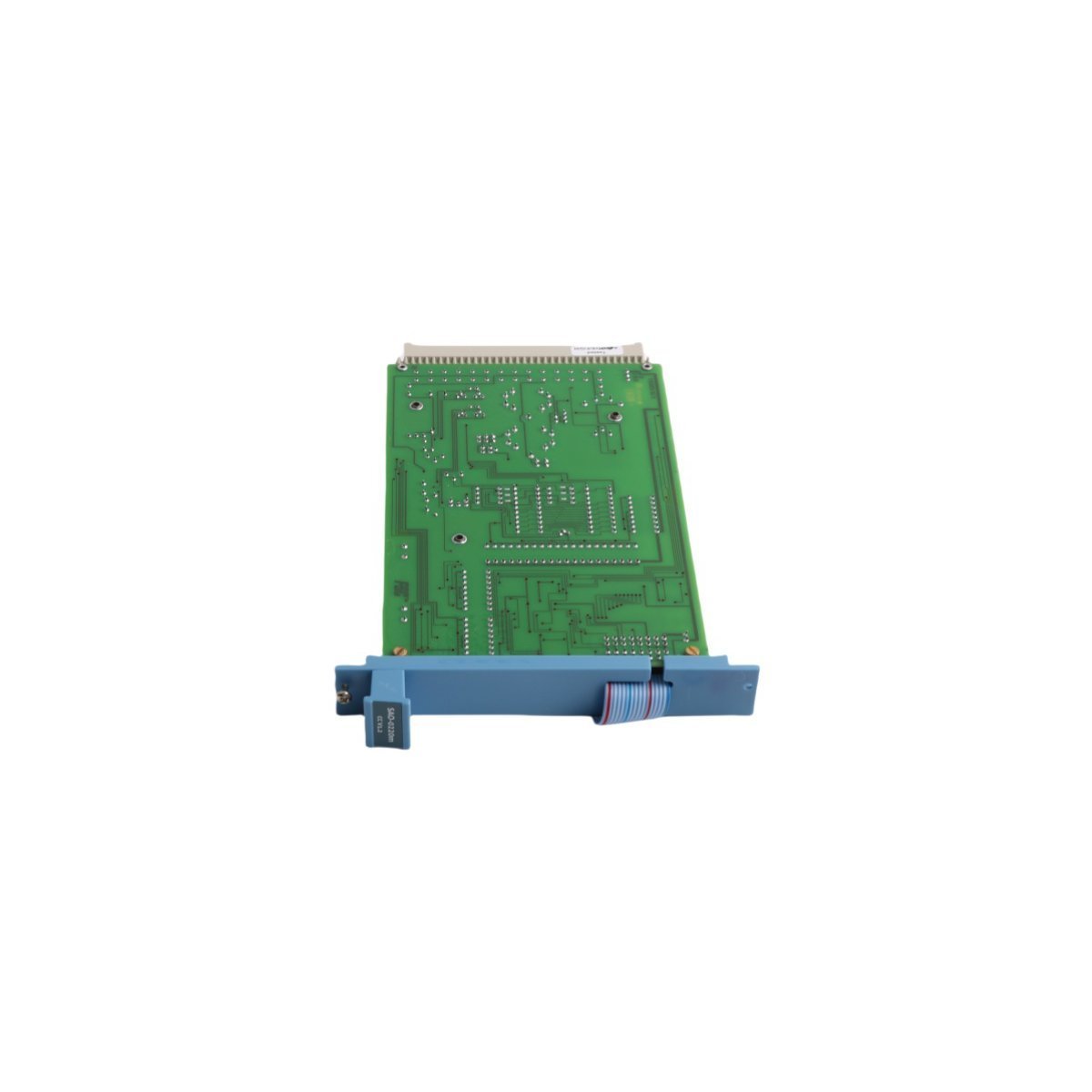

The Honeywell FC-SAO-022M is a high-integrity Analog Output (AO) module specifically engineered for Fail Safe Control (FSC) and Safety Manager environments. This module provides a mission-critical interface for modulating final control elements, such as control valves and variable speed drives, where the accuracy of the output signal is directly linked to plant safety. The FC-SAO-022M is designed to provide galvanically isolated, high-resolution current signals while performing continuous internal self-diagnostics. By ensuring that the commanded output matches the actual field voltage or current, this module prevents erratic actuator behavior, making it a foundational component for SIL-rated safety instrumented systems (SIS).

Technical Performance and Hardware Benchmarks

The FC-SAO-022M architecture focuses on long-term stability and fault tolerance, utilizing premium-grade semiconductor logic to handle demanding industrial duty cycles.

• Signal Output Type: Safe Analog Output (Standard 4-20mA current loops)

• System Ecosystem: Honeywell Safety Manager / FSC / SM Systems

• Reliability Metric: MTBF exceeding 100,000 operational hours

• Communication Interface: Compatible with RS-485 serial backplane protocols

• Safety Integrity: Designed for use in SIL-rated safety loops

• Electrical Protection: Integrated channel-to-channel galvanic isolation

• Fault Detection: Real-time monitoring for open circuits, short circuits, and output deviations

• Physical Mass: 0.16 kg

• Module Dimensions: 2 x 18.9 x 12.8 cm

• Country of Origin: USA

• Trade Classification: HS Code 8537101190

Mission-Critical Safety Deployments

This safe analog module is a prerequisite for heavy industrial operations where precise modulation of hazardous processes is non-negotiable.

• Control Valve Positioning: Regulating the precise aperture of fuel gas or reagent feed valves in high-pressure refinery environments.

• Safety Instrumented Systems (SIS): Acting as the final control interface for emergency modulation in chemical reactor cooling loops.

• Turbine Speed Regulation: Providing stable 4-20mA signals to electronic governors for speed control in power generation assets.

• Burner Management Systems (BMS): Coordinating the modulation of combustion air and fuel ratios in utility-scale industrial boilers.

• High-Availability Infrastructure: Serving as a reliable, brand-new replacement for legacy FSC cards to maintain system certification and operational uptime.
