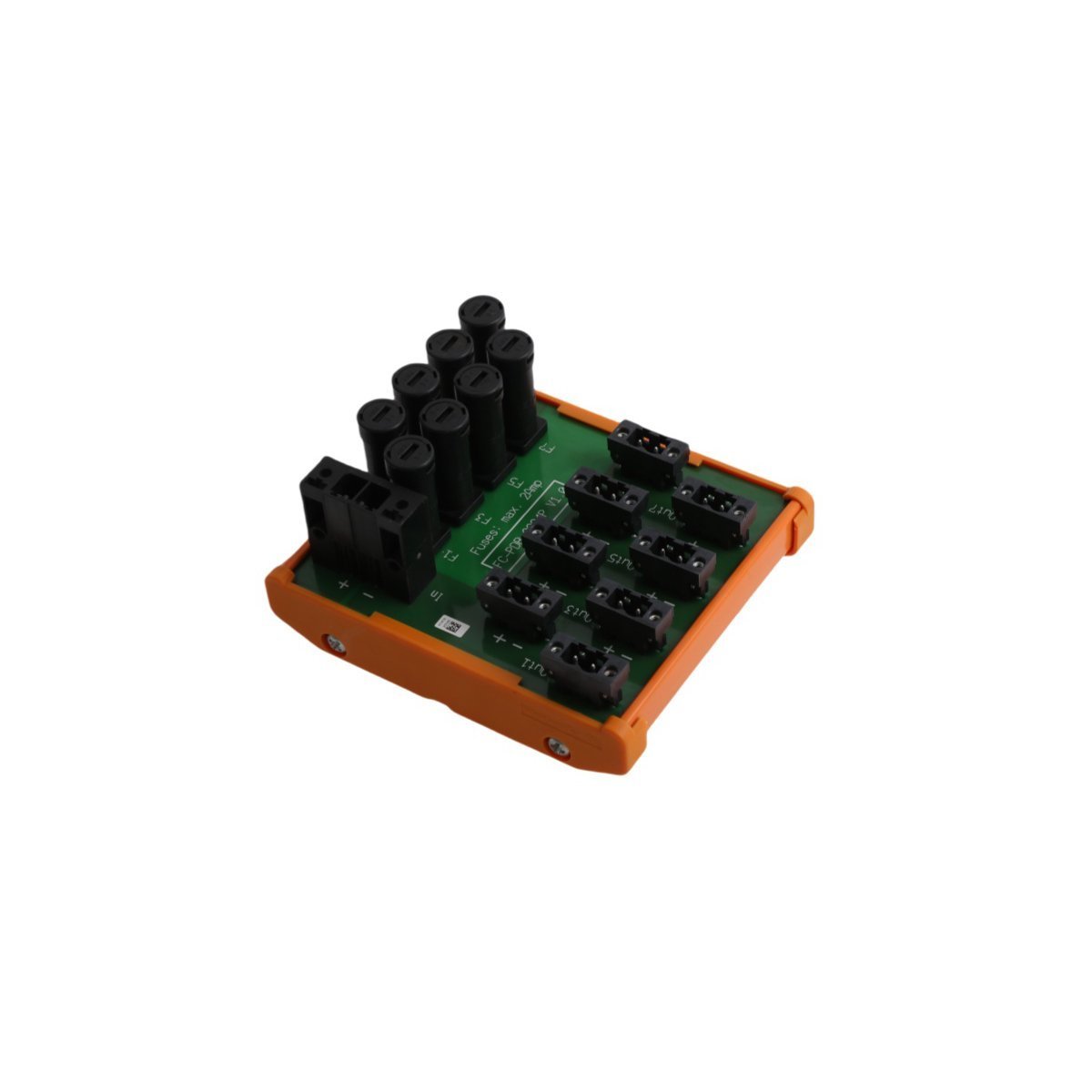

Product Overview

The Honeywell FC-PDB-IO05 is a high-integrity power distribution interface specifically engineered for the Honeywell Safety Manager (SM) platform. This board functions as the central electrical backbone for I/O module clusters, facilitating the organized and stable delivery of power across the safety system backplane. Designed to meet the rigorous demands of Safety Instrumented Systems (SIS), the FC-PDB-IO05 ensures that critical control logic and field sensing circuits receive consistent voltage, which is essential for maintaining SIL-rated safety loops.

This distribution board is optimized for cabinet-level installation, providing a consolidated termination point for power routing. Its mechanical and electrical design focuses on minimizing potential points of failure, ensuring that the safety system remains operational even in high-vibration or thermally fluctuating industrial environments.

Key Technical Characteristics

• Centralized Power Routing: Efficiently bridges primary power sources to multiple I/O modules, streamlining cabinet internal wiring and improving system serviceability.

• Specialized Connectivity: Features a dedicated 4-position 5V action pin header and an 8-pole WdPx pin header to support specific Safety Manager communication and power requirements.

• Standardized Mounting: Fully compatible with DIN EN rails, including TS32 and TS35 × 7.5 profiles, requiring a dedicated rail length of 171 mm (6.73 inches) for secure installation.

• Rigorous Safety Certifications: Holds multiple international industrial approvals including CE, UL, TUV, and CSA, ensuring the board meets global standards for electromagnetic compatibility and functional safety.

• Robust Form Factor: Designed for longevity in demanding DCS environments, with a construction that balances a compact footprint with the durability needed for heavy-duty industrial racks.

• System Integration: Purpose-built for the Honeywell Safety Manager range, ensuring perfect electrical impedance matching and physical alignment with existing SM hardware.

Technical Specifications

• Manufacturer: Honeywell

• Model Number: FC-PDB-IO05

• Product Series: Safety Manager

• Module Type: Power Distribution Board (PDB)

• Mounting Compatibility: DIN Rail TS32 / TS35 x 7.5

• Required Rail Length: 171 mm

• Connectivity: 4-pos 5V header, 8-pole WdPx header

• Weight: 0.45 kg

• Dimensions: 24 x 18.8 x 6.5 cm

• HS Code: 8537101190

• Country of Origin: USA

Industrial Application Areas

• Safety Instrumented Systems (SIS): Providing reliable power distribution for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

• Critical Process Control: Powering I/O modules in high-availability environments like offshore platforms and petrochemical refineries.

• Redundant Power Architectures: Serving as a distribution node in safety systems where power reliability is a prerequisite for operational uptime.

• Burner Management Systems (BMS): Ensuring stable voltage for logic solvers and flame scanners in utility and industrial boilers.
